Quick Answer

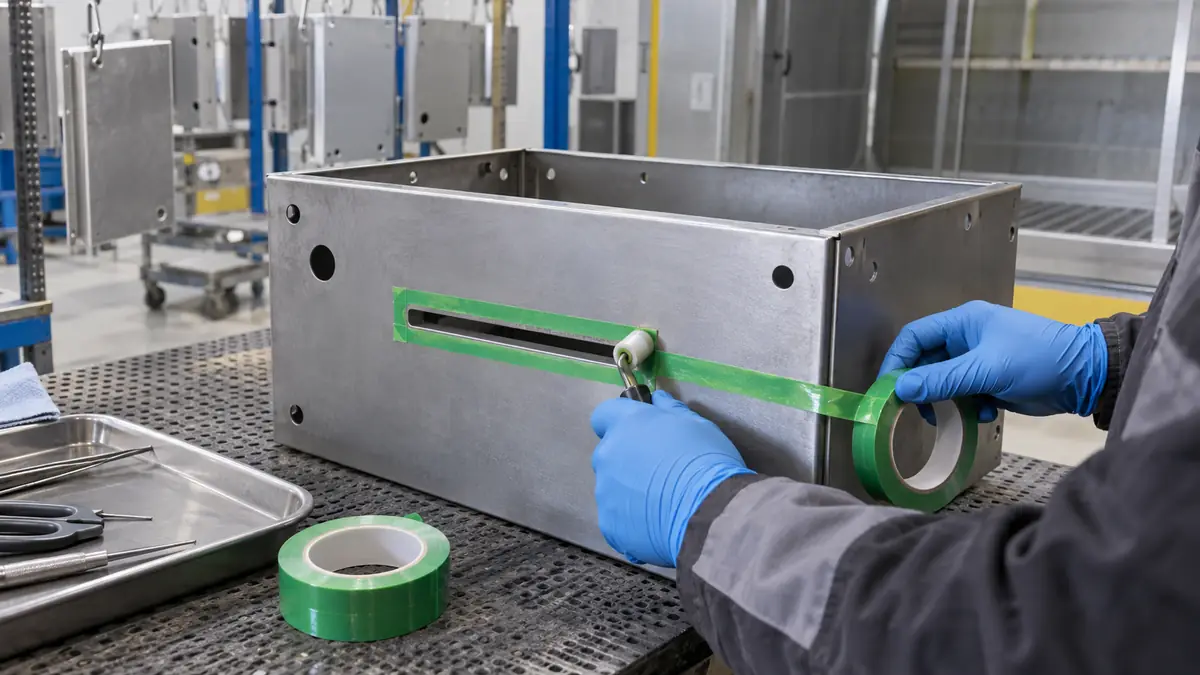

Use PET silicone masking tape only when the product drawing and coating plan identify the exact drain slot, vent, weep opening, or access cutout that must remain free of cured powder. Define whether the tape covers the full opening, protects only a perimeter land, or works with a plug or reusable insert. Keep the adhesive fully supported, avoid stretching the film across the slot, and verify the opening after removal.

Define the Drain-Slot Requirement

An enclosure opening may drain condensation, provide ventilation, allow pressure equalization, pass a cable, or support a service feature. Those functions do not share one masking boundary. A drainage path may need the slot throat and lower lip completely clear, while a cosmetic vent may allow coating inside part of the cut edge. The drawing owner should define the no-coat area, edge tolerance, and permitted bare metal before the operator chooses a tape width.

Inspect the real sheet-metal feature. Laser-cut burrs, stamped lips, weld spatter, formed returns, nearby fasteners, and corner radii can prevent full adhesive contact. Tape that bridges an unsupported gap can sag or recover under heat. Tape pressed into a sharp edge can tear during removal. Correct the hardware or choose a fitted mask rather than asking pressure-sensitive film to compensate for uncontrolled geometry.

Select the PET Silicone Tape Construction

PET backing and dimensional control

PET film offers a thin, stable masking face and a clean visible boundary. Backing thickness affects handling, corner conformity, puncture resistance, and the step at the coating edge. A thicker film can be easier to place across a long straight feature, but it can resist tight corner turns. A thinner film follows gentle geometry more readily but may tear at a burr or unsupported edge.

Silicone adhesive and heat history

The adhesive must wet out the actual metal or pretreatment surface and remain compatible with the approved thermal cycle. Record the part temperature at the bond line rather than relying only on the oven setting. Extended dwell, delayed removal, contamination, repeated handling, and an incompatible surface treatment can change peel behavior or residue risk.

Width, liner, and traceability

Choose a width that provides supported contact around the opening without covering unrelated surfaces. For repeated parts, a liner-backed die cut can control outer shape, corner radius, orientation, and pull tab. Specify the product code, total thickness, liner, slit width or die-cut drawing, lot identity, storage conditions, and change-control rules.

Design the Mask Around the Slot

Keep the adhesive on solid metal. If the tape must cross the opening, support it with a fitted insert or use a die-cut construction designed for the span; do not push adhesive into the slot where it can fold, collect pretreatment liquid, or leave residue on an inaccessible edge. Rounded external corners reduce snagging, while adequate edge margin gives the adhesive a continuous land for contact.

Place seams away from the lowest drainage point and away from the direct spray path when the part design allows. A butt joint avoids double thickness but can open. An overlap improves continuity but creates a raised step and an additional powder bridge. Document the chosen detail, orientation, and removal tab instead of leaving them to individual operators.

Controlled Masking Workflow

1. Confirm the released drawing. Identify the opening function, no-coat boundary, and acceptance method.
2. Inspect the slot. Check burrs, sharp corners, weld spatter, oil, rust, and dimensional damage.
3. Prepare the surface. Follow the approved cleaning and drying method without contaminating the bond land.
4. Position from a datum. Use the slot edge, a fixture, or a defined reference instead of visual centering alone.
5. Apply without stretch. Keep the PET film relaxed and the adhesive supported on solid metal.
6. Burnish the perimeter. Use controlled pressure at edges, radii, joints, and transition points.
7. Inspect before coating. Verify coverage, slot clearance, seam orientation, wrinkles, and pull access.
8. Run the qualified cycle. Include normal pretreatment, handling, spray direction, cure, and cooling.
9. Remove by the approved method. Peel at the released stage without sharp tools that damage the coating.
10. Verify the opening. Check coating edge, residue, loose film, clearance, drainage, and final function.

Validate the Complete Coating Process

Use production-representative enclosures, the actual tape construction, the narrowest approved contact land, realistic slot variation, normal handling, the longest qualified thermal exposure, and the real removal delay. Include both nominal parts and credible extremes such as the smallest radius, roughest acceptable cut edge, and most difficult operator access.

Troubleshoot Drain-Slot Masking Defects

Powder under the mask can result from incomplete cleaning, a burr that holds the film away, insufficient perimeter pressure, a seam facing the spray, or stored tension from stretching. Residue may involve the adhesive grade, surface treatment, thermal history, removal delay, or peel method. A blocked slot can come from a sagging unsupported patch, powder bridging across the opening, or liner and tape fragments left after removal.

Do not simply increase tape width or adhesion. A wider mask can expose too much bare metal, and higher peel can chip the coating or slow removal. Return to the drawing, inspect the edge geometry, control the datum and pressure, and compare a converted patch or reusable insert when hand-applied strips cannot maintain the boundary.
