Quick Answer

ACF bonding uses a thermode or hot bar to apply controlled heat and pressure while an anisotropic conductive film forms the specified interconnection. Some equipment configurations use an approved interposer, release strip or protected tooling surface. When a PTFE-coated glass-cloth tape is selected for that role, it becomes part of the thermal and mechanical process stack. Its thickness, surface, backing, adhesive, placement and wear state can all influence the result.

Define the Release Interface

Start with a cross-section of the complete bond stack. Identify the thermode, any interposer or release layer, flex circuit, ACF, glass or PCB substrate, lower support, compliant pad and fixture datums. The drawing should show which material moves with each cycle, which surface is replaceable and which faces must remain free of adhesive or debris.

The desired function may be preventing cured resin from reaching a tooling face, isolating a permitted sliding surface, protecting a lower support or presenting a replaceable wear layer. These functions are not interchangeable. A tape added directly beneath the thermode can affect heat transfer and pressure; a tape on external tooling may not. Document the actual position before sourcing material.

Select the PTFE Tape Construction

PTFE-coated backing and surface

PTFE-coated glass-cloth tapes combine a reinforced backing with a low-stick outer surface. Compare finished thickness, weave print-through, surface smoothness, dimensional stability, edge quality and flex life at the intended bend or feed path. A visibly similar brown tape is not an engineering specification.

Adhesive and mounting surface

If the construction is adhesive-backed, confirm where the adhesive contacts the machine and whether it can remain stable through repeated cycling and removal. Adhesive must not squeeze into the bond zone, transfer to the thermode or contaminate the flex, glass, PCB, cameras or fixture datums. Some systems may require a nonadhesive interposer rather than tape.

Width, seams and converted format

Specify the covered face, edge clearance, cut length, corners, splice prohibition or approved joint position, liner and packaging. A seam beneath the active bond area can create a step. Oversized material can interfere with vision, clamps, sensors or cooling. Converted strips can add repeatable geometry, but the die-cut edge must stay clean.

Design Around Heat, Pressure and Alignment

Added thickness can change the distance between the thermode and fixture stop, local compliance and the time required for the bond interface to reach its qualified condition. The process owner should verify the actual interface response using the equipment’s approved calibration and product-validation methods. Do not compensate for an unknown layer by arbitrarily raising temperature, time or force.

Keep the active zone free from folds, bubbles, doubled tape, frayed edges and uncontrolled seams. Provide a replacement datum so technicians can position the strip without covering alignment marks or optical paths. If an automatic tape-interposer module is used, define roll orientation, pitch, feed length, tension, used-material take-up and end-of-roll detection.

Controlled Installation and Change Workflow

1. Lock out the station. Follow the equipment owner’s safe maintenance state before reaching the tooling.
2. Confirm the released build. Match tape or interposer code, width, orientation, revision and change instruction.
3. Inspect the tooling. Check flatness, contamination, damage, sensors and fixture datums.
4. Remove the used interface. Prevent fragments and adhesive from entering the bond or motion area.
5. Clean only as approved. Use the released method; protect thermocouples, coatings and optical surfaces.

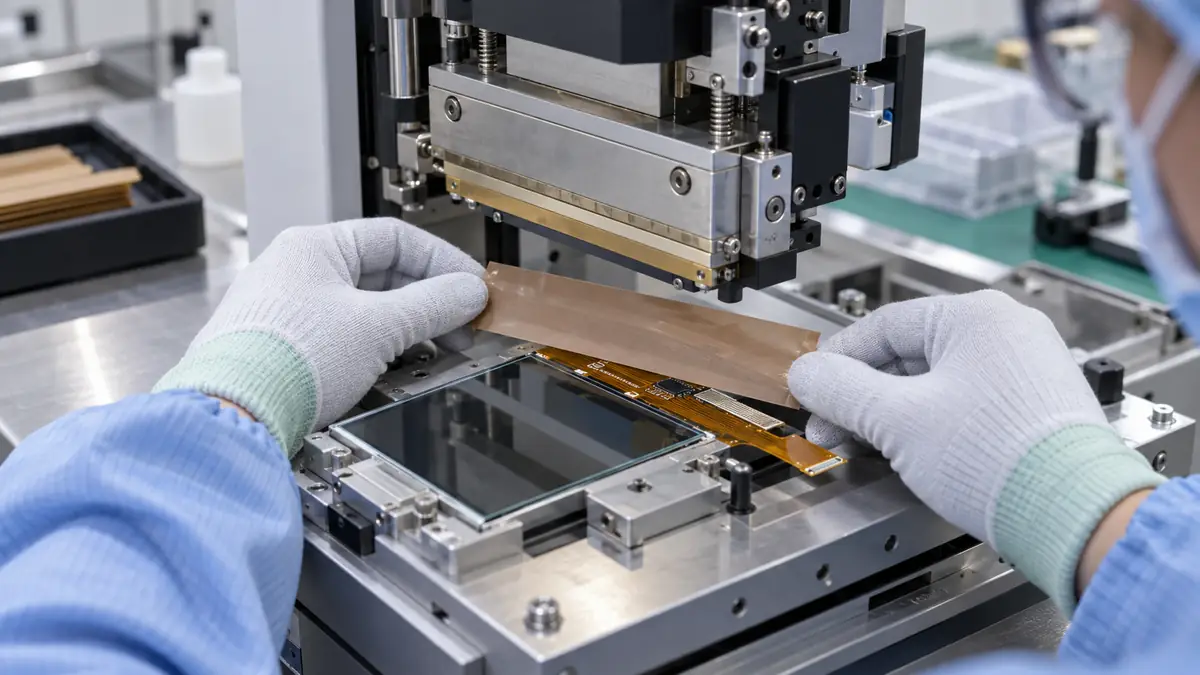

6. Install from a datum. Apply the strip flat, without stretch, trapped air or an active-zone seam.
7. Verify clearances. Check clamps, vision, cooling, sensors, travel and part access.
8. Run the qualification check. Complete the approved warm-up, setup sample and profile or bond verification.
9. Inspect production evidence. Monitor impressions, alignment, resin transfer and electrical/mechanical results.
10. Record the change. Trace material lot, installation time, cycles or inspection trigger and disposition.

Validate the Complete ACF Bonding Process

Validation should use the actual machine, thermode, feedback method, fixture, PTFE construction, ACF, flex, substrate, alignment method and product geometry. Include new and aged release material, the approved change limit, credible placement variation and the longest planned production run between inspections. Bond quality must be assessed by the product owner’s electrical, mechanical, visual and reliability plan.

Diagnose Release-Interface Defects

A repeating pressure mark can indicate a seam, wrinkle, trapped debris, weave imprint or damaged tooling. Resin on the thermode may result from a shifted interface, insufficient coverage, a process excursion or an ACF handling issue. Alignment drift can involve fixture support, material drag, interposer tension, camera obstruction or flex movement rather than the PTFE surface alone.

Do not extend the change interval solely because the tape still looks brown and intact. Define inspection triggers tied to the process: surface damage, loss of smooth feed, contamination, an abnormal impression, profile change or product-test trend. Preserve failed material and process records before cleaning the station.
