Transparent Polyester Silicone Tape
– Thickness (mm): 0.04 | 0.045 | 0.05 | 0.055 | 0.06 | 0.065 | 0.07 | 0.075 | 0.08 | 0.085 | 0.09 | 0.1 | 0.13 | 0.15 | 0.18 | Custom
– Width (mm): From 1mm to 1070mm | Custom
– Length (m): 33 | 50 | 66 | 100 | Custom
– Core Diameter(mm): 25 | 32 | 38 | 76 | Custom
– Adhesives: Polyester Acrylic Tape｜Polyester Adhesive Tape
– Packing: Label | OPP Bag | PVC Box | Carton | Custom
– Related Process: Release Liner | Die Cutting | Custom
– Supply Capability：Jumbo roll supply｜Log roll supply｜Slitted roll converting｜Die-cut converting service
– Sample: Free sample
– Manufacturer: JIAO TAO TAO
Kind Reminder: This product can be customized according to any needs - please contact the purchasing manager
Transparent Polyester Silicone Tape

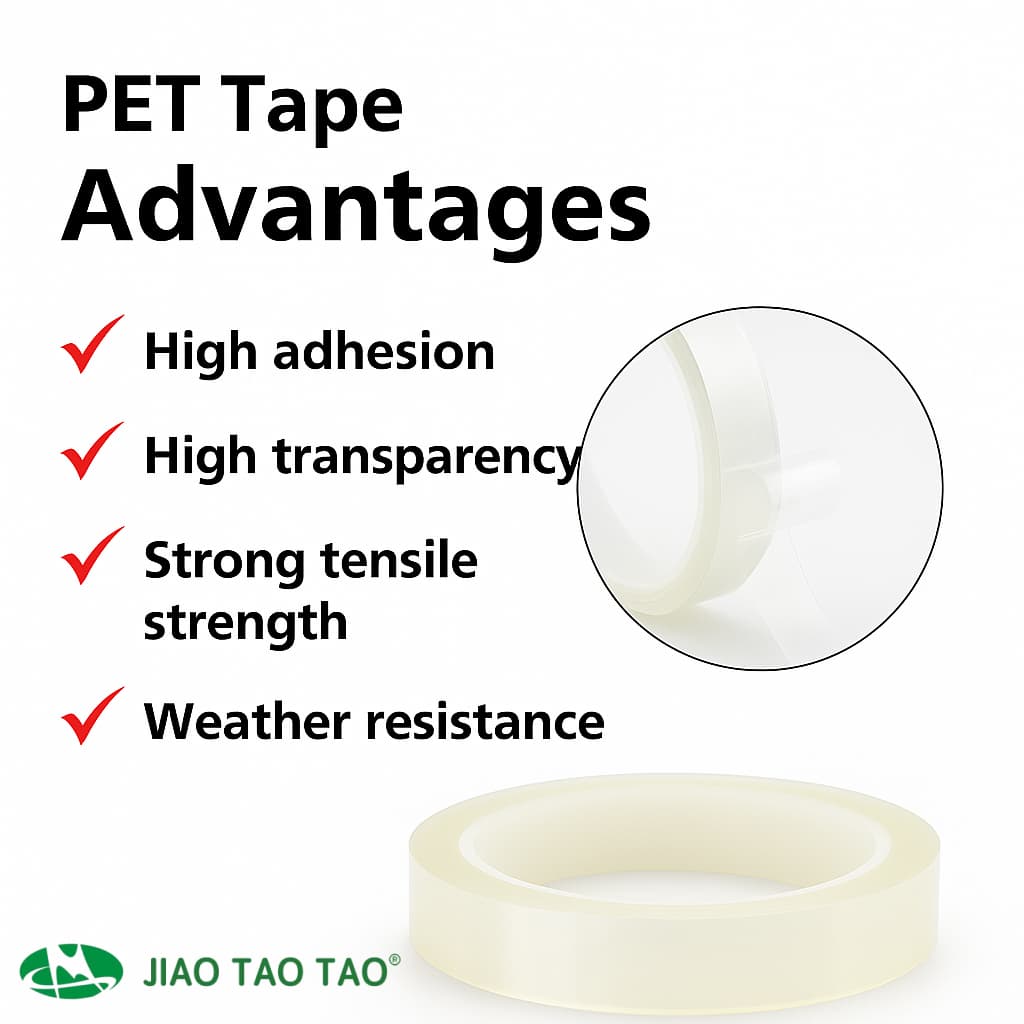

Transparent Polyester Silicone Tape is a high temperature PET film tape coated with silicone adhesive. It is designed for masking, electrical insulation, film splicing, and surface protection in electronics, powder coating, plating, and industrial processing applications. Available in multiple thicknesses from 0.04 mm to 0.18 mm, with custom roll size, release liner, and die-cutting options.
What Is Transparent Polyester Silicone Tape?
Transparent Polyester Silicone Tape is a single-sided industrial adhesive tape made from polyester film (PET film) coated with silicone adhesive. It combines high temperature resistance, electrical insulation, dimensional stability, and clean removal performance.
Because the backing is transparent, this tape is suitable for applications where positioning visibility,accurate masking, and surface observation are required during production. It is commonly used in electronics manufacturing, powder coating, solder masking, insulation wrapping, and film splicing processes.
Transparent Polyester Silicone Tape Model List
Product Introduction
Core Advantages
- High temperature capability
Suitable for industrial processes involving elevated temperatures, including masking, soldering protection, and coating operations. - Transparent backing for precise work
The transparent PET film helps operators align the tape more accurately during application, especially in electronics and fine masking processes. - Clean removal performance
The silicone adhesive system is suitable for applications where residue control and stable removal performance are important. - Electrical insulation function
Polyester film provides reliable insulation performance for many electrical and electronic manufacturing environments. - Flexible converting options
This product can be supplied in log rolls, slit rolls, or die-cut formats according to customer processing requirements.
Typical Applications
- PCB wave soldering and reflow solder masking
- Powder coating and paint line high temperature masking
- Electrical insulation wrapping for coils, transformers, and components
- Film and release liner splicing
- Electroplating and surface treatment masking
- Battery pack insulation and electronic component protection
- General industrial surface protection in heat processing environments
Product Advantages
- Polyester film backing for stable mechanical strength and dimensional stability
- Silicone adhesive system for high temperature resistance and clean removal
- Transparent appearance for accurate alignment and visual positioning
- Good electrical insulation for electronic and electrical applications
- Wide thickness options for different masking and protection needs
- Suitable for die cutting and release liner processing
- Custom roll width, length, and packaging available
Customized Service
1. Size Customization
- Width customization
- Length customization
- Roll diameter customization
- Core size customization
2. Material / Structure Options
- Release liner option
- Different thickness selections
- Custom die-cut parts
- Sheet or roll format
3. Packaging Customization
- Label
- OPP Bag
- PVC Box
- Carton
- Custom packaging
4. Supply Capability
- Jumbo roll supply
- Log roll supply
- Slitted roll converting
- Die-cut converting service
FAQ — Transparent Polyester Silicone Tape
Q1 | What is Transparent Polyester Silicone Tape used for?
It is mainly used for high temperature masking, electrical insulation, film splicing, and industrial surface protection.
Q2 | What is the advantage of transparent polyester tape?
The transparent film allows better visual positioning and alignment, which is useful in precision masking and electronics applications.
Q3 | Is this tape suitable for high temperature environments?
Yes. This product is designed for -40°C to 230°C applications, with higher temperature customization available depending on project needs.
Q4 | Can this tape be used for PCB masking?
Yes. It is suitable for PCB solder masking, insulation, and electronic component protection where heat resistance and clean removal are required.
Q5 | Do you offer die-cut parts?
Yes.Release liner, die cutting, and custom converting are available based on customer drawings or application requirements.
Q6 | What thickness options are available?
Standard thicknesses include 0.04 mm to 0.18 mm, and custom specifications can also be supplied.
Q7 | Can you provide OEM packaging?
Yes. We support Label, OPP Bag, PVC Box, Carton, and Custom packaging for OEM and distribution orders.
Q8 | Are free samples available?
Yes. Free samples available; express shipping cost covered by the buyer. Contact us via WhatsApp or email to request.
Q9 | What payment methods do you accept?
T/T, PayPal, and L/C. Global shipping via DHL, UPS, FedEx, or TNT — delivery in 5–8 business days.
Need help choosing the right industrial tape?
Send us your application details, including temperature, surface material, size, quantity and current problem. Our team will help recommend a suitable tape material or custom die-cut solution.
