Preventing Acetate Cloth Tape Edge Lift After Varnish Cure

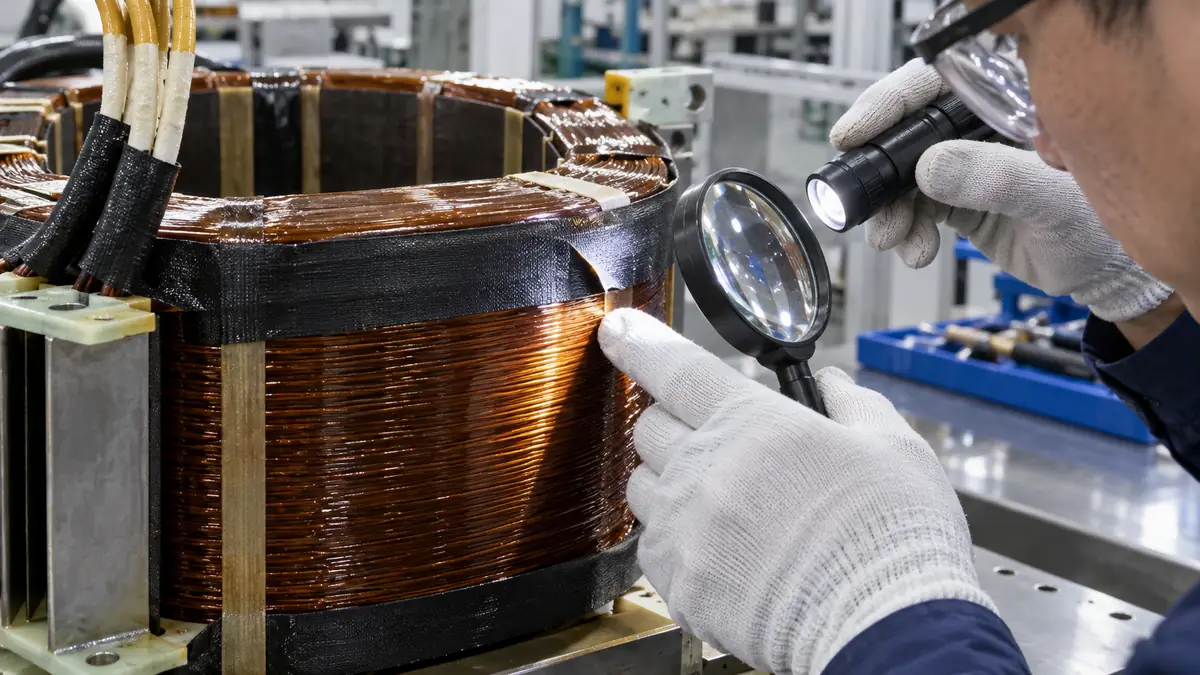

Acetate cloth tape edge lift after varnish cure is rarely solved by choosing a “stronger” tape alone. The defect can come from surface condition, tape construction, seam location, wrap tension, overlap, varnish chemistry, drainage, cure restraint, or movement at a lead exit. A controlled investigation separates those causes before production changes are released.
Quick Answer
Begin at the exact location and time where the edge first moves. A seam that lifts before impregnation points toward surface preparation, application pressure, tape age, wrap tension, or seam geometry. A seam that remains flat when wet but rises during cure may involve adhesive compatibility, backing shrinkage, varnish flow, drainage, thermal expansion, fixture release, or movement in the winding and leads.
Map When and Where the Edge Lifts
Record whether the defect appears at the start tab, final overlap, bobbin corner, coil radius, lead exit, stacked seam, housing contact, or free span. Then map the process stage: immediately after wrapping, after handling, during impregnation, after drain, during the heat ramp, at peak cure, during cooling, or after final assembly.
Edge lift is a symptom. The driving force may come from a bent cloth backing, stored wrap tension, a sharp radius, a springing lead, swelling or softening at the adhesive interface, varnish trapped under an overlap, or a surface that was never suitable for pressure-sensitive adhesion.
| First observation | Likely check area | Evidence to collect |
|---|---|---|
| Lift immediately after wrapping | Tack, contamination, pressure, radius, seam length | Surface photos, tape age, operator method, dwell time |
| Lift after varnish wetting | Chemical compatibility, wicking, trapped liquid, drainage | Varnish lot, viscosity record, immersion and drain timing |
| Lift during heat ramp | Adhesive softening, stored tension, differential movement | Part temperature, fixture condition, edge direction |
| Lift during cooling | Shrinkage, lead movement, fixture release, seam stress | Cooling profile, clamp release time, component dimensions |
| Lift after housing insertion | Excess build, abrasion, seam orientation, interference | Finished envelope, insertion force, contact marks |
Check the Tape and Material Interfaces
Confirm the exact tape construction
Acetate cloth tapes differ in weave, backing weight, finish, adhesive family, coat weight, thickness, liner, storage life, and approved uses. Identify the product code and lot; do not treat every black cloth tape as equivalent. Review the current technical and compliance documents for the construction actually supplied.
Recreate the real surface history
A magnet-wire enamel, bobbin resin, barrier film, previous insulation layer, or cured varnish may have mold release, lubricant, dust, moisture, or handling contamination. Qualification coupons should use production materials with the same cleaning, drying, storage, and aging history as the coil.
Evaluate tape, varnish, and cure together
Initial room-temperature adhesion cannot predict the final system. Observe whether the backing wets uniformly, the adhesive moves, the cloth hardens or softens, bubbles form, color transfers, varnish remains trapped, or the edge releases after heat. Any substitution in tape or varnish requires controlled review.
| Material input | What to record | Why it matters |
|---|---|---|
| Tape | Product code, lot, width, thickness, adhesive, storage | Defines the tested construction and traceability |
| Coil surface | Wire enamel, bobbin, barrier, cleanliness, dryness | Controls initial and post-cure adhesion |
| Varnish or resin | Chemistry, lot, condition, viscosity control, additives | May wet, swell, soften, or displace the interface |
| Thermal cycle | Part temperature, ramp, dwell, cooling, repeat cycles | Creates expansion, flow, cure, and shrinkage forces |
| Downstream assembly | Housing fit, potting, clamp, vibration, lead movement | Can reopen a marginal seam after cure |
Design a Stable Seam and Wrap Path
Place the final seam on a broad, supported, accessible surface whenever the component allows it. Avoid ending directly on a tight radius, sharp bobbin corner, moving lead, deep step, or maximum-diameter contact. Define start position, wrap direction, tape width, overlap, layer count, tension, seam length, pressure, and allowed edge position on the drawing or work instruction.
Excessive tension can appear helpful during wrapping but stores recovery force in the cloth and adhesive. Too little tension may allow wrinkles and trapped varnish. Establish an application method with controlled pull and firm seating pressure, then measure the finished winding envelope instead of relying on operator feel.
Structured Edge-Lift Investigation Workflow
- Quarantine the evidence. Preserve affected coils, tape rolls, varnish, photos, and process records.
- Locate the first lift. Mark edge direction, seam position, component feature, and process stage.
- Verify materials. Check tape and varnish codes, lots, storage, expiry, and approved revisions.
- Compare surfaces. Inspect contamination, enamel, bobbin, barriers, drying, and handling.
- Rebuild the wrap. Record width, overlap, tension, pressure, seam location, and finished build.
- Run staged inspections. Check before varnish, after wetting, after drain, during cure, and after cooling.
- Change one factor. Use a controlled trial matrix instead of changing tape, tension, and cure together.
- Validate the assembly. Complete dimensional, electrical, mechanical, thermal, and functional checks.
Validate More Than the Visible Edge
A flat seam is necessary only if the released design requires it; it is not proof that the insulation system is acceptable. Qualification should use representative winding builds, operators or machines, tape and varnish lots, cure positions, fixtures, lead routes, housings, and worst-credible process conditions.
- Inspect wetting, bubbles, dry areas, discoloration, adhesive movement, wrinkles, frayed edges, and retained contamination.
- Measure outside dimensions, seam build, clearances, lead position, housing fit, and any controlled magnetic or mechanical gap.
- Perform the manufacturer’s required dielectric, insulation-resistance, surge, thermal, vibration, noise, pull, or functional tests as applicable.
- Compare samples after aging or environmental conditioning specified by the product owner.
- Release only the tested tape construction, wrap instruction, varnish, cure window, storage, inspection, and change-control method.
Corrective Directions by Failure Pattern
| Observed pattern | Check first | Corrective direction |
|---|---|---|
| Final overlap peels back | Termination length, seam surface, pressure, stored tension | Move and standardize the seam under design approval |
| Lift follows a bobbin corner | Tape width, radius, bridging, wrinkle, overlap stack | Screen a narrower width or revised wrap path |
| Lift starts at a lead exit | Lead bend, movement, sleeve, tape edge, strain relief | Correct lead routing instead of adding uncontrolled layers |
| Only varnished parts lift | Chemistry, wetting, drain, cure temperature, residue | Qualify the exact tape-varnish-process combination |
| Only one cure position lifts | Airflow, fixture contact, drainage, thermal variation | Compare actual part histories across the load |
Related Products and Articles
Frequently Asked Questions
Why does acetate cloth tape lift only after varnish cure?
Heat, chemical exposure, drainage, backing movement, adhesive softening, trapped varnish, fixture release, or component movement can add forces that are absent during the initial room-temperature check.
Will a higher-tack tape always stop edge lift?
No. Higher tack may not correct bridging, poor seam location, excessive tension, incompatibility, contamination, or movement, and it can create other process or rework risks.
Should operators add a second tape layer over a lifted seam?
Not without an approved rework instruction. An extra layer changes thickness, wetting, heat flow, clearances, and traceability while hiding the original cause.
How should a trial compare candidate tapes?
Use the same production surfaces, wrap geometry, application method, varnish, cure load, and inspections. Change one controlled factor and test the complete assembly.
What should be included in an acetate cloth tape RFQ?
Provide contacted materials, tape function, width and wrap geometry, varnish chemistry, cure cycle, finished dimensions, electrical-system requirements, volume, and acceptance plan.
Build a Controlled Edge-Lift Trial
Share the coil or transformer geometry, contacted materials, tape function, seam location, width, overlap, wrapping method, varnish, drain and cure sequence, observed failure stage, annual volume, and validation requirements. JIAO TAO TAO can help shortlist acetate cloth tape formats for comparative evaluation.
Discuss acetate tape edge lift

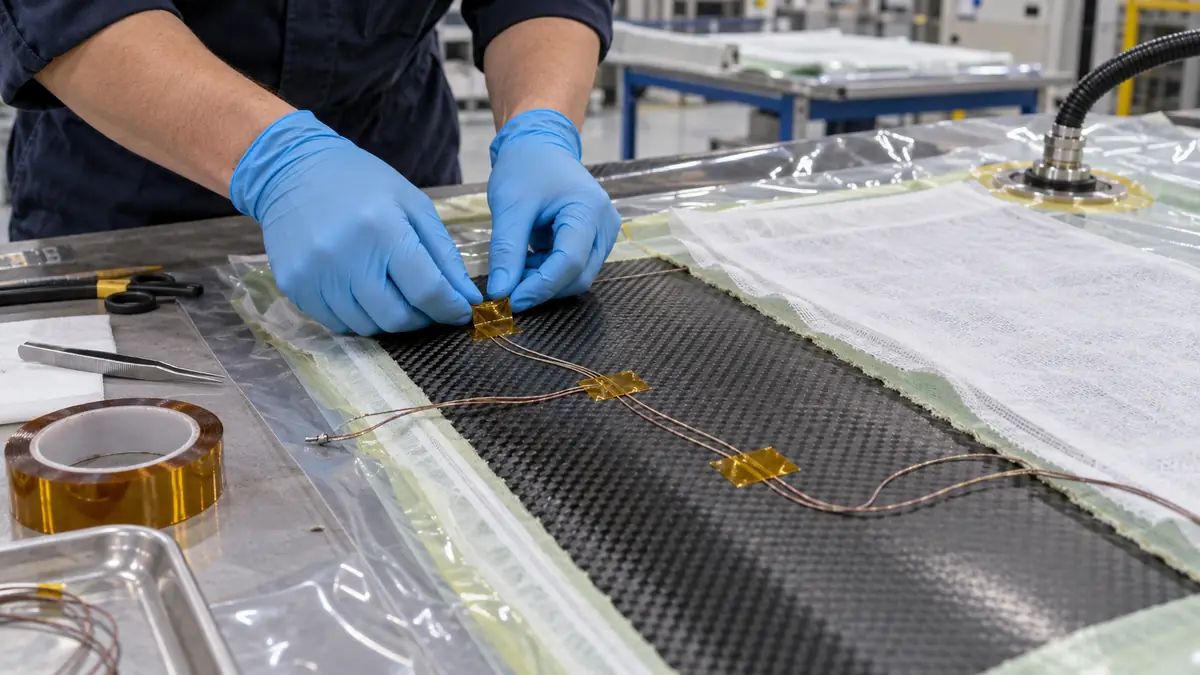

Polyimide Tape for Composite Cure Thermocouple Lead Routing
