Product Overview

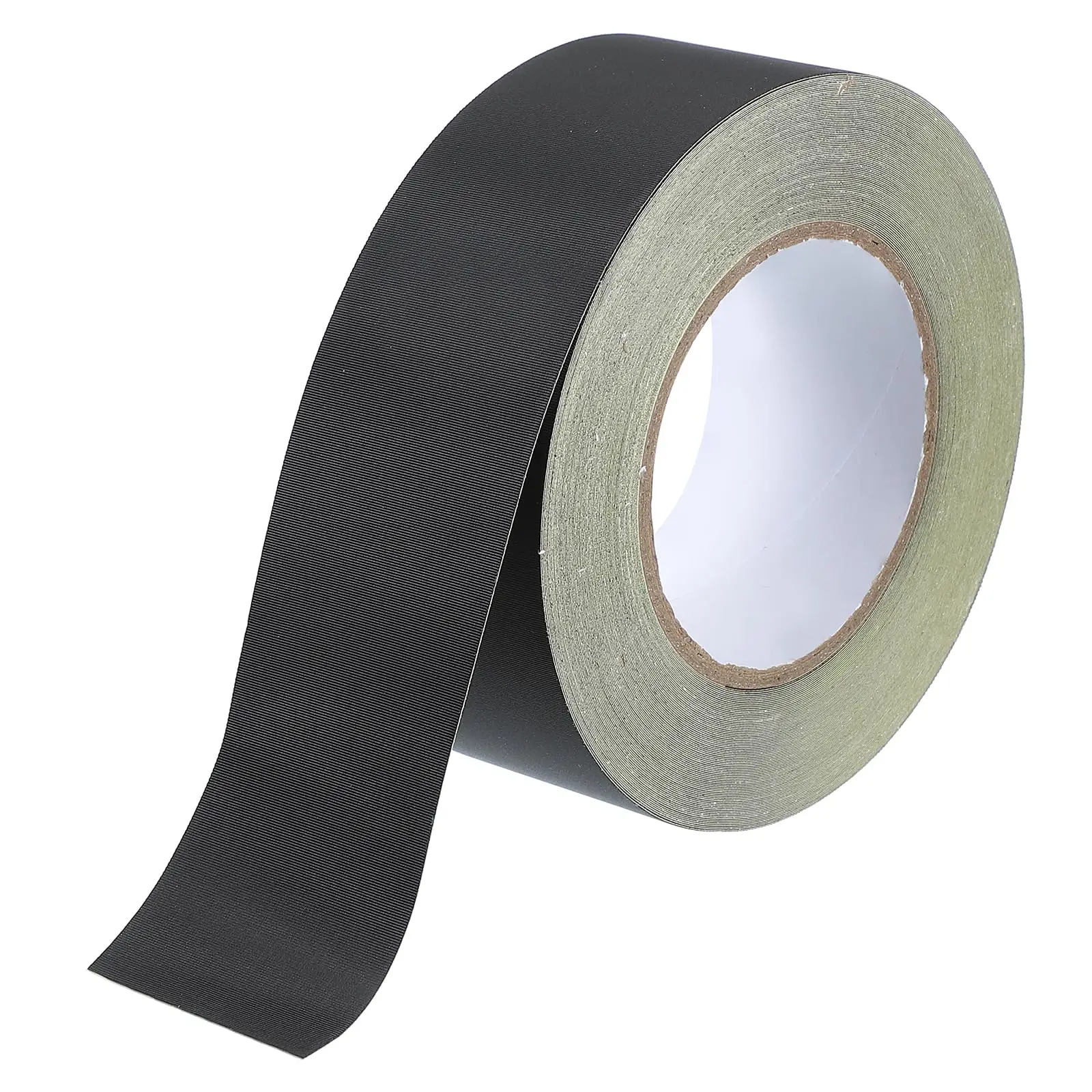

Black acetate tape JTT-15A is an electrical insulation tape manufactured for transformer coil wrapping, wire harness protection, and internal electrical insulation. As a dedicated black acetate tape manufacturer, we produce black acetate tape using high-quality acetate cloth backing combined with stable acrylic adhesive. Black acetate tape JTT-15A provides controlled adhesion, flexible conformability, and reliable insulation performance for electrical assemblies.

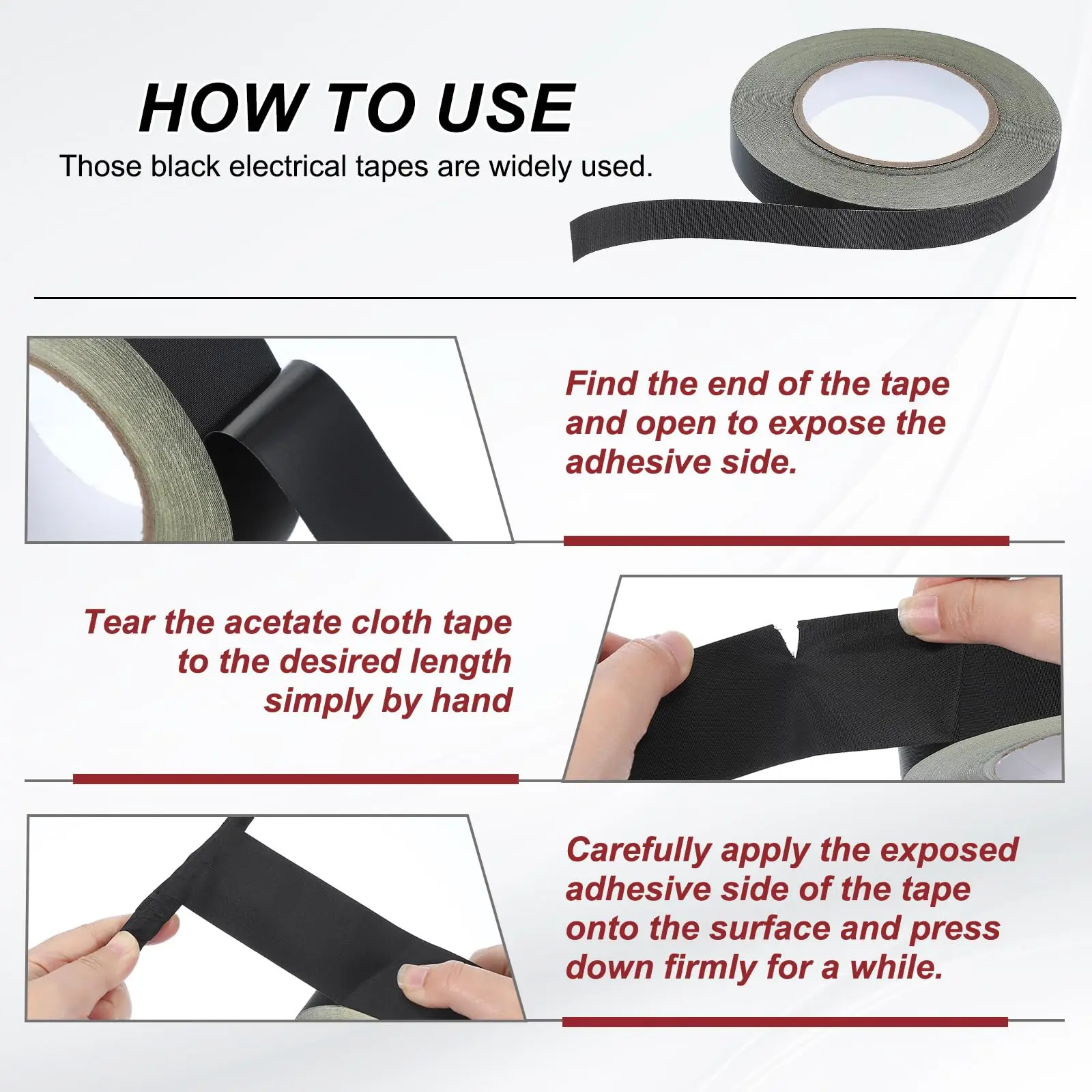

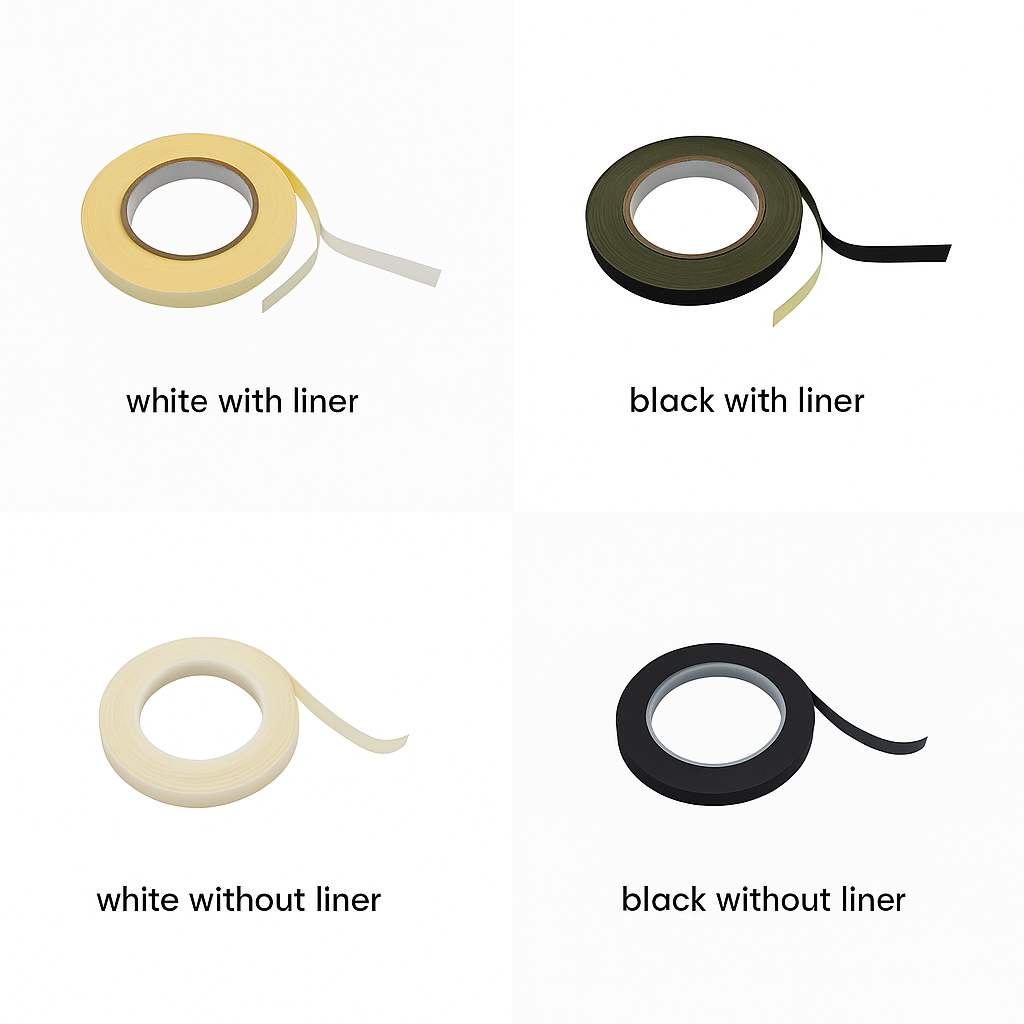

This black acetate tape is supplied with release paper, allowing precise positioning during manual or semi-automated application. Black acetate tape JTT-15A is manufactured in factory-controlled processes to ensure consistent tensile strength and elongation. Black acetate tape is widely used where flexible cloth insulation and clean acrylic adhesion are required.

Features

• Acetate cloth backing ensures good conformability and dielectric strength.
• Integrated release paper provides clean handling and conversion.
• Acrylic adhesive ensures stable bonding and low out-gassing.
• Rated for up to 150 °C continuous temperature resistance.

Technical Specifications

Black acetate tape JTT-15A is manufactured to meet electrical insulation requirements with balanced mechanical properties.

Material

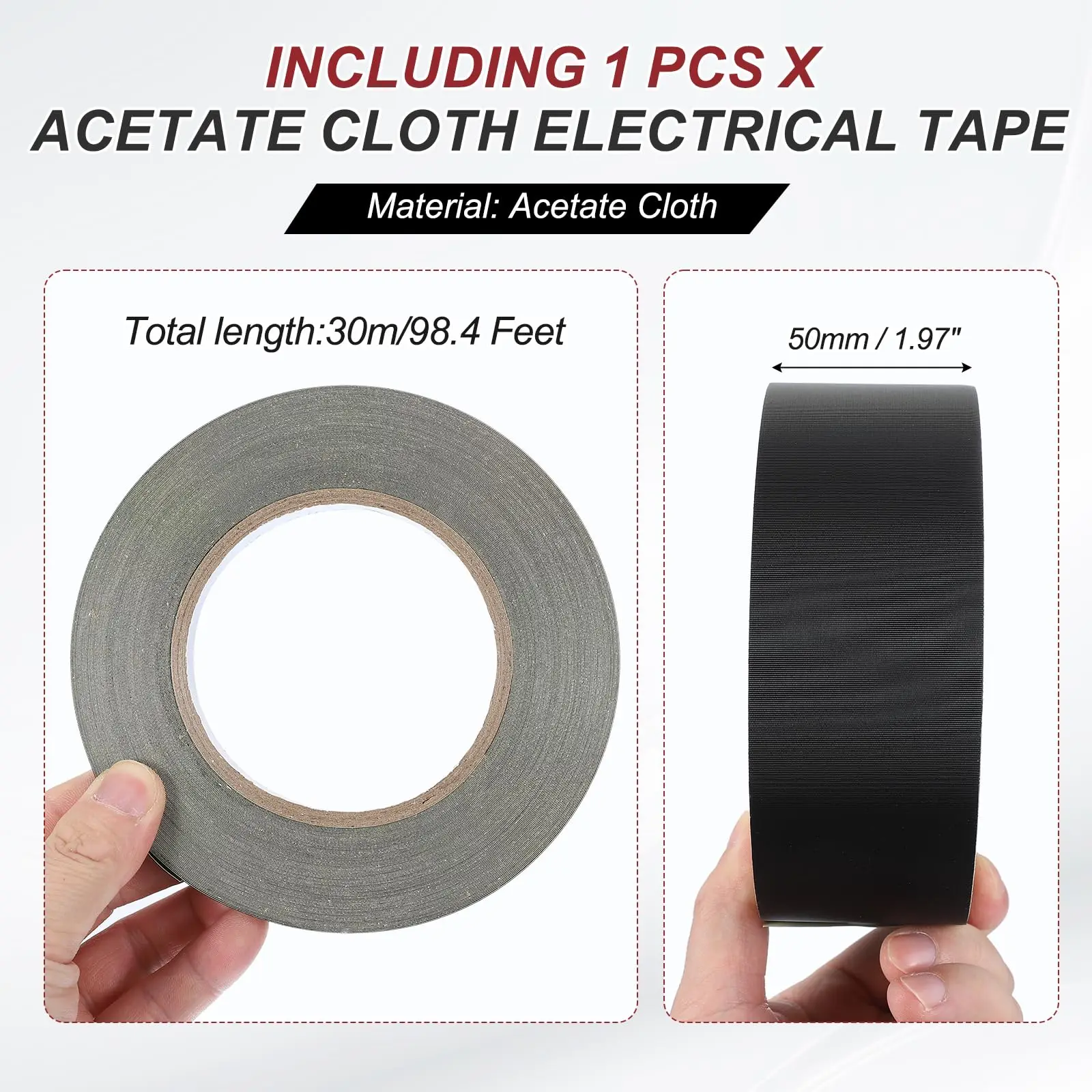

• Backing Material: Acetate cloth

• Adhesive Type: Acrylic adhesive

• Release Paper: Yes

Thickness / Size

• Total Thickness: 0.15 mm

• Standard Widths: Available from manufacturer

• Roll Lengths: Customizable by factory

Temperature Resistance

• Continuous Temperature Resistance: 140–150 °C

Mechanical Properties

• Tensile Strength: 140–160 N / 25 mm

• Elongation at Break: 15–20 %

• Adhesion to Steel: 5–6 N / 25 mm

Customization / OEM

• Width and length customization from manufacturer factory

• Jumbo roll and slitting service

• OEM labeling and packaging supported

All black acetate tape products are manufactured with stable cloth structure and consistent adhesive coating.

Applications

• Black acetate tape for electrical insulation wrapping

• Black acetate tape for transformer coil insulation

• Acetate cloth tape for wire harness protection

• Electrical insulation tape for internal component binding

• Acrylic adhesive acetate tape for electrical assemblies

• Black acetate tape for motor and transformer production

Each application uses black acetate tape as a direct insulation material without secondary lamination.

Manufacturing Capability

As a professional black acetate tape manufacturer, our factory maintains dedicated coating and rewinding equipment for acetate cloth tape production.

• Manufacturer factory producing black acetate tape in continuous rolls

• Direct factory supply for OEM and industrial customers

• Manufacturer-controlled acrylic adhesive coating process

• Factory testing for adhesion, tensile strength, and elongation

• Stable batch consistency ensured by manufacturer quality control

• OEM supply capability from factory production lines

All black acetate tape products are supplied directly from manufacturer factory with controlled specifications.
