Polyimide Tape Temperature Rating: What the Number Really Means
A polyimide tape temperature rating is not a single universal number. The usable temperature of a finished tape depends on the polyimide film, adhesive chemistry, coating thickness, exposure time, substrate, mechanical load, and test method. A film may remain dimensionally stable at a temperature that causes the adhesive to soften, lose adhesion, transfer residue, or become difficult to remove.
This distinction matters for PCB assembly, wave soldering, reflow processing, electrical insulation, powder coating, motor winding, transformer production, and battery manufacturing. Buyers should evaluate the complete adhesive tape construction rather than selecting a product from the backing-film temperature alone.
Quick Answer
Many industrial polyimide tapes are designed for elevated-temperature processes, but continuous operating temperature and short-term peak temperature are different specifications. A tape that survives a brief thermal cycle may not be suitable for hours, months, or years at the same temperature. Always confirm the technical data sheet for the exact tape grade and test a representative sample under the full production cycle.
What Determines a Polyimide Tape Temperature Rating?
1. Polyimide Film Backing
The backing provides dimensional stability, electrical insulation, and mechanical support. Polyimide films are available in different thicknesses and formulations, so their thermal, electrical, and dimensional properties are not identical. Published polyimide-film data separates results by film type, gauge, test condition, and exposure temperature. These film values should not automatically be presented as the specification of a finished adhesive tape.
2. Adhesive System
The adhesive often becomes the practical limit of the finished tape. Silicone adhesive is commonly selected for high-temperature masking because it can maintain useful adhesion across demanding thermal cycles. Acrylic adhesive offers a different balance of adhesion, insulation, aging, and processing characteristics. Neither chemistry should be described as universally better: the correct choice depends on the application surface, dwell time, required bond, and whether the tape must be removed.
3. Exposure Time
Temperature and time must always be evaluated together. A short peak during soldering is not equivalent to continuous service inside a motor or transformer. Suppliers should clearly distinguish among application temperature, continuous service temperature, short-term peak temperature, and recommended removal temperature.
4. Substrate and Surface Condition
Stainless steel test panels, PCB solder masks, copper, aluminum, glass, plastics, painted metal, and composite materials interact differently with pressure-sensitive adhesives. Surface contamination, oxidation, release agents, moisture, and surface texture can change both adhesion and residue behavior during heating.
5. Mechanical and Electrical Requirements
A tape may remain visibly intact while no longer meeting the required peel adhesion, dielectric strength, dimensional tolerance, or insulation-life target. Visual survival is therefore not enough to approve a material for an electrical or industrial process.
Continuous Temperature vs Short-Term Temperature
| Rating term | What it describes | Typical evaluation question |
|---|---|---|
| Application temperature | Temperature of the tape and surface during installation | Will the adhesive wet out and bond correctly? |
| Continuous service temperature | Temperature sustained for an extended period | Will the tape maintain the required function over time? |
| Short-term peak temperature | Brief maximum exposure during processing | Will the tape survive the complete heat cycle? |
| Removal temperature | Temperature at which temporary masking tape is removed | Will removal be clean and controlled? |
When comparing suppliers, do not compare a short-term peak from one data sheet with a continuous-use value from another. The test conditions must be similar before the numbers are meaningful.
Temperature Considerations by Application
PCB Reflow and Wave Soldering
For PCB masking, the tape must remain positioned during the full thermal profile and remove without damaging the solder mask or leaving unacceptable adhesive transfer. Buyers should provide the peak temperature, time above the critical temperature, number of cycles, board finish, and removal timing. Learn more in our high-temperature tape guide for SMT reflow and wave soldering.
Powder Coating
Powder-coating applications combine oven temperature, dwell time, metal surface condition, and removal requirements. A product engineered for one coating cycle may not be appropriate for repeated cycles or prolonged exposure. Validate the selected tape on the actual coated metal through the complete oven and removal cycle.
Electrical Insulation
Motors, transformers, coils, and wiring require more than temporary heat resistance. Engineers may need to consider thermal class, dielectric performance, aging, winding tension, varnish compatibility, chemical exposure, and the complete insulation system. A brief process-temperature claim does not establish long-term electrical-insulation life.
Battery and Electronics Assembly
Battery components may experience welding heat, assembly pressure, electrical stress, vibration, and long-term environmental exposure. The approved tape should be evaluated at the exact insulation location. Review our guide to polyimide tape for lithium battery insulation for location-specific selection factors.
How to Test Polyimide Tape Under Heat
- Define the complete thermal profile. Record starting temperature, heating rate, peak temperature, dwell time, cooling time, and number of cycles.
- Use the actual substrate. Test on the same metal, coating, PCB finish, plastic, film, or insulation material used in production.
- Apply the tape consistently. Control surface cleaning, application pressure, overlap, dwell before heating, and tape tension.
- Evaluate during and after heating. Check lifting, shrinkage, movement, adhesive transfer, discoloration, cracking, and removal behavior.
- Measure the required property. Depending on the application, evaluate peel adhesion, dimensions, dielectric strength, residue, or insulation performance.
- Document the approved construction. Record the tape model, lot, thickness, adhesive, width, and test conditions before mass production.
For peel-adhesion comparison, ASTM D3330/D3330M provides procedures for pressure-sensitive tapes. The selected method, peel angle, substrate, conditioning, and units should be stated with the result.
Common Selection Mistakes
- Using the polyimide film rating as the finished tape rating
- Confusing short-term peak temperature with continuous service temperature
- Comparing values measured under different test conditions
- Assuming all silicone-adhesive tapes perform identically
- Approving a tape from color or thickness alone
- Testing only at room temperature
- Ignoring removal temperature and residue requirements
- Changing the substrate after sample approval
Information to Request From a Supplier
A useful technical data sheet should identify the backing, adhesive type, film thickness, total thickness, adhesion value and method, tensile properties, electrical properties where relevant, recommended temperature conditions, storage conditions, and shelf life. Buyers should also ask whether a temperature value is typical, minimum, maximum, continuous, or short-term.
For custom requirements, provide the application, substrate, thermal profile, dimensions, annual quantity, removal requirement, electrical target, and any required test standard. JIAO TAO TAO can supply slit rolls, liner-backed constructions, and custom die-cut formats for evaluation. View our polyimide tape range.
Frequently Asked Questions
What temperature can polyimide tape withstand?
There is no universal value for all polyimide tapes. The usable temperature depends on the backing film, adhesive, exposure time, substrate, load, and acceptance criteria. Use the technical data sheet for the exact tape grade and confirm performance through application testing.
Can a short-term temperature rating be used for continuous service?
No. A short-term peak describes brief process exposure and does not establish long-term adhesion, insulation life, or aging performance. Continuous-service applications require relevant long-duration data and validation of the complete assembly.
Does higher temperature always mean better tape?
No. The best tape is the one that meets the real process requirements. Adhesion, removability, dielectric performance, thickness, flexibility, residue, converting format, and cost may be as important as maximum temperature.
Why does polyimide tape sometimes leave residue?
Residue can result from excessive temperature or dwell time, an unsuitable adhesive, a contaminated substrate, chemical interaction, aging, or delayed removal. Test the exact tape and substrate through the complete heating and removal cycle.
Should silicone or acrylic adhesive be used?
The choice depends on the temperature profile, surface, required bond, electrical requirements, aging, and removal conditions. Silicone is common in high-temperature masking, while acrylic constructions may suit other bonding and insulation requirements. Sample testing is the safest selection method.
Conclusion
A reliable polyimide tape temperature rating must describe the complete tape construction and the conditions under which it was tested. Industrial buyers should separate continuous service from short-term peaks, verify the adhesive system, and test the material on the actual substrate through the full production cycle.
Send JIAO TAO TAO your temperature profile, substrate, dimensions, application, and required quantity to request a suitable polyimide tape sample and technical recommendation.
Technical References

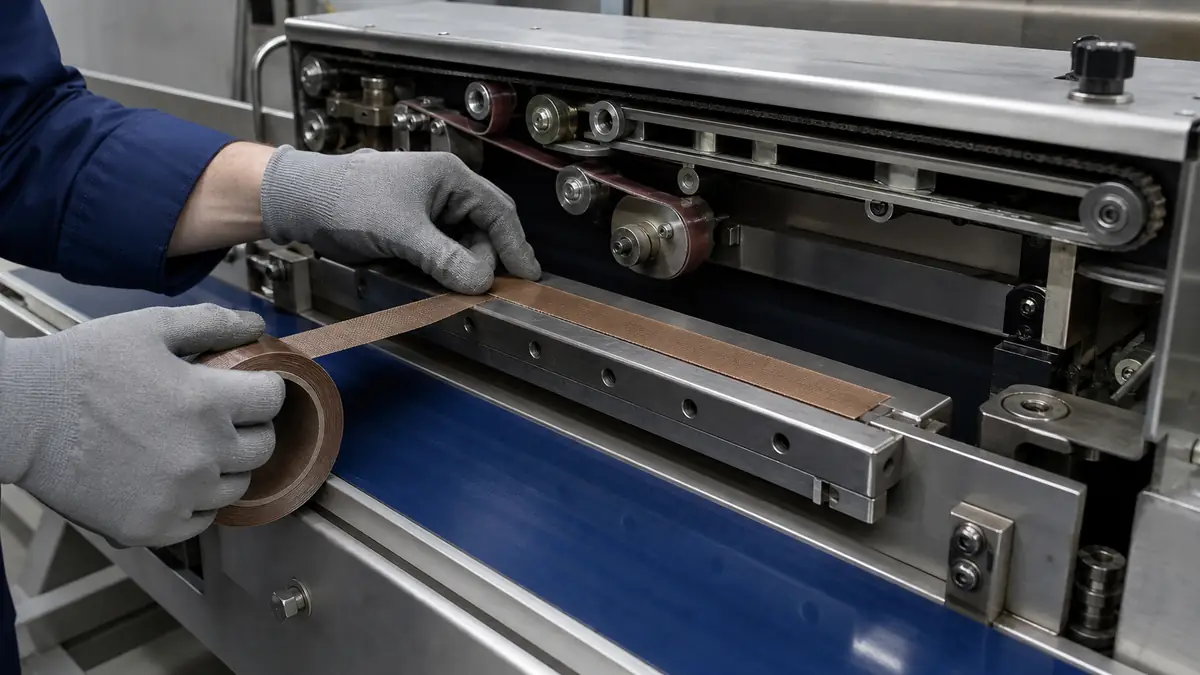

PTFE Tape for Continuous Band Sealer Heating Blocks
