Polyimide Tape for PCB Underfill Dam Masking

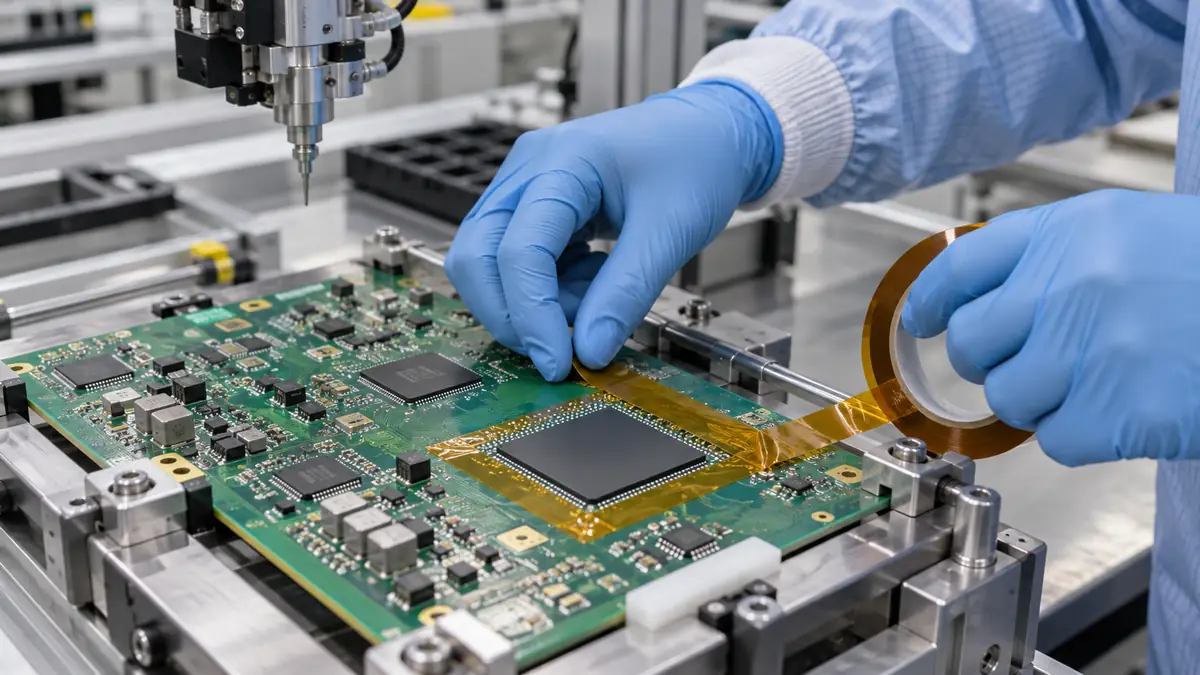

Polyimide tape for PCB underfill dam masking can define a temporary process boundary beside an approved package, connector, test point, or rework keep-out. The mask must support the dispensing plan without touching solder joints, trapping uncured material, shifting components, or leaving contamination after removal.
Quick Answer
Use a temporary polyimide tape dam only when the electronics process owner has defined a legitimate keep-out or cleanup boundary around an underfilled, corner-bonded, or locally dispensed assembly. Start with the package drawing, board layout, dispense path, expected flow direction, cure sequence, and inspection method. The tape is a process aid, not a correction for uncontrolled viscosity, board warpage, poor dispense programming, damaged solder mask, or an incorrect standoff.
Define What the Tape Dam Must Do
Underfill and assembly adhesives move by capillary action, pressure, gravity, temperature-dependent viscosity, and the geometry beneath the component. A tape edge may help contain a small overflow zone or keep a neighboring surface clean, but it should not block the intended flow beneath a package. Define whether the objective is protecting a connector, preserving a test-pad corridor, simplifying fixture cleanup, or creating a removable witness edge. Each function produces a different mask position.
Review the complete neighborhood, not only the package outline. Nearby passive components, vias, labels, fiducials, shields, sockets, conformal-coating zones, and rework access can become affected by either adhesive flow or tape removal. A narrow corridor may look clear in a drawing yet offer no safe peel direction after cure. The mask should therefore be designed together with dispensing and removal access.
| Process input | What to document | Why it matters |
|---|---|---|
| Material system | Underfill or adhesive identity, storage, conditioning, viscosity window, and cure | Controls flow, wetting, chemical exposure, and cleanup |
| Assembly geometry | Package edge, standoff, fillet zone, components, vias, and keep-outs | Defines where a tape boundary can safely sit |
| Dispense route | Needle path, shot sequence, side selection, preheat, and flow direction | Determines where excess material is likely to travel |
| Tape function | Surface protection, overflow control, fixture protection, or witness edge | Prevents an undefined dam from changing the process |
| Removal point | Before gel, after partial cure, after full cure, or retained by design | Changes peel load, fracture risk, and residue exposure |
Select the Polyimide Tape Construction
Film thickness and handling
Polyimide film offers a thin, dimensionally stable boundary that can tolerate many electronics process temperatures. Film and total tape thickness still matter. A thicker construction produces a larger physical step and may redirect the fillet; a very thin construction can wrinkle during manual placement or tear during removal. Choose the minimum practical build that operators or automation can position repeatably.
Adhesive and contacted surfaces
Silicone and other pressure-sensitive adhesive systems can respond differently to solder mask, metal finishes, labels, component molding compounds, and cleaning residues. Screen the exact construction on the real board surface through the complete preheat, dispense, dwell, cure, cooling, and peel sequence. Do not infer clean removal from a general temperature rating.
Roll, strip, or converted mask
Slit tape can suit prototypes and straight boundaries. A liner-backed die cut can add corners, registration holes, multiple openings, and a nonadhesive pull tab for repeat production. Specify roll direction, liner release, orientation, pitch, datum features, minimum web strength, and packaging cleanliness when converted parts enter a controlled electronics area.
| Format | Potential fit | Main control point |
|---|---|---|
| Narrow slit tape | Straight keep-outs and engineering trials | Operator alignment, joints, wrinkles, and trim debris |
| Rectangular patch | Simple connector or test-area protection | Corner lift and safe peel access |
| Profile die cut | Repeated package neighborhoods and fixtures | Drawing tolerance, registration, liner, and orientation |
| Multi-part array | High-mix panels or repeated board positions | Pitch, indexing, missing-part detection, and traceability |
| Reusable fixture shield | Robust external tooling surfaces | Cleaning, fit, wear, and interference with the PCB |
Design a Safe Dam Geometry
Locate the inner mask edge outside the released fillet and inspection zone. The tape must not touch package terminations, block capillary entry sides, bridge over small components, or cover a vented device. Rounded external corners reduce snagging, while a defined pull tab gives the operator a controlled starting point. Keep the peel path away from fragile packages and unsupported board edges.
Do not stack multiple uncontrolled layers to build a taller wall. Added thickness changes the flow boundary and increases the chance of adhesive squeeze-out or a hard cured ridge. If the process needs a shaped barrier with height, stiffness, or a sealed edge, evaluate a purpose-designed fixture or removable dam material with the process owner instead of treating thin tape as structural tooling.
Controlled Application and Removal Workflow
- Confirm the released process. Check the board revision, package, material, dispense recipe, mask drawing, and removal stage.
- Inspect the assembly. Reject contamination, damaged solder mask, lifted components, misplaced labels, or obstructed keep-outs.
- Condition materials. Follow the released handling rules for the PCB, underfill, tape, and liner.
- Locate from a datum. Use a fixture, fiducial relationship, or converted registration feature rather than estimating from the package edge.
- Apply without stretch. Keep the film flat and the adhesive fully supported on the approved board surface.
- Inspect the boundary. Check clearance, wrinkles, tabs, components, vents, and the intended dispense side.
- Run the real dispense cycle. Include normal preheat, needle approach, shots, dwell, flow, and cure sequence.
- Remove at the approved stage. Support the board and peel in the released direction without pulling across the package.
- Inspect for fragments. Check the tape, board, fillet, components, and fixture for residue or torn material.
- Complete product tests. Use the owner’s electrical, visual, dimensional, cleanliness, and reliability plan.
Validate the Complete Assembly Process
Qualification should use production boards, the actual underfill lot and handling window, real placement variation, the intended tape construction, minimum safe clearances, representative preheat, the full cure, and the longest approved delay before removal. Include worst credible access and panel support conditions, because a mask that removes cleanly from a coupon may still flex a populated PCB.
| Validation group | What to observe | Release question |
|---|---|---|
| Placement | Datum, clearance, wrinkles, lifted corners, missing masks, and board contact | Can production apply the mask repeatably? |
| Dispensing | Needle clearance, flow direction, fillet shape, overflow, void indicators, and cure | Does the mask avoid changing the intended material path? |
| Removal | Peel force, board flex, component loading, fragments, residue, and cured ridges | Can the mask leave without damaging the assembly? |
| Cleanliness | Adhesive transfer, fibers, particles, staining, and affected inspection surfaces | Are all neighboring functional zones acceptable? |
| Final assembly | Electrical test, package inspection, rework access, coating, fit, and reliability | Does the completed product meet its released plan? |
Troubleshoot Common Dam-Masking Problems
Underfill crossing the tape boundary may come from an incorrect mask location, a lifted corner, a gap at a hand-made joint, unexpected board preheat, material conditioning, or a dispense recipe that sends too much volume toward the keep-out. Residue may be driven by surface contamination, adhesive choice, cure exposure, or delayed removal. A torn mask often indicates a sharp cured edge, insufficient pull-tab design, or a peel path that loads the film across components.
Do not respond only by increasing adhesion or moving the tape closer to the package. Higher peel can increase board and component stress, while a tighter boundary can interfere with the required fillet or inspection area. Separate material-flow causes from mask-placement causes, review dispense data and cross sections where appropriate, then change one controlled variable at a time.
↑ Back to contentsRelated Products and Articles
Frequently Asked Questions
Can polyimide tape stop underfill from flowing under a BGA?
No tape placed on the board surface should be assumed to control capillary flow beneath the package. A mask may define an approved external keep-out, but the dispense recipe, standoff, material, preheat, and package geometry govern the underfill process.
How close can the tape be placed to the package?
The package owner must define the minimum clearance from terminations, fillet, inspection zones, components, vias, and vents. Use that drawing dimension rather than a generic spacing rule.
Should the tape be removed before or after cure?
Removal timing depends on the exact material and assembly. Compare approved stages for fillet disturbance, stringing, cured ridges, peel load, residue, and inspection access.
Is a die-cut mask better than hand-applied strips?
A die cut can improve repeatable geometry, corner radii, registration, and pull-tab access. Hand-applied strips may remain useful during development or for low-volume straight boundaries.
What information belongs in an RFQ?
Provide the board and package drawings, keep-out, contacted surfaces, material and cure profile, dispense route, mask function, cleanroom or ESD requirements, removal stage, volume, and validation plan.
