Polyimide Tape for Composite Cure Thermocouple Lead Routing

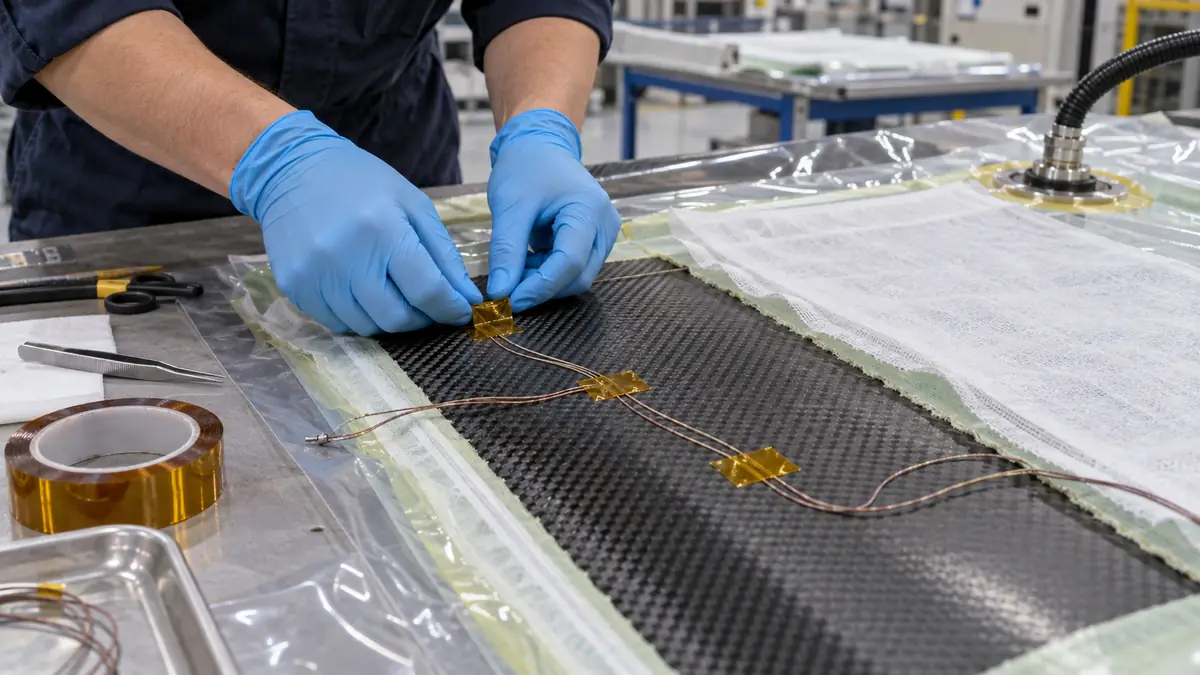

Polyimide tape for composite cure thermocouple lead routing can retain fine sensor wires at defined points under a vacuum bag or on approved tooling during a thermal cycle. Reliable cure data still depends on sensor contact, wire path, bag integrity, tooling, recorder setup, and a documented method—not on the tape alone.
Quick Answer
Use polyimide tape as a controlled lead-retention aid only where the composite process owner permits it. A small patch can keep a thermocouple wire from shifting as release film, breather, vacuum bag, or tooling is assembled. It does not guarantee that the sensing junction touches the intended laminate, tool, or air location, and it cannot compensate for a leaking bag, a damaged sensor, an incorrect channel, or an unrepresentative cure load.
Define the Measurement and Retention Roles
Composite cure monitoring may use thermocouples on a tool, at a laminate edge, within a sacrificial panel, beneath bagging materials, or in surrounding air. Each location answers a different process question. Before selecting tape, state what the channel represents, how the junction is held, whether the sensor remains with the part, and which surfaces may contact adhesive.
Lead routing must respect resin flow paths, sealant tape, vacuum ports, pleats, bag folds, tool edges, caul plates, intensifiers, heaters, and load points. A seemingly harmless wire can create a bridge under the bag, concentrate pressure, puncture film, or conduct load into a fragile junction.
| Sensor location | Lead-routing concern | Required control |
|---|---|---|
| Tool surface | Wire may cross a seal, heater, or pressure boundary | Approved route, patch spacing, and edge protection |
| Laminate edge | Junction can lift as bagging materials move | Separate junction contact from strain relief |
| Under breather | Wire can create a hard ridge or local airflow change | Low-profile route and representative stack |
| Vacuum-bag exit | Lead may create a leak path through sealant | Released feed-through detail and leak check |
| Oven or autoclave air | Tape on the part may be unnecessary | Independent fixture and defined air location |
Select the Polyimide Tape Construction
Screen the complete material
Polyimide film is commonly considered for thin, heat-resistant electrical and process protection. The pressure-sensitive adhesive controls initial tack, holding power, flow, transfer, and removal. Request current data for the exact tape code and evaluate the film, adhesive, total thickness, liner, edge quality, and roll condition together. Amber appearance or the word “Kapton” does not define a qualified construction.
Use the real cure history
Compare the tape with the actual ramp, dwell, pressure or vacuum level, cooling sequence, and number of cycles. Tool temperature and local laminate temperature may differ from an oven setpoint. Adhesion and removability can also change after storage, vacuum dwell, resin exposure, or a slow cool.
Check every contacted surface
Screen adhesion and removal on the real tool coating, release film, bag film, cured laminate, caul sheet, or other approved surface. Keep adhesive away from bond-preparation areas, sealant interfaces, porous peel ply, resin-rich zones, optical surfaces, and any location where residue would be difficult to detect or remove.
| Selection input | What to document | Why it matters |
|---|---|---|
| Cure cycle | Ramp, dwell, peak, pressure, vacuum, cooling, cycles | Defines thermal and mechanical exposure |
| Surface | Tool finish, release system, bag material, laminate state | Controls tack, residue, and removal risk |
| Wire | Thermocouple type, gauge, insulation, junction, bend radius | Affects profile, handling, and strain |
| Tape format | Width, patch length, thickness, liner, cut edge, lot | Controls footprint and repeatability |
| Disposition | Retained, removed, peel temperature, inspection method | Prevents uncontrolled material from remaining on the part |
Design a Low-Profile Thermocouple Route
Draw the complete wire path from the sensing junction to the recorder connection or approved feed-through. Mark the junction, first strain-relief point, patch spacing, bend limits, crossings, bag pleats, vacuum ports, sealant line, and all keep-out zones. Route the lead without sharp turns, stacked wires, or unsupported spans that can move when vacuum is applied.
Use the smallest practical patch that controls the lead without covering the measurement point or building a thick ridge. A rounded patch or die-cut shape can reduce loose corners, while a liner can help handling where cleanliness matters. Do not stretch polyimide tape over a wire; stored tension can pull the lead after heating or vacuum compaction.
Recommended Bagging and Cure Workflow
- Release the plan. Identify channel purpose, junction location, lead route, materials, and acceptance criteria.
- Verify instruments. Match thermocouple type, extension wire, connectors, recorder channels, and calibration status.
- Inspect surfaces. Confirm the tool, layup, bagging materials, wires, and tape are clean and undamaged.
- Place the junction. Use the approved contact method without adding uncontrolled mass or insulation.
- Add strain relief. Apply the specified patch at the defined distance without shifting the junction.
- Route the lead. Keep it clear of seals, ports, sharp edges, folds, heaters, and pressure features.
- Close and leak-check. Observe wire behavior as vacuum compacts the stack and confirm bag integrity.
- Cure and inspect. Review live channels, remove tape as specified, and record surface and laminate condition.
Validate the Complete Measurement Method
Qualification should include representative tools, surface-release conditions, laminate stacks, bagging materials, sensor lots, wire routes, cure loads, operator methods, and removal windows. Compare replicate channels or repeated setups to understand attachment variation before changing the cure recipe.
- Photograph each junction and lead route before bag closure and after vacuum compaction.
- Confirm the vacuum hold or leak-rate requirement using the released procedure.
- Review traces for opens, spikes, unrealistic lag, abrupt movement, and channel-identification errors.
- Inspect tape lift, film distortion, adhesive transfer, tool marks, bag damage, laminate impressions, and retained fragments.
- Requalify changes to tape construction, patch geometry, thermocouple, bagging stack, tool coating, cure cycle, or removal method.
Troubleshooting Lead-Routing Problems
| Observed issue | Check first | Corrective direction |
|---|---|---|
| Temperature trace jumps or drops out | Junction contact, wire damage, connector, channel, movement | Rebuild and verify the measurement chain |
| Tape lifts under vacuum | Surface release chemistry, contamination, pressure, patch shape | Screen the exact tape and approved contact surface |
| Bag leaks at wire exit | Feed-through detail, sealant compression, wire bundle, wrinkles | Restore the released exit geometry and leak-test method |
| Laminate or bag shows a ridge | Patch thickness, stacked wires, crossing, breather coverage | Flatten the route and reduce uncontrolled build |
| Residue remains after cure | Adhesive, temperature history, dwell, resin contact, peel condition | Change the qualified construction or removal window |
Related Products and Articles
Frequently Asked Questions
Can polyimide tape guarantee an accurate composite cure temperature?
No. Accuracy depends on junction location and contact, wire condition, recorder configuration, tooling, bagging stack, cure load, and a repeatable method.
Should the tape cover the thermocouple junction?
Only if the approved measurement procedure requires it. A patch over the junction can change contact and thermal response, so retention and measurement functions should be evaluated separately.
Can a thermocouple lead cross the vacuum seal?
Only through a released feed-through detail. A wire crossing can form a leak path, and the seal geometry must be verified under vacuum and cure conditions.
Should the tape be removed hot or cold?
Define the removal condition during qualification. Tool coating, adhesive, thermal history, dwell, peel angle, and surface sensitivity can all change the result.
What information belongs in a tape RFQ?
Provide the tape function, contacted surfaces, cure profile, vacuum or pressure, sensor and wire details, patch geometry, removal rule, cleanliness limits, quantity, and validation plan.
Plan a Controlled Composite Cure Trial
Share the tool and laminate surfaces, bagging stack, cure profile, thermocouple type, wire route, patch dimensions, feed-through detail, removal condition, cleanliness requirements, and annual demand. JIAO TAO TAO can help shortlist polyimide tape and converted patch formats for your engineering evaluation.
