PET Silicone Tape for Composite Panel Cure Masking
PET Silicone Tape for Composite Panel Cure Masking

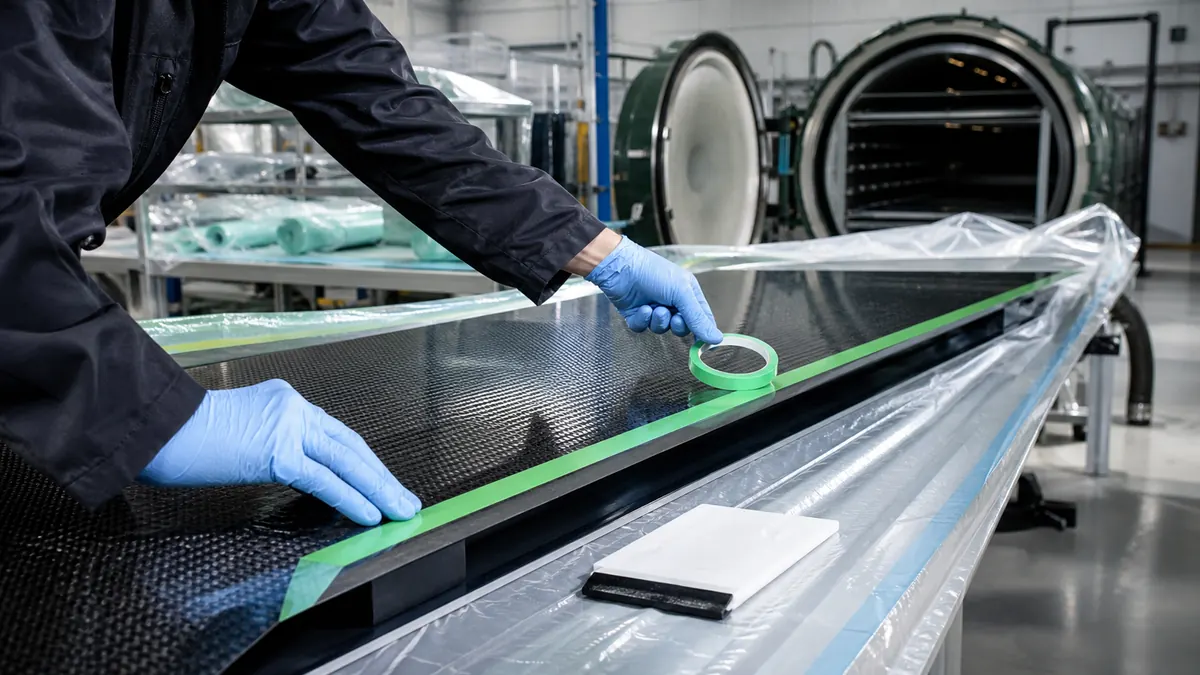

PET silicone tape for composite panel cure masking helps define trim lines, protect bonding lands, and keep selected tool or panel areas cleaner during controlled oven-cure operations. It is a temporary process aid, not a universal substitute for release film or tooling protection. The exact tape construction must be qualified against the resin system, cure profile, pressure, surface, and removal stage used in production.
Key Takeaways
- Define whether the tape is protecting a trim line, bonding land, tool edge, or local no-resin area.
- Qualify the complete heat, pressure, resin, release-agent, and removal sequence.
- Do not stretch PET film around compound curves; tension can cause edge lift during cure.
- Use converted shapes when placement tolerance and repeated geometry matter.
- Base approval on representative panels and documented acceptance criteria, not a generic temperature label.
What Composite Cure-Line Masking Must Control
Composite manufacturing can involve prepreg, wet layup, adhesive films, vacuum-bag consumables, heated tools, and post-cure finishing. A narrow mask can help keep a defined edge available for later trimming, secondary bonding, inspection, or tool cleanup. The production drawing should identify the protected boundary and state whether a small amount of resin bleed is acceptable.
The tape is exposed to more than oven air. It may contact tacky resin, release agent, vacuum pressure, compaction media, breather fabric, or adhesive squeeze-out. A construction that looks stable on a clean metal coupon may behave differently beneath a vacuum bag or on a textured composite surface. Qualification should reproduce the actual stack and removal sequence.
PET Silicone Tape Compared With Other Process Aids
| Process aid | Potential fit | Main point to qualify |
|---|---|---|
| Slit PET silicone tape | Straight mask lines, broad radii, and short-run panels | Heat exposure, edge seal, shrinkage, and removal |
| Die-cut PET mask | Repeated windows, tabs, holes, and defined corners | Drawing tolerance, orientation, and liner handling |
| Polyimide tape | Processes requiring a higher thermal margin or thinner high-heat film | Cost, conformability, adhesive compatibility, and residue |
| Release film or peel ply | Broad-area release, texture control, or laminate consumable stacks | Porosity, resin flow, surface finish, and removal method |
| Tool release coating | Large reusable mold surfaces | Application control, transfer risk, and maintenance interval |
Information Required Before Tape Selection
| Parameter | What to document | Why it matters |
|---|---|---|
| Cure profile | Ramp, dwell, peak, cooling stage, and number of cycles | Time at temperature can matter as much as the peak |
| Pressure environment | Atmospheric oven, vacuum bag, press, or autoclave route | Compaction changes edge loading and resin contact |
| Material contact | Resin family, adhesive film, release agent, peel ply, and cleaner | Compatibility must be checked for the full construction |
| Surface | Tool metal, cured laminate, prepreg face, coating, and texture | Wet-out and removal differ by surface condition |
| Geometry | Line width, curves, corners, overlaps, tabs, and tolerance | Defines whether slit tape or a die-cut is practical |
| Removal | Hot, warm, or cool removal; peel direction; residue and damage limits | Removal timing affects peel force and edge quality |
Match the Backing to the Cure Profile
Do not select a tape from peak temperature alone. Compare total exposure time, ramp rate, pressure, part mass, and whether the tape is covered by insulation or bagging materials. Request construction-specific technical data and then run a representative trial. If the process exceeds the practical window of the PET construction, screen another backing rather than relying on a short-term marketing maximum.
Control Resin Paths and Mask Edges
Resin can travel along wrinkles, overlaps, tool scratches, or bridged corners. Apply the tape to a released and documented surface condition, keep the edge free of contamination, and use a controlled roller or squeegee. Place seams away from the most critical trim or bond boundary whenever the part allows it.
Plan for Repeatable Removal
A pull tab can reduce scraping and help operators peel in a consistent direction. The removal plan should prevent damage to a green composite edge, cured coating, or prepared bonding land. Record the permitted removal temperature range and the inspection method for residue, tearing, edge transfer, or surface marking.
Recommended Masking and Qualification Workflow
- Define the protected feature. Mark trim lines, bond lands, tool edges, and allowed mask tolerances on the released drawing.
- Record the full process stack. Include resin, release agent, bagging layers, pressure method, cure cycle, and cleanup materials.
- Prepare the surface consistently. Use only the approved cleaning and release procedure, then allow the area to reach the required dry condition.
- Apply without tension. Align from a datum, press the tape progressively, and avoid stretching it around curves.
- Inspect before layup or bagging. Check edge contact, seams, corners, pull tabs, and the intended exposed area.
- Run a representative cure. Reproduce production heat, time, pressure, and consumable placement.
- Remove by the trial method. Peel at the qualified stage and angle without sharp tools that could damage the part.
- Document the result. Inspect the boundary, residue, resin intrusion, laminate condition, and cleanup time.
Common Failure Modes and Corrective Directions
| Observed issue | Checks to make | Corrective direction |
|---|---|---|
| Tape edge lifts during cure | Stretch, contamination, tight radius, pressure path, or poor wet-out | Remove tension, improve preparation, or revise the geometry |
| Resin reaches the protected area | Wrinkle, open seam, bridged corner, pinhole, or excessive flow | Relocate seams and improve edge inspection |
| Adhesive remains after removal | Exposure profile, surface, tape age, removal stage, and incompatible cleaner | Screen the exact construction and qualify removal timing |
| Film tears into narrow strips | Nicks, excessive heat, resin lock, sharp corners, or no pull tab | Improve cutting quality and redesign the removal feature |
| Mask line is inconsistent | Manual alignment, datum variation, tape width, or operator access | Use a fixture, template, or converted mask |
Related Products and Articles
- Explore the polyester tape range for PET silicone masking constructions.
- Review the high-temperature masking tape guide for backing and process selection.
- For repeatable windows and pull tabs, see custom die-cutting capabilities.
- Send the cure profile and masking drawing for a trial-format discussion.
Frequently Asked Questions
Can PET silicone tape be used during composite panel curing?
It can be screened for cure-line and local surface masking when the exact tape construction is qualified with the actual resin, pressure method, cure profile, surface, and removal stage.
Is PET tape the same as release film?
No. PET silicone tape is a pressure-sensitive local mask. Release film is usually a broad consumable layer selected for resin flow, porosity, and surface release. The two materials serve different roles.
Should the tape be removed hot or cold?
The correct stage depends on the adhesive, surface, resin system, and edge condition. Compare safe removal stages during the qualification trial and document the approved range.
When is a die-cut mask better than slit tape?
Die-cut masks can improve placement repeatability for recurring windows, curves, holes, and pull tabs. Slit rolls may be more practical for straight lines, prototypes, and changing geometries.
What information should be included in an RFQ?
Provide the part and mask drawing, surface material, resin or adhesive family, release system, cure profile, pressure method, required tolerance, removal criteria, quantity, and sample plan.
Plan a Composite Masking Trial
Share the panel geometry, cure profile, pressure route, resin contact, surface preparation, protected boundary, removal stage, and acceptance method. JIAO TAO TAO can help shortlist a PET silicone construction or converted mask for controlled evaluation.
