Polyimide Tape for Hall Sensor Lead Protection in BLDC Motors
Polyimide tape for BLDC Hall sensor leads can add a thin local insulation and handling barrier where sensor wires pass near windings, laminations, solder joints, or a compact housing. The tape must support the released motor insulation design; it cannot replace specified sleeving, strain relief, clearances, potting, or motor-level validation.
Quick Answer
Use polyimide tape at a BLDC Hall sensor lead only when the drawing defines a local wrap, patch, holding point, or protective barrier. The thin film can follow compact geometry and tolerate selected motor manufacturing heat, while its pressure-sensitive adhesive makes it useful during assembly. Selection still depends on the exact adhesive, conductor insulation, stator coating, varnish or resin, measured process temperature, wire motion, and required electrical spacing.
Where Polyimide Tape Fits Around Hall Sensor Leads

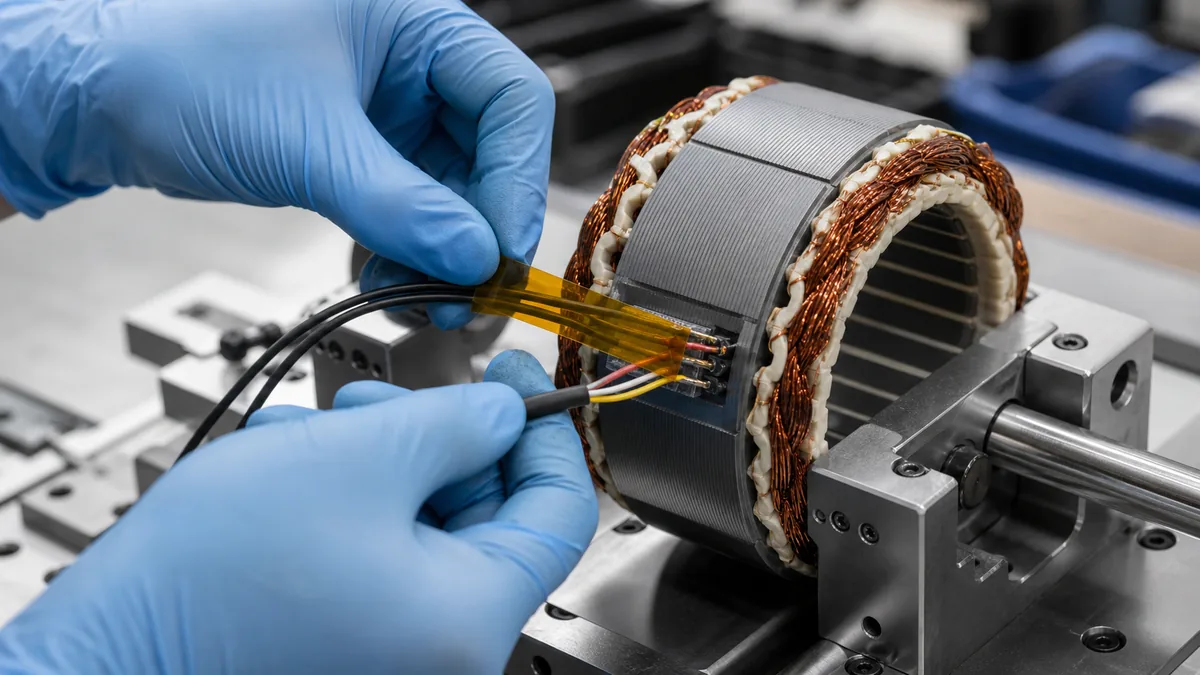

A BLDC motor may use Hall sensors to report rotor position to the controller. The small sensor assembly can sit near stator teeth, an end winding, a PCB, or a dedicated carrier. Its leads may pass through a narrow route before joining a connector or harness. During winding, soldering, varnish cure, rotor insertion, housing assembly, and service vibration, the route can encounter edges, moving parts, and adjacent conductors.
A localized tape patch may keep a lead against an approved surface, cover a smooth joint, retain a separate insulation component, or reduce rubbing at a defined contact. It is not automatically a primary dielectric barrier, structural clamp, or substitute for a molded sensor carrier.
| Location | Possible tape function | Main control |
|---|---|---|
| Sensor-to-lead transition | Local holding and bend support | Solder joint, bend radius, and no adhesive on the sensing face |
| Stator end-winding route | Separate a lead from a smooth winding surface | Clearance, varnish compatibility, and wire movement |
| Lamination edge crossing | Supplement an approved edge barrier | Edge finishing, sleeve use, and compression |
| PCB or connector approach | Retain the routed bundle during assembly | Terminal access, strain relief, and serviceability |
| Housing entry | Protect a localized contact zone | Pinch risk, stack height, and gasket interference |
How to Select the Tape Construction
Polyimide film and adhesive are separate decisions
Polyimide film provides the thin, dimensionally stable backing. The adhesive determines initial tack, bond to the contacted materials, chemical interaction, and behavior through cure or service heat. Request data for the exact tape code and screen samples on the actual wire jacket, enamel, varnished copper, sensor carrier, and coated steel used by the motor.
Choose width and thickness from the route
A wider strip can capture several leads in one step but may bridge a radius or enter the rotor envelope. A narrow slit roll conforms more easily, yet increases overlap and placement variation. Total build includes film, adhesive, overlaps, wire diameter, sleeving, and any varnish retained by the construction.
Define permanent or process-aid use
A permanent wrap faces vibration, thermal cycling, oil or moisture, and insulation aging. A temporary holding tab may be removed or become encapsulated later. The specification should state which condition applies and identify every downstream chemical and heat exposure.
| Selection input | Record for the RFQ | Why it changes the choice |
|---|---|---|
| Electrical role | Voltage relationship, spacing, test plan, and insulation-system status | Prevents a generic tape from being treated as system approval |
| Thermal profile | Process and service temperatures, dwell, cycles, and hot spots | Screens film and adhesive together |
| Contacted materials | Wire jacket or enamel, varnish, carrier, steel coating, and resin | Controls adhesion and compatibility trials |
| Geometry | Lead count, diameter, bend radius, route, keep-outs, and clearance | Defines width, overlap, and finished build |
| Production format | Slit roll, pre-cut strip, kiss-cut patch, liner, and packaging | Affects repeatability and cycle time |
Lead Route, Keep-Outs, and Tape Geometry
Freeze the lead path before specifying the tape. Mark the sensor body, active sensing area, solder joints, connector terminals, rotor envelope, fastening points, potting boundaries, and inspection zones. The tape edge should not force a wire into a tighter bend or end where vibration is concentrated.
Where repeatability matters, a liner-supported die-cut polyimide patch can include a keyed outline, fold line, or finger lift. A converted part is useful only when the assembly datum is repeatable. Do not tighten a tape tolerance that is smaller than the sensor carrier, winding, or lead-position variation can support.
Recommended Application Workflow
- Confirm the released design. Identify the exact tape zone, lead route, keep-outs, and inspection points.
- Verify materials. Check motor revision, sensor and lead construction, tape code, width, and packaging.
- Inspect before covering. Reject damaged wire, poor joints, burrs, contamination, or incorrect routing.
- Set the lead route. Place sleeving, barriers, and strain-relief features before the tape.
- Apply without stretch. Lay the film along the route with controlled overlap and uniform pressure.
- Protect the finish edge. End the tape on a stable surface away from the most active bend.
- Inspect clearance. Check rotor, housing, fastener, connector, and potting interfaces.
- Run downstream processes. Use the approved varnish, cure, encapsulation, and assembly sequence.
- Test the motor. Complete electrical, sensor-function, vibration, thermal, and final inspections.
- Maintain traceability. Record tape lot, motor lot, process conditions, and results.
Qualification and Production Validation
Validate the tape on representative minimum and maximum lead routes, winding builds, and housing clearances. Include nominal assemblies and credible variation in placement, overlap, cure exposure, and wire tension. Visual inspection is necessary but cannot establish dielectric, sensor, fatigue, or motor-life performance.
- Measure tape position, overlap, wrinkles, exposed adhesive, and finished build.
- Verify the Hall sensor signal before and after every relevant manufacturing process.
- Run the motor owner's insulation resistance, withstand, or other approved electrical tests.
- Evaluate wire movement, abrasion, vibration, thermal cycling, and environmental exposure.
- Section or tear down representative units where the qualification plan requires hidden-interface inspection.
- Apply material and process change control after approval.
Troubleshooting Common Defects
| Observed issue | Check first | Corrective direction |
|---|---|---|
| Tape edge lifts after cure | Adhesive, contacted coating, overlap, pressure, and thermal profile | Improve preparation or screen another construction |
| Lead insulation is marked | Tape edge, tension, bend radius, housing pinch, and burrs | Correct route and mechanical protection before retesting |
| Rotor or housing clearance is reduced | Width, layer count, wrinkles, wire position, and varnish build | Reduce uncontrolled stack and gauge the assembly |
| Sensor reading is unstable | Lead joint, routing, connector, magnetic position, and process damage | Use the motor diagnostic plan; do not assume tape is the cause |
| Adhesive migrates or contaminates | Exposure, chemistry, storage, pressure, and tape revision | Quarantine the lot and repeat compatibility screening |
| Placement varies by operator | Datum, access, strip length, liner, and work instruction | Use a keyed patch, fixture, or controlled pre-cut length |
Related Products and Articles
Frequently Asked Questions
Can polyimide tape replace sleeving on Hall sensor leads?
Not by default. Sleeving and tape perform different geometric and mechanical functions. Follow the released motor insulation design and qualify any substitution.
Should the tape cover the Hall sensor body?
Only when the sensor and motor drawings define that coverage. Keep tape away from an active sensing face, datum, connector, or thermal path unless the design explicitly permits it.
Is silicone-adhesive polyimide tape always suitable?
No. Screen the exact adhesive against the wire, varnish, resin, carrier, heat cycle, and service environment. The film name alone does not approve compatibility.
When is a die-cut patch better than slit roll tape?
A die cut can improve orientation, keep-outs, strip length, fold position, and handling when the assembly has a stable datum and repetitive geometry.
What information belongs in an RFQ?
Provide the motor and lead-route drawing, tape role, contacted materials, electrical requirements, process and service temperatures, width and build limits, chemical exposure, production format, volume, and validation plan.
Specify the Lead Protection Zone
Share the BLDC motor lead-route drawing, Hall sensor construction, contacted materials, process heat, varnish or potting sequence, clearances, tape format, and test plan. JIAO TAO TAO can help shortlist a polyimide construction for qualification.
Discuss Hall sensor lead protection
