Polyimide tape for BGA rework heat shielding can temporarily protect nearby connectors, labels, flex circuits, plastics, and small components while a controlled hot-air process removes or replaces a ball-grid-array package. The tape is only one part of the thermal-control plan. Board design, component limits, bottom-side preheat, nozzle selection, airflow, temperature profiling, shielding geometry, handling, and inspection must be approved together.
Key Takeaways
- Keep the target BGA and the released nozzle path clear; shield only approved neighboring zones.
- Use measured board and component temperatures rather than hot-air setpoint as the qualification evidence.
- Do not wrap tape tightly around fragile packages or trap flux, moisture, or loose debris.
- Check for lifted components, residue, damaged labels, and solder defects after tape removal.
- Follow the component, board, solder, and equipment owners' rework limits and procedures.
What Polyimide Tape Can and Cannot Do in BGA Rework
Localized hot-air rework creates steep temperature gradients around a target package. Nearby plastic connectors, electrolytic components, microphones, cameras, flex tails, labels, shields, and small passive parts may be sensitive to radiant heat, direct airflow, or accidental contact. Thin polyimide film tape with a suitable pressure-sensitive adhesive is often screened as a temporary mask because it is conformable, electrically insulating, and easy to place in small areas.
Tape does not make an uncontrolled profile safe. It can reduce direct airflow and provide a removable boundary, but it also changes heat flow. Too many overlapping layers can trap heat, interfere with nozzle clearance, or load delicate parts during removal. Use thermocouples or the released measurement method at representative locations and compare actual exposure with approved component and laminate limits.
Shielding Options Compared
| Shielding method | Useful for | Main caution |
|---|---|---|
| Single-layer polyimide tape | Small adjacent components, flex edges, labels, and defined airflow boundaries | Adhesive contact, edge lift, and limited thermal mass |
| Layered polyimide tape | Selected zones where a released procedure calls for extra coverage | Thickness, heat trapping, and difficult removal |
| Polyimide tape plus foil shield | Rigid neighboring areas needing reflected radiant heat | Electrical shorting, loose foil, and altered airflow |
| Reusable metal aperture | Repeat rework on consistent board geometry | Fixture contact, grounding, nozzle access, and board damage |
| No local shield | Profiles proven safe for all neighboring parts | Requires direct evidence, not assumption |
Selection Inputs for Polyimide Rework Tape
| Parameter | What to document | Why it matters |
|---|---|---|
| Tape construction | Polyimide film thickness, adhesive family, total thickness, liner, and shelf condition | Controls conformability, handling, adhesion, and removal |
| Contacted surfaces | Solder mask, package tops, labels, connectors, flex coatings, and metal shields | Each surface can respond differently to heat and peel |
| Thermal profile | Preheat, ramp, peak, time above liquidus, dwell, cooling, and repeat cycles | Defines actual exposure of the tape and protected parts |
| Airflow geometry | Nozzle size, height, flow, board orientation, and extraction | Determines lifting force and heat distribution |
| Board condition | Moisture control, previous rework, flux, contamination, and sensitive coatings | Affects adhesion, residue, and laminate risk |
| Acceptance plan | Visual, X-ray, electrical, cleanliness, pad, component, and label checks | Defines successful rework beyond package removal |
Choose the Narrowest Practical Shield
Cover only the approved protection zone and leave enough clearance for the nozzle, pickup tool, vision system, and component removal path. Narrow slit widths or pre-cut pieces can reduce folds and excess overlap. Never bridge tape across a component that must move during rework, and do not allow an adhesive edge to overhang the target pads.
Control Adhesion and Removal Load
The tape needs enough tack to resist preheat and airflow without requiring a damaging peel force after the cycle. Place it on robust, clean surfaces where possible. Avoid pressing onto uncured coatings, fragile markings, exposed contacts, vents, microphones, or elastomer seals unless specifically approved. A small folded pull tab can keep tools away from the reworked solder area.
Profile the Protected Assembly
Record temperatures near the BGA and at the most sensitive neighboring locations with the same shield geometry, board support, preheater, nozzle, and extraction used in the job. Tape color or appearance is not a temperature indicator. If the process changes, repeat the profile review instead of assuming the original shield remains effective.
Recommended Application and Rework Workflow
- Confirm the released rework instruction. Verify board revision, target package, moisture handling, shielding drawing, and inspection plan.
- Inspect the board. Record prior damage, contamination, loose parts, coatings, labels, and nearby heat-sensitive components.
- Prepare tape pieces away from the board. Use clean tools and the specified width or cut shape; do not trim over the assembly.

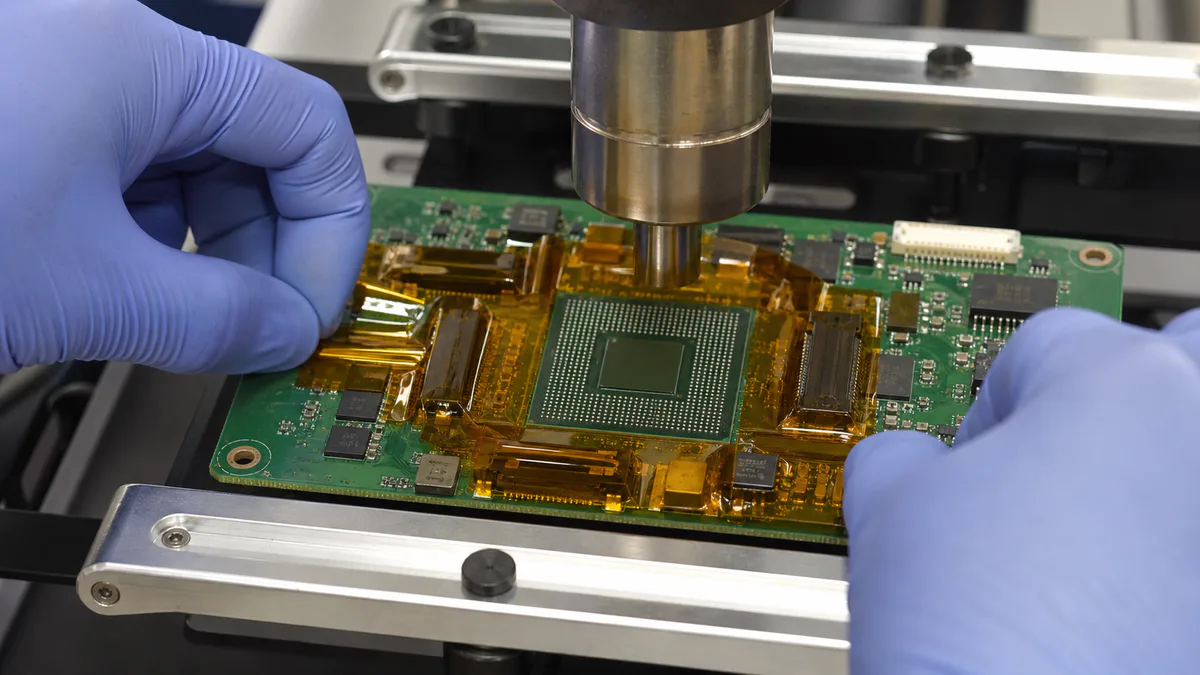

- Apply without trapping debris. Keep the target BGA, pads, vents, contacts, and tool path clear; press only approved surfaces.
- Verify nozzle and shield clearance. Confirm that tape edges cannot be pulled into the hot-air stream or pickup path.
- Run the qualified profile. Control bottom heat, nozzle height, airflow, time, peak, and removal force.
- Allow controlled cooling. Avoid peeling while the board or neighboring plastics are mechanically vulnerable.
- Remove from the tab. Peel slowly in the released direction while supporting the board and neighboring parts.
- Complete post-rework inspection. Check residue, lifted parts, solder mask, labels, connectors, board flatness, cleanliness, joints, and function.
Common Problems and Corrective Directions
| Problem | Likely checks | Corrective direction |
|---|---|---|
| Tape edge lifts in airflow | Contamination, insufficient contact, sharp folds, nozzle direction, or wrong width | Clean approved surfaces, simplify geometry, and re-profile |
| Residue after removal | Exposure, aged tape, incompatible surface, flux, or excessive pressure | Review storage, adhesive type, contacted surface, and removal window |
| Neighboring part shifts | Airflow, solder reflow, taped overlap, or peel load | Change shield boundary, fixture support, airflow, and removal direction |
| Target area heats unevenly | Excess overlap, shield too close, nozzle mismatch, or bottom heat | Simplify the shield and repeat temperature profiling |
| Label or coating damage | Direct adhesive contact, heat, or late removal | Move the bond line or use an approved non-contact shield |
Related Products and Articles
- Explore the polyimide tape range for high-temperature electrical and masking constructions.
- Review polyimide tape for conformal coating connector masking for PCB keep-out planning.
- Compare thermal-control considerations in the flexible heater insulation guide.
- Share the board drawing and measured rework profile for tape-format discussion.
Frequently Asked Questions
Can polyimide tape replace a qualified BGA rework profile?
No. It is a temporary local shield. The approved thermal profile, equipment setup, component limits, moisture control, handling, and inspection still govern the process.
How many layers of tape should be used?
Use only the geometry and layer count supported by a released procedure and temperature measurements. Extra layers can alter heat flow and clearance.
Can tape be applied directly to nearby components?
Only when the component surface, marking, vent, seal, and removal load have been reviewed. Robust solder mask or an approved shield surface is often lower risk.
When should the tape be removed?
Follow the qualified removal window. The board should be cool enough for safe handling, but the adhesive should not be left longer than the approved process requires.
What should an RFQ include?
Provide board and component drawings, contacted surfaces, sensitive keep-outs, target thermal profile, nozzle and airflow details, tape dimensions, annual usage, and acceptance criteria.
Plan a BGA Rework Shielding Trial
Share the board layout, neighboring component limits, allowed tape-contact zones, nozzle geometry, preheat method, measured profile, removal window, and inspection plan. JIAO TAO TAO can help shortlist a polyimide tape construction and slit or die-cut format for process qualification.
