Polyimide tape for flexible heater insulation can provide a thin electrical barrier, secure a local edge, protect lead exits, or support temporary processing around a heater circuit. It is not automatically a thermal interface material or a substitute for the heater’s engineered insulation stack. Selection must follow the real heater construction, voltage, temperature map, bend radius, substrate, adhesive location, assembly sequence, and service life.
Key Takeaways
- Define whether the tape is temporary process protection or a permanent heater component.
- Measure temperature at the adhesive line, including hot spots, heat soak, and cycling.
- Keep tape clear of contacts, sensors, designed heat-transfer zones, and bend regions unless approved.
- Validate electrical, thermal, mechanical, chemical, and aging performance on the complete heater assembly.
Where Polyimide Tape Can Fit in a Flexible Heater
Flexible heaters may use etched foil, printed conductors, wire elements, or another qualified heating circuit combined with dielectric films, adhesives, leads, sensors, terminals, and mounting layers. Polyimide adhesive tape can be useful when a local area needs thin heat-resistant insulation or controlled temporary protection. The exact role must be documented because the same-looking amber tape may be used very differently.
Possible Use Modes Compared
| Use mode | Possible purpose | Main approval question |
|---|---|---|
| Local permanent insulation | Cover a defined conductor edge or supplement a released dielectric detail | Does the full assembly meet electrical and aging requirements at the actual temperature? |
| Lead-exit reinforcement | Hold or protect a lead transition outside the active bend and hot-spot zones | Does the tape change strain, flex life, temperature, or termination stress? |
| Temporary assembly aid | Hold a layer, sensor, or lead during lamination or fixture loading | Can it be removed or retained exactly as the process requires? |
| Process masking | Protect a contact or local surface during coating, potting, or handling | Does it seal the boundary and remove without residue or damage? |
| Edge protection | Cover a cut film edge or reduce direct contact with an adjacent part | Does the added thickness create a pressure point or interfere with mounting? |
Do not place general polyimide tape in the primary heat path and assume it will improve heat transfer. A pressure-sensitive adhesive layer can add thermal resistance, and tape coverage can alter the local temperature distribution. Thermal interface functions require a construction designed and documented for that purpose.
Flexible-Heater Data Required for Tape Selection
| Parameter | Record it as | Why it matters |
|---|---|---|
| Heater construction | Element type, dielectric films, adhesives, cover layers, and mounting stack | Defines the materials and interfaces affected by the tape |
| Electrical design | Operating voltage, spacing, insulation requirement, grounding, and fault criteria | Sets the electrical qualification scope |
| Thermal exposure | Temperature at the tape and adhesive line, duration, cycling, hot spots, and shutdown condition | Provides the real screening condition for backing and adhesive |
| Bonding surface | Polyimide, PET, silicone rubber, metal, coating, ink, or identified laminate | Adhesion varies substantially by material and surface condition |
| Mechanical motion | Bend radius, flex frequency, vibration, strain direction, and lead movement | Controls fatigue, edge lift, and stress concentration |
| Tape geometry | Width, length, overlap, corner radius, die-cut outline, and keep-out zones | Controls coverage and added thickness |
| End use | Temporary or permanent; indoor, outdoor, fluid contact, cleaning, and service duration | Determines removability or long-term qualification needs |
How to Choose the Polyimide Tape Construction
Use measured adhesive-line temperature
A heater setpoint, element temperature, mounting-plate temperature, and adhesive-line temperature are not interchangeable. Measure representative tape locations during steady state, heat-up, cool-down, cycling, and credible fault or control-limit conditions required by the heater design. Include the effect of insulation, clamping, airflow, and the final mounting surface.
Match the adhesive to both surfaces
Polyimide film is only one layer of the tape. Silicone pressure-sensitive adhesive is common for elevated-temperature processing, but adhesion can differ on silicone rubber, low-surface-energy plastics, coated metals, printed inks, and release-treated films. Screen the exact materials after the released cleaning and storage conditions.
Control overlap and edge thickness
Overlapping tape can create a local step that concentrates pressure when the heater is clamped or laminated. A folded edge may also interfere with a cover layer or make a bend less flexible. Record total tape thickness, overlap position, edge direction, and allowable build in the drawing.
Keep the tape away from intended flex hinges
A local reinforcement can move strain into the next unreinforced region. If a heater flexes in service, model and test the transition between taped and untaped zones. Use generous radii and a released lead-routing plan rather than allowing tape placement to drift during production.
Recommended Application Workflow
- Identify the tape function. Mark the insulation, lead, mask, edge, contact, sensor, heat-transfer, and bend zones on the released drawing.
- Confirm material compatibility. Test the exact heater film, ink, laminate, metal, lead insulation, or coating after normal storage and cleaning.
- Prepare a controlled sample. Use the intended tape width or die-cut shape, liner, overlap, pull tab, and placement datum.

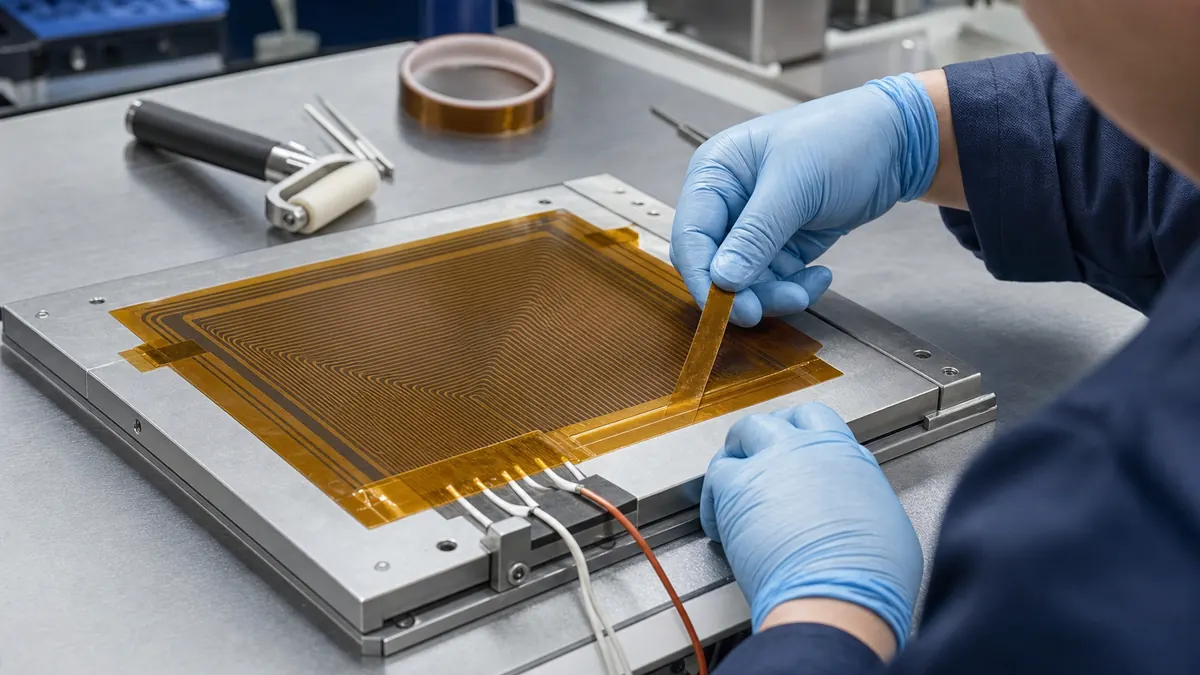

- Apply without stretching. Support the heater flat, align from a datum, and use the specified pressure without trapping folds or particles.
- Inspect critical clearances. Verify contacts, sensors, trace edges, lead exits, heat zones, holes, and mounting features remain as designed.
- Assemble the final stack. Use production-representative clamping, lamination, insulation, mounting plate, and enclosure.
- Run the full validation sequence. Check electrical insulation, temperature distribution, power control, adhesion, flex, vibration, fluids, and aging as applicable.
- Release the process. Control the tape grade, width, geometry, lot traceability, storage, surface preparation, application, and inspection steps.
Qualification and Troubleshooting
| Observed issue | Tape checks | Heater/process checks |
|---|---|---|
| Edge lift after cycling | Adhesive compatibility, width, overlap, backing stiffness, and storage | Hot spot, expansion mismatch, surface contamination, and bend strain |
| Residue after removal | Adhesive grade, exposure history, dwell, peel angle, and lot condition | Measured temperature, contamination, cooling time, and removal method |
| Local heater temperature changes | Tape coverage, overlap, thickness, and location relative to the element | Mounting pressure, airflow, sensor position, control logic, and heat sink |
| Lead fails near the taped edge | Reinforcement length, edge radius, stiffness transition, and adhesive creep | Lead routing, pull load, flex direction, vibration, and termination support |
| Electrical clearance is reduced | Cut geometry, placement tolerance, adhesive flow, and coverage | Trace layout, contact position, stack compression, and inspection method |
Do not convert a supplier’s typical film data into a heater guarantee. Approve the final construction with the organization responsible for the heater’s electrical, thermal, mechanical, and regulatory design.
Related Products and Articles
- Explore the polyimide tape range for insulation and high-temperature processing.
- Review polyimide tape properties, constructions, and selection factors.
- For shaped parts, compare die-cut polyimide insulation formats.
- Send the heater stack, temperature map, drawing, and validation requirements for a material-format review.
Frequently Asked Questions
Can polyimide tape be used as flexible-heater insulation?
It can provide local insulation in a qualified design, but it should not replace the engineered dielectric stack without electrical, thermal, mechanical, and aging validation of the complete heater.
Is polyimide tape a thermal interface material?
General polyimide pressure-sensitive tape is normally selected for insulation, masking, or local protection, not for optimized heat transfer. Use a documented thermal interface construction when the bondline is in the primary heat path.
Where should tape be placed near heater leads?
Place it only in a released zone that supports the intended lead route without covering contacts, creating a sharp stiffness transition, entering an active bend, or altering a sensor or hot spot. Validate the actual motion and temperature.
Should the tape stay on the heater permanently?
That depends on the process definition. Temporary tape needs controlled removal and residue inspection. Permanent tape becomes part of the heater and requires long-term qualification under the complete service environment.
What information is needed for a tape recommendation?
Provide the heater construction, materials, drawing, electrical requirement, measured temperature map, bend and vibration conditions, tape function, surface preparation, quantity, and acceptance tests.
