Custom Die-Cut Tape for RFID and NFC Antenna Bonding
Custom Die-Cut Tape for RFID and NFC Antenna Bonding

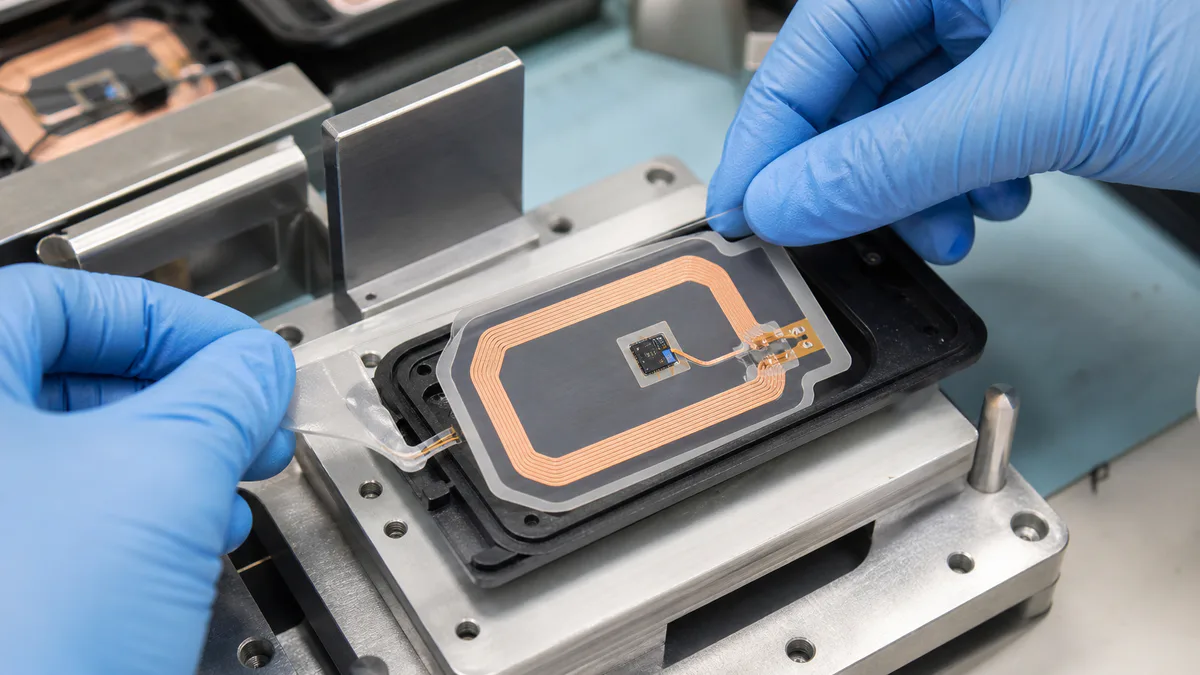

Custom die-cut tape for RFID antenna bonding turns a thin pressure-sensitive adhesive into a repeatable assembly component. A converted shape can locate an antenna inlay, maintain clearance around the chip module, and hold the construction during lamination or housing assembly. The adhesive, carrier, liner, geometry, and process still need qualification against the real substrate, environmental exposure, read-performance requirement, and production equipment.
Key Takeaways
- Define the adhesive as part of the RF and mechanical stack-up, not as a generic mounting layer.
- Keep adhesive and cut tolerances away from chip bonds, antenna traces, folds, and functional clearances.
- Choose the liner and presentation format for the actual pick, peel, alignment, and lamination sequence.
- Evaluate read performance before and after assembly and environmental conditioning.
- Qualify representative production lots instead of relying on nominal adhesive data alone.
What RFID Antenna Bonding Tape Must Control
An RFID or NFC assembly may combine an etched or printed antenna, chip module, polymer carrier, overlay, label stock, spacer, foam, enclosure, or metal-detuning layer. The adhesive can hold the antenna flat, register it to a housing feature, and prevent movement before the next operation. It must do this without flooding a connection zone, creating a wrinkle under the inlay, or shifting the antenna relative to the intended read orientation.
Adhesive thickness and dielectric properties become part of the stack-up. Nearby metal, graphite, ferrite, batteries, liquids, and housing walls can influence antenna behavior. A mechanically secure bond does not prove acceptable RF performance. The antenna designer and assembly owner should approve the finished construction using the required reader, distance, orientation, and operating conditions.
Common Die-Cut Formats Compared
| Format | Where it helps | Main control |
|---|---|---|
| Open-frame adhesive | Bonding around an antenna loop while leaving the center clear | Frame width, corner radii, and trace clearance |
| Full-surface sheet | Flat inlays on uniform non-sensitive substrates | Air release, thickness uniformity, and chip-module relief |
| Segmented tabs | Holding selected zones while limiting adhesive coverage | Tab count, orientation, and peel sequence |
| Kiss-cut array | Repeat production with manual or automated placement | Liner release, pitch, waste matrix, and part counting |
| Multi-layer converted set | Assemblies that combine adhesive, spacer, shielding, or protective film | Layer registration and total stack height |
Information Needed Before Material Selection
| Parameter | What to document | Why it matters |
|---|---|---|
| Bonded surfaces | PET, polycarbonate, ABS, coated paper, foam, ferrite, metal, ink, or other finishes | Surface energy, texture, and additives affect wet-out and retention |
| Stack-up | Antenna, module, carrier, adhesive, spacer, overlay, and enclosure thicknesses | Controls flatness, pressure distribution, clearance, and RF spacing |
| Service exposure | Temperature, humidity, cleaning, flexing, vibration, chemicals, and lifetime | Defines the conditioning program for the finished assembly |
| RF requirement | Frequency, read distance, orientation, reader, surrounding materials, and acceptance limit | Confirms that the bonded stack still performs its electronic function |
| Conversion tolerance | Outer profile, holes, slots, chip relief, trace clearance, and liner registration | Prevents interference and supports repeatable placement |
| Assembly method | Manual, pick-and-place, roll lamination, heat assist, dwell, pressure, and takt time | Drives liner, tab, pitch, and presentation decisions |
Select the Adhesive Family From the Surface Pair
Thin acrylic transfer or double-sided constructions are often screened for clean, flat electronic laminations. Foam or thicker carrier systems can accommodate gaps but may change spacing and compression. Silicone adhesives are useful on selected difficult surfaces or temperature profiles, but they are not a universal choice. Compare current supplier data and test both surfaces after the same cleaning, printing, molding, and aging history used in production.
Design Clearances Into the Cut File
Do not place the cut edge against a fine antenna trace, wire bond, conductive adhesive joint, or chip package without an approved tolerance stack. Include die-cut tolerance, antenna artwork tolerance, liner registration, fixture repeatability, and operator placement in the calculation. Rounded internal corners generally reduce matrix-tearing risk, while a deliberate pull tab can simplify release without touching the active inlay.
Match the Release Liner to the Station
A liner that releases too easily can allow parts to shift during transport; one that releases too heavily can stretch a thin die-cut or lift the antenna. Specify single or differential release, liner stiffness, exposed tab geometry, pitch, roll direction, and splice rules. For automation, include optical contrast and the relationship between the die-cut and the carrier edge.
Recommended Converting and Assembly Workflow
- Freeze the functional drawing. Identify antenna traces, chip keep-outs, folds, mounting datums, and allowed adhesive zones.
- Confirm incoming materials. Record substrate finish, adhesive lot, liner, antenna revision, and storage condition.
- Convert trial formats. Compare at least the required outline, liner presentation, and removal-tab options.
- Prepare representative surfaces. Use the released cleaning and handling sequence; do not improve trial parts with a laboratory-only process.
- Place without stretching. Align from the approved datum, apply controlled pressure, and avoid touching the chip or trace area.
- Complete the real stack. Add overlays, housings, spacers, lamination pressure, and any thermal step used in production.
- Inspect the assembly. Check offset, wrinkles, trapped debris, edge lift, adhesive squeeze, chip clearance, and flatness.
- Verify function and durability. Measure read performance before and after the agreed environmental and mechanical conditioning.
Typical Defects and Corrective Directions
| Defect | Checks | Corrective direction |
|---|---|---|
| Antenna shifts during lamination | Initial tack, pressure path, liner removal, and fixture datum | Stabilize placement and review adhesive coverage or temporary holding features |
| Wrinkle over the inlay | Part stretch, liner curl, placement angle, and trapped air | Change peel direction, handling support, or lamination sequence |
| Cut edge approaches a trace | Artwork tolerance, die wear, registration, and vision setup | Increase the approved clearance and tighten process controls |
| Read range changes after bonding | Spacing, nearby materials, adhesive coverage, and final enclosure | Return the completed stack-up to the antenna owner for RF tuning and approval |
| Edge lift after conditioning | Surface contamination, low pressure, material mismatch, and stored stress | Reassess preparation, geometry, adhesive family, and assembly flatness |
Related Products and Articles
- Review custom die-cutting capabilities for kiss-cut parts, arrays, tabs, and multi-layer conversions.
- Compare another precision electronics format in the custom die-cut tape for LCD backlights guide.
- See how liners and adhesive spacers are handled in double-sided tape for membrane switch assembly.
- Send the antenna drawing and finished stack-up for a converting discussion.
Frequently Asked Questions
Can one die-cut adhesive work for every RFID or NFC inlay?
No. Antenna geometry, substrate, chip-module construction, final housing, nearby materials, environmental exposure, and assembly method can all change the requirement.
Should adhesive cover the complete antenna?
Not automatically. Full coverage, an open frame, or selected tabs can each be appropriate. The approved mechanical and RF stack-up should determine the coverage.
Does a stronger adhesive improve read performance?
Adhesive strength and RF performance are different criteria. A secure bond may still change spacing or introduce material near the antenna. Test the completed assembly.
What liner format is best for automated placement?
The answer depends on feeder type, pitch, vision contrast, peel geometry, roll direction, part stiffness, and required placement accuracy. Trial the actual equipment.
What should an RFQ include?
Provide the antenna and housing drawings, material stack-up, keep-outs, tolerances, service conditions, RF acceptance method, assembly process, presentation format, and expected volume.
Plan an RFID Antenna Bonding Trial
Share the antenna artwork, contacted surfaces, chip and trace keep-outs, finished stack-up, environmental requirements, placement method, liner preference, and RF test plan. JIAO TAO TAO can help shortlist an adhesive construction and converted presentation for qualification.
