Custom Die-Cut Tape for Optical Encoder Disc Masking
Custom die-cut tape for optical encoder disc masking can protect a defined track, hub, or non-process area during an approved coating, cleaning, marking, or assembly step. The converted mask must follow the released encoder geometry and must not scratch, contaminate, distort, or hide the optical code pattern.
Quick Answer
Start with a drawing that distinguishes the active optical code area from the hub, mounting surface, index feature, process boundary, and handling zones. A custom mask may be a disc, ring, segmented arc, tabbed cover, or multi-part set. Its job is to protect only the approved area for a defined process and then remove in a controlled direction without leaving adhesive, particles, impressions, or damage.
Define What the Encoder Mask Must Do
Optical encoders vary widely. A disc may be glass, polymer, or metal and can carry printed, etched, deposited, or cut code features. It may be mounted to a hub before or after processing. The sensing system may use transmissive or reflective geometry, with tight control of runout, spacing, contamination, and contrast.
Define the exact masking step: temporary protection during local coating, shielding a hub surface during marking, covering a non-process region during cleaning, or preventing handling contact during an approved assembly operation. Do not use tape to correct an uncontrolled coating process, substitute for a clean container, or hold a disc in a way that changes flatness or balance.
| Disc zone | Possible mask function | Critical keep-out |
|---|---|---|
| Central hub land | Protect an approved mounting or bonding surface | Datum bore, balance features, and shaft interface |
| Outer non-code rim | Define a local coating or handling boundary | Active track, edge chips, and sensor path |
| Selected arc | Temporary shielding for a controlled process step | Index mark and code transition |
| Carrier or fixture area | Hold a sacrificial protective layer where permitted | Disc face, clamp datum, and runout surface |
| Removal tab | Provide peel access without touching the optical face | Nearby code features and fragile edge |
Select the Tape Material for the Process
Choose by exposure and surface
The mask material must match process temperature, chemicals, dwell, pressure, cleanliness, and removal requirements. Polyimide, polyester, paper, foil, or other specialized tapes may be evaluated depending on the process, but no family is automatically suitable for every optical disc. Adhesive strength on a standard test panel does not predict behavior on coated glass, printed polymer, anodized metal, or a low-energy release surface.
Control total thickness and stiffness
A stiff mask may bridge a slight step or trap air; a very flexible part may curl, stretch, or become difficult to align. Total thickness also affects fixture seating and whether a mask edge enters a spray, coating, or cleaning boundary. Specify construction and caliper, not only the backing name.
Set cleanliness and removal rules
Define acceptable particles, fibers, silicone or other chemistry restrictions, residue, static-control handling, gloves, packaging, storage, and disposal. Test peel direction and disc support at the actual removal temperature. A pull tab can keep tools and fingernails away from the functional surface.
| Selection input | What to provide | Why it matters |
|---|---|---|
| Disc construction | Substrate, coatings, code method, thickness, diameter | Controls adhesion and damage sensitivity |
| Process exposure | Temperature, chemicals, pressure, dwell, cleaning, cycles | Defines the mask material window |
| Optical requirement | Active track, index, contrast, particle and residue limits | Protects signal quality |
| Assembly method | Manual or automated placement, fixture, cycle time, inspection | Drives liner and presentation design |
| Removal | Temperature, peel direction, support, tab, disposal | Controls load and contamination after processing |
Design the Aperture, Datum, and Release Liner
Build the die-cut drawing from released encoder CAD. Dimension the mask from stable datums such as a qualified hub feature or carrier—not from a visually ambiguous code edge. Include the active optical track, index reference, center bore, mounting land, edge exclusion, process boundary, pull tab, and any fixture or gripper clearance.
Create a tolerance stack that includes disc features, printing or etching, hub assembly, die cutting, liner registration, placement fixture, operator or robot accuracy, and inspection resolution. The narrowest safe mask margin must remain after all these variations are combined. Rounded corners and smooth arcs can improve matrix stripping and reduce loose tips.
For automated placement, define web width, pitch, cavity orientation, liner stiffness, release behavior, splice policy, roll direction, core, maximum roll diameter, and sensor marks if used. For manual placement, a split liner or extended tab can allow initial registration before the full adhesive area is exposed.
Recommended Masking Workflow
- Verify revisions. Match the disc, hub, process drawing, mask drawing, fixture, tape, and inspection plan.
- Inspect the disc. Check code features, coatings, edge condition, flatness, particles, and prior damage.
- Prepare the station. Use approved gloves, tools, lighting, fixtures, and controlled packaging.

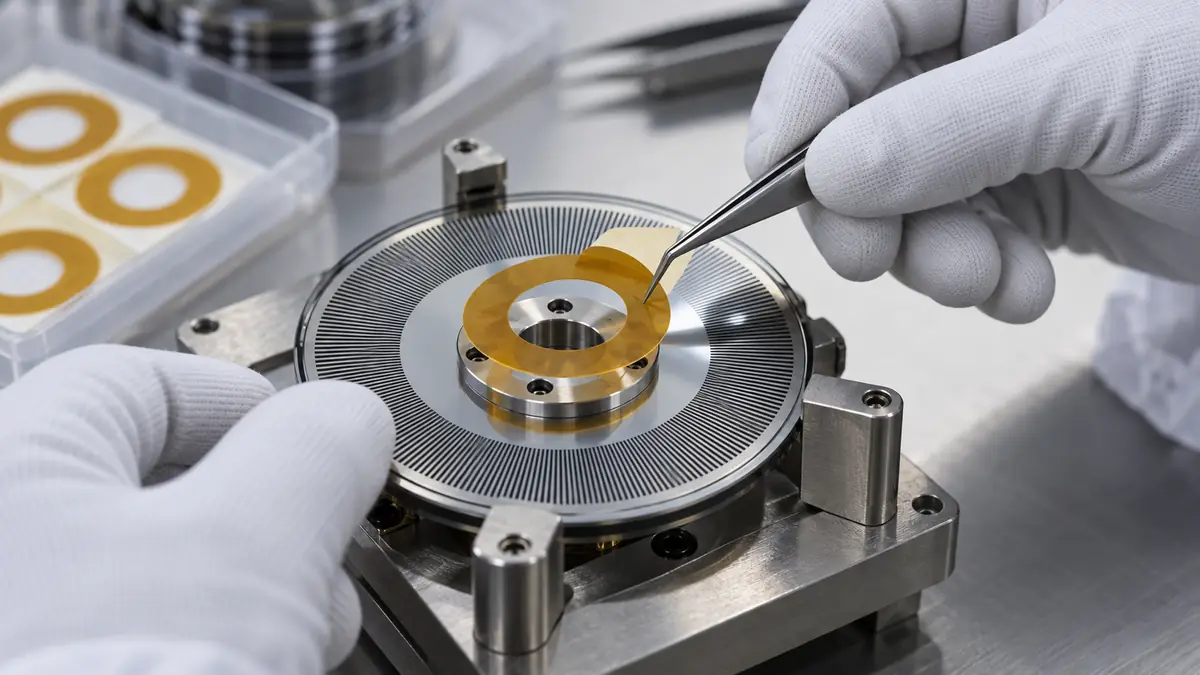

- Locate the datum. Align the liner-backed mask without sliding adhesive across the optical face.
- Apply controlled pressure. Seat the approved zone without bending the disc or trapping particles.
- Inspect registration. Verify the aperture, track clearance, wrinkles, bubbles, tabs, and part count.
- Run the process. Keep the mask within its qualified temperature, chemical, pressure, and dwell window.
- Remove and verify. Support the disc, peel by the tab, account for every mask, and test cleanliness and function.
Validate the Mask and Encoder Together
Use representative disc and coating lots, code geometries, diameters, hub conditions, mask tolerances, liners, placement stations, process loads, removal temperatures, and storage histories. Inspect both the protected area and the adjacent optical zone. Final acceptance belongs to the encoder owner.
- Measure mask registration to released datums and confirm worst-case clearance from the active track.
- Inspect process bleed, coating edge, scratches, chips, wrinkles, trapped particles, adhesive transfer, and liner debris.
- Check disc flatness, runout, hub seating, balance-related features, and dimensional interfaces where applicable.
- Run the encoder manufacturer’s optical signal, index, speed, accuracy, environmental, vibration, and functional checks as required.
- Requalify any change to substrate, code coating, tape, liner, die-cut tool, fixture, process chemistry, or removal method.
Troubleshooting Encoder Disc Masks
| Observed issue | Check first | Corrective direction |
|---|---|---|
| Mask aperture is off-center | Datum choice, liner registration, fixture, disc-to-hub position | Correct the full placement tolerance stack |
| Process crosses the mask edge | Edge seating, particle, wrinkle, mask margin, process direction | Separate mask placement from coating-process variation |
| Disc shows scratches | Tools, sliding placement, liner debris, fixture contact, removal | Protect the optical face and revise handling |
| Residue or haze remains | Adhesive, surface coating, chemical exposure, dwell, peel | Screen the exact construction and removal window |
| Mask tears during peel | Backing strength, tab geometry, cut nicks, peel direction | Redesign the tab and support method under approval |
Related Products and Articles
Frequently Asked Questions
Can die-cut tape cover the optical code track?
Only if the encoder owner has approved direct contact and validated application and removal. Otherwise, keep adhesive, liner, and tools outside the active optical zone.
Should an encoder mask be a ring or a full disc?
Choose from the protected area, optical keep-outs, process direction, datum access, handling, removal, and inspection. A ring, arc, or tabbed cover may each suit different geometry.
How tight should the die-cut tolerance be?
Set it from the functional mask margin and the combined variation of the disc, code, hub, converting, liner, fixture, placement, and inspection processes.
Can the same mask be reused?
Do not assume reuse is acceptable. Removal changes adhesive, shape, cleanliness, and registration, and a used mask may carry particles or process material.
What belongs in an optical encoder mask RFQ?
Provide the disc and hub drawings, active optical keep-outs, substrate and coatings, process exposure, mask function, datum and tolerances, liner format, quantity, removal rule, and validation criteria.
Prepare a Repeatable Encoder Masking Trial
Share the released disc geometry, substrate and code coating, functional keep-outs, mask boundary, temperature and chemicals, fixture, placement method, liner presentation, cleanliness limits, removal sequence, annual demand, and acceptance plan. JIAO TAO TAO can help shortlist tape constructions and converted formats for engineering evaluation.
