Polyimide Tape for Battery Busbar Laser-Welding Spatter Shielding

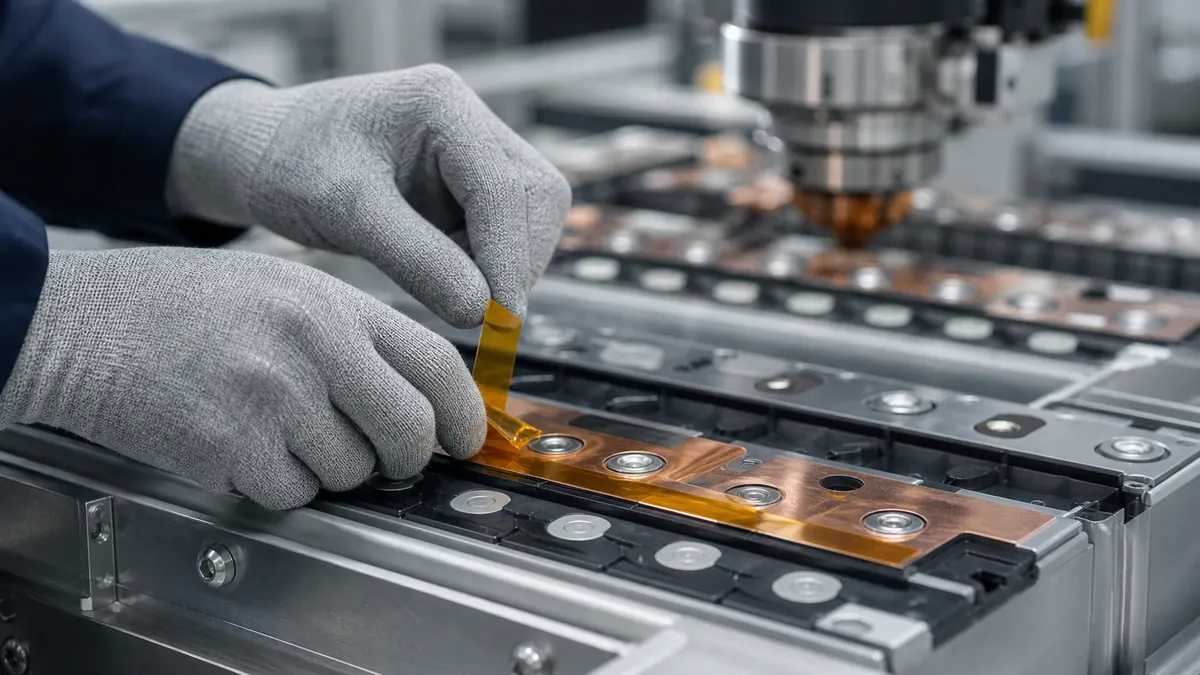

Polyimide tape for battery busbar laser-welding spatter shielding can protect selected adjacent surfaces during a controlled welding operation while leaving the actual weld target fully exposed. Its thin film, heat resistance, and precise edge placement can suit temporary local masking, but it is not laser-protective equipment and must never be placed in the beam path. The welding engineer must validate tape location, reflected energy, fumes, residue, removal, and finished-joint inspection on the real cell and busbar design.

Where Polyimide Tape Fits Around a Busbar Weld

Battery module laser welding often joins a copper or aluminum busbar to cell terminals or interconnect features. The process may create localized heat, reflected light, condensate, or small particles near the joint. A temporary mask can protect a nearby polymer surface, finished busbar region, inspection datum, or no-contamination zone when the application leaves adequate clearance from the weld.

The mask must not cross the fusion area, trap contamination beneath the joint, interfere with clamping, obstruct shielding gas, block cameras, or change the focus condition. Polyimide film can tolerate demanding thermal processes, yet direct beam exposure or contact with molten metal is outside the function of ordinary pressure-sensitive tape. Use engineered cell guarding, optical protection, extraction, and machine interlocks independently of the tape.

Temporary Shielding Options Compared

Information Required Before Selecting Polyimide Tape

Design the Exposed Weld Window First

Start with the released weld path and the largest validated positional variation of part, clamp, and beam. Add the engineering clearance needed for focus, shielding gas, camera visibility, and spatter behavior. Only then define where tape may contact the busbar. A smaller window is not automatically safer; it can put film or adhesive too close to the energy source.

Select Film and Adhesive as One Construction

Polyimide describes the backing, not the entire tape. Silicone and acrylic adhesive systems can behave differently on plated copper, bare metal, polymer covers, and heat-aged surfaces. Review the supplier data sheet, storage condition, liner, thickness, and removal guidance. Test the exact finished tape rather than assuming all amber films are equivalent.

Control Edges, Seams, and Pull Tabs

Place seams away from the joint and away from paths where gas or particles can enter beneath the tape. Avoid wrinkles that form a raised edge near the focus plane. A pull tab can reduce removal tools around live cells, but it must not enter the robot, camera, extraction, or clamp envelope.

Recommended Application and Qualification Workflow

1. Approve the masking drawing. Mark the exposed weld target, beam and camera keep-out, clamp zones, tape land, seams, and pull tab.
2. Confirm the assembly state. Verify cell isolation, busbar revision, surface condition, fixture, weld recipe, and safety controls.
3. Clean only by the released method. Do not introduce an unapproved solvent or wipe that changes joint cleanliness.
4. Apply without stretching. Align from a stable datum and keep film and adhesive outside the approved weld window.
5. Burnish the safe contact area. Press edges flat without deforming the busbar or contaminating the terminal.
6. Inspect before welding. Confirm mask presence, position, edge lift, clamp clearance, optics clearance, and exposed weld path.
7. Run representative welding. Include the maximum qualified weld sequence, motion, shielding gas, extraction, cooling, and waiting time.
8. Remove using the released method. Control peel direction and collect the tape without dropping fragments into the module.
9. Inspect the joint and adjacent zone. Check residue, char, particles, discoloration, damage, weld appearance, and all required joint tests.

Common Problems and Corrective Directions

Related Products and Articles

• Explore the polyimide tape range for high-temperature masking and electrical insulation.
• Review polyimide tape properties, constructions, and selection factors.
• For repeat weld windows and pull tabs, see custom die-cutting capabilities.
• Share the busbar drawing and weld-cell requirements for trial planning.

Frequently Asked Questions

Can polyimide tape cover the laser weld spot?

No. The fusion area and required optical path must remain exposed according to the validated weld process. Ordinary tape is not intended for direct laser exposure.

Is polyimide tape a laser safety barrier?

No. It does not replace the laser enclosure, interlocks, optical protection, extraction, guarding, procedures, or personal protective equipment required by the equipment and site.

Can tape residue affect a battery busbar?

Residue or fragments can be unacceptable near joints, electrical contacts, insulation boundaries, or enclosed modules. Define cleanliness criteria and test the exact tape through the full process.

Is a die-cut mask better than slit tape?

A die-cut can improve the repeatability of a recurring weld window and pull tab. Slit tape may be suitable for early trials or simple edges. Compare placement tolerance, liner handling, seams, cycle time, and removal.

What should an RFQ include?

Provide the busbar and cell-top drawings, materials and finishes, weld-window geometry, beam and clamp keep-outs, thermal sequence, cleanliness limits, presentation format, removal method, validation tests, and estimated volume.
