Industrial double-sided tape for control cabinet gasket positioning holds a pre-cut foam or elastomer gasket on the door, flange, or frame during assembly. In many designs, final sealing comes from controlled gasket compression rather than the tape alone. The adhesive must therefore support accurate placement without changing compression, creating leak paths, or becoming an unreviewed substitute for the specified seal.
Key Takeaways
- Define whether the tape only positions the gasket or also contributes to the environmental seal.
- Match each adhesive face to the cabinet coating and gasket surface.
- Control corners, joints, release-liner removal, application pressure, and compression stops.
- Validate the complete enclosure with its production gasket, tape, hardware, finish, and aging conditions.
Positioning Tape Is Not Automatically the Seal
Control-cabinet gaskets can be made from closed-cell foam, sponge rubber, solid elastomer, or another qualified sealing material. A thin double-sided transfer, tissue, film-carrier, or foam tape may hold that gasket during door handling and final assembly. Once the enclosure closes, latches or fasteners compress the gasket against the mating flange. The seal’s performance then depends on compression, surface continuity, corners, joints, hardware spacing, cabinet stiffness, and material aging.
If the tape is intended to provide a primary moisture, dust, or chemical barrier, it becomes part of the seal design and needs corresponding environmental qualification. If it is only an assembly aid, choose the lowest profile that reliably keeps the gasket in position through storage and assembly without interfering with the designed compression.
Double-Sided Tape Constructions Compared
| Construction | Useful characteristic | Watch point |
|---|---|---|
| Transfer adhesive | Very thin bondline and good conformability | Harder handling; may stretch or bridge at corners |
| Tissue carrier | Easy converting and balanced initial tack | Carrier moisture and strength must suit the service environment |
| PET film carrier | Dimensional control during gasket placement | Less conformable over heavy powder-coat texture or tight radii |
| Thin foam carrier | Bridges small surface texture and gap variation | Adds thickness and may change the intended gasket compression |
Selection Parameters for Cabinet Gasket Positioning
| Parameter | Specify | Reason |
|---|---|---|
| Cabinet surface | Metal, paint or powder type, texture, cure, cleanliness, and flatness | Controls wet-out and available adhesive contact area |
| Gasket surface | Foam or elastomer family, skin, cell structure, density, and release treatment | Low-energy or dusty surfaces may need a different adhesive |
| Compression design | Uncompressed thickness, target compression, stop geometry, and latch spacing | Prevents tape build from changing the seal stack |
| Environment | Indoor/outdoor use, temperature cycling, humidity, fluids, UV, and service life | Sets aging and adhesive-resistance needs |
| Geometry | Width, corner radius, butt or scarf joint, holes, and keep-out zones | Controls continuity and assembly repeatability |
| Process | Cleaning, application pressure, dwell before assembly, storage, and rework | Initial placement and long-term wet-out depend on the real process |
Match Both Sides of the Bond
The cabinet may be smooth painted steel, textured powder coat, stainless steel, or another finish. The gasket may present a smooth skin, open cells, dusting, molding release, or a low-surface-energy rubber. A single adhesive system may not bond both surfaces equally. Test the actual coating and gasket lots after their normal cleaning, storage, and aging.
Protect Designed Compression
A thicker foam tape can fill coating texture, but it also adds to the sealing stack. That can increase closing force, move the compression zone, or leave an unintended step at joints. Use the cabinet designer’s compression target and tolerance stack to screen carrier thickness.
Design Corners and Joints
Stretching a gasket around a sharp corner can thin it and pull it away later. Mitered, radiused, butt, or molded corners each need their own placement method. Do not allow tape liner, overlap, or exposed adhesive to enter the final joint. For high volume, pre-laminated and die-cut gasket assemblies can improve repeatability.
Recommended Assembly Workflow
- Release the sealing drawing. Mark the gasket path, datum, corners, joint, holes, compression stops, and no-adhesive zones.
- Confirm both surfaces. Inspect the cabinet finish and gasket for dust, oil, release agent, damage, or unapproved cleaning.
- Prepare a production-format sample. Use the intended liner, tape width, gasket lot, die-cut geometry, and packaging.
- Apply tape without stretching. Laminate uniformly and avoid wrinkles, exposed adhesive, or trapped liner.

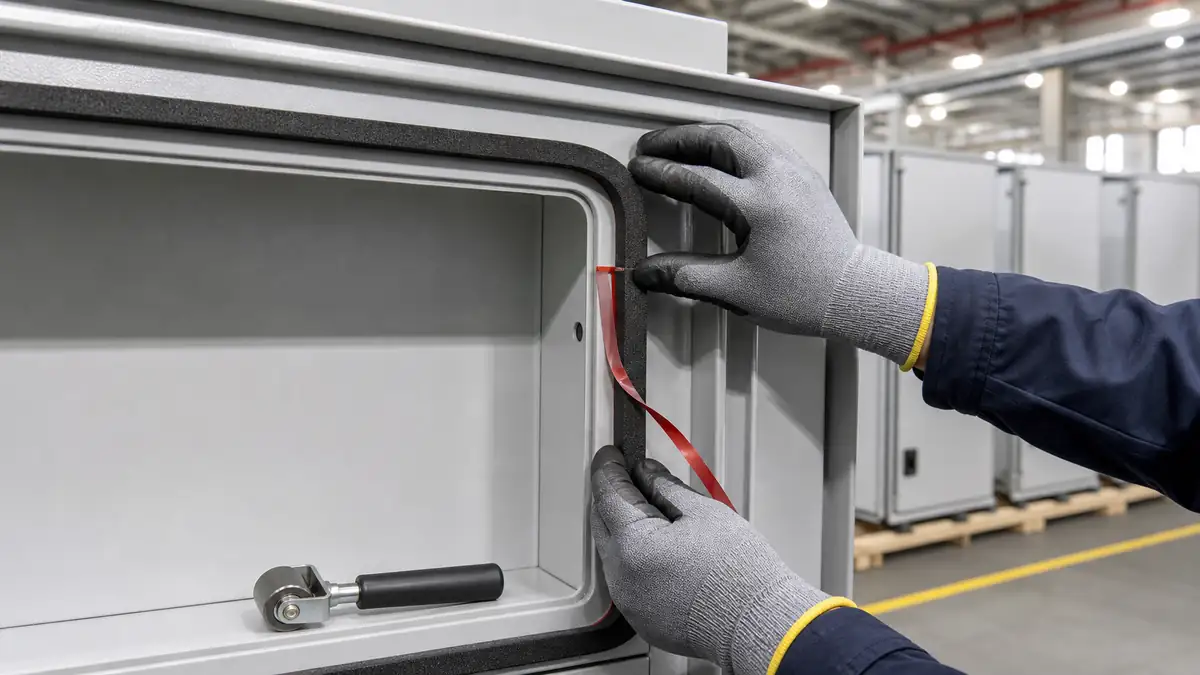

- Position from a datum. Peel the liner progressively, roll the gasket into place, and keep corners relaxed.
- Inspect before closing. Verify continuity, joint fit, location, liner removal, and clearance from hardware.
- Close using production hardware. Use released latch or fastener torque and the complete cabinet structure.
- Qualify the enclosure. Run the specified leak, dust, compression, cycling, fluid, UV, and service tests as applicable.
Troubleshooting Gasket Positioning
| Problem | Check | Direction |
|---|---|---|
| Gasket lifts before door assembly | Coating texture, cleaning, initial pressure, dwell, and adhesive match | Improve process control or evaluate a more compatible carrier/adhesive |
| Corner pulls inward | Gasket stretch, bend radius, joint design, and liner removal sequence | Use relaxed placement, a shaped corner, or a die-cut gasket |
| Door closing force increases | Total tape thickness, gasket thickness, compression stops, and alignment | Review the complete tolerance stack and use a thinner positioning layer |
| Leak appears at the joint | Gap, overlap, exposed liner, compression, and joint location | Redesign and qualify the gasket joint; do not rely on extra adhesive alone |
| Adhesive creeps beyond the edge | Adhesive coat weight, width, heat, compression, and storage | Narrow or recenter the tape and review the adhesive system |
Related Products and Articles
- Explore the industrial double-sided tape range.
- Review the PE foam tape buying guide for foam-carrier fundamentals.
- For pre-laminated shapes, visit custom die-cutting services.
- Send the cabinet and gasket drawings for a tape-format review.
Frequently Asked Questions
Does double-sided tape make a control cabinet waterproof?
Not by itself. Environmental sealing depends on the complete enclosure design, gasket material, compression, joints, hardware, surfaces, and qualification. Positioning tape may be only an assembly aid.
Which tape carrier is best for a foam gasket?
Transfer adhesive minimizes build, PET improves handling stability, tissue supports easy converting, and thin foam bridges texture. Select through trials on the actual gasket and cabinet coating.
Can tape be applied to textured powder coat?
Potentially, but texture reduces real contact area. Test wet-out, pressure, dwell, temperature cycling, and aging on the released powder-coated panel.
Should the gasket be stretched around corners?
Usually avoid uncontrolled stretch because it can thin the gasket and create pullback. Use the released corner geometry and placement method, or consider a shaped die-cut gasket.
What should an RFQ include?
Provide cabinet and gasket materials, coating texture, gasket cross-section, target compression, environment, drawings, tape role, assembly method, volume, and validation requirements.
Prepare a Cabinet Gasket Positioning Trial
Share the cabinet finish, gasket material and cross-section, compression target, corner and joint drawing, environmental exposure, assembly sequence, and acceptance tests. JIAO TAO TAO can help shortlist a thin transfer, tissue, PET, or foam-carrier double-sided tape for your validation.
