Industrial double-sided tape for battery pack foam pad positioning holds a cushioning, anti-rattle, spacing, or insulation pad at its intended location during module and pack assembly. In this role, the tape is a positioning aid within an engineered stack, not proof that the pad is electrically rated, flame resistant, thermally insulating, or structurally retained. The battery design owner must release the pad, adhesive, substrate preparation, compression, safety requirements, and validation plan.
Key Takeaways
- Specify whether tape is needed for temporary positioning, permanent retention, or converting the pad before assembly.
- Qualify the complete foam-adhesive-tray stack, including compression, temperature, fluids, aging, and pack service conditions.
- Match liner stiffness and release to the operator or automated placement method.
- Keep adhesive, liner fragments, and pad edges out of vents, seals, fastener seats, drainage paths, and electrical interfaces.
- Use drawing-based datums and measurable placement tolerances instead of visual centering.
Define the Tape's Role Before Selecting a Product
Foam pads can be used in a battery pack for cushioning, tolerance take-up, vibration control, air management, protection from local contact, or another design-specific function. Double-sided adhesive may be laminated to the pad so it remains positioned during handling, module installation, cover placement, or compression. The tape should be selected for that released role only.
If the final design relies on the adhesive to restrain a pad throughout vehicle life, the requirement is different from a tape that holds the pad for several minutes until a cover compresses it. Clarify the required load direction, dwell, assembly time, repositioning allowance, and final retention mechanism. Avoid assigning electrical, thermal, flame, or chemical performance to the tape based only on its product family name.
Double-Sided Constructions Compared
| Construction | Potential fit | Main qualification question |
|---|---|---|
| Thin PET-carrier double-sided tape | Dimensionally stable lamination and die-cut conversion | Will the carrier conform to the foam and tray without edge lift? |
| Tissue-carrier double-sided tape | Flexible converting and general foam lamination | Does the carrier maintain integrity during liner removal and placement? |
| Transfer adhesive | Very thin bond line where no separate carrier is required | Can the converter and assembly process handle the adhesive cleanly? |
| Double-sided foam tape | Additional gap filling or cushioning in non-critical released designs | Does added thickness change the pad compression and stack height? |
| Pattern-coated or die-cut adhesive | Keeping adhesive away from vents, holes, channels, or release tabs | Are the pattern, orientation, waste removal, and tolerances controlled? |
Data Required for Tape and Pad Selection
| Parameter | What to document | Why it matters |
|---|---|---|
| Pad construction | Foam polymer, cell structure, density range, skin, thickness, and surface treatment | Controls adhesive wet-out, compression, and converting behavior |
| Pack substrate | Aluminum alloy, coating, paint, film, composite, texture, and cleanliness | Determines real bond area and surface preparation |
| Assembly role | Temporary hold, permanent retention, vertical placement, transport, or compression-assisted hold | Sets the required peel, shear, and dwell behavior |
| Environment | Assembly temperature, service range, humidity, approved fluids, aging, and thermal cycles | Adhesive and foam can change over time and exposure |
| Geometry | Pad outline, adhesive coverage, holes, tabs, vents, edge clearance, and placement tolerance | Prevents interference and controls converting yield |
| Safety and validation | Pack-level requirements, material declarations, traceability, and test ownership | Confirms the stack meets the responsible design authority's plan |
Separate Foam Performance From Adhesive Performance
A pad can meet its compression target while the adhesive fails to wet out the foam skin, or the adhesive can bond strongly while the foam tears internally. Define which failure modes are acceptable in a peel or removal trial. Test both interfaces: adhesive-to-pad and adhesive-to-pack. If the pad is skived, molded, coated, or flame-treated, qualify the actual production surface.
Protect Functional Keep-Out Areas
The converted adhesive should not bridge a pressure equalization path, vent, drain, seal land, fastener seat, locating feature, busbar clearance, connector zone, or service access point. Add reliefs and edge setbacks to the controlled drawing. A pattern-coated or die-cut construction may reduce squeeze-out and simplify visual inspection compared with full-surface lamination.
Design the Liner for the Assembly Station
Liner selection affects far more than shipping. An operator may need a split liner, extended pull tab, or staged release so the pad can be located before the full adhesive is exposed. Automated placement may require stable liner caliper, controlled release, registration marks outside the finished part, and predictable waste removal. Confirm that no liner fragments remain in the pack.
Recommended Lamination and Pack-Assembly Workflow
- Release the stack drawing. Define the pad, tape, adhesive coverage, liner, holes, tabs, datums, and tolerances.
- Control incoming materials. Verify lot identity, storage condition, pad dimensions, liner condition, and surface appearance.
- Laminate under a defined process. Use released pressure, speed, alignment, and environmental conditions without stretching the foam.
- Convert and remove waste. Inspect cuts, reliefs, pull tabs, liner integrity, adhesive squeeze-out, and pad damage.
- Prepare the pack surface. Follow the approved cleaning and dry-time method; protect adjacent electrical and sealing features.

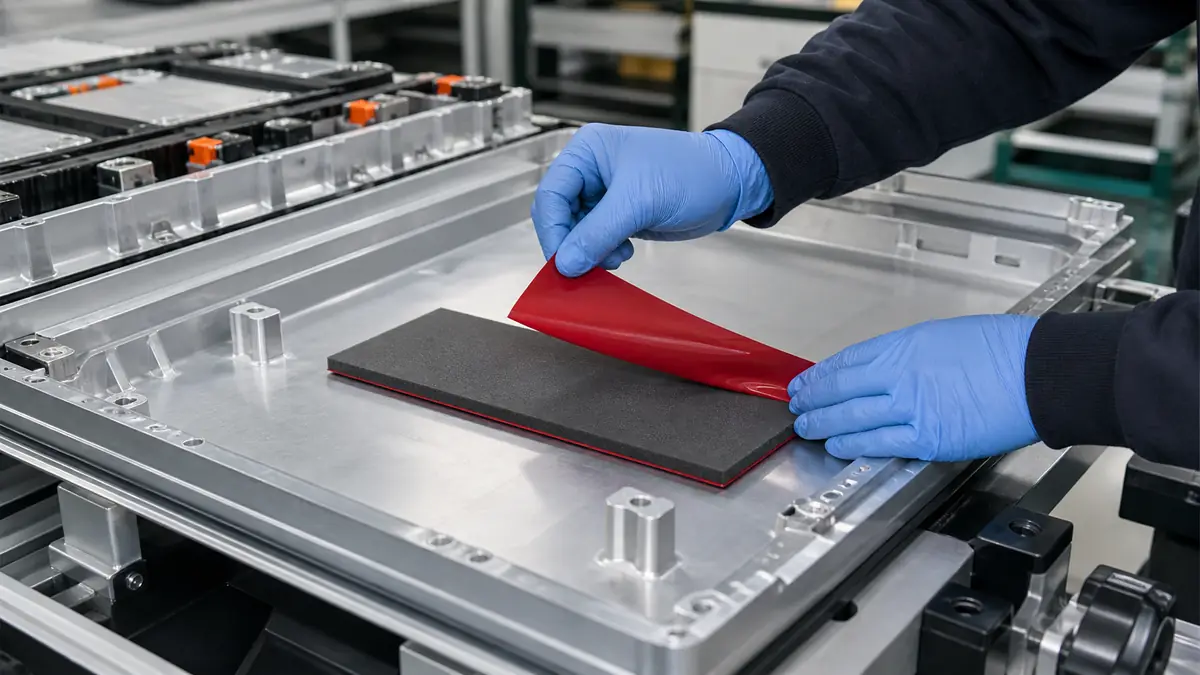

- Locate from datums. Peel the liner in the released sequence, place without trapping debris, and apply the specified seating pressure.
- Inspect before closing the pack. Confirm pad count, orientation, location, edge condition, keep-out clearance, and complete liner removal.
- Validate the finished stack. Run the design owner's compression, vibration, thermal, environmental, electrical, and safety checks as applicable.
Common Assembly Problems and Corrective Directions
| Problem | Likely checks | Corrective direction |
|---|---|---|
| Pad shifts before cover installation | Low wet-out, short dwell, contaminated tray, incorrect pressure, or high placement load | Stabilize cleaning and seating; review the assembly role and adhesive |
| Foam tears during liner removal | Liner release too high, weak foam skin, poor lamination, or peel direction | Review liner, pull tab, laminate pressure, and foam surface |
| Pad sits outside tolerance | No physical datum, full adhesive exposed too early, flexible part, or unclear work instruction | Add a staged liner, fixture, vision target, or converted locating feature |
| Adhesive squeezes into a keep-out | Coverage too close to edge, excessive compression, thick adhesive, or dimensional stack-up | Increase setback, add a relief, and recheck compression and tolerances |
| Edge lifts after aging | Surface mismatch, pad recovery force, thermal cycling, contamination, or insufficient dwell | Test the full aged stack and revise coverage, carrier, adhesive, or pad design |
Related Products and Articles
- Explore the industrial double-sided tape range for carrier and adhesive options.
- Review the PE foam tape buying guide for foam-backed construction fundamentals.
- For pad outlines, reliefs, split liners, and kiss-cut arrays, see custom die-cutting capabilities.
- Send the pad stack drawing and assembly conditions for a converting review.
Frequently Asked Questions
Can double-sided tape hold a foam pad inside an EV battery pack?
It can be used as a positioning or retention layer when the responsible design authority qualifies the exact pad, tape, tray surface, compression, environment, aging, and final pack design. Tape should not be assumed to provide structural or safety performance without that validation.
Which carrier is best for foam-pad lamination?
PET, tissue, transfer adhesive, and foam carriers serve different converting and assembly needs. Select by pad surface, required conformability, bond-line thickness, die-cut stability, liner removal, and service conditions.
Should adhesive cover the entire foam pad?
Not automatically. Full coverage may simplify lamination, while pattern coverage can protect vents, holes, channels, and edge clearances. Use the released drawing and compression analysis.
How can operators place a flexible pad accurately?
Use controlled datums, a fixture or vision target, and a split or staged liner that exposes only part of the adhesive during initial alignment. Measure placement rather than relying only on visual centering.
What should an RFQ include?
Provide the pad material and thickness, tray substrate and finish, tape's required role, adhesive coverage drawing, tolerances, liner and pull-tab needs, lamination method, environment, validation requirements, annual quantity, and packaging format.
Prepare a Battery Foam-Pad Bonding Trial
Share the foam specification, pack surface, pad outline, adhesive keep-outs, placement tolerance, liner-removal sequence, compression stack, environmental conditions, and test ownership. JIAO TAO TAO can help shortlist an industrial double-sided tape and converted liner format for controlled evaluation.
