Industrial Double-Sided Tape for Air Filter Frame Assembly

Industrial double-sided tape for air filter frame assembly can hold filter media, spacer strips, labels, or light trim in position before the frame is closed, crimped, or otherwise secured. The tape is part of the assembly process, not an automatic replacement for a required sealant or mechanical retention feature. Selection must reflect the frame material, media surface, air stream, temperature, humidity, pressure drop, and service conditions.

What Double-Sided Tape Does in Air Filter Frame Assembly

Filter construction varies from disposable paperboard frames to metal or plastic housings with pleated media, separators, scrims, foam strips, and labels. Double-sided tape may temporarily position the media pack before crimping, hold a spacer or reinforcement, attach a label panel, or create a continuous bond where the released design allows it.

The tape function must be explicit. A placement aid may only need to resist movement during the next assembly step. A permanent bond may need to withstand shipping, filter replacement, airflow pulsation, moisture, and long service exposure. If the filter specification requires a tested perimeter seal, fire performance, low emissions, or a particular regulatory result, the finished assembly must be qualified to that requirement; tape choice alone does not establish compliance.

Common Double-Sided Constructions Compared

Information Required Before Selection

Match the Adhesive to Both Surfaces

A clean aluminum flange and a porous nonwoven medium do not present the same bonding surface. One side may need flow into texture, while the other needs stable adhesion to a coating or polymer. Provide actual substrate samples and specify any release agent, oil, antistatic treatment, or plasticizer that can interfere with adhesion.

Use Thickness to Manage Gaps

Thin film or tissue tape keeps the bondline low but cannot bridge a large step, frame seam, or rough media edge. Foam tape can accommodate irregularity but also changes compression and frame closure. Measure the real flange and media stack before selecting thickness, and confirm that the tape does not obstruct the intended airflow path.

Design Corners and Liner Pulls for Production

Four separate strips can leave corner gaps, while a continuous die-cut frame can improve geometry but add liner-handling complexity. Split liners or extended tabs can help operators remove release material after placement. The drawing should define butt joints, overlaps, start points, and allowed exposed adhesive.

Recommended Assembly and Qualification Workflow

1. Define the tape function. State whether it positions, bonds, fills, or contributes to a released sealing design.
2. Collect representative substrates. Use the real frame finish, media, foam, label, and production cleaner.
3. Prepare the frame consistently. Remove oil, dust, loose coating, and handling contamination by the approved method.
4. Apply from a fixed datum. Use a guide, fixture, or die-cut part to control edge distance and corner geometry.
5. Apply uniform pressure. Roll or press the tape according to the trial method without trapping air or crushing the media.

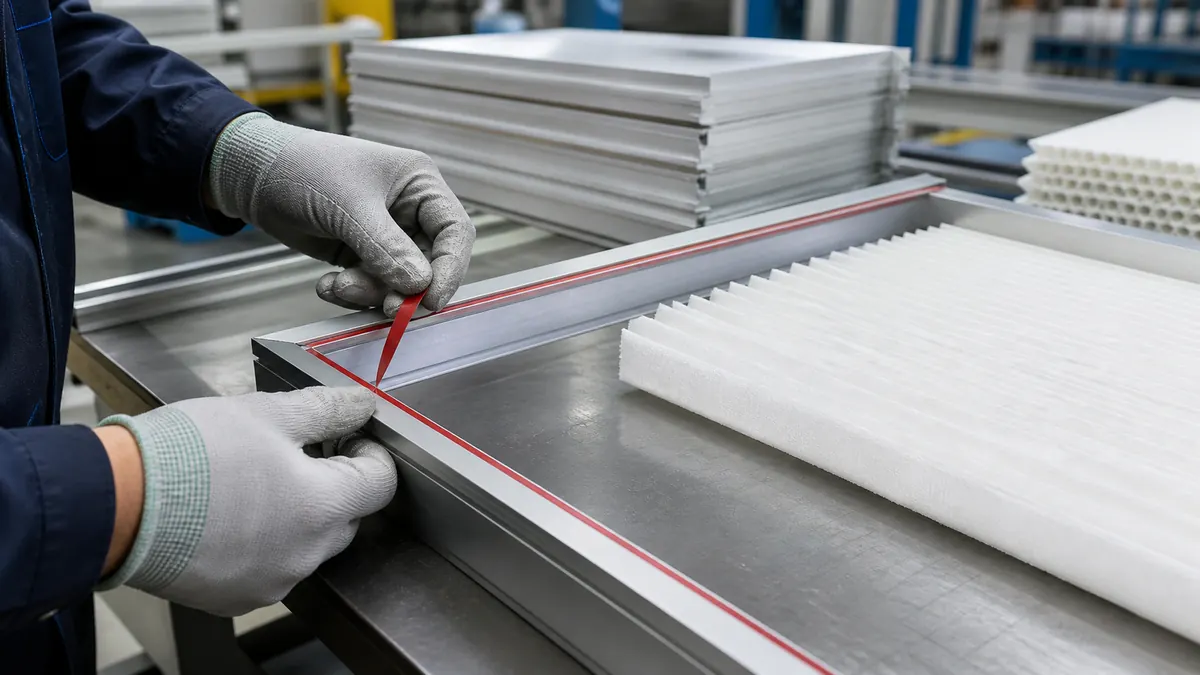

6. Remove the liner cleanly. Peel without lifting the tape or touching the adhesive face.
7. Complete the frame assembly. Position the media and perform the specified crimp, closure, cure, or secondary seal step.
8. Condition the sample. Include the defined dwell, temperature, humidity, storage, and transport conditions.
9. Test the finished filter. Inspect movement, edge lifting, media damage, leakage where applicable, and assembly integrity.

Common Assembly Problems and Corrective Directions

Related Products and Articles

• Explore the industrial double-sided tape range for film, tissue, foam, and reinforced options.
• Review the PE foam tape buying guide when gap filling or compression is required.
• For one-piece frame shapes and split liners, see custom die-cutting capabilities.
• Send the frame drawing and substrate samples for a selection discussion.

Frequently Asked Questions

Can double-sided tape hold filter media inside a metal frame?

It can be used as a placement aid or a released bond when the tape is qualified with the actual metal finish, media, frame closure, airflow, environment, and service requirements.

Is foam tape always better for filter frames?

No. Foam helps bridge gaps and texture, but it adds thickness and compression. Thin tissue, PET carrier, transfer adhesive, or reinforced tape may fit better on flatter surfaces.

Can tape replace the perimeter sealant?

Only if the filter design and qualification specifically approve that function. A positioning tape should not be assumed to provide the required leakage or environmental seal.

Should the frame use strips or a one-piece die-cut?

Strips are flexible for trials and changing sizes. A die-cut frame can improve corner and placement repeatability when the geometry and volume justify conversion.

What information should an RFQ include?

Provide the frame drawing, substrate and coating, filter-media type, tape function, bond width, thickness limit, operating environment, assembly steps, required tests, quantity, and packaging needs.
