Double-Sided Polyimide Tape for FPC Stiffener Bonding

Double-sided polyimide tape for FPC stiffener bonding creates a thin adhesive layer between a flexible printed circuit and a local reinforcement plate. The tape must hold the stiffener in the correct position without covering contacts, creating an excessive step, trapping contamination, or losing adhesion during the assembly’s thermal and mechanical exposure. Selection therefore depends on the complete FPC stack, adhesive system, thickness, liner design, lamination method, and validation plan.

Why Flexible Circuits Use Local Stiffeners

Flexible printed circuits are designed to bend, but selected zones often need more support. A stiffener can reinforce a connector tail, create a flat area for component mounting, control insertion thickness, support a soldered region, or move the bending transition away from a vulnerable conductor. Common stiffener materials include polyimide film, PET, FR-4, and metal, with the final choice controlled by the circuit design and assembly process.

The adhesive layer is part of that mechanical design. It transfers load between the flexible circuit and stiffener, establishes the finished stack height, and influences where the circuit begins to bend. A poorly placed or overly thick bond line can interfere with a connector, create a stress concentration, or shift the neutral axis. A thin tape is helpful only when its surfaces, processing conditions, and long-term behavior are suitable.

Double-Sided Polyimide Tape Construction

A double-sided polyimide tape uses polyimide film as a carrier with pressure-sensitive adhesive on both faces. The carrier contributes dimensional stability, dielectric separation, and handling strength. The adhesive provides the actual bond to the FPC coverlay and stiffener. Silicone and acrylic pressure-sensitive systems are available in the market, but their adhesion, temperature response, outgassing behavior, and processing needs are not interchangeable.

Match each adhesive face to its substrate

The flexible circuit side may be polyimide coverlay, covercoat, copper, ink, or another film. The stiffener may be polyimide, PET, FR-4, stainless steel, or aluminum. Surface energy, roughness, oxide, release residue, and cleaning method influence the bond. If the two faces require different release behavior or adhesive performance, ask whether a differential construction or another adhesive format is more appropriate.

Control total bond-line thickness

Finished thickness includes the FPC, coverlay, adhesive layers, polyimide carrier, stiffener, and any local coating. Compare the drawing’s final stack limit with measured production parts. A thicker tape can accommodate limited surface texture, while a thinner tape reduces the step; neither is automatically better. The chosen construction must also avoid excessive squeeze-out near contacts, vias, and outline edges.

Confirm whether the bond is temporary or permanent

Most stiffeners are intended to remain with the assembly. That shifts attention from clean removal to long-term shear, thermal aging, humidity exposure, and resistance to process chemicals. If the tape only holds a stiffener during another bonding step, removability and residue may become important. Define the function clearly before comparing tape data.

Die-Cut Shape and Release-Liner Design

Create windows for contacts, holes, and flex zones

Converted adhesive parts can follow the stiffener outline while leaving contacts, tooling holes, test pads, and specified bend zones clear. The drawing should identify a common datum for the adhesive, stiffener, and circuit. Avoid extremely narrow adhesive slivers unless the converter has confirmed that they can be cut, weeded, carried on the liner, and placed consistently.

Place the adhesive edge away from critical bend lines

The transition from bonded to unbonded FPC changes local stiffness. If the adhesive ends abruptly at a dynamic bend, the circuit may repeatedly flex at that boundary. Work with the FPC designer to position or shape the bond edge so that the intended bend radius and flex life are preserved. Do not add a stiffener or extend adhesive into a flex zone without design approval.

Use the liner as an assembly aid

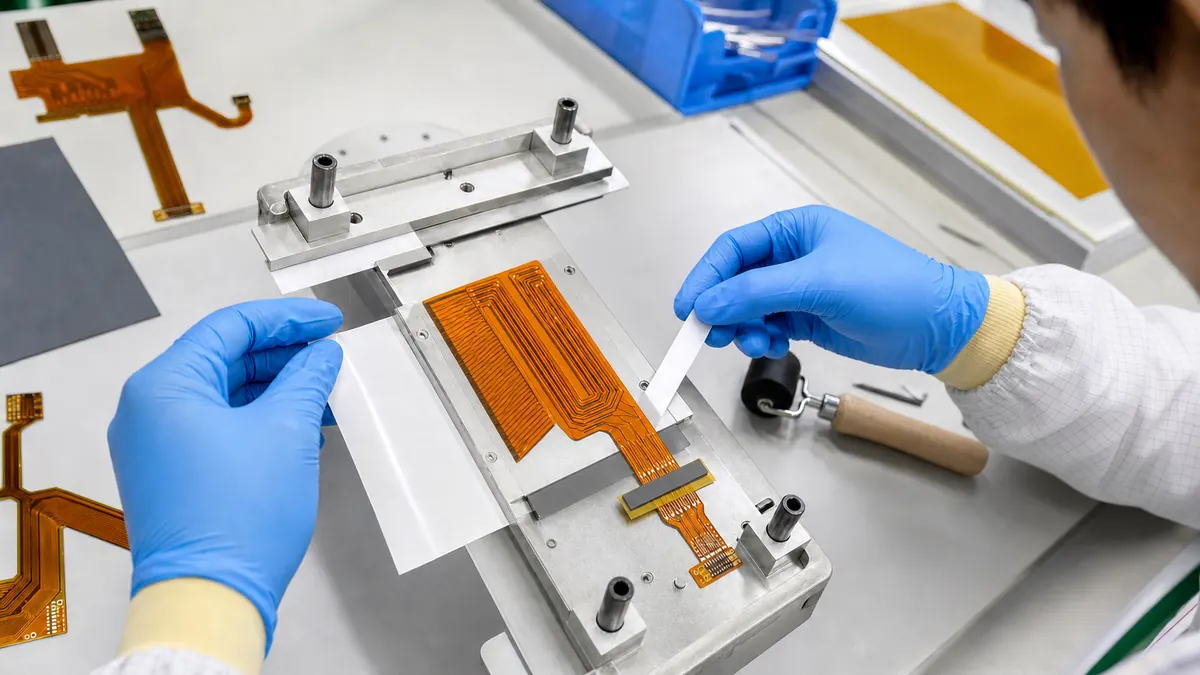

A split liner can allow the adhesive to be registered before the full bond area is exposed. Extended tabs can keep gloves or grippers away from the adhesive. Kiss-cut parts on a common carrier simplify manual builds, while roll presentation may support automated placement. Specify release force, liner thickness, pitch, part orientation, and static-control requirements for the actual equipment.

Recommended Lamination Workflow

1. Confirm revision and material identity. Verify the FPC, stiffener, adhesive part, liner orientation, and drawing revision.
2. Prepare both surfaces. Use only the cleaning and handling method approved by the circuit and stiffener owners.
3. Locate the FPC in a flat fixture. Support the circuit without creasing it or forcing the dynamic flex region flat.
4. Register the adhesive part. Align from tooling holes or defined datums; keep contacts and windows clear.
5. Remove the first liner in the specified sequence. Avoid stretching the adhesive or touching the bond area.
6. Laminate with controlled pressure. Use a roller, pad, or press fixture that applies uniform load without trapping air.
7. Place the stiffener and complete the second bond. Maintain parallel alignment and prevent sliding during pressure application.
8. Allow the defined dwell or thermal process. Follow the approved material and assembly specification before handling tests.
9. Inspect and measure. Check registration, bubbles, wrinkles, edge lift, exposed adhesive, stack height, flatness, and contact clearance.

Qualification and Troubleshooting

A representative approval plan may include dimensional inspection, cross-section or thickness measurement, peel or shear testing defined by the design owner, connector insertion, thermal cycling, humidity exposure, vibration, chemical contact, and dynamic bend testing where applicable. Record the material lots, surface preparation, lamination equipment, pressure, dwell, environmental sequence, and exact failure location. Supplier typical values should not be converted into an assembly guarantee.
