Custom Die-Cut Tape for Speaker Mesh and Acoustic Vent Bonding

Custom die-cut tape for speaker mesh bonding creates a controlled adhesive border around an acoustic opening without blocking the sound path. A successful part must fit the housing, bond the real mesh and substrate, stay outside the active vent, and remain easy to handle during assembly. Material choice, cut geometry, liner design, compression, contamination control, and acoustic validation therefore need to be specified together.

What the Speaker-Mesh Bond Must Do

Speaker mesh and acoustic vents appear in smart devices, controls, communication equipment, appliances, sensors, alarms, headsets, and industrial terminals. The mesh may limit particle entry, protect a diaphragm, control appearance, or support an environmental design. The die-cut adhesive part holds that mesh to a housing, bezel, frame, or internal carrier while preserving the intended open area.

A ring that looks acceptable in a drawing can still create problems. Adhesive squeeze-in may reduce the effective vent area. A weak bond can permit edge lift or mesh movement. A thick foam can change the stack height, while a very thin transfer adhesive can distort during liner removal. Define the primary functions and measurable acceptance criteria before requesting samples.

Common Adhesive Constructions Compared

RFQ Data for a Die-Cut Speaker-Mesh Adhesive

How to Design the Die-Cut Geometry

Protect the acoustic keep-out zone

Build an adhesive-free opening around the active sound path using the released acoustic and mechanical drawings. Include cut tolerance, placement tolerance, adhesive flow, mesh movement, and housing variation. Do not rely on the nominal CAD boundary alone.

Give operators a clear placement datum

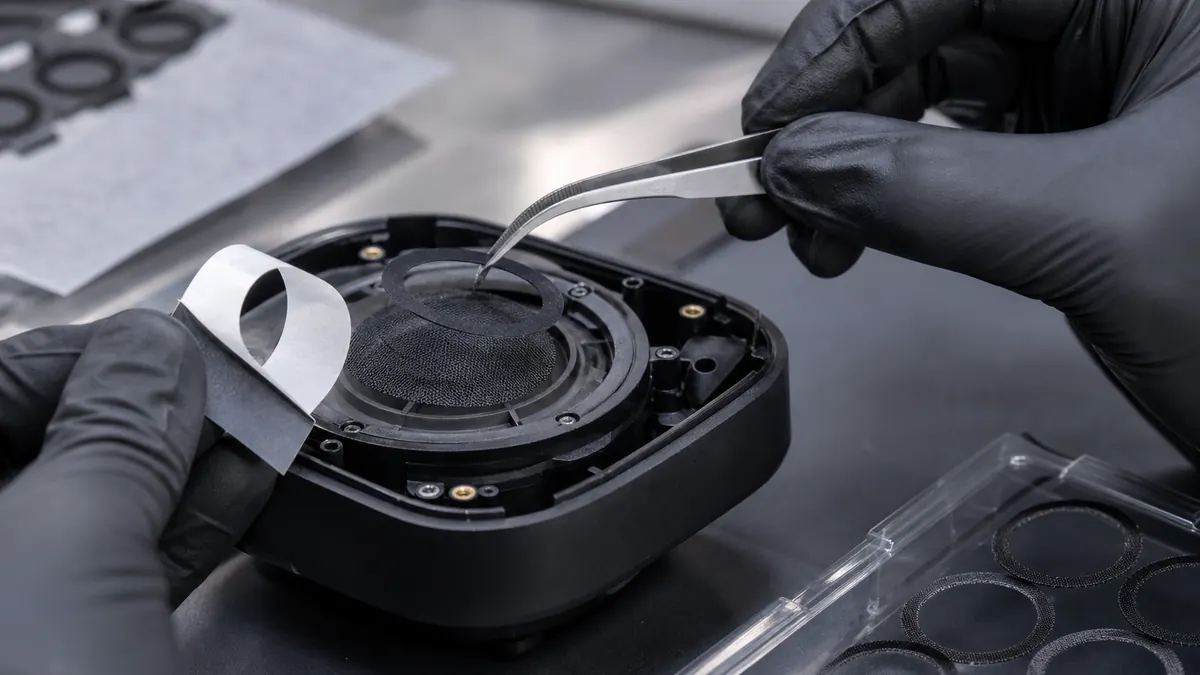

An asymmetric corner, datum hole, carrier edge, or keyed outline can prevent reversed placement. A split liner or extended pull tab may let the operator expose one region, register the part, and then remove the remaining liner without stretching the ring.

Choose corner radii and bridges for convertibility

Very narrow lands, sharp internal corners, and isolated islands can make waste removal or part dispensing unstable. Review minimum web width, part spacing, liner stiffness, rotary or flatbed tooling, and the method used to remove the internal slug. The converter should flag geometry that is difficult to hold consistently.

Separate acoustic sealing from water or dust claims

A continuous adhesive ring may help close a perimeter, but it does not by itself establish an ingress rating. Mesh construction, housing joints, vent membranes, compression, fasteners, and all other leak paths remain part of the enclosure design. Qualify the complete device to its own requirements.

Recommended Converting and Assembly Workflow

1. Freeze the mesh and housing inputs. Record material codes, coatings, molding conditions, surface texture, and cleanliness controls.
2. Define the active opening and bond land. Include tolerance and adhesive-flow allowances around every vent feature.
3. Screen candidate constructions. Compare transfer adhesive, PET-carrier tape, and foam only where each format matches the stack function.
4. Prototype the real geometry. Use representative liners, pull tabs, internal slugs, orientation, and packaging.
5. Apply with the planned fixture. Control surface preparation, placement datum, pressure, dwell time, and mesh tension.
6. Inspect the bondline. Check centering, wrinkles, trapped particles, exposed adhesive, edge lift, and intrusion into the opening.
7. Run functional validation. Measure the required acoustic, environmental, mechanical, appearance, and rework outcomes on completed assemblies.
8. Release the full specification. Control tape construction, mesh, drawing revision, tolerance, liner, packaging, orientation, and inspection plan.

Failure-Mode Review

Supplier datasheets and sample peel checks are screening tools. Final approval should use production-representative mesh, housings, fixtures, pressure, dwell, environmental conditioning, and the released acoustic test method.

Related Products and Articles

• Explore the custom die-cutting service and material options.
• Review the broader custom die-cut tape guide for precision assembly.
• Compare another optical and housing use case in custom die-cut tape for LED lighting assembly.
• Send the mesh, housing, drawing, and assembly requirements for a converting review.

Frequently Asked Questions

What tape is used to bond speaker mesh?

Thin transfer adhesive, double-coated PET tape, or a controlled foam adhesive may be used. The correct construction depends on the mesh, housing, land width, gap, environment, handling method, and acoustic design.

Can a die-cut adhesive ring reduce the acoustic opening?

Yes, if the inner cut is too small, the part is misaligned, or adhesive flows inward. Define an acoustic keep-out zone and validate the effective opening after assembly and conditioning.

Should the mesh be laminated to tape before final assembly?

Pre-lamination can improve handling, but it also introduces mesh tension, registration, cut-edge, and cleanliness variables. Compare pre-laminated parts with separate placement using the real line process.

Is black die-cut tape required behind a speaker grille?

Black material may improve appearance, but color does not define adhesion, sealing, acoustic performance, or durability. Treat color as one controlled specification alongside the full construction.

What files are needed for a quotation?

Provide a dimensioned drawing, mesh and housing materials, bond function, stack height, tolerance, opening keep-out zone, liner format, orientation, quantity, packaging, and qualification requirements.
