Kapton Applications in Electronics
Kapton Applications in Electronics
Looking for reliable insulation solutions for electronic components? Many electronics manufacturers use subpar materials that fail in high-heat or high-voltage scenarios, leading to product failures and safety hazards. This guide details Kapton’s key applications in electronics and why it’s the top choice for electronic insulation.
Table of Contents
- What Is Kapton for Electronics? (Definition)
- Types of Kapton for Electronic Use (Classification)
- Kapton Electronic Specs & Data Source (Parameters)
- Key Electronics Applications (Applications)
- How to Select Kapton for Electronics (Selection Steps)
- FAQs About Kapton in Electronics (FAQ)
- Summary & Contact Information (Summary + CTA)
- About Dongguan JIAOTAOTAO New Materials Co., Ltd.
What Is Kapton for Electronics? (Definition)
Kapton for electronics is a specialized polyimide film/tape optimized for electrical insulation, thermal management, and mechanical protection in electronic components. It offers high dielectric strength, low dielectric constant, and heat resistance—critical properties for PCBs, semiconductors, and other electronic devices.
Types of Kapton for Electronic Use (Classification)
Kapton materials tailored for electronics:
- Kapton HN (Electrical Grade): Standard insulation for PCBs and wire harnesses (high dielectric strength).
- Kapton CR (Conductive Grade): Static dissipation for semiconductor wafers and sensitive components.
- Kapton FPC (Flex Circuit Grade): Thin, flexible grade for flexible printed circuits (FPCs).

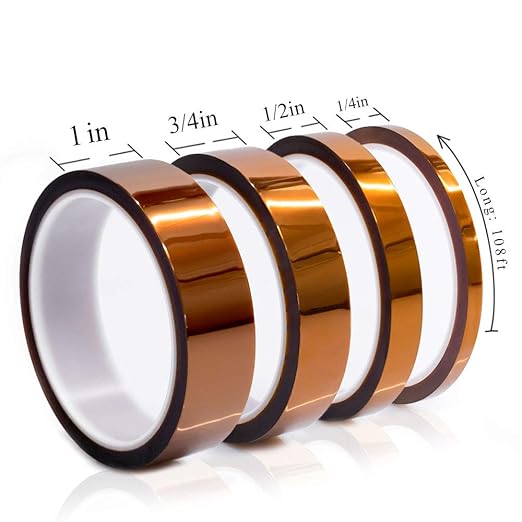

- Kapton Tape (Silicone Adhesive): Masking during PCB soldering (no residue, high temp resistance).
Kapton Electronic Specs & Data Source (Parameters + Data Source)
Electronic performance parameters of Kapton (Data Source: DuPont Electronic Materials Datasheet 2026):
- Dielectric strength: 7000 V/mil (275.6 kV/mm) – ideal for high-voltage electronics
- Dielectric constant: 3.5 (1 MHz) – low signal loss
- Volume resistivity: 10¹⁷ Ω·cm – excellent electrical insulation
- Surface resistivity: 10¹⁶ Ω/sq (HN grade); 10³-10⁶ Ω/sq (CR grade)
- Thermal resistance: -269°C to 260°C – stable in extreme temp electronics
- RoHS/REACH compliance: Meets EU electronic waste standards
Key Electronics Applications (Applications)
Kapton is indispensable in electronic manufacturing:
- Printed Circuit Boards (PCBs): Masking during wave soldering/reflow soldering; insulation between layers.
- Semiconductors: Wafer processing masking; thermal insulation for etching and deposition tools.
- Flexible Electronics: FPCs in smartphones, wearables, and foldable devices (flexible insulation).
- EV Electronics: Battery management system (BMS) wiring insulation; motor controller thermal protection.
- LED Lighting: Heat dissipation and insulation for high-power LED modules.
How to Select Kapton for Electronics (Selection Steps)
Follow these steps to choose the right Kapton for electronic applications:
- Define insulation needs: High dielectric strength (HN grade) for high-voltage components; conductive (CR) for static control.
- Check thickness requirements: Thin (0.025mm) for FPCs; thicker (0.1mm) for heavy-duty insulation.
- Verify adhesion needs: Silicone adhesive tape for soldering masking (no residue); acrylic for permanent bonding.
- Confirm compliance: Ensure RoHS/REACH for global electronic markets.
- Evaluate flexibility: FPC grade for bendable electronics (e.g., foldable phones).
FAQs About Kapton in Electronics (FAQ)
Q: Why use Kapton tape for PCB soldering?
A: Kapton tape resists 260°C soldering temps, leaves no residue, and protects sensitive PCB areas. (Source: IPC-A-610 Standards)
Q: Is Kapton safe for high-power LED applications?
A: Yes, Kapton’s thermal resistance and insulation prevent overheating and short circuits in high-power LEDs. (Source: LED Industry Technical Manual)
Q: What thickness of Kapton is best for FPCs?
A: 0.025mm (1mil) or 0.05mm (2mil) Kapton FPC grade is optimal for flexible circuits (balance flexibility/strength). (Source: DuPont FPC Guidelines)
Summary & Contact Information (Summary + CTA)
Kapton is the gold standard for electronic insulation, offering unmatched dielectric strength, heat resistance, and flexibility for PCBs, semiconductors, and flexible electronics. Choosing the right Kapton grade (HN/CR/FPC) ensures optimal performance and safety in electronic devices.
If you need custom Kapton solutions for your electronic manufacturing needs, contact us today:
- Official Website: www.clothadhesive.com
- WhatsApp: +86-13612775969
- Email: simon@jiaotaotao.com
Dongguan JIAOTAOTAO New Materials Co., Ltd.
JIAOTAOTAO is a professional industrial tape manufacturer, founded in 2009. It boasts independent research and development technologies, imported coating equipment production lines plus dust-free production workshops, more than 100 R&D patents, 3 production bases, a factory area of over 8,000 square meters, and a staff size of more than 500. From production to sales, we support bulk purchasing, customization, and die-cutting, and can provide tailor-made perfect solutions for your production and usage scenarios. With 16 years of manufacturing experience, we have solved the production problems related to the use of tapes in industrial production for more than 100 enterprises. We can ship globally (with complete export qualifications). Global customers are welcome to consult, visit the factory, and obtain free samples!
