Sublimation Tape for Heat Transfer Positioning, PCB Masking, and High-Temperature Insulation

Table of Contents

• Direct Answer
• Technical Specifications & Material Science
• Industrial Applications
• Material Comparison
• Customization & Supply Capabilities
• FAQ
• Conclusion & Contact

Direct Answer

What is sublimation tape? It is a high-temperature adhesive tape typically constructed with polyimide film backing and a silicone adhesive system, designed to hold transfer paper, films, or components in position during heat exposure. It is also used for PCB masking, electrical insulation, transformer wrapping, and industrial high-temperature protection.

• Material type: Polyimide (PI) film
• Adhesive system: Silicone adhesive / Acrylic adhesive (optional)
• Temperature resistance limit: -269°C to +260°C continuous; short-term peak up to +400°C
• Dielectric strength: ≥ 6.5 kV/mm
• Core industrial uses: Sublimation positioning, PCB masking, transformer insulation, motor coil wrapping, high-temperature masking

Technical Specifications & Material Science

Product Definition

Sublimation tape in industrial supply is commonly a polyimide film adhesive tape engineered for high-temperature positioning and insulation. Compared with general-purpose tapes, it is selected where process temperatures, dimensional stability, and clean removal are more demanding.

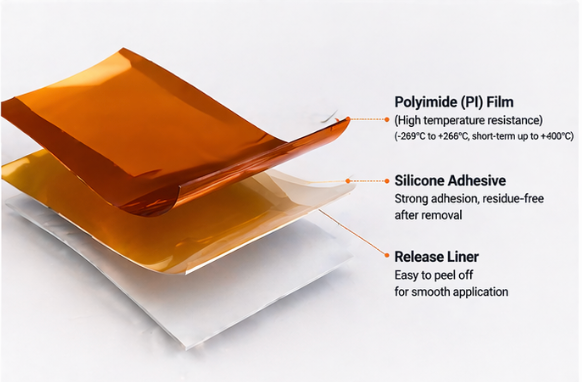

Backing Structure: Polyimide Film

Polyimide film is used because it provides strong thermal stability, excellent dielectric performance, and good chemical resistance. It remains dimensionally stable during rapid heating cycles, which is important in sublimation transfer, electronic masking, and insulation systems.

Adhesive System: Why Silicone Matters

A silicone adhesive system is commonly preferred for sublimation tape because it can maintain adhesion under elevated temperatures while reducing the risk of adhesive residue after removal. Acrylic adhesive grades may also be supplied for applications that require different adhesion characteristics.

Typical Technical Parameters

For external technical reference, industrial buyers often compare insulation tape performance against frameworks such as ASTM International and UL.

Industrial Applications

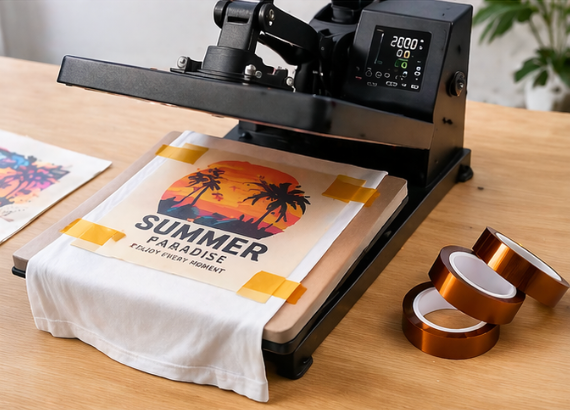

1. Sublimation Printing and Heat Transfer Positioning

In sublimation printing, the tape is used to secure transfer paper or transfer film during heat pressing. A polyimide-based sublimation tape is preferred when the process requires dimensional stability, heat resistance, and clean removal after pressing.

2. PCB Masking and Electronics Assembly

Polyimide sublimation tape is also used in PCB masking and electronics manufacturing because it can withstand elevated temperatures during solder-related processes while offering strong electrical insulation and controlled adhesion.

3. Transformer, Coil, and Motor Insulation

The combination of high dielectric strength and thermal resistance makes this tape suitable for motor winding, transformer wrapping, and coil insulation where long-term thermal exposure and voltage resistance must be considered.

4. Powder Coating and High-Temperature Surface Protection

For industrial masking, polyimide tape helps protect selected areas during coating or curing processes. It is used where the buyer requires sharp masking lines, heat endurance, and low residue after removal.

5. Flexible Circuit and Battery Assembly

In precision electronics, the tape is applied around flexible circuits, terminals, and battery components where thin construction, insulation performance, and heat stability are important.

Material Comparison

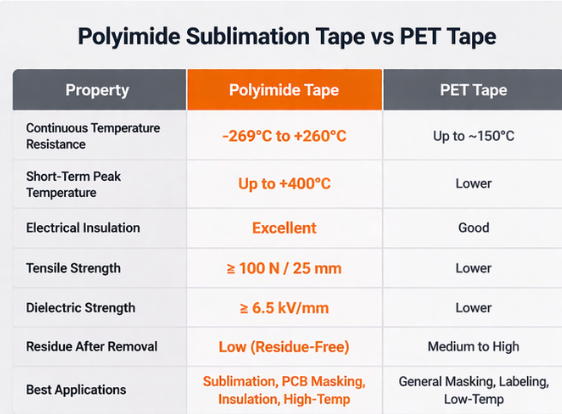

Polyimide Sublimation Tape vs PET High-Temperature Tape

Selection guidance: Choose polyimide sublimation tape when the process includes high press temperatures, electrical insulation requirements, electronics exposure, or more demanding residue control. Choose PET tape when process temperature is lower and cost control is the priority.

Customization & Supply Capabilities

As a direct manufacturer, JIAOTAOTAO can support B2B buyers with:

• Custom die-cutting: discs, pads, insulation parts, precision masking shapes
• Slitting: narrow widths and custom roll formats for print and electronics applications
• Thickness customization: 0.025 mm to 0.125 mm
• Color options: amber standard plus custom colors
• Custom width: available for OEM and converter projects
• MOQ flexibility: suitable for trial orders and production orders
• Free samples for testing: available for process validation
• Fast lead time: suitable for continuous industrial procurement

FAQ

1. What is sublimation tape used for?

Sublimation tape is used to hold transfer paper, film, or substrates in position during heat press processing. In industrial settings, it is also used for PCB masking, transformer insulation, and high-temperature surface protection where heat resistance and clean removal are required.

2. What temperature can sublimation tape withstand?

Polyimide-based sublimation tape can typically handle continuous temperatures up to 260°C, with short-term peak exposure reaching 400°C depending on process conditions. Actual performance should be verified under the user’s specific dwell time, pressure, and substrate combination.

3. Does sublimation tape leave residue?

When the correct silicone adhesive grade is selected and removed under proper process conditions, sublimation tape is generally known for low-residue or residue-free removal. However, excessive overheating, prolonged dwell time, and substrate surface energy can affect final removal performance.

4. Why choose polyimide sublimation tape instead of standard heat tape?

Polyimide sublimation tape offers higher heat resistance, better electrical insulation, and more stable dimensional performance under demanding thermal cycles. It is preferred for industrial environments where ordinary heat tape may soften, distort, or lose adhesion consistency.

5. Can sublimation tape be used for PCB masking?

Yes. Polyimide tape is widely used in PCB and electronics applications because it combines heat resistance, dielectric performance, and stable adhesion. This makes it suitable for masking, insulation, and temporary protection during high-temperature electronic manufacturing processes.

6. What thicknesses are available?

Typical thickness range is 0.025 mm to 0.125 mm. Thickness selection depends on handling requirements, conformability, insulation needs, and the thermal stress level in the application.

7. Can the tape be customized for OEM supply?

Yes. Industrial suppliers can provide custom widths, roll lengths, die-cut parts, colors, and packaging formats. OEM buyers should confirm tolerance requirements, substrate conditions, and end-use temperature profile before mass production.

Conclusion & Contact

Sublimation tape based on polyimide film and heat-resistant adhesive is a practical solution for heat transfer positioning, PCB masking, electrical insulation, and other high-temperature industrial processes. It is selected where process stability, thermal endurance, and controlled removal are essential.

Request a data sheet, free sample, or direct factory quotation from JIAOTAOTAO.

• Product link: //www.clothadhesive.com/polyimide-tape-manufacturer-heat-resistant-tapes.html
• Official website: www.clothadhesive.com
• WhatsApp / WeChat: +86-136 1277 5969
• Email: simon@jiaotaotao.com
• Manufacturer: JIAOTAOTAO
