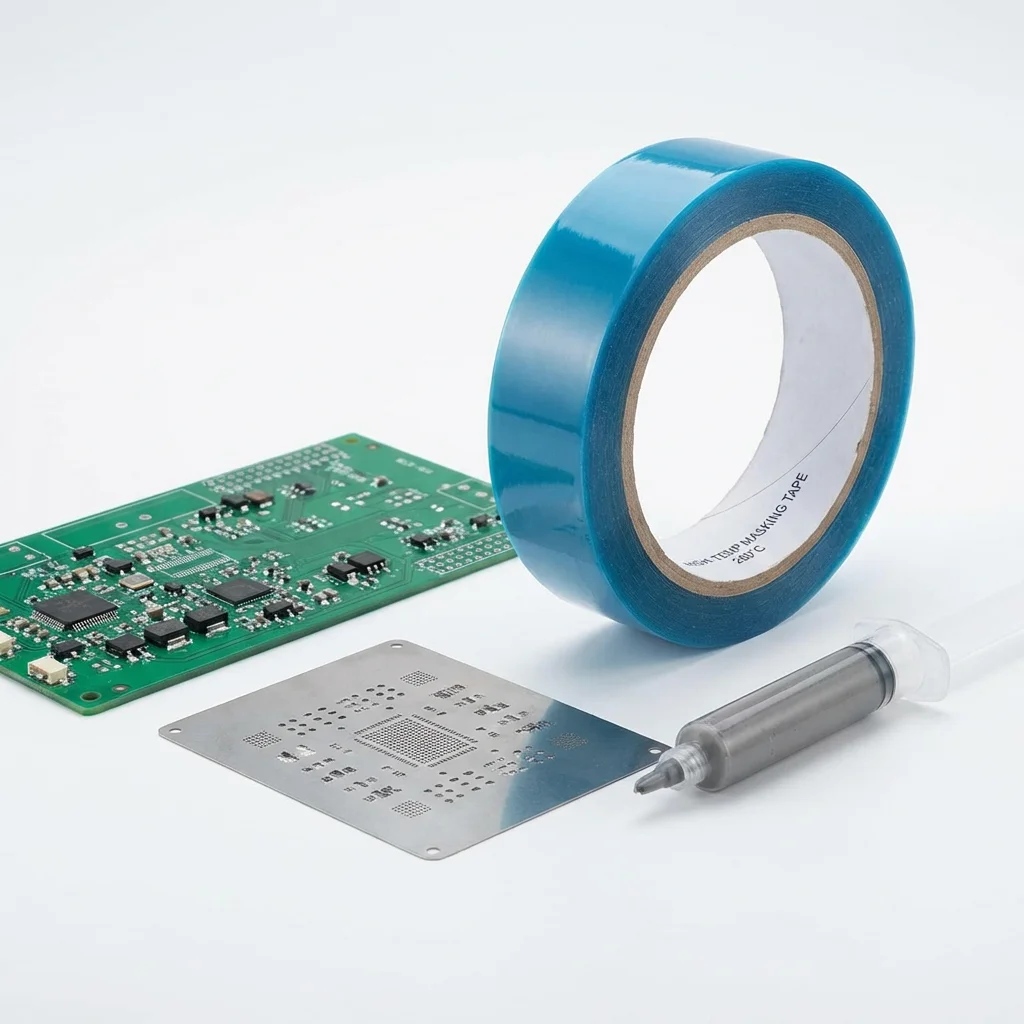

What Is Solder Masking Tape?

Quick Facts

• Backing material: Biaxially oriented PET film (BoPET), 36–50 µm
• Adhesive system: Cross-linked silicone PSA
• Continuous service temperature: 200°C
• Short-term peak (wave / selective solder contact): 260°C (≤10 sec)
• Dielectric strength: ≥ 5,000 V (per ASTM D149)
• Residue-free removal: Zero adhesive transfer on soldermask, ENIG, HASL, and OSP surfaces confirmed post-SAC305 solder cycle
• Key distinction: Removable assembly process tape — not liquid solder mask (LPI) used in board fabrication
• Core uses: Wave solder masking, selective solder masking, SMT reflow zone protection, conformal coating dam, ICT test pad protection, connector body shielding
• Colors available: 13+ standard colors for process line color-coding
• Manufacturer: JIAOTAOTAO Tape manufacturer, Dongguan, China (Est. 2009)

Technical Specifications & Material Science

Why PET Film Is the Optimal Backing for Solder Masking Tape

PET film (biaxially oriented polyethylene terephthalate) provides a combination of thermal resistance, dimensional stability, and chemical inertness that paper and standard polymer backings cannot match at soldering temperatures. BoPET film maintains thermal shrinkage <1.5% at 150°C for 30 minutes (ASTM D1504), ensuring the tape edge remains pressed flat against the PCB soldermask throughout the preheat and solder contact zones. Paper backings absorb flux activators and moisture during the preheat stage (100–150°C), softening and causing edge lift at the critical solder contact moment — the primary cause of solder infiltration beneath the tape boundary. PET film's non-porous surface is impermeable to flux chemistry at all standard soldering temperatures, maintaining a consistent sealed boundary from oven entry to cooling conveyor exit.

Cross-Linked Silicone Adhesive: Performance Across All Soldering Processes

The silicone PSA is a thermally cross-linked polydimethylsiloxane (PDMS) network with Si–O backbone bond energy of ~450 kJ/mol — substantially higher than acrylic C–C bonds (~346 kJ/mol) that degrade above 150°C. This molecular architecture allows the adhesive to survive 260°C wave solder contact for up to 10 seconds and 200°C continuous oven exposure for 30+ minutes without chain scission, oxidative degradation, or adhesive mass transfer. Post-cycle peel testing on green soldermask (LPI), ENIG, HASL, and OSP pad surfaces confirms zero adhesive deposit in all cases — eliminating the solvent cleaning step required after standard acrylic-adhesive high-temperature tapes.

Standard Technical Parameters — JIAOTAOTAO Tape PET Silicone Solder Masking Tape

PCB Soldering Process Applications

1. Wave Soldering — Bottom-Side SMT Component Protection

Mixed-technology PCBs with SMT components on the bottom side pass through the wave solder bath inverted, exposing pre-populated capacitors, resistors, and IC packages to direct solder contact at 250–260°C for 3–8 seconds per IPC-A-610 process guidelines. Components outside the intended wave solder target zones — particularly low-profile chip components adjacent to THT solder targets — must be masked before machine entry. JIAOTAOTAO Tape's PET silicone solder masking tape conforms to irregular surface profiles (elongation ≥80%) without tearing, covering component bodies and their surrounding pad areas with a continuous sealed boundary. Post-wave inspection confirms zero solder bridging or component displacement in masked zones.

2. Selective Soldering — Precision Adjacent-Zone Isolation

Selective soldering nozzles target individual THT pins within 1–3 mm of adjacent SMT components at nozzle temperatures of 260–280°C. Narrow-slit solder masking tape (3–15 mm widths) provides precision boundary masking of adjacent fine-pitch SMT pads, test points, and connector housings. The tape must resist rosin-based and no-clean flux activator penetration beneath the tape edge — a defect that causes soldermask discoloration visible under IPC-A-610 automated optical inspection (AOI) and triggers false reject classification on functional test.

3. Reflow Soldering — Pre-Populated Component & Connector Body Masking

Through-hole connectors loaded before reflow (press-fit or clinched lead connectors) have plastic housings rated to 85–105°C — well below the 245–260°C SAC305 reflow peak. Solder masking tape wrapped around connector bodies reflects oven radiant heat and reduces surface temperature of the plastic housing by 15–25°C, preventing housing deformation, pin misalignment, and locking tab damage that would cause connector rejection at assembly test. The tape's PET backing provides effective thermal shielding through the full reflow profile time above liquidus (30–60 seconds per J-STD-020).

4. Conformal Coating — Selective Exclusion Dam

Conformal coating (acrylic, polyurethane, silicone, or epoxy per IPC-CC-830) must be excluded from edge connectors, gold fingers, test points, and adjustable components. Solder masking tape applied to these exclusion zones before spray coating provides a void-free coating dam with <0.15 mm boundary accuracy — tighter than achievable with liquid masking gel or manual brush masking. The tape is removed within 15 minutes of spray application while the coating is still slightly tacky, leaving a clean, straight exclusion boundary. Silicone conformal coatings require silicone-adhesive masking tape — acrylic or rubber adhesives cross-contaminate silicone coating chemistry, causing delamination at the coating boundary.

5. ICT & Flying Probe Test Pad Preservation

In-circuit test (ICT) and flying probe fixtures contact ENIG, HASL, or bare copper test pads on the PCB bottom side. Flux residue, solder splash, and conformal coating overspray from upstream processes raise test pad contact resistance above the 50 mΩ ICT probe contact specification, triggering false failures on high-volume production test lines. Masking test pads with solder masking tape during wave soldering and coating processes eliminates contamination-related ICT false failures without adding a chemical cleaning station to the line — reducing process cost and IPA solvent handling compliance requirements.

Solder Masking Tape vs Liquid Solder Mask vs Paper Tape: Selection Guide

Four masking methods are used in PCB soldering. The comparison below addresses process qualification for SAC305 lead-free wave and selective soldering at 250–260°C.

Customization & Supply Capabilities

• Custom Width Slitting: 3 mm to 1,200 mm in 0.5 mm increments, ±0.5 mm tolerance. Narrow widths (3–15 mm) for selective soldering and test point masking; wide rolls (300–1,200 mm) for large panel and carrier board coverage.
• Die-Cut Masking Pads & Arrays: Custom-profile pads for repeatable SMT component, connector, and test point coverage. Roll arrays with multiple shapes per liner for production line efficiency. Tolerance ±0.2 mm, kiss-cut on liner.
• Process Color-Coding: 13+ standard colors. Recommended: blue = wave solder masking, green = conformal coat exclusion, red = do-not-solder zone, yellow = selective solder target marker.
• Dual-Tape Program: PET silicone (260°C) for standard wave solder zones + polyimide silicone (300°C) for gold finger and Class 3 areas on the same board — supplied as a matched set with consistent adhesive system for zero cross-contamination risk.
• Custom Roll Length: Standard 33 m; OEM options at 50 m / 100 m. Core ID: 25 / 50 / 76 mm for compatibility with tape dispensers on SMT production lines.
• Free Qualification Samples: 1–3 widths dispatched within 5 business days. Specify solder alloy (SAC305 / SnPb), bath temperature, board surface finish (ENIG / HASL / OSP / LPI soldermask color), and application zone for adhesive weight recommendation.
• MOQ: 1 carton (~20–50 rolls for standard widths). Die-cut tooling: one-time setup fee, no per-run MOQ premium after tooling approval.
• Lead Time: Standard slit widths: 7–15 business days ex-factory. Custom die-cut pads: 15–25 business days including tooling fabrication.

FAQ for PCB Engineers & Procurement

Request a Data Sheet, Free Sample, or Factory Quote

JIAOTAOTAO Tape manufacturer PET silicone solder masking tape — 260°C short-term peak · zero adhesive residue on soldermask, ENIG & HASL · ≥5,000 V dielectric · UL94 V-0 · RoHS 3 & REACH compliant · 13+ colors — covers SAC305 and SnPb wave soldering, selective soldering, SMT reflow masking, conformal coating exclusion, and ICT pad preservation. Available in standard slit widths from 3 mm, custom die-cut pads, dual-tape programs, and OEM formats. Direct from Dongguan factory.
