PTFE Tape for VFFS Machine Sealing Jaws

PTFE tape for VFFS machine sealing jaws provides a replaceable non-stick surface between heated tooling and packaging film. On vertical form-fill-seal equipment, the tape must release the film without hiding a heater, thermocouple, pressure, alignment, or seal-process problem. Correct selection depends on jaw geometry, sealing temperature, dwell, pressure, film structure, joint design, and the machine maker’s maintenance procedure.

Why VFFS Sealing Jaws Use a PTFE Release Layer

A vertical form-fill-seal machine draws rollstock around a forming tube, creates a longitudinal seal, doses the product, and forms cross seals that close one package while preparing the next. The cross-sealing jaws repeatedly combine heat, pressure, and time. Melted sealant, ink, coating, powder, fines, or damaged film can transfer to the tooling and disturb later cycles.

Adhesive-backed PTFE tape creates a low-stick contact surface and a replaceable wear layer. Reinforced PTFE-coated fiberglass is often considered when mechanical durability is important, while PTFE film can provide a smoother and thinner surface for selected tooling. The approved choice must follow the machine and heater design; a generic tape installation can alter heat transfer or jaw geometry.

PTFE Tape Routes for Sealing Jaws

Information Required Before Selecting PTFE Tape

How to Specify the Tape

Match total thickness to the thermal and mechanical stack

Thicker tape can add wear life but may slow heat transfer, change jaw closure, or create a step at an overlap. A thinner construction reduces the added layer yet may wear faster. Compare total tape thickness, not only the PTFE coating or carrier thickness, and revalidate the sealing window after any construction change.

Place joints outside the seal footprint

A tape overlap creates a raised band; a butt joint can open and collect contamination. Use a continuous strip across the active face when the machine design permits. If a joint is unavoidable, document its position and direction, then inspect the corresponding package area for weak seal, marking, or leakage.

Protect sensors, knife paths, and relief features

Do not cover a thermocouple, heater connection, vacuum port, cooling feature, knife slot, or mounting datum unless the machine procedure explicitly requires it. Converted strips with controlled holes or slots can improve repeatability compared with trimming by hand on the jaw.

Define edge treatment

Lifted tape edges can catch film, trap powder, or begin a tear. Round exposed corners where appropriate, burnish the strip without stretching, and keep the adhesive fully supported. Avoid dragging a blade across a precision jaw face.

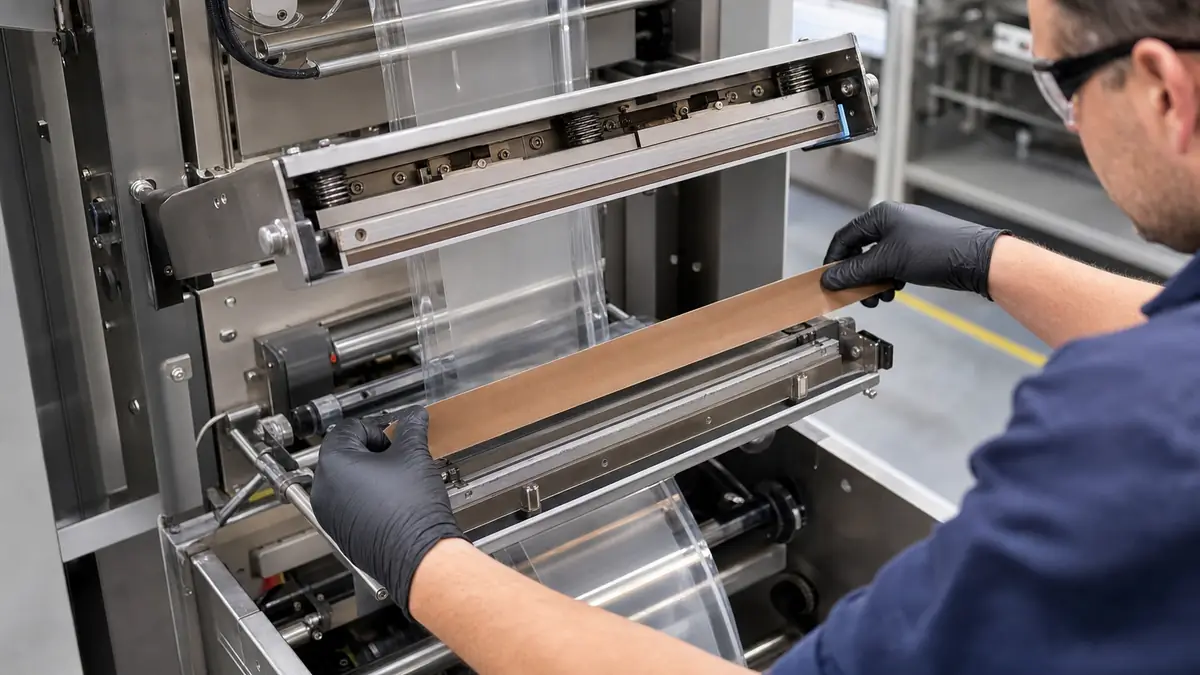

Recommended Installation and Replacement Workflow

1. Stop, isolate, and cool the machine. Follow the equipment owner’s lockout and stored-energy procedure before accessing the jaws.
2. Record the old tape condition. Note wear location, discoloration, cut damage, edge lift, residue, and the package defect that triggered maintenance.
3. Remove the old layer using the approved method. Peel without damaging heaters, sensors, coatings, wiring, or the jaw surface.
4. Clean and inspect the tooling. Confirm the face is dry, flat, undamaged, and free from adhesive, polymer, powder, and sharp debris.
5. Cut the replacement strip to the controlled drawing. Prepare any slots or openings before placement when possible.
6. Align from a stable datum. Apply without stretching, wrinkles, trapped air, or unnecessary overlap.
7. Burnish evenly. Use an approved soft tool and protect the heater, sensor, knife, and textured jaw features.
8. Recheck the seal process. Warm up under the normal procedure, run controlled test packs, and confirm the released seal-quality checks before production.

Condition-Based Inspection and Troubleshooting

Do not define tape life only by calendar time. Track cycle count, film family, product contamination, cleaning events, seal-test results, and observed wear. Set a preventive replacement point before the release surface reaches a defect-producing condition, and retain failed strips when the wear pattern can help diagnose the machine.

Related Products and Articles

• Compare available PTFE-coated fiberglass and PTFE film tape constructions.
• Review the broader guide to using PTFE tape on heat sealers and rollers.
• Learn how reinforcement changes behavior in the PTFE-coated fiberglass cloth selection guide.
• Send your jaw drawing, film structure, and seal conditions for tape-format review.

Frequently Asked Questions

What PTFE tape is used on VFFS sealing jaws?

Adhesive-backed PTFE-coated fiberglass tape is a common reinforced route, while PTFE film tape may suit selected smooth or thin applications. The machine design, film, heat transfer, wear, and surface-mark requirements determine the approved construction.

Can PTFE tape fix a weak heat seal?

It can restore a damaged release surface, but it does not correct an unsuitable film, product contamination, wrong temperature, insufficient dwell, low pressure, jaw misalignment, or cooling problem. Diagnose the complete sealing process.

Should PTFE tape overlap on a sealing jaw?

Avoid an overlap in the active seal footprint when the machine procedure allows, because the thickness step can mark the film or change heat and pressure. If a joint is necessary, validate its location and effect on seal quality.

How often should sealing-jaw PTFE tape be replaced?

Use a condition and performance limit derived from the real cycle count, film, product, cleaning method, wear pattern, and seal-test results. Replace it before damage creates unstable packages.

Can a metal scraper be used to clean the jaw?

Only if the equipment maker’s maintenance procedure approves that tool for the exact jaw surface. Aggressive scraping can damage flatness, coatings, sensors, heaters, or textured features.
