PTFE Tape for Vacuum Packaging Machine Sealing Bars

PTFE tape for vacuum packaging machine sealing bars provides a replaceable release surface over the approved heating-element or seal-bar location. It helps keep softened pouch material away from the heater and supports routine maintenance, but it cannot correct an unsuitable pouch, damaged element, uneven pressure, incorrect seal time, or contaminated bar. Tape construction and installation must match the specific chamber machine.

Where PTFE Tape Fits in a Vacuum Chamber Sealer

A chamber vacuum packaging machine removes air from the package and then closes the pouch between a heated sealing assembly and a pressure surface. Depending on the design, an adhesive-backed PTFE strip may cover the heating element, the bar face, or another stationary contact surface. Its low-stick face separates the hot polymer from the underlying assembly.

The exact arrangement varies. Some machines use a narrow heater beneath PTFE tape, others use replaceable covers or mechanically retained components. Adding layers where the manufacturer did not specify them can change bar height, heat transfer, pressure, or seal width. Treat the original equipment arrangement as the starting point.

PTFE Constructions and Related Service Parts

Data to Collect Before Ordering Sealing-Bar Tape

Cover the Approved Area Without Changing Bar Geometry

The strip should be wide enough to cover the specified heater or contact face while remaining clear of fasteners, terminals, vacuum channels, and moving hinges. Excess tape folded around an unapproved edge can create a thickness step or interfere with service access. Use a controlled cut length and width rather than trimming against the machine.

Choose Smoothness or Reinforcement Deliberately

PTFE film offers a smooth face and a thin construction, while PTFE-coated fiberglass adds reinforcement. The woven texture of a reinforced tape may be unsuitable where the package appearance is highly sensitive. Compare candidate constructions on the real pouch and bar rather than choosing only by nominal temperature.

Treat the Tape as One Part of the Seal Stack

A darkened or torn strip may be the visible symptom, but heater tension, pad compression, bar alignment, terminals, and contamination also influence the seal. Replacing tape over a damaged heater or uneven pad can hide the problem temporarily without restoring a stable process.

Recommended Replacement and Inspection Workflow

1. Isolate and cool the machine. Follow the equipment owner's lockout and maintenance procedure before touching the bar.
2. Document the original arrangement. Record tape position, overlap, heater path, terminal clearance, and bar orientation.
3. Remove the worn strip carefully. Peel without damaging the heater, insulation, bar finish, or nearby wiring.
4. Inspect every service part. Check the heater, terminals, insulation, pressure pad, bar flatness, and fasteners independently.
5. Clean by the approved method. Remove adhesive and deposits without scraping or altering the bar surface; allow it to dry.

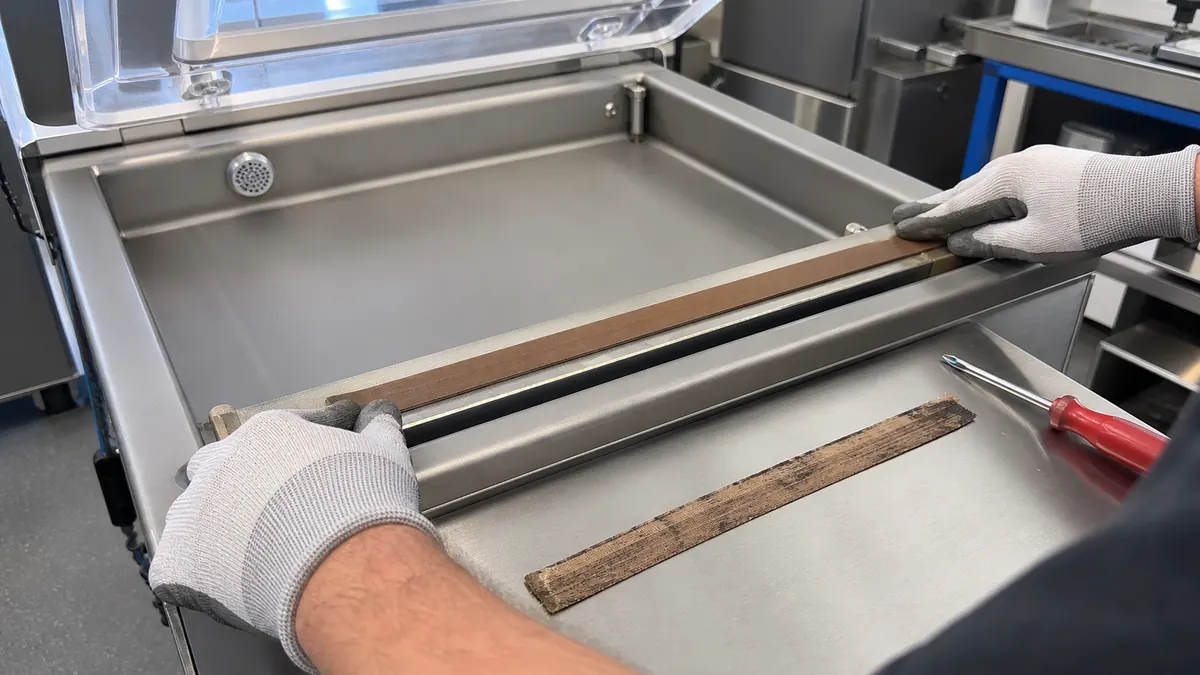

6. Apply the new tape. Center the strip, maintain light controlled tension only if the manual permits it, and smooth from one end.
7. Check the installed surface. Reject wrinkles, bubbles, exposed heater edges, loose corners, trapped debris, or covered terminals.
8. Run a controlled restart. Restore approved settings and evaluate initial packages before routine production.

Seal Problems and Tape-Related Checks

Related Products and Articles

• Explore the high-temperature PTFE tape range for film and coated-fiberglass constructions.
• Review industrial PTFE tape applications for broader machinery use.
• See the PTFE coating guide for material and surface-selection fundamentals.
• Send the machine and sealing-bar details for a construction review.

Frequently Asked Questions

What does PTFE tape do on a vacuum packaging machine?

On an approved sealing-bar location, it provides a replaceable release face between the hot assembly and the pouch. It helps reduce sticking but does not set or guarantee seal quality.

Can new tape fix a weak vacuum-package seal?

Only if worn or damaged tape is the cause. Weak seals may also come from pouch material, product contamination, heater damage, pressure, alignment, seal time, cooling, or vacuum settings.

Should I use PTFE film or PTFE-coated fiberglass tape?

Select by the original machine design, required smoothness, reinforcement, thickness, heater arrangement, and package appearance. Test both when the service specification allows alternatives.

How often should sealing-bar tape be replaced?

Use defined condition checks and a preventive interval based on the real duty cycle. Replace it before punctures, exposed heater zones, lifted edges, contamination, or surface wear affect packages.

What information should an RFQ include?

Provide the machine model, bar drawing or measured dimensions, original tape arrangement, heater design, cycle settings, pouch structure, cleaning method, current failure mode, and required roll or strip quantity.
