PTFE Tape for Hot-Melt Adhesive Rollers and Guide Plates

PTFE tape for hot-melt adhesive rollers and guide plates creates a replaceable low-stick surface on selected stationary or rotating machine areas where adhesive buildup causes web tracking, cleanup, or maintenance problems. The tape must match the exact tooling, temperature, speed, pressure, and adhesive chemistry. It should only be installed on machine locations approved by the equipment owner.

Where PTFE Tape Can Help on a Hot-Melt Adhesive Line

Hot-melt coating, lamination, labeling, and converting equipment may expose guide plates, nip-adjacent surfaces, edge guides, scrapers, and rollers to adhesive strings or squeeze-out. A suitable PTFE surface can reduce sticking and make planned cleanup more predictable. It cannot correct an incorrect coat weight, damaged doctor system, poor web alignment, unstable melt temperature, or excessive adhesive squeeze-out.

Start with the failure location. A flat stationary guide plate has different requirements from a driven roller. Rotating parts require attention to balance, seam direction, centrifugal force, clearances, and guarding. If the machine maker does not approve adhesive-backed tape on a rotating surface, use an approved sleeve, coated component, or other engineered release part instead.

PTFE Release Options Compared

Specification Information to Gather

Select Surface Texture Deliberately

PTFE film usually provides a smoother face, while PTFE-coated fiberglass adds reinforcement but may show a woven texture. If the tape contacts a visible web or transfers pressure into a coated laminate, texture and seam thickness may affect product appearance. Run representative material through the equipment and inspect both the web and the release layer.

Design Seams for Machine Direction

Place seams and edges so the moving web, adhesive bead, scraper, or cleaning tool does not catch an exposed leading edge. Butt joints minimize step height but may open; overlaps add thickness and may print through. Document the approved orientation rather than leaving seam placement to each maintenance shift.

Keep Adhesive Out of the Product Path

Exposed tape adhesive at a cut edge can collect dust or hot melt. Select the tape width and cut geometry so the adhesive remains fully supported. Avoid stretching the backing during application because recovery force can lift an edge after heating.

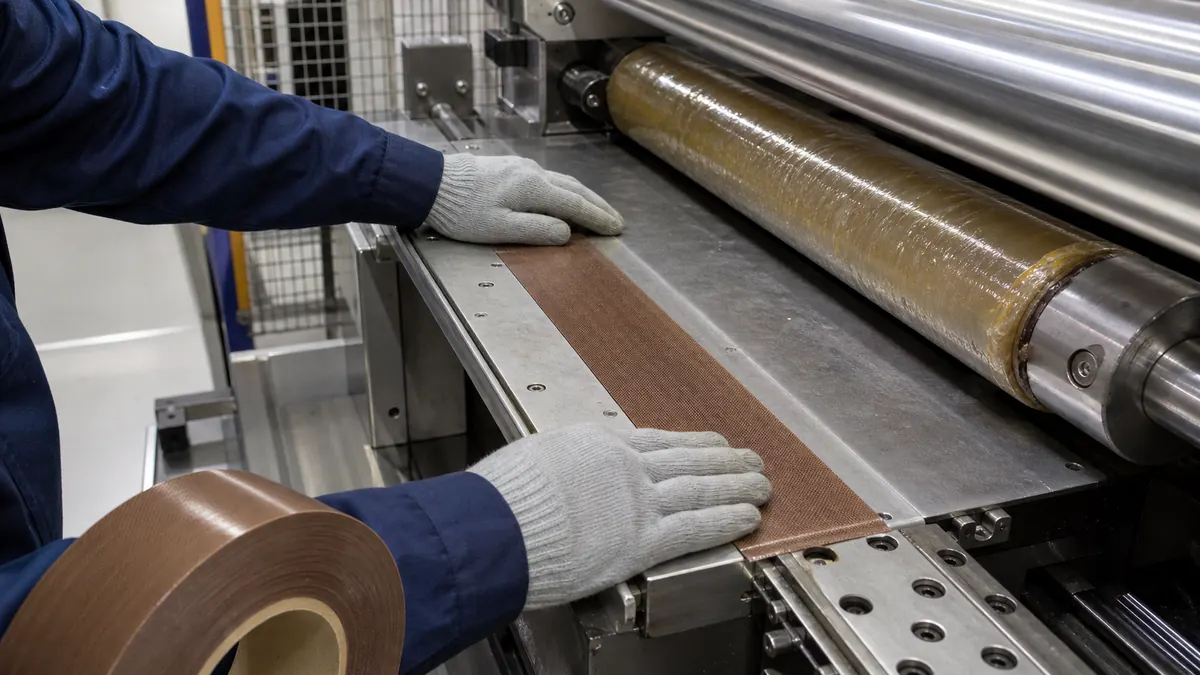

Recommended Installation and Inspection Workflow

1. Confirm the approved location. Review the machine manual, engineering release, clearances, and guarding before using tape.
2. Lock out and cool the equipment. Follow the site procedure and verify that surfaces are safe to handle.
3. Remove the old release layer. Use the approved method without scoring the roller or guide plate.
4. Inspect and clean the metal. Check burrs, dents, adhesive residue, corrosion, flatness, and runout where relevant.
5. Cut the tape cleanly. Use a template or converted piece; avoid ragged edges, pinholes, and contaminated adhesive.
6. Apply without stretching. Start from a datum and smooth air toward the free edge with uniform pressure.
7. Verify seams and clearances. Check leading edges, overlaps, moving-part clearance, and free rotation before guarding is restored.
8. Run a controlled startup. Observe tracking, marks, edge lift, noise, buildup, and surface condition.
9. Set an inspection interval. Replace the layer when defined wear, edge damage, contamination, or release loss is reached.

Common Problems and Corrective Directions

Related Products and Articles

• Explore the industrial PTFE tape range for film and coated-fabric constructions.
• Review the PTFE coating and release-surface guide.
• Compare broader industrial PTFE tape applications.
• Send the machine location and operating profile for a selection discussion.

Frequently Asked Questions

Can PTFE tape be used on a hot-melt adhesive roller?

Only when the machine owner approves the method and the tape is qualified for temperature, speed, balance, seam design, clearance, and adhesive exposure. An approved sleeve or coated roller may be safer for some rotating parts.

Is PTFE film tape or PTFE fiberglass tape better?

PTFE film offers a smoother, thinner surface, while PTFE-coated fiberglass adds reinforcement and dimensional stability. Choose by texture, flex, abrasion, tear risk, and the exact machine geometry.

Will PTFE tape stop all hot-melt buildup?

No. It can reduce sticking on an appropriate surface, but it will not correct poor web tracking, excess coat weight, damaged dispensing parts, or an unstable adhesive process.

How should a PTFE tape seam be oriented?

The leading edge should not face a moving web, scraper, or adhesive flow that can catch it. The approved seam direction depends on machine travel, overlap design, and clearance.

What should an RFQ include?

Provide the machine location, drawing or dimensions, temperature profile, roller speed or web speed, contact pressure, adhesive family, cleaning method, surface-finish requirement, and replacement target.
