Kapton Polyimide Film: Properties & Uses

What Is Kapton Polyimide Film? (Definition)

Kapton polyimide film is a high-performance synthetic polymer film developed by DuPont, renowned for its exceptional thermal stability, chemical resistance, and electrical insulation properties. Unlike traditional insulation materials, Kapton maintains its structural integrity in extreme temperature ranges and harsh chemical environments, making it a staple in high-tech industrial sectors.

Types of Kapton Polyimide Film (Classification)

Kapton polyimide film is categorized into several core types based on formulation and performance:

• Kapton HN: Standard general-purpose film, ideal for basic electrical insulation and thermal management.
• Kapton FN: Flame-retardant grade, compliant with UL 94 V-0 standards for fire safety.
• Kapton CR: Conductive grade, added with carbon black for static dissipation in electronics.
• Kapton MT: High-modulus grade, enhanced mechanical strength for aerospace applications.
• Kapton FPC: Flexible circuit grade, optimized for flexible printed circuit boards (FPCs).

Kapton Film Technical Specifications & Data Source (Parameters + Data Source)

Key technical parameters of Kapton polyimide film (Data Source: DuPont Kapton Technical Datasheet 2026):

• Continuous operating temperature: -269°C to 260°C
• Short-term maximum temperature: 400°C (up to 10 minutes)

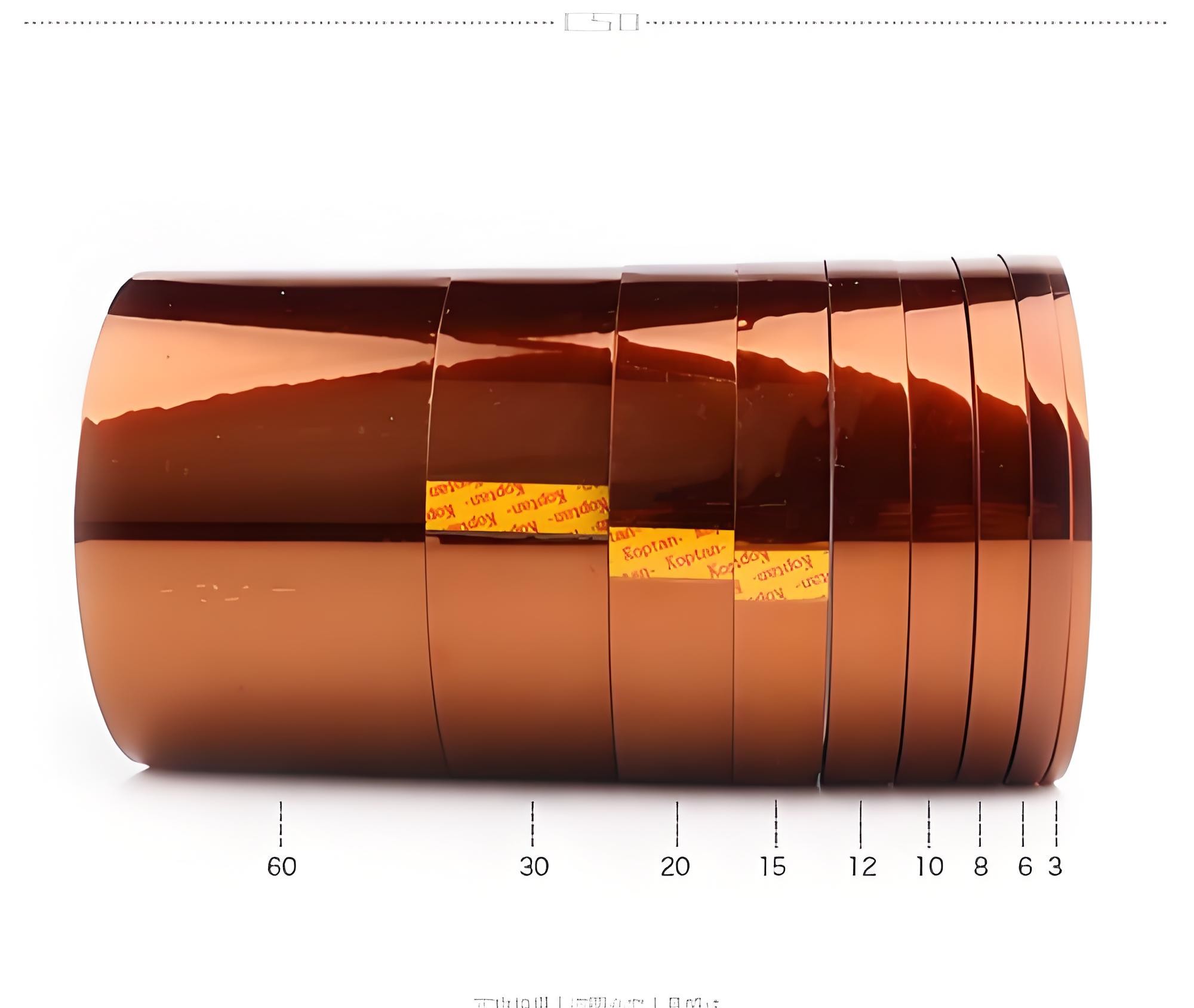

• Thickness range: 0.025mm to 0.25mm
• Dielectric strength: 7000 V/mil (275.6 kV/mm)
• Tensile strength: 20,000 psi (137.9 MPa)
• Chemical resistance: Resistant to acids, alkalis, solvents, and oils


Key Applications of Kapton Polyimide Film (Applications)

Kapton polyimide film is widely used across critical industries:

• Electronics: Insulation for flexible PCBs, wire harnesses, and semiconductor packaging.
• Aerospace: Thermal insulation for aircraft engines, satellite components, and rocket wiring.
• Automotive (EV): Battery pack insulation and motor winding protection in electric vehicles.
• Industrial Manufacturing: Heat-resistant liners for molding processes and high-temperature tape substrates.

Step-by-Step to Select Kapton Film (Selection Steps)

Follow these steps to choose the right Kapton film for your project:

1. Define your temperature requirements: Confirm the continuous/peak temperature of your application.
2. Identify chemical exposure: Check if the film will contact acids, solvents, or other chemicals.
3. Determine mechanical needs: Evaluate tensile strength and flexibility requirements.
4. Verify industry compliance: Ensure the film meets safety/quality standards (e.g., UL, RoHS).
5. Select the right grade: Match the Kapton type (HN/FN/CR etc.) to your application.

Frequently Asked Questions About Kapton Film (FAQ)

Summary & Contact Information (Summary + CTA)

Kapton polyimide film is an unmatched high-temperature insulation material, with versatile properties that make it essential for electronics, aerospace, and EV industries. Choosing the right Kapton grade based on your temperature, chemical, and mechanical needs ensures optimal performance.

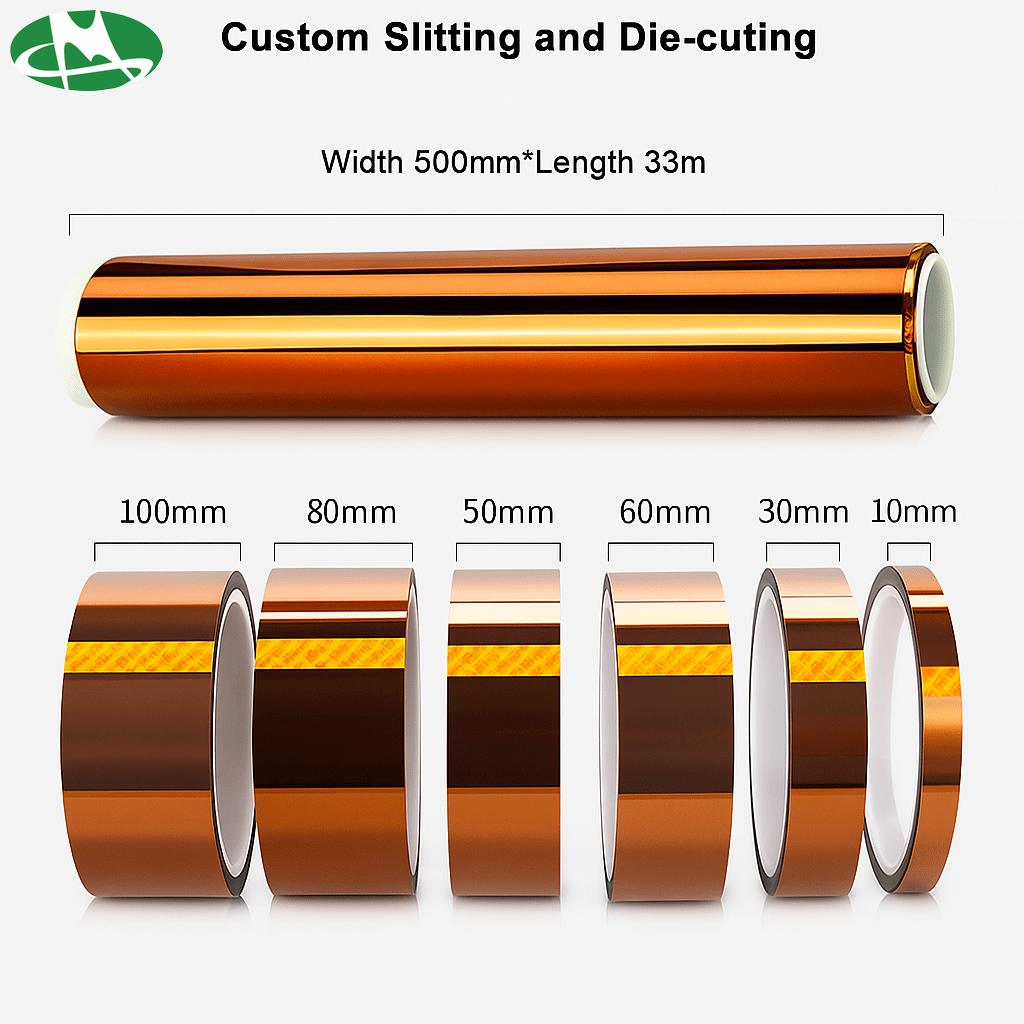

If you need customized Kapton film solutions, bulk purchasing, or free samples, contact us today:
