High Temperature Resistant Tape: Complete Selection Guide for Industrial & PCB Applications
By Jiaotaotao Product Department - Xindy | Updated: 2026 | View Product Range →
JIAOTAOTAO Tape manufacturer — Dongguan Factory Direct
What Is High Temperature Resistant Tape?
High temperature resistant tape is a pressure-sensitive adhesive tape engineered to maintain structural integrity, adhesive bond, and functional performance at elevated temperatures ranging from 150°C to 300°C — far beyond the 60–120°C limits of standard paper, cloth, or acrylic-adhesive tapes. It is constructed from a thermally stable film backing (polyester/PET or polyimide/PI) coated with a cross-linked silicone pressure-sensitive adhesive (PSA) that resists oxidative degradation at process temperatures. High temperature resistant tape is used across electronics manufacturing, electrical insulation, metal surface finishing, and industrial processing wherever temporary masking, permanent insulation, component fixturing, or surface protection is required at temperatures that would cause standard tapes to soften, delaminate, carbonize, or leave adhesive residue on the substrate.
Quick Facts
- Two primary grades: PET silicone (200°C continuous / 280°C peak) and Polyimide silicone (260°C continuous / 300°C peak)
- Adhesive system: Cross-linked silicone PSA — thermally stable to 300°C, zero residue
- Dielectric strength: PET grade ≥5,000 V · Polyimide grade ≥7,000 V
- Flame retardancy: UL94 V-0 (both grades)
- Residue-free removal: Confirmed on soldermask, ENIG, steel, aluminum, anodized surfaces
- Compliance: RoHS 3 · REACH SVHC · ISO 9001:2015 · SGS certified

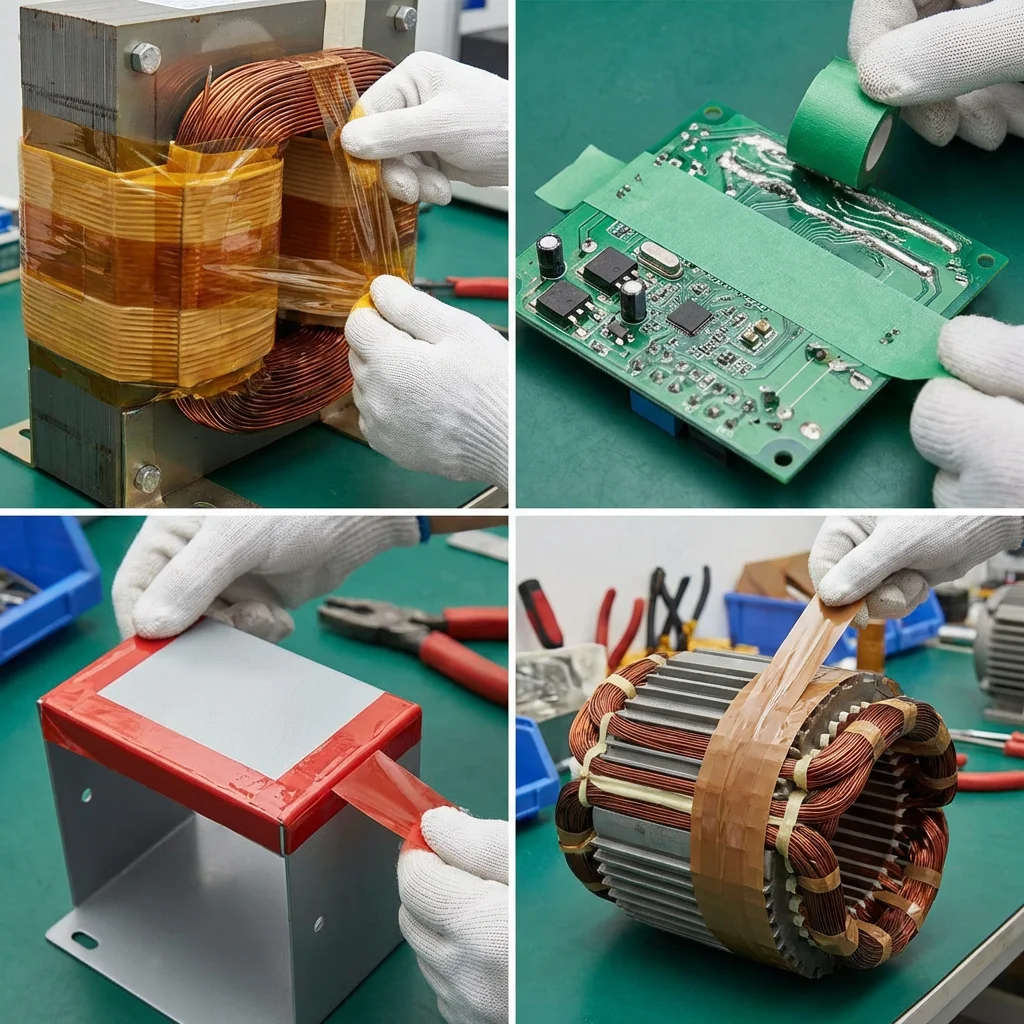

- Core applications: PCB wave/reflow soldering masking, transformer winding insulation, powder coat oven masking, motor coil binding, conformal coating dam
- Colors available: 13+ standard colors (amber, yellow, green, blue, red, black, transparent, pink, orange, purple, rose red, deep yellow, white)
- Manufacturer: JIAOTAOTAO Tape manufacturer, Dongguan, China (Est. 2009)
Grade Selection: PET Silicone vs Polyimide vs Acrylic — Which High Temperature Tape Do You Need?
| Specification | PET + Silicone (JIAOTAOTAO Standard) |
Polyimide + Silicone (JIAOTAOTAO Premium) |
PET + Acrylic (Non-recommended) |
Paper + Rubber (Standard, disqualified) |
|---|---|---|---|---|
| Continuous Temp | 200°C | 260°C | 150°C | 80°C ✗ |
| Peak Short-Term | 280°C | 300°C | 180°C | 120°C ✗ |
| Residue-Free at Max Temp | ✓ Yes | ✓ Yes | ✗ Carbonizes at 150°C+ | ✗ Carbonizes at 120°C+ |
| Dielectric Strength | ≥5,000 V | ≥7,000 V | ≥3,000 V | <1,000 V |
| UL94 Flame Rating | V-0 | V-0 | V-2 (typical) | Not rated |
| Best For | Wave soldering, powder coat oven, transformer | Gold finger, multi-pass reflow, Class H motor | Mild heat (below 150°C) | Below 80°C only |
| Relative Cost | Optimal ✓ | 3–5× PET grade | 1.2–1.5× PET grade | Lowest — disqualified for high-temp |
Decision rule: If your process temperature is ≤200°C continuous or ≤280°C short-term → select PET silicone grade (standard cost, optimal for powder coat, wave solder, transformer winding). If your process reaches 200–260°C continuous or peaks to 300°C → select polyimide silicone grade (gold finger masking, Class H motor insulation, multi-pass reflow). Never use PET + acrylic or paper-backed tape above 150°C — acrylic adhesive carbonizes and leaves deposits requiring solvent rework.
Technical Specifications & Material Science
The Molecular Basis of High Temperature Performance
Standard acrylic adhesives fail at high temperature because the C–C backbone bond energy (~346 kJ/mol) is insufficient to resist thermal oxidation above 150°C, causing chain scission and carbonized adhesive deposits on the substrate. Cross-linked silicone PSA replaces C–C bonds with Si–O bonds (~450 kJ/mol bond energy) — 30% stronger thermally — and the cross-linked network prevents chain mobility even at 300°C, maintaining cohesive strength and zero adhesive mass transfer throughout the thermal cycle. PET film backing (BoPET) provides thermal shrinkage <1.5% at 150°C / 30 min (ASTM D1504), while polyimide film achieves <0.3% at 200°C / 30 min — five times more dimensionally stable, critical for precision masking applications across multi-pass thermal cycles.
Dual-Grade Technical Parameters — JIAOTAOTAO Tape High Temperature Resistant Tape
| Parameter | PET Silicone Grade | Polyimide Silicone Grade | Test Standard |
|---|---|---|---|
| Total Thickness | 55 µm ± 5% | 65 µm ± 5% | ASTM D1000 |
| Film Backing Thickness | 36 µm PET | 25 µm or 50 µm PI | ASTM D374 |
| Adhesive Thickness | 19 µm ± 2 µm | 38 µm ± 3 µm | ASTM D1000 |
| Continuous Service Temp | 200°C | 260°C | IEC 60454-2 |
| Short-Term Peak Temp | 280°C (≤10 sec) | 300°C (≤10 sec) | IEC 60454-2 |
| Tensile Strength | ≥150 N/25 mm | ≥200 N/25 mm | ASTM D1000 |
| Elongation at Break | ≥80% | ≥70% | ASTM D1000 |
| Dielectric Strength | ≥5,000 V | ≥7,000 V | ASTM D149 / UL 510 |
| Adhesion to Steel (180° Peel) | ≥8 N/25 mm | ≥10 N/25 mm | PSTC-101 |
| Thermal Shrinkage | <1.5% @ 150°C/30 min | <0.3% @ 200°C/30 min | ASTM D1504 |
| Flame Retardancy | UL94 V-0 | UL94 V-0 | UL 94 |
| Width Range | 3–1,200 mm | 2–620 mm | — |
| Available Colors | 13+ colors | Amber (standard) | — |
| Compliance | RoHS 3 · REACH · SGS · ISO 9001 | RoHS 3 · REACH · SGS · ISO 9001 | — |
Industrial Applications by Temperature Zone
Zone A: 150–200°C Continuous — Powder Coating Oven & Paint Bake
Polyester TGIC powder coatings cure at 180–200°C for 15–25 minutes (ASTM D522). PET silicone high temperature tape is the qualified masking solution for threaded holes, mating surfaces, bearing bores, electrical grounding points, and anodized aluminum zones during powder coat application and oven cure. Paper-backed masking tape softens and lifts above 120°C, allowing powder infiltration into masked areas — a Class B defect requiring tape re-application and re-spray. JIAOTAOTAO Tape PET silicone grade maintains edge bleed <0.2 mm at 200°C / 20 min with zero adhesive residue on metal substrates post-cure.
Zone B: 200°C Continuous / 280°C Peak — Wave Soldering & Selective Soldering
SAC305 lead-free wave soldering baths operate at 250–260°C with 3–8 seconds PCB contact time per IPC-A-610. PET silicone high temperature tape protects SMT components, connectors, test pads, and gold finger contacts from solder bridging, flux contamination, and molten solder splash. The tape's non-porous PET film resists flux activator absorption through the preheat zone (100–150°C) and the solder wave contact zone, maintaining a sealed boundary that paper tape — which absorbs flux and softens above 120°C — physically cannot achieve. Post-wave removal is residue-free on all standard PCB surface finishes: LPI soldermask, ENIG, HASL, OSP.
Zone C: 200°C Continuous — Transformer Winding & Motor Coil Insulation
Transformer windings and motor coils operating under Class F (155°C maximum winding hotspot per IEC 60085) and Class H (180°C maximum per IEC 60085) insulation systems require interlayer tape that maintains dielectric integrity at continuous operating temperature. JIAOTAOTAO Tape PET silicone high temperature tape provides ≥5,000 V dielectric strength at 200°C for Class F/H transformer interlayer insulation — replacing standard polyester tape that loses dielectric performance above 130°C. For Class H+ systems with winding hotspots exceeding 180°C, polyimide grade tape (≥7,000 V at 260°C) is specified.
Zone D: 260°C Continuous / 300°C Peak — Gold Finger & Multi-Pass Reflow Masking
SAC305 SMT reflow profiles peak at 245–260°C with 30–60 seconds above liquidus per J-STD-020. Double-sided boards traverse the reflow oven twice, subjecting gold finger edge connectors to cumulative thermal stress across two complete profiles. Polyimide silicone high temperature tape — with Tg >400°C and thermal shrinkage <0.3% at 200°C — maintains full edge-seal integrity across both oven passes. Contact resistance post-removal on ENIG gold surfaces measures <5 mΩ per IPC-4552A specification, confirming zero ionic contamination from the adhesive system.
Zone E: 200°C Continuous — Conformal Coating Dam & ICT Pad Preservation
Conformal coating exclusion zones (edge connectors, test points, adjustable components) require masking tape that adheres to cured LPI soldermask and ENIG surfaces with sufficient force to prevent coating bleed under the tape edge, yet removes cleanly within 15 minutes of spray application. JIAOTAOTAO Tape high temperature resistant tape provides 6–12 N/25 mm adhesion to soldermask — above the minimum 4 N/25 mm required to prevent coating bleed, and below the maximum 18 N/25 mm that risks soldermask micro-delamination on fine-pitch pad areas adjacent to the tape edge.
High Temperature Resistant Tape vs Standard Tape: Why the Difference Matters
The key failure modes of standard tape used in high-temperature processes are:
- Edge lift: Paper backing softens and absorbs flux or moisture above 120°C, causing tape perimeter to lift and allow process fluid (solder, powder, coating) to infiltrate beneath the tape boundary — the primary defect mechanism.
- Adhesive carbonization: Acrylic and rubber adhesives undergo oxidative chain scission above 150°C, depositing brown/black adhesive residue on the substrate that requires solvent cleaning or mechanical abrasion before subsequent process steps — adding rework cost and cycle time.
- Backing deformation: Thermal shrinkage of non-oriented polymer backings causes tape wrinkling and loss of edge-seal contact above their glass transition temperature, creating gaps through which process fluids penetrate.
- Dielectric failure: Standard tapes provide <1,000 V dielectric strength — insufficient for high-voltage transformer winding and motor coil applications where layer-to-layer voltages reach 500–3,000 V during surge and impulse testing per IEC 60076-3.
Cost of failure: A single production batch with tape-induced defects — solder infiltration under tape edge on 500-unit PCB run, or adhesive residue requiring solvent rework on 200 powder-coated metal assemblies — typically exceeds the cost differential between standard and high temperature resistant tape by 20–50×. Specifying the correct high temperature tape grade is a process cost reduction measure, not a premium.
Customization & Supply Capabilities
JIAOTAOTAO Tape manufacturer — Dongguan, Guangdong (Est. 2009). 8 automated silicone coating lines · 6,000 m² facility · ISO 9001:2015 · SGS · UL94 V-0 · RoHS 3 · REACH. Factory-direct supply — no distributor margin on any order quantity.
- PET Silicone Grade: 3–1,200 mm width, 0.5 mm slit increments, ±0.5 mm tolerance. 13+ colors standard stock.
- Polyimide Silicone Grade: 2–620 mm width, 25 µm and 50 µm film options. Amber standard; custom colors on request for ≥500 roll orders.
- Die-Cut Shapes: Custom pads, discs, connector outlines, threaded-hole covers, and gang-cut roll arrays. Kiss-cut on liner, ±0.2 mm tolerance. Suitable for peel-and-place automation on SMT and powder coat lines.
- Dual-Grade Matched Sets: PET silicone + polyimide silicone tape supplied as a coordinated program for mixed Class 2 / Class 3 PCB assembly lines — consistent adhesive chemistry, zero cross-contamination risk between grades.
- OEM / Private Label: Core printing, carton branding, and co-packaged multi-SKU kits for EMS providers and industrial distributors.
- Technical Support: Application engineers available to specify tape grade, width, and adhesive weight based on process temperature profile, substrate, solder alloy, powder chemistry, or insulation class. Submit process parameters via email or WhatsApp for a same-day recommendation.
- Free Samples: 1–3 widths per grade dispatched within 5 business days to any country. No sample fee.
- MOQ: 1 carton (20–50 rolls, standard widths). Die-cut tooling: one-time setup fee, no minimum on repeat runs.
- Lead Time: Standard slit: 7–15 business days. Custom die-cut: 15–25 business days including tooling.
FAQ for Engineers & Procurement
Q1: What temperature does high temperature resistant tape need to withstand, and how do I select the right grade?
Select based on your process peak temperature with a minimum 10–20°C safety margin above the highest process temperature the tape surface will reach. For powder coat cure at 180–200°C or wave soldering at 250–260°C short-term → PET silicone grade (280°C peak). For SAC305 multi-pass reflow at 245–260°C continuous across 2–4 oven passes or Class H motor winding at 180°C continuous → polyimide silicone grade (300°C peak, 260°C continuous). Never use PET + acrylic tape above 150°C or paper tape above 80°C — adhesive carbonization creates substrate contamination requiring solvent rework.
Q2: Will high temperature resistant tape leave residue after removal from metal, PCB, or anodized surfaces?
Zero adhesive residue is confirmed by PSTC-101 180° peel testing on: zinc-phosphated steel, Type II anodized aluminum, LPI green soldermask, ENIG gold-plated surface, HASL tin-lead surface, and bare cold-rolled steel — all post-maximum-rated temperature exposure. The cross-linked silicone PSA retains full cohesive integrity through thermal cycling; no adhesive mass transfers to any tested substrate. This contrasts directly with acrylic-adhesive high-temperature tapes that leave carbonized brown deposits above 150°C requiring IPA or MEK solvent cleaning — adding process cost and chemical handling compliance requirements.
Q3: Can high temperature tape be used for transformer interlayer insulation, and what voltage rating is required?
Yes. For transformer interlayer insulation, the tape dielectric strength must exceed the layer-to-layer test voltage with a minimum 2× safety factor. IEC 60076-3 requires induced voltage test at 2× rated voltage for 60 seconds on distribution transformers. For a 400 V winding, the interlayer test voltage is 800 V. JIAOTAOTAO Tape PET silicone grade provides ≥5,000 V dielectric strength — a 6× safety margin for 800 V test conditions. For high-voltage power transformers with layer-to-layer voltages exceeding 2,000 V, specify polyimide grade (≥7,000 V). For Class F/H insulation systems, confirm the tape's thermal rating matches the winding hotspot temperature per IEC 60085.
Q4: Is high temperature resistant tape flame retardant, and what UL rating does it carry?
Both PET silicone and polyimide silicone grades carry UL94 V-0 flame retardancy rating for the film backing — the highest classification for self-extinguishing materials under the UL 94 vertical burn test. V-0 requires: flame extinguishes within 10 seconds after each of two 10-second flame applications; no flaming drip; no burning longer than 30 seconds total for 5 specimens. This rating is required for transformer insulation (UL 1446 insulation system approval), motor winding tape (UL 1072), and PCB assembly tape used in IEC 60950-1 / IEC 62368-1 equipment safety certifications. SGS certification documentation available on request.
Q5: What is the minimum and maximum temperature for applying high temperature resistant tape to a substrate?
Apply tape with substrate temperature between 15°C and 40°C for optimal initial adhesion. Below 15°C, silicone PSA viscosity increases, reducing wet contact area on the substrate surface and lowering initial peel force by 20–30% — causing edge lift risk in the process preheat zone. Above 40°C substrate temperature at application, the adhesive may partially flow before full contact pressure is applied, creating uneven adhesive distribution. For production lines in air-conditioned environments (20–25°C), standard application technique provides consistent adhesion across all tape widths and substrate types tested. Remove tape at 50–80°C immediately after oven exit for minimum peel force and clean removal.
Q6: How does high temperature resistant tape perform in chemical environments — flux, solvents, plating baths?
The PET film and silicone adhesive are resistant to: no-clean and rosin flux (J-STD-004), IPA and acetone (brief contact, <60 seconds), gold sulfite and gold cyanide plating baths (pH 6–9, ≤65°C), alkaline saponifier wash (pH 7–11, ≤65°C, ≤30-minute exposure), and polyester / epoxy-polyester powder coat chemistry. Avoid: concentrated strong acids (HCl, H₂SO₄ above 10% concentration), strong alkalis (NaOH above pH 12), and ketone solvent immersion exceeding 5 minutes — these degrade the silicone adhesive boundary and reduce peel force below the 6 N/25 mm process minimum. For extended chemical bath exposure, specify polyimide grade for enhanced chemical resistance versus PET grade.
Q7: How does JIAOTAOTAO Tape high temperature resistant tape compare to 3M, Nitto, and Tesa equivalents?
3M 8905 / 3M 1280 / 3M 5413, Nitto No.973UL / SPV-224 / 360A, and Tesa 4912 / 4988 are PET/silicone or polyimide/silicone constructions with equivalent temperature ratings, dielectric strength, and residue-free specifications. JIAOTAOTAO Tape matches these performance specifications — confirmed by side-by-side process qualification data — at direct-factory pricing that eliminates 30–60% distributor and brand premium margin. Additional advantages not available from brand-name distributors: 13+ color options in PET silicone grade, custom width slitting from 2 mm, die-cut connector pads at ±0.2 mm tolerance, dual-grade matched program, and same-day application engineering support. SGS and ISO 9001:2015 documentation provided for approved vendor qualification.
