ESD Kapton Tape: Technical Guide to Anti-Static Polyimide Tape for PCB Masking, High-Temperature Insulation, and Electronics Assembly

Direct Answer & Quick Facts

• Material type: ESD-treated polyimide film tape
• Adhesive system: High-temperature pressure-sensitive adhesive, with silicone and acrylic versions in the product range
• Temperature resistance limit: Continuous up to 260°C; short-term peak up to 300°C+
• Dielectric strength: ≥ 6.0 kV/mm (typical product-page value)
• Core industrial uses: PCB masking, static-sensitive assembly, coil and transformer wrapping, electronics repair, high-temperature insulation

Technical Specifications & Material Science

Why anti-static polyimide tape is different from standard polyimide tape

ESD Kapton Tape uses a polyimide film backing that is treated or coated to provide controlled electrostatic behavior. Standard polyimide tape is already valued for high heat resistance, dimensional stability, dielectric strength, and chemical resistance. The ESD version adds another functional layer: the ability to dissipate static charges or reduce charge build-up during handling, masking, removal, or contact with sensitive assemblies.

In electronics manufacturing, this difference matters. A standard high-temperature tape may tolerate soldering heat or masking temperatures, but if it allows triboelectric charge to accumulate during peeling or handling, it can still create risk around ESD-sensitive devices. ESD polyimide tape addresses that risk by combining thermal performance with surface resistivity control.

The product page specifies ESD-treated polyimide film, surface resistance of 10⁶–10⁹ Ω, continuous temperature resistance up to 260°C, short-term peak up to 300°C+, and dielectric strength ≥ 6.0 kV/mm, with 0.03 mm to 0.10 mm thickness range and customizable width. The uploaded catalog further shows that the product family includes both silicone-adhesive and acrylic-adhesive variants, as well as low-static-peeling, conductive-grid, and double-sided ESD constructions.

From a materials perspective, the polyimide film provides the thermal and electrical backbone, while the adhesive system determines substrate compatibility, peel behavior, and process stability. Silicone adhesive is typically preferred for higher temperature processes and cleaner behavior under heat. Acrylic adhesive may be selected where higher initial adhesion or lower-temperature electronics bonding is more important than extreme temperature headroom.

Representative model configurations

The uploaded catalog shows several model directions within the ESD polyimide series. For example, JTT-ESPI050-SI is a 0.05 mm silicone-adhesive version with 10⁶–10⁹ Ω/sq surface resistivity and 220°C long-term / 260°C short-term temperature capability. JTT-ESPI075-SI raises the thickness to 0.075 mm and is positioned as a higher-temperature-resistant option with 300°C short-term performance. JTT-ESPI050-AC is an acrylic version suited to lower thermal ranges, while JTT-ESPI050-LS is designed for low-static peeling behavior.

That model structure is useful for sourcing because it shows that “ESD Kapton Tape” is not a single fixed specification. Buyers can select a more suitable version based on peel sensitivity, adhesive chemistry, temperature profile, and whether the application prioritizes insulation, masking, or anti-static handling behavior.

Industrial Applications

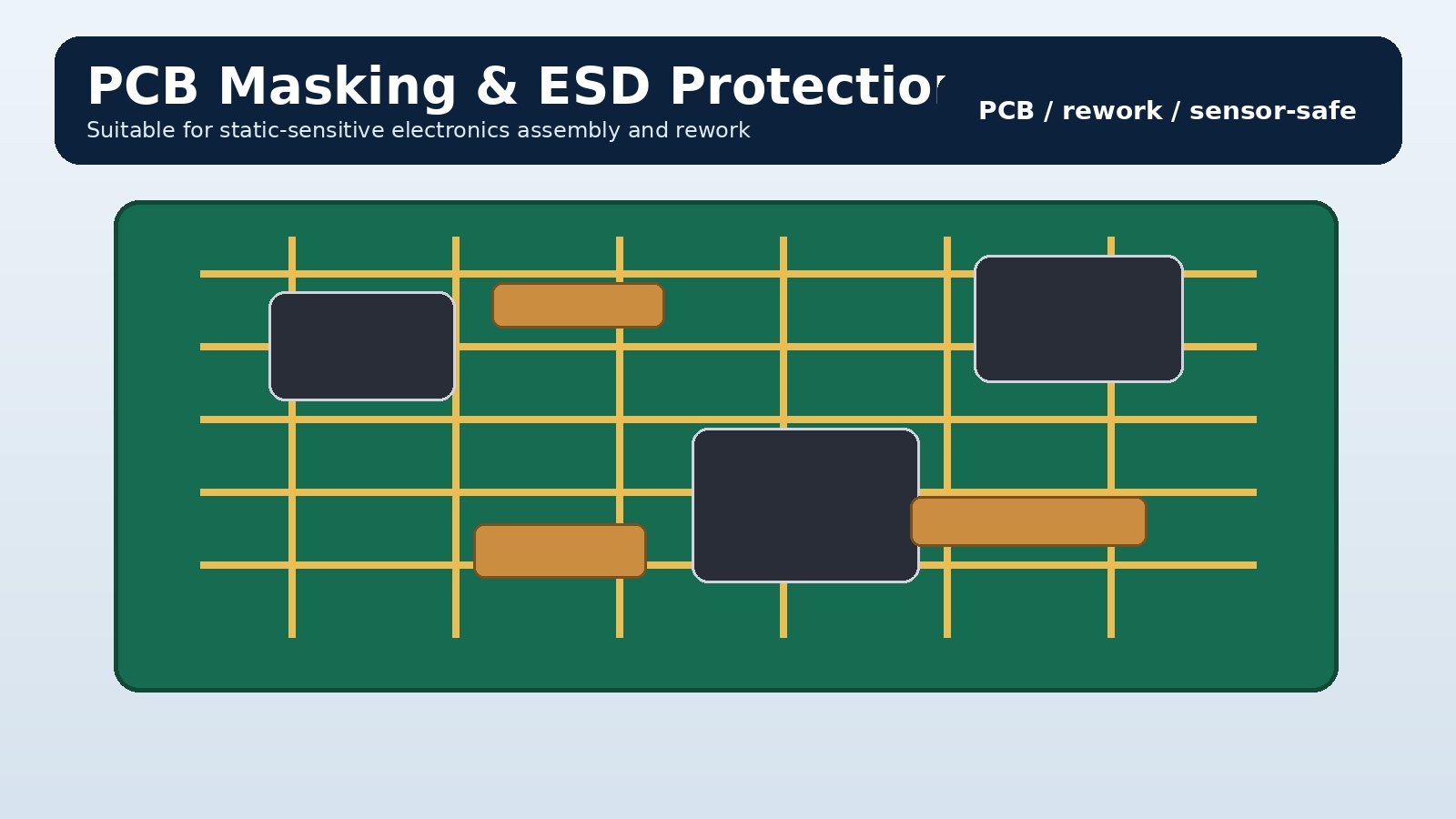

1. PCB masking in static-sensitive assembly

During PCB processing, engineers often need a masking material that can tolerate heat yet avoid introducing electrostatic risk around components, pads, or rework zones. ESD Kapton Tape is used in these cases because it combines polyimide heat resistance with anti-static surface control. That is especially important in electronics assembly lines where tape removal, repositioning, or temporary masking occurs near sensitive circuitry.

2. Electronics repair and rework

In bench repair, BGA rework, or precision electronics handling, a normal high-temperature tape may still create static during peel-off or repositioning. ESD polyimide tape reduces that risk while retaining the thermal stability needed around soldering and heat-assisted repair operations. Its value in repair work is not just heat tolerance but safer handling near static-sensitive components.

3. Coil, motor, and transformer wrapping

For insulation wraps in electrical sub-assemblies, the tape must provide a stable dielectric layer under elevated temperature. If the surrounding process also involves static-sensitive devices, test benches, or control electronics, the ESD version offers additional process protection. That makes it a practical option where standard insulation tape is thermally adequate but electrostatic behavior also matters.

4. Semiconductor, sensor, and precision electronics protection

High-value electronic parts are often vulnerable to even minor electrostatic events. In these assemblies, the tape may be used for temporary insulation, surface shielding, fixture masking, or component-area isolation. The combination of 10⁶–10⁹ Ω surface resistance and high heat capability gives manufacturers a better balance between static control and temperature resistance than standard masking tapes.

5. Static-sensitive industrial surface protection

Beyond PCBs, ESD polyimide tape is also used in equipment and production tooling where anti-static temporary protection is needed at elevated temperatures. This includes fixtures, precision process zones, and electrical interfaces where the tape must not only stay stable under heat but also avoid becoming a static source during removal or repeated handling.

Material Comparison

ESD Kapton Tape vs. Standard Kapton Tape

Silicone adhesive vs. acrylic adhesive in ESD polyimide tape

Silicone adhesive versions are better aligned with higher-temperature masking and insulation processes, and they are usually preferred when short-term thermal peaks and cleaner heat behavior matter most. Acrylic adhesive versions can be useful where stronger room-temperature bonding or lower process temperatures are expected. In sourcing, the adhesive decision should reflect the actual process window rather than the ESD requirement alone.

Customization & Supply Capabilities

For B2B buyers, the value of ESD Kapton tape is closely tied to converting capability. In many electronics factories, the tape is not used as a generic stock roll but as a process-specific material prepared to suit a particular line, component geometry, or masking width.

• Custom thickness options: within the available ESD PI product range
• Custom widths: suitable for narrow masking or localized insulation
• Slitting: converting jumbo rolls into process-ready sub-rolls
• Rewinding: custom roll lengths for repair benches or assembly stations
• Die-cutting: pads, tabs, windows, rings, and insulation parts
• MOQ flexibility: practical for evaluation, pilot runs, and scale-up
• Free samples for testing: useful for ESD validation and thermal-process checks
• OEM support: tailored supply for distributors, converters, and industrial buyers

FAQ

1. What surface resistance does ESD Kapton Tape usually provide?

The product page lists a typical 10⁶–10⁹ Ω surface resistance range. In practice, this range is commonly used for static-dissipative materials rather than fully conductive materials. Buyers should still confirm the required ESD class and verify performance under their own humidity, handling, and process conditions.

2. Can ESD Kapton Tape handle soldering or other high-temperature processes?

Yes. The published specification states continuous use up to 260°C and short-term peaks up to 300°C+. Actual suitability still depends on dwell time, substrate, contact pressure, and whether the tape is used for masking, insulation, or temporary protection near heated zones.

3. Is ESD Kapton Tape better than standard polyimide tape for electronics assembly?

It is better when the process includes static-sensitive components and there is a risk of charge generation during application or peel-off. If the process only requires heat resistance and insulation, standard polyimide tape may be enough. The ESD version is justified when electrostatic safety is part of the process requirement.

4. Does the tape leave residue after removal?

Residue behavior depends on adhesive type, substrate finish, exposure temperature, dwell time, and peel angle. Silicone-based high-temperature versions are generally better suited to elevated-temperature processes, but any residue-sensitive application should be tested directly on the actual component material before production approval.

5. Which adhesive should buyers choose: silicone or acrylic?

Silicone is usually preferred for higher-temperature masking and insulation because it retains stability better under heat. Acrylic may be suitable for lower-temperature electronics applications where stronger room-temperature adhesion is needed. The right choice depends on process temperature, substrate type, and removal requirements.

6. Can ESD Kapton Tape be supplied in custom widths or die-cut shapes?

Yes. Industrial suppliers commonly provide slit rolls, rewound rolls, and die-cut parts such as pads, tabs, and windows. This is especially useful in PCB masking, fixture protection, and localized insulation, where exact geometry improves process efficiency and repeatability.

7. How should buyers evaluate ESD Kapton Tape before volume purchase?

Testing should cover more than peel adhesion. Buyers should validate surface resistivity, thermal exposure performance, removal behavior, insulation needs, and compatibility with the actual substrate. The most reliable approval method is line-condition testing on the real assembly or process station.
