Revolutionize Your Electronics Production with Cutting-Edge Tape for Electronics Solutions
The Unseen Backbone of Modern Device Manufacturing
In PCB reflow ovens where temperatures hit 260°C, on lithium battery assembly lines battling corrosive electrolytes, and in ESD-sensitive cleanrooms – precision tape for electronics operates as the critical safeguard against catastrophic failures. Unlike commodity adhesives, engineered tape for electronics combines advanced material science with application-specific performance to solve the industry’s most complex challenges. As devices evolve toward miniaturization and higher power density, selecting the optimal tape for electronics becomes a strategic decision impacting yield rates, compliance, and total cost of ownership.
Section 1: PET-Based Tape for Electronics – The High-Temperature Workhorse
JiaoTaoTao® PET Tape for Electronics delivers unmatched stability in solder-level heat and chemically aggressive environments through its unique construction:
Core Technical Specifications (Document 1):
- Substrate: Biaxially-oriented PET film
- Continuous heat resistance: 220°C
- Peak tolerance: 260°C (30 mins)
- Tensile strength: **≥150 MPa** (ASTM D882)
- Adhesive: Silicone-based pressure-sensitive system
- Bond strength: 600–1200 g/25mm
- Residual glue: ≤0.1% (IPC-A-610)
- Chemical resistance: Acids/alkalies/solvents
- Specialized Functions:
- ESD protection: Custom surface resistance (≤10V/50V/100V)
- Dielectric strength: **≥4.5 kV** (IEC 60243)
- Color options: Transparent/black/white/amber/Pantone
- Max dimensions: 1,250mm width × 2,000m length
Critical Product Matrix:
| Model | Film (μm) | Adhesive (μm) | Total (μm) | Strength (g/25mm) | Temp Rating |
|---|---|---|---|---|---|
| P1938 | 19 | 19 | 38 | 600–800 | 220°C |
| P2550 | 25 | 25 | 50 | 600–900 | 220°C |
| PET2550V | 25 | 25 | 50 | 600–900 | 260°C* |
| P5080 | 50 | 30 | 80 | 800–1200 | 220°C |
| *Short-term peak performance |
Industry-Specific Applications:
-
SMT Reflow Shielding (PET2550V)
- Withstands 260°C/30 min reflow profiles
- Prevents solder splatter on PCBs
- Foxconn Case Result: Residual glue defects reduced from 1.2% → 0.05%; cost savings 32% (0.19/mvs.0.28/m)
-
Lithium Battery Insulation (P5080)
- Bonds cells to aluminum-plastic film
- Resists electrolyte corrosion (pH 3–12)
-
Automotive Harness Protection (P2560 Black)
- Oil/vibration resistance (SAE J2030 compliant)
- High-temp engine zone durability

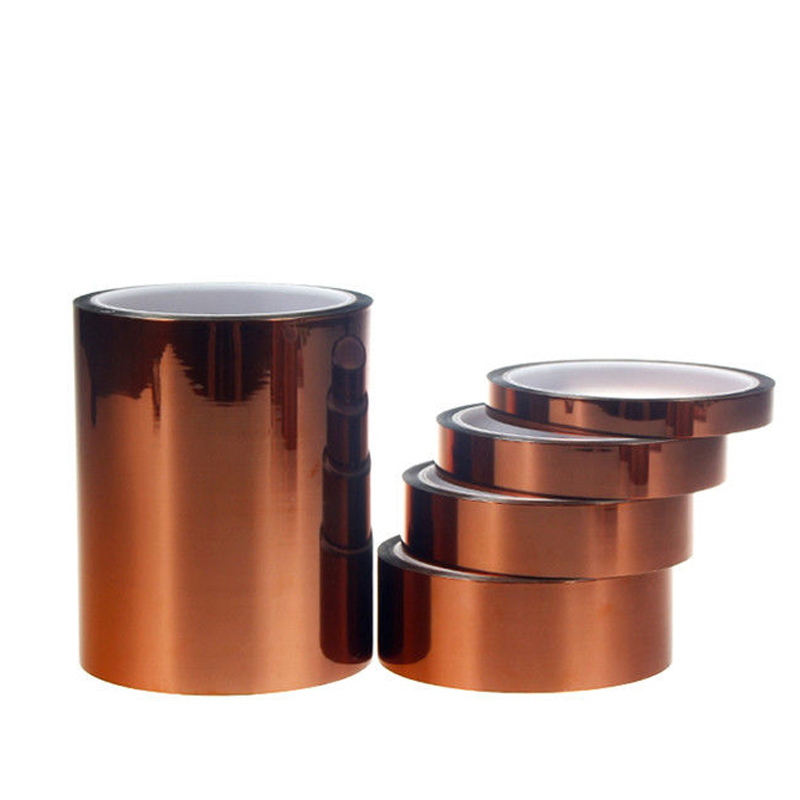

Section 2: Polyimide Tape for Electronics – Extreme Environment Specialist
When PET reaches thermal limits, JiaoTaoTao® Polyimide Tape for Electronics provides aerospace-grade protection:
Breakthrough Performance (Document 2):
- Substrate: Polyimide film (Kapton-type)
- Operating range: -40°C to +260°C
- Peak tolerance: 280°C
- Thermal shrinkage: ≤1.5% (260°C/1hr)
- Adhesive: Specialty silicone system
- Adhesion retention: **>90%** after 72hrs @260°C
- 0% residue guarantee (IPC TM-650 2.4.9)
- Electrical Properties:
- Dielectric strength: **≥4,000V** (0.05mm base)
- ESD versions: Surface resistance ≤10⁹Ω
- Certifications: UL 94 V-0 (flame retardant), RoHS, UN38.3
Flagship Models:
| Model | Film (μm) | Adhesive (μm) | Total (μm) | Key Features |
|---|---|---|---|---|
| PI2550 | 25 | 25 | 50 | SMT masking, 260°C stable |
| PI-ESD-05 | 50 | 30 | 80 | ESD protection (≤10⁹Ω) |
| PI-NE-10 | 100 | 50 | 150 | UL 94 V-0, acid resistant |
| PI10150 | 100 | 50 | 150 | Battery tab protection |
Transformative Use Cases:
-
Aerospace Wiring (PI-CM Series)
- Radiation-resistant construction
- Extreme temp range: -200°C to +300°C
- MIL-STD-883G qualified
-
Lithium Battery Tabs (PI-NE-10)
- 5-year electrolyte resistance
- BYD Case Result: Yield **↑12%**; annual contract 800,000 rolls
-
OLED Assembly (PI-ESD-05)
- Precision ±0.05mm masking
- Eliminates static-induced defects
- Foxconn Result: ¥3M+ annual savings
Section 3: Tape for Electronics Selection Guide
| Parameter | PET Tape (e.g., PET2550V) | Polyimide Tape (e.g., PI2550) |
|---|---|---|
| Max Continuous Temp | 220°C | 260°C |
| Chemical Resistance | Acids/alkalies/solvents | Superior solvent/acid/alkali resistance |
| Residual Glue Risk | ≤0.1% | 0% |
| Flame Certification | – | UL 94 V-0 |
| ESD Customization | ≤10V/50V/100V | ≤10⁹Ω (ESD series) |
| Cost Efficiency | 30–40% lower vs imports | Premium solution |
Why Global Manufacturers Choose JiaoTaoTao® Tape for Electronics:
-
48-Hour Customization
- Widths: 3mm–1,250mm
- Colors: Pantone-matched
- ESD/Thickness/Bond strength tuning
-
Certified Performance
- RoHS/REACH/UL/ISTA 3A compliance
- Batch-specific test reports (IEC/ASTM)
-
Supply Chain Agility
- 15-day bulk order turnaround
- VMI and bonded warehouse support
- DDP/DAP global logistics
-
Proven ROI
- Avg. 25–40% cost reduction vs. 3M™/Nitto
- Yield improvements up to 12% documented
Technical Disclaimer:
Performance data based on JiaoTaoTao® lab tests (2025) and client case studies. Real-world results may vary with environmental factors. Always validate tape for electronics compatibility in your application.
