Custom Die-Cut Tape for Automotive Shark-Fin Antenna Bonding
Custom die-cut tape for automotive shark-fin antenna bonding can laminate a gasket, position a housing, or create a controlled adhesive path around fasteners, cable openings, and roof-panel features. A reliable part begins with substrate data and a dimensioned drawing—not a generic antenna outline—and must be validated with the actual paint, plastic, gasket, compression, environment, and assembly sequence.
Quick Answer
The adhesive part may support positioning and bonding, while the antenna's fasteners, gasket compression, sealant, and structural features perform other functions. Do not describe a pressure-sensitive adhesive die-cut as the sole water barrier or mechanical retention method unless the complete validated design gives it that role.
Where a Die-Cut Adhesive Fits in the Antenna Stack
A shark-fin antenna assembly typically combines a molded housing, internal electronics, a base plate, cable and connector features, studs or fasteners, a gasket or sealing layer, and the painted vehicle roof. Custom tape can laminate a gasket to the antenna base, keep the gasket positioned during handling, bond selected housing areas, or provide a secondary adhesive path around the mounting footprint.
The drawing should state whether the tape remains permanently in service, only assists assembly, or is removed before final compression. Its inner and outer edges should follow functional lands rather than the visible housing outline alone.
| Potential function | Why die-cut geometry matters | Design limit |
|---|---|---|
| Gasket lamination | Matches an irregular foam or elastomer shape while clearing holes | Adhesive choice must suit the gasket surface energy and compression |
| Pre-positioning | Holds the part on datums before the antenna is placed on the roof | Final location should not depend only on operator eyesight |
| Housing-to-base bonding | Places adhesive only on the intended structural land | Load, temperature, and moisture exposure require program validation |
| Secondary sealing path | Controls continuity around selected openings | Fasteners, gasket, drainage, and sealant design remain part of the system |
| Anti-rattle interface | Separates approved contact points and maintains a repeatable footprint | Compression and thickness tolerance must be defined |
Information Required Before Tooling
Begin with the released or development-stage CAD data, not a photograph. Identify the adhesive land, sealing land, mounting holes, cable route, drain path, connector clearance, molded ribs, roof curvature, and any area that must remain free of adhesive. The nominal shape is only one part of the problem; mating-part and process tolerances control the usable adhesive width.
| Input | Details to provide | Why it matters |
|---|---|---|
| Antenna base | Plastic or metal type, texture, coating, ribs, flatness, and available bond land | Controls adhesion, wet-out, and die-cut shape |
| Roof panel | Paint and clearcoat system, curvature, opening, cleanliness, and plant variation | Automotive paints and surface finishes can bond differently |
| Gasket | Foam or elastomer chemistry, density, compression, surface skin, and thickness | Low-surface-energy or textured materials may need another adhesive route |
| Assembly | Placement method, datums, torque sequence, pressure, temperature, and takt time | Defines liner design and required initial tack |
| Environment | Water, humidity, thermal cycling, UV exposure, cleaners, vibration, and service life | Shapes the qualification plan and material shortlist |
| Conversion | Dimensions, critical tolerances, liner side, kiss-cut depth, tabs, orientation, and packaging | Turns material into an operator-ready production part |
Material and Die-Cut Design Choices
Adhesive transfer tape, thin double-coated tape, or foam tape
Adhesive transfer parts create a thin bond line and conform to some surface texture but provide little gap filling. A film-carrier double-coated tape improves handling and dimensional control. Acrylic foam tape can accommodate larger gaps and distribute stress, but it adds thickness and can change gasket compression or housing position. Select by the complete stack, not by adhesive strength on a standard panel.
Design keep-outs and corner radii
Maintain clear zones around studs, cable glands, drain features, clips, electrical connectors, and inspection marks. Interior corners should use practical radii for converting and matrix removal. Thin necks and unsupported islands can distort during die cutting, packaging, or liner peel.
Make the liner part of the process

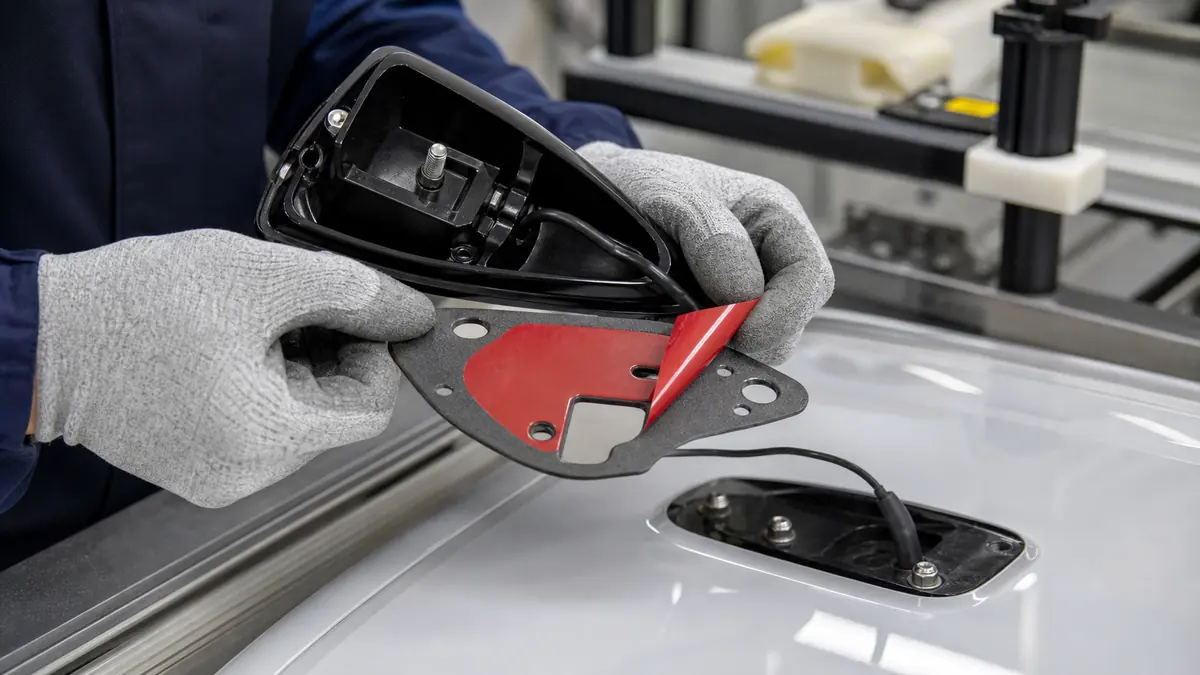

A split liner or finger-lift tab may allow the operator to locate the part before exposing the entire adhesive surface. The liner opening sequence should prevent the gasket from stretching and keep hands away from the bond area. Specify liner side, split position, tab dimensions, release level, and part orientation.
| Format | Potential advantage | Primary question |
|---|---|---|
| Individual die-cut part | Simple for prototypes or low-volume manual assembly | How will orientation and part identity be controlled? |
| Kiss-cut sheet | Keeps multiple parts organized on a common liner | Can the operator remove a part without stretching the gasket? |
| Kiss-cut roll | Supports repetitive presentation or automation | What are unwind direction, pitch, sensor mark, and core requirements? |
| Pre-laminated gasket | Combines converting and lamination before the vehicle line | How will liner integrity and gasket dimensions be inspected? |
Recommended Assembly Workflow
- Verify revisions. Confirm antenna, roof panel, gasket, adhesive part, fixture, primer if used, and work-instruction revisions.
- Inspect incoming parts. Check die-cut shape, liner, holes, tabs, contamination, gasket distortion, and housing flatness.
- Condition materials. Follow the approved storage and assembly temperature requirements before application.
- Prepare the surface. Use only the validated cleaning and primer process for the actual plastic, gasket, and painted panel.
- Locate the adhesive or gasket. Use pins, nests, vision, or other defined datums; avoid stretching the part to make it fit.
- Remove the liner in sequence. Expose only the area needed for placement and keep fingers off the adhesive land.
- Apply controlled pressure. Use the specified roller, platen, or fixture so the full adhesive path wets the mating surface.
- Install on the roof panel. Route the cable, align studs and datums, seat the gasket, and complete the released fastening or torque process.
- Inspect and record. Confirm seating, perimeter condition, liner removal, connector route, fasteners, and traceability.
Validation Plan for a Production Candidate
Screen materials on actual painted panels, antenna-base resin, and gasket stock. Include surface and dimensional variation from production suppliers. The vehicle or component design authority should define acceptance criteria for sealing, retention, electrical performance, appearance, vibration, and serviceability.
- Measure placement capability and adhesive-land coverage at nominal and tolerance-limit conditions.
- Evaluate initial handling strength and bond development after the specified dwell.
- Run the program's thermal cycling, humidity, water, cleaner, UV, vibration, and mechanical loading sequences.
- Inspect for edge lift, water path, gasket displacement, foam splitting, plastic stress, paint damage, and adhesive migration.
- Verify the full antenna function and connector condition after environmental testing.
- Conduct service removal and replacement trials if the antenna is a replaceable component.
- Require change control for adhesive, liner, gasket, paint, plastic, tooling, packaging, or application-process revisions.
Common Problems and Corrective Directions
| Observed issue | Checks | Corrective direction |
|---|---|---|
| Die-cut part does not fit the base | Drawing revision, liner shrinkage, part orientation, tool registration, and molded-part variation | Run a stack-up review and update critical dimensions |
| Gasket stretches during liner peel | Release level, split location, pull direction, unsupported geometry, and operator method | Add a finger lift or carrier and revise the peel sequence |
| Adhesion is weak on the housing | Plastic type, mold release, texture, cleanliness, adhesive family, and application pressure | Test a compatible adhesive or approved surface treatment |
| Edge lift after environmental cycling | Bond-land width, stress, curvature, foam compression, surface energy, and dwell | Reduce peel stress and redesign the adhesive path |
| Water appears near the opening | Gasket compression, fastener torque, sealing continuity, roof flatness, drainage, and assembly damage | Investigate the complete sealing system rather than adding tape locally |
Related Products and Articles
- Explore die-cut and customized tape capabilities.
- Review the custom die-cut tape guide for precision assembly.
- See the site's automotive adhesive tape buying guide.
- Send your antenna-base and gasket drawing for a converting discussion.
Frequently Asked Questions
What tape is used for shark-fin antenna bonding?
Depending on the stack, manufacturers may evaluate adhesive transfer tape, film-carrier double-coated tape, acrylic foam tape, or an adhesive-laminated gasket. The correct construction depends on the paint, housing, gasket, gap, load, and environmental requirements.
Can die-cut tape replace the antenna gasket?
Not automatically. A gasket controls compression and sealing in ways a thin adhesive layer may not. Any replacement or combined function requires a complete sealing and durability validation.
Why use a custom die-cut instead of roll tape?
A die-cut can follow holes and irregular lands, control edge clearance, improve placement repeatability, and reduce on-line trimming. It also allows engineered liner tabs and presentation formats.
Does the adhesive need primer?
Some low-surface-energy plastics, textured gaskets, or paint systems may require an approved treatment, while others do not. Decide only through material-specific supplier guidance and production testing.
What should be included in an RFQ?
Provide 2D and 3D drawings, substrate and gasket materials, paint system, adhesive function, environmental requirements, thickness limits, critical tolerances, liner and tab needs, packaging format, annual quantity, and validation criteria.
Convert the Antenna Stack into a Production Part
Share the roof opening, antenna-base CAD, gasket construction, paint and plastic data, adhesive role, compression and fastening method, keep-outs, liner preference, tolerance stack, and environmental test plan. JIAO TAO TAO can help prepare a die-cut concept for controlled evaluation.
