Tape for Transformer Insulation: Premium PET Film Solutions for High-Voltage Reliability & Efficiency
Tape Transformer Applications
In the dynamic landscape of power transmission and energy distribution, transformers serve as the backbone of electrical systems. However, their demanding operational conditions—high voltages, thermal cycling, and environmental exposure—require insulation materials that balance performance, durability, and cost. Tape for transformer insulation has emerged as a critical solution, ensuring seamless electrical isolation, mechanical protection, and long-term reliability in transformers ranging from small distribution units to massive power grid installations. This article explores how PET film tape for transformer insulation stands out as a superior choice, combining technical excellence, scalability, and sustainability to meet the evolving needs of the energy sector.
1. The Critical Role of Tape for Transformer Insulation
Transformers operate under extreme conditions, including high voltages (up to 500 kV), thermal fluctuations (-40°C to 150°C), and exposure to moisture, oils, and chemicals. Subpar insulation tapes can lead to:
- Electrical Failures: Arcing, short circuits, or dielectric breakdown due to insufficient insulation integrity.
- Thermal Degradation: Delamination, shrinkage, or carbonization under continuous heat stress.
- Mechanical Fatigue: Cracks or peeling during vibration, reducing transformer lifespan.
Tape for transformer insulation addresses these challenges by:
- Providing High Dielectric Strength: Blocks voltage leakage between windings and core.
- Withstanding Extreme Temperatures: Maintains structural integrity from -50°C to 180°C.
- Enhancing Mechanical Stability: Resists vibration and compression in oil-filled or dry-type transformers.
As the global transformer market grows at a CAGR of 5.8% (2023–2030), driven by renewable energy integration and smart grid upgrades, the demand for advanced insulation tapes is surging.
2. Technical Superiority of PET Film Tapes for Transformer Insulation

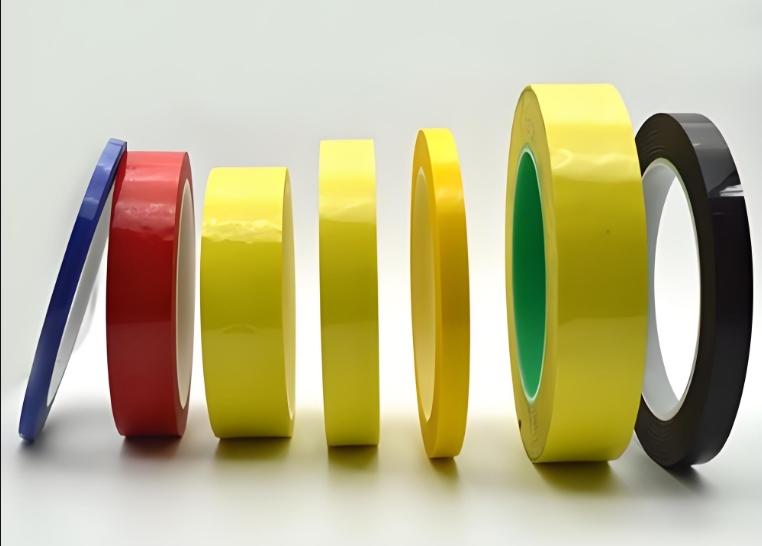

Our PET film tape for transformer insulation is engineered to exceed industry standards, offering unmatched electrical, thermal, and mechanical performance. Key specifications include:
| Parameter | Specifications |
|---|---|
| Base Material | High-density polyethylene terephthalate (PET) film |
| Adhesive Type | Acrylic-based, high tack, oil-resistant |
| Thickness | 0.05–0.20 mm (adjustable for compact or heavy-duty applications) |
| Dielectric Strength | 7,500 V/mil (per ASTM D149) |
| Temperature Resistance | Continuous: -50°C to 180°C; Short-term: 220°C |
| Moisture Resistance | <0.1% water absorption (IEC 60068-2-30) |
| Oil Resistance | Passes ASTM D471 (immersion in transformer oil) |
| Certifications | RoHS, REACH, UL 510, IEC 60684-3 compliance |
Why PET Film? Unlike traditional materials like PVC (low thermal stability) or polyimide (costly), PET combines exceptional electrical insulation, flexibility, and flame retardancy with cost-efficiency, making it ideal for mass-produced transformers.
3. Applications in Transformer Manufacturing
From power generation to end-user distribution, tape for transformer insulation is indispensable across sectors:
A. Power Transformers
- Winding Insulation: Shields primary and secondary coils in oil-filled transformers, preventing arcing.
- Lead Wire Sealing: Insulates high-voltage terminals against moisture and contaminants.
- Core Stabilization: Secures laminated steel cores to minimize vibration-induced wear.
B. Distribution Transformers
- Dry-Type Transformers: Resists dust and humidity in urban substations.
- Pad-Mounted Transformers: Withstands outdoor conditions, including UV exposure and freeze-thaw cycles.
C. Specialty Transformers
- Renewable Energy Systems: Insulates wind turbine and solar inverters transformers.
- High-Frequency Transformers: Suitable for EV charging stations and induction heating systems.
4. Competitive Advantages Over Traditional Solutions
A. vs. Polyimide Tapes
While polyimide tapes (e.g., Kapton) excel in ultra-high-temperature environments, they are 3–4x more expensive. PET achieves 95% of their dielectric performance at a fraction of the cost, ideal for cost-sensitive projects.
B. vs. Epoxy or Glass Cloth Tapes
Epoxy resins require curing, adding production complexity. PET tapes offer instant adhesion, reworkability, and compatibility with automated winding machines.
C. Sustainability
PET is 100% recyclable and produces zero toxic emissions when incinerated, aligning with global ESG mandates in energy infrastructure.
5. How to Select the Right Tape for Transformer Insulation
When choosing an insulation tape, prioritize:
- Voltage Rating: Ensure the tape’s dielectric strength exceeds the transformer’s operating voltage.
- Thermal Cycling Resistance: Match the tape’s temperature range to the application (e.g., oil-filled vs. dry-type).
- Adhesive Compatibility: Acrylic adhesives bond well with copper, aluminum, and paper substrates.
- Certifications: Verify compliance with IEC, UL, and regional standards.
Pro Tip: Partner with suppliers offering sample testing for peel strength, dielectric breakdown, and oil immersion resistance.
6. Market Trends Shaping Demand for Transformer Insulation Tapes
- Grid Modernization: Aging infrastructure drives demand for high-efficiency transformers.
- Renewable Energy Growth: Wind and solar farms require rugged tapes for distributed transformers.
- Smart Grids: Advanced sensors and IoT integration demand tapes compatible with automation.
According to Research and Markets, the global transformer insulation materials market will reach $1.2 billion by 2030, with PET-based solutions capturing 40% of the share due to cost-performance advantages.
7. Partnering with a Trusted Manufacturer
When sourcing tape for transformer insulation, prioritize suppliers with:
- R&D Expertise: Custom formulations for niche applications (e.g., fire-resistant tapes for nuclear plants).
- Scalability: Bulk production capabilities with lead times under 3 weeks.
- Quality Assurance: Advanced labs for testing thermal stability, adhesion, and dielectric strength.
Our Commitment: We provide ISO 9001-certified manufacturing, 24/7 technical support, and a lifetime performance warranty.
Tape for transformer insulation is not merely an adhesive—it’s the silent guardian of electrical safety and efficiency. By combining high dielectric strength, thermal resilience, and cost-effectiveness, PET film tapes empower manufacturers to innovate faster while delivering reliable transformers to end-users. As the world transitions to cleaner energy and smarter grids, investing in premium tape for transformer insulation will be pivotal for companies aiming to lead in the energy sector.
Choose a partner that delivers precision, durability, and future-ready solutions—because every volt matters.
FAQs
Q1: Can PET tape for transformer insulation handle oil immersion?
A: Yes! Our tapes are oil-resistant and pass ASTM D471 testing for prolonged exposure to transformer oils.
Q2: How does it compare to fiberglass tapes?
A: Unlike brittle fiberglass tapes, PET is flexible and resistant to vibration, reducing delamination risks.
Q3: Is it suitable for outdoor transformers?
A: Absolutely! Its UV-resistant coating and moisture resistance ensure performance in harsh environments.
Q4: Does it interfere with transformer efficiency?
A: No. The ultra-thin design minimizes space consumption without compromising electrical performance.
Q5: Are there custom widths or automated dispensing options?
A: Yes! We offer die-cut tapes and spools compatible with robotic winding systems.
