How to Choose High-Temperature Insulation Tapes? 5 Critical Metrics and Industry Applications

​Introduction: The Cost of Tape Failure in High-Temperature Environments

In 2023, a lithium battery assembly line in Germany reported a 9% defect rate due to insulation tape degradation under 200°C thermal stress. This incident underscores a critical challenge: ​selecting the right high-temperature insulation tape is not optional—it’s a safety and efficiency imperative.

​5 Non-Negotiable Metrics for High-Temperature Insulation Tapes

​1. Temperature Resistance: Beyond Basic Ratings

• ​Industry Standard: Most tapes claim "high-temperature resistance," but real-world performance varies.
• ​Key Data:
  • General-purpose acrylic tapes: Fail above 150°C.

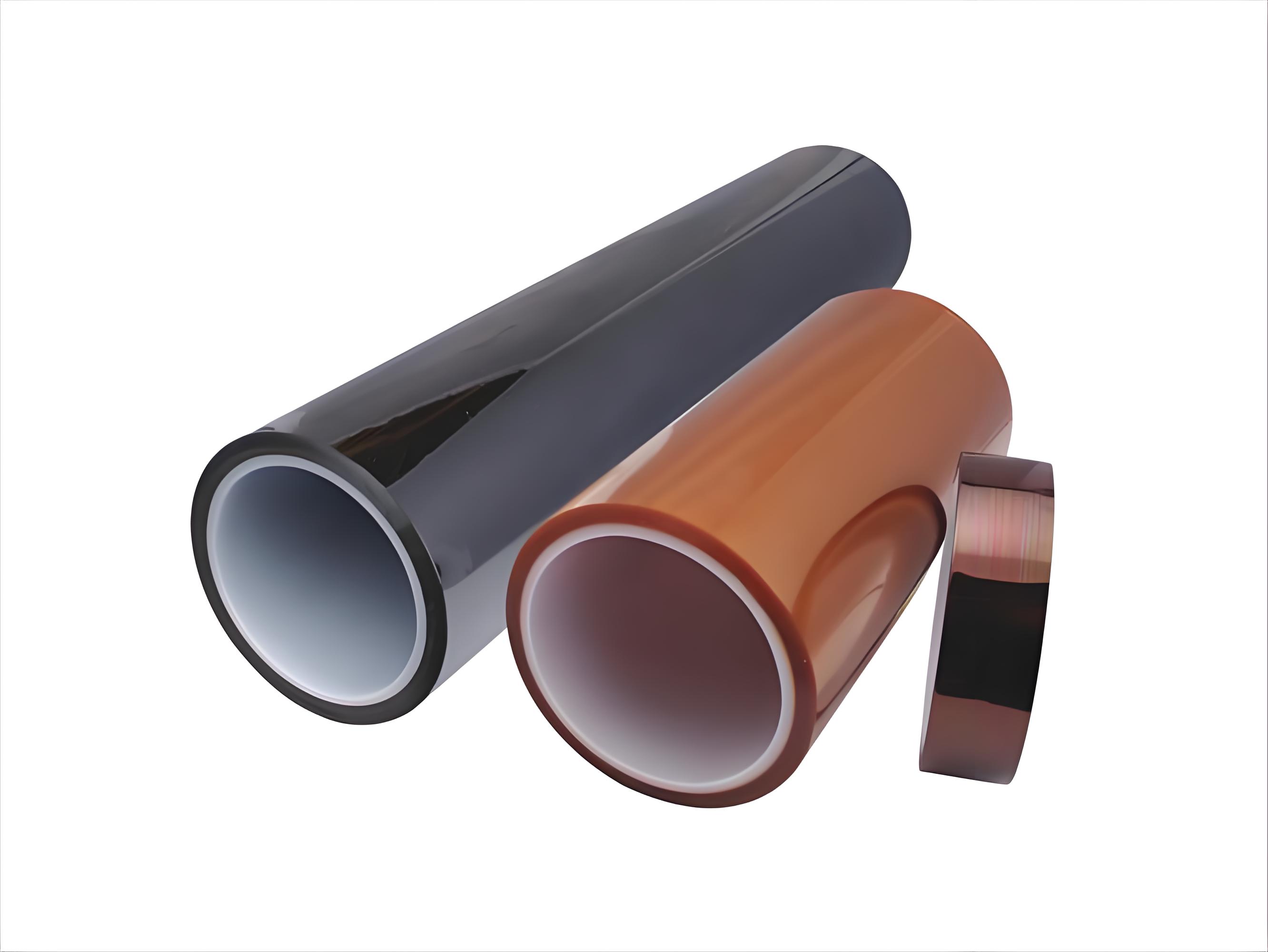

  • ​JIAOTAOTAO® Gold Finger Polyimide Tape: Stable at 280°C for 10,000+ hours (tested per IEC 60243).
  • Tip: Demand third-party test reports for continuous and peak temperature ratings.

​2. Dielectric Strength: Your Safety Margin

• ​Why It Matters: Low dielectric strength causes arcing in PCBs or battery modules.
• ​Benchmark Comparison:

  Tape Type	Dielectric Strength (kV/mm)
  PVC Insulation	15-20
  Silicone Rubber	20-25
  ​JIAOTAOTAO® PI Tape	​40+ (IEC 60243 certified)

​3. Adhesive Chemistry: The Hidden Performance Driver

• ​Silicone Adhesives: Best for >200°C sustained heat (common in electric vehicle battery packs).
• ​Acrylic Adhesives: Superior initial tack but degrade above 180°C (risk of adhesive transfer).
• ​Case Study: A drone motor manufacturer reduced rework by 34% after switching to our silicone-based Polyimide High-Temp Tape.

​4. Thickness & Flexibility: Precision Matters in Tight Spaces

• ​PCB Assembly Reality: Tapes thicker than 0.1mm interfere with automated SMT processes.
• ​JIAOTAOTAO® Solution: 0.075mm ultra-thin PI tape with 180° bend radius compliance.

​5. Chemical & Environmental Resistance

• ​High-Risk Scenarios:
  • Acidic flux exposure in PCB etching.
  • UV/ozone degradation in solar inverters.
• ​Tested Performance: Our PI tape withstands 500+ hours of salt spray (ASTM B117) and 1,000+ hours of UV aging (ASTM G154).

​Industry-Specific Application Guides

​1. PCB Manufacturing: Avoiding Gold Finger Contamination

• ​Problem: Residual adhesive stains on gold-plated contacts.
• ​Solution: Low-silicone-content Gold Finger Tape with peel force <0.3N/cm.

​2. EV Battery Encapsulation: Thermal Runaway Prevention

• ​Critical Requirement: UL 94 V-0 flame rating + thermal conductivity >0.8 W/m·K.
• ​JIAOTAOTAO® Combo Solution: PI insulation layer + thermally conductive gap filler.

​Why Engineers Trust JIAOTAOTAO® Tapes

• ​Precision Customization: Tailor tape dimensions (width: 2mm-500mm; length: 10m-1,000m).
• ​Global Compliance: RoHS, REACH, UL, and IEC certifications pre-qualified.
• ​Technical Support: Access our engineers via Contact Form for application-specific guidance.

​Conclusion: Your Next Step

Don’t gamble with generic solutions. Download our ​**High-Temp Tape Selection Checklist** or request free samples to validate performance in your unique environment.
