Gold Finger Tape: Precision Masking Solutions for High-Temperature Applications

By JiaoTaoTao Adhesive Solutions | 2025-08-13
{当前产品的产品关键词轮巡使用}

Introduction to Gold Finger Tape

Gold Finger Tape is a specialized type of high-temperature resistant masking tape designed primarily for protecting gold-plated connectors — known as "gold fingers" — on printed circuit boards (PCBs) during wave soldering, reflow soldering, and surface-mount technology (SMT) processes. These connectors require precise protection to maintain their electrical conductivity and avoid contamination during the assembly process.

Our Gold Finger Tape products are engineered with heat-resistant polyimide film and high-performance silicone adhesive, ensuring excellent performance in temperatures up to 280°C. They are also available in custom die-cut shapes to match specific PCB layouts.

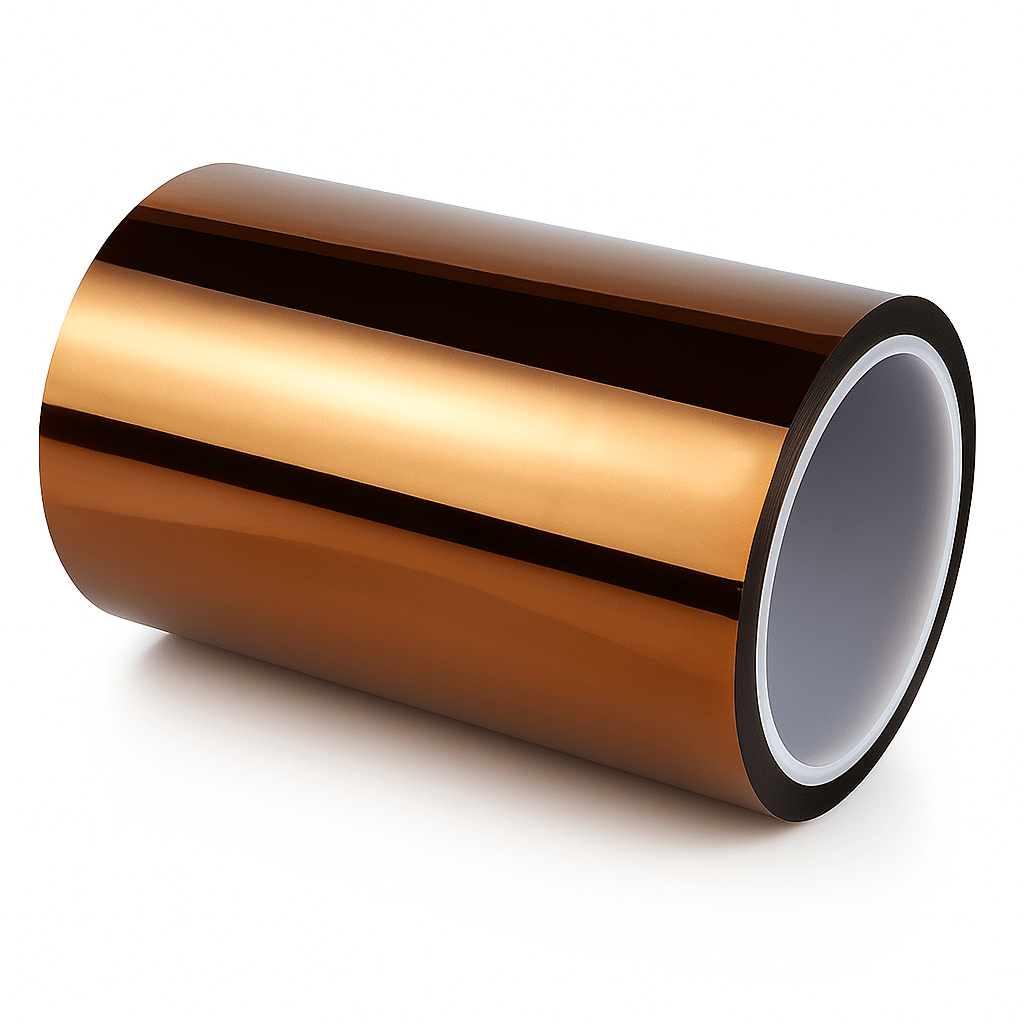

gold-finger-tape-roll

Why Choose Gold Finger Tape?

Unlike general-purpose masking tapes, Gold Finger Tape is specifically designed for electronics manufacturing. The key benefits include:

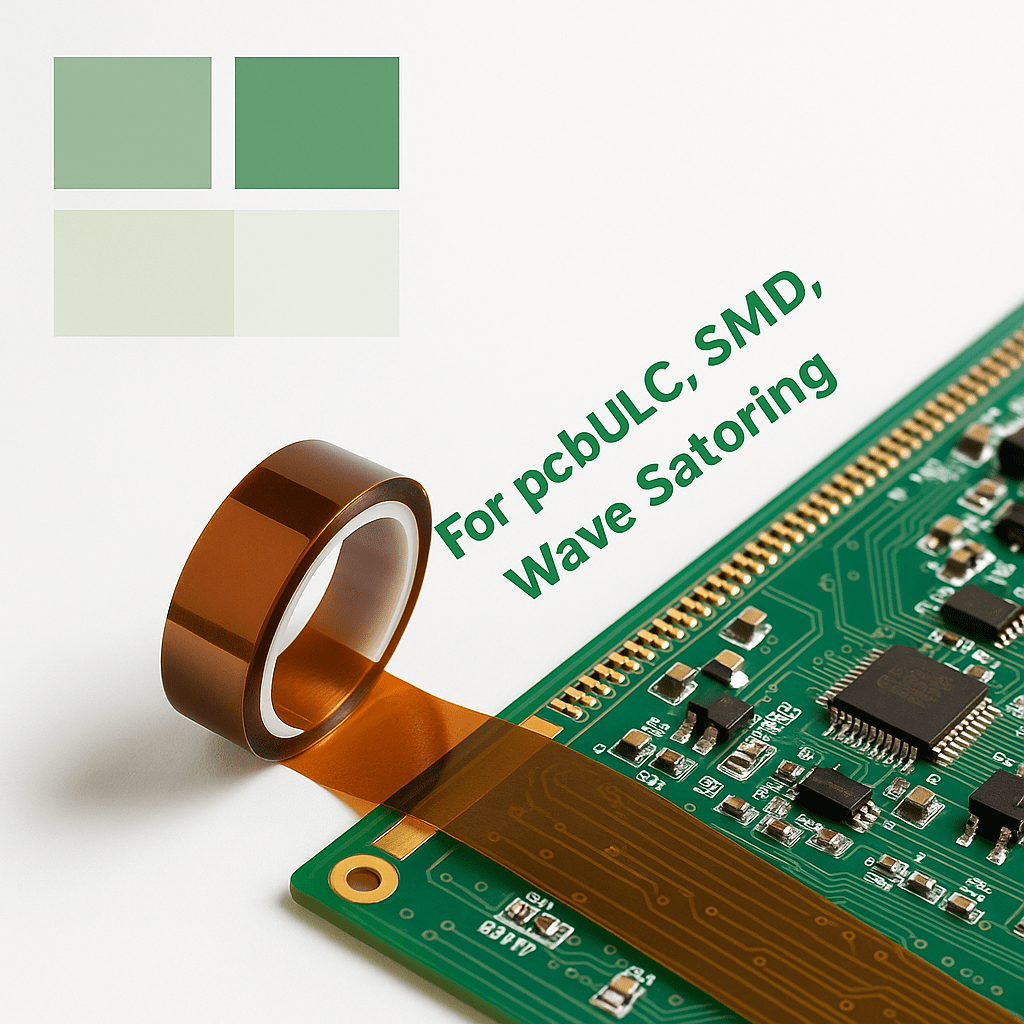

pcb-masking-application

Applications of Gold Finger Tape

Gold Finger Tape plays a critical role in several electronics and industrial processes:

1. PCB Wave Soldering

During wave soldering, molten solder passes over the underside of a PCB. Without proper masking, gold finger connectors could be contaminated. Gold finger masking tape ensures these connectors remain clean and functional.

wave-soldering-process

2. SMT Assembly

In surface-mount technology assembly, high-temperature adhesive tapes prevent sensitive areas from exposure to solder paste or heat, reducing rework costs and ensuring product reliability.

3. High-Temperature Masking

Gold Finger Tape is also used in powder coating, anodizing, and other industrial processes where heat resistance and clean removal are essential.

Custom Die Cut Gold Finger Tape Solutions

One of our most popular services is custom die cut gold finger tape. This process involves pre-cutting the tape into specific shapes that match your PCB layout, significantly speeding up production and improving masking precision.

Our die-cut tapes are produced using CNC or laser cutting technology, ensuring high accuracy with tolerances as low as ±0.1mm. This level of precision eliminates manual cutting errors and reduces production downtime. die-cut-tape-sheets

Material Specifications

How Gold Finger Tape Improves Production Efficiency

Using die cut gold finger tape reduces masking time by up to 70%, as operators simply peel and place pre-cut pieces instead of manually trimming tape. This is particularly beneficial for high-volume PCB manufacturing lines where every second counts.

Gold Finger Tape vs. General Polyimide Tape

Feature Gold Finger Tape General Polyimide Tape
Temperature Resistance Up to 280°C Up to 260°C
Residue-Free Removal Yes Varies
Die-Cut Options Available Limited
Specific Use PCB gold finger protection General masking/insulation

Choosing the Right Supplier

When sourcing high temperature adhesive tape, it is important to choose a supplier with proven experience in electronics manufacturing. Our company offers:

Contact Us

If you are looking for a reliable gold finger protection tape supplier, contact us today for a free consultation and sample.

Email: Jiaotaotao01@gmail.com
Phone: +86 136 1277 5969
Website: //www.clothadhesive.com/
