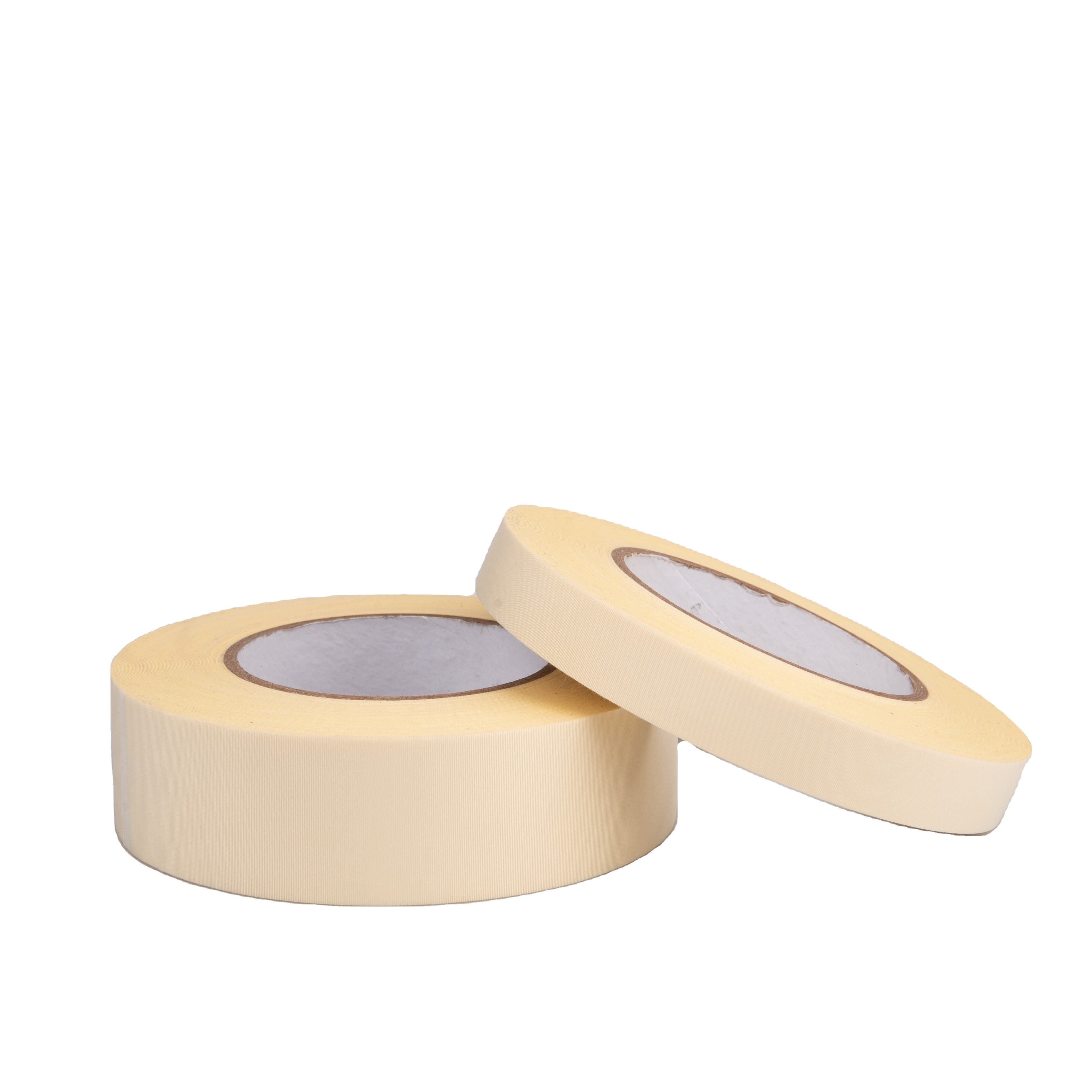

White Fabric Tape JTT-18R Electrical Insulation Tape by JIAOTAOTAO

JTT-18R

minimum order:

1 roll

Product Type: Acetate Cloth Tape

Model: JTT-18R

Color: White

Adhesive: Rubber

Total Thickness: 0.18 mm

Temperature Resistance: 150–170 °C

Tensile Strength: 20–25 N/cm

Dielectric Strength: 6–8 kV

Insulation Resistance: 110–125

Quantity:

Contact Now

White Fabric Tape JTT-18R

Product Overview

White fabric tape JTT-18R is an electrical insulation tape manufactured using acetate cloth backing with rubber adhesive for stable mechanical and dielectric performance. As a professional white fabric tape manufacturer, we produce white fabric tape designed for electrical insulation where flexibility, conformability, and controlled adhesion are required. White fabric tape JTT-18R is supplied directly from manufacturer factory production for consistent insulation quality.

This white fabric tape provides reliable insulation strength and stable dielectric properties for motors, transformers, and electrical components. White fabric tape JTT-18R is manufactured to maintain insulation integrity under elevated temperatures and continuous electrical load. As a manufacturer factory, we supply white fabric tape for OEM electrical insulation systems.

Technical Specifications

White fabric tape JTT-18R is manufactured under controlled factory conditions to ensure consistent electrical and mechanical properties.

Material

Backing Material: Acetate cloth
Adhesive Type: Rubber adhesive

Thickness / Size

Total Thickness: 0.18 mm
Standard Widths: Available from manufacturer
Roll Lengths: Factory customizable

Temperature Resistance

Continuous Temperature Resistance: 150–170 °C

Mechanical & Electrical Properties

Tensile Strength: 20–25 N / cm
Dielectric Strength: 6–8 kV
Insulation Resistance: 110–125

Customization / OEM

Width and length customization by manufacturer factory
Jumbo roll supply for slitting
OEM packaging supported

All white fabric tape products are manufactured for electrical insulation stability and production efficiency.

Applications

White fabric tape for electrical insulation wrapping
White acetate cloth tape for transformer insulation
Electrical insulation fabric tape for motor winding
Rubber adhesive cloth tape for cable insulation
White fabric tape for internal electrical protection
White fabric tape for high-reliability insulation assemblies

Each application uses white fabric tape as a primary insulation material in electrical systems.

Acetate Cloth Tape Series Specification

Model	JT-ACT-22-FR (Military)	JT-ACT-10 (Medical)	JT-ACT-05 (Electronics)
Thickness	0.22mm ±0.03	0.10mm ±0.01	0.05mm ±0.02
Temp. Range	-40°C~260°C	-40°C~200°C	-30°C~180°C
Voltage Resist.	7.2kV/mm	5.5kV/mm	6.0kV/mm
Key Feature	MIL-STD-810G/AS9100D	ISO 10993 Bio-safe	World's Thinnest

All Acetate Cloth Tape variants maintain UL94 V-0 flame rating

Industrial Solutions with Acetate Cloth Tape

🔧 Electronics Manufacturing

Solution: JT-ACT-05 Acetate Cloth Tape
Benefit: Prevents component displacement (+25% yield)

🔋 New Energy Batteries

Solution: JT-ACT-18-BIO Acetate Cloth Tape
Benefit: 70% better electrolyte corrosion resistance

✈️ Military/Aerospace

Solution: JT-ACT-22-FR Acetate Cloth Tape
Benefit: 99.99% mission reliability at ±260°C

🏥 Medical Devices

Solution: JT-ACT-10 Acetate Cloth Tape
Benefit: Halves compliance approval time (ISO 10993)

Global Certifications for Acetate Cloth Tape

Compliance Type	Standards
Flame Safety	UL94 V-0, IEC 60695, GB 8624
Electrical Safety	IEC 60454-3 (≥5kV/mm), IPC-4101
Eco-Safety	RoHS, REACH, TSCA, JGPSSI
Military/Aero	MIL-STD-810G, AS9100D

Operational Guidelines for Acetate Cloth Tape

Environment: 15-30°C / ≤60% RH / ISO Class 7 Cleanroom
ESD Protection: Surface resist. ≤1×10⁹Ω (ESD S20.20)
Storage: Flat position, 24-month shelf life in dark/dry conditions
⚠️ Warning: Non-FR Acetate Cloth Tape prohibited in high-temp applications

Manufacturing Capability

As an experienced white fabric tape manufacturer, our factory operates dedicated coating and laminating lines for acetate cloth insulation tapes.

Manufacturer factory producing white fabric tape in continuous rolls
Direct factory supply for OEM electrical manufacturers
Manufacturer-controlled rubber adhesive coating process
Factory testing for tensile strength and dielectric properties
Stable batch consistency from manufacturer production
Long-term OEM supply supported by factory capacity

All white fabric tape products are supplied directly from manufacturer factory with controlled specifications.

Contact for Industrial Supply

For sourcing white fabric tape for electrical insulation, transformer winding, or motor protection, contact a qualified white fabric tape manufacturer. JTT-18R white fabric tape is supplied directly from manufacturer factory for OEM electrical insulation projects and long-term industrial use.

Contact our manufacturer team to request technical data, samples, and factory quotations for white fabric tape solutions.
