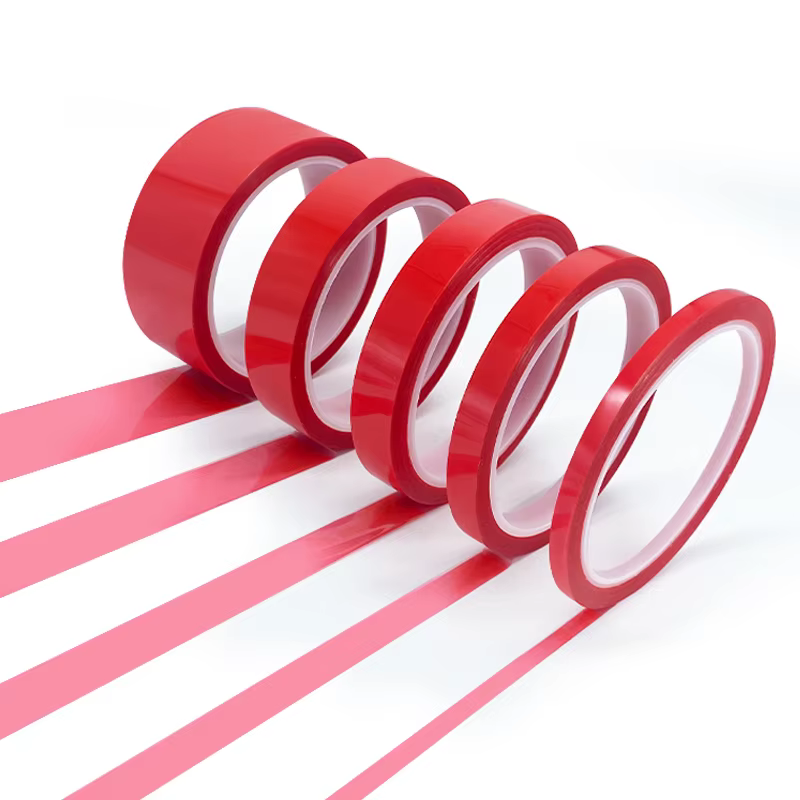

What Is Red PET Masking Tape?

Red PET masking tape is a single-sided industrial tape made with a biaxially oriented polyester film backing and a solvent-based acrylic adhesive. This construction gives the tape a useful combination of dimensional stability, tensile strength, heat resistance, and chemical resistance. The red color is not only a visual feature. In many industrial environments, it helps operators identify masked areas quickly, distinguish protected zones from active surfaces, and confirm full tape removal after treatment. That visual advantage makes it especially practical on busy production lines where fast inspection matters as much as technical performance.

On the product page you shared, this red polyester acrylic tape is positioned for powder coating masking, warning and safety marking, high temperature identification, anodizing, electroplating, and electrical insulation. It is available in thicknesses from 0.038 mm to 0.15 mm, with widths from 1 mm to 1250 mm and roll lengths of 33 m, 66 m, or custom sizes. The tape is also described as offering continuous temperature resistance up to 150°C and short-term resistance up to 180°C, which supports its use in coating ovens and other heated industrial processes.

Why High Temp Masking Tape Works in Industrial Processes

A reliable high temp masking tape must do more than survive heat. It also needs to stay dimensionally stable, resist lifting at the edges, and remove cleanly after the process is finished. In powder coating, anodizing, and paint baking, poor-quality tape can shrink, curl, or leave adhesive residue behind. That creates extra cleaning work and can affect part quality. Polyester-based masking tapes are often selected because the PET backing remains stable during oven cycles and supports cleaner edge definition around holes, threads, mating surfaces, and precision zones.

This product page highlights long-term temperature resistance of 150°C and short-term resistance of 180°C, along with adhesion to steel of 6–8 N/25mm. It also lists residue-free removal and resistance to powder coating chemicals, anodizing bath acids, and process solvents as key performance benefits. For users comparing tape options, that means this high temp masking tape is not only about heat. It is also designed to maintain a secure masking seal during demanding industrial cycles while still peeling away cleanly once the job is complete.

Where Red Polyester Acrylic Tape Is Commonly Used

One of the main reasons buyers choose red polyester acrylic tape is its dual function. It can work as a precision masking tape while also acting as a visible warning or process identification material. In powder coating and paint masking, it is used to protect threads, holes, mating surfaces, and selected areas that must remain free from coating. In anodizing and electroplating, it helps shield critical zones from chemical exposure while preserving clean edges and surface accuracy. Because the red backing is easy to see, operators can inspect placement quickly and verify complete removal after processing.

The product page also positions this tape for warning and safety marking, process identification, and color-coded quality control on manufacturing lines. Compared with standard vinyl marking tapes, polyester film offers better heat resistance and dimensional stability under demanding conditions. That makes it useful where the marking material may be exposed to elevated temperatures, cleaning chemicals, or handling stress. For many industrial users, this visual clarity is a practical advantage rather than just a color preference.

In addition, the tape has a listed dielectric strength of at least 5 kV and tensile strength of at least 120 N/25mm. Those properties expand its usefulness into PCB masking, electrical insulation, and component protection during selective plating, SMT reflow, and related electronics processes. This broader application range makes polyester tape a flexible sourcing option for buyers who want one material to support masking, marking, and light electrical protection.

How to Choose Polyester Tape for Your Job

When selecting polyester tape, the first step is to match the tape to the actual process conditions. Check the temperature profile, chemical exposure, substrate type, and masking precision required. If the process includes coating ovens, heated drying, or acidic baths, a polyester film backing with acrylic adhesive is often preferred because it offers a good balance of heat resistance, chemical resistance, and clean removal. If the tape must also serve as a visual process aid, color becomes an important selection point. In that case, red can be a strong option because it is easy to see against most metal and painted surfaces.

Buyers should also compare thickness and conversion options. This red PET masking tape is offered in multiple standard thicknesses from 0.038 mm to 0.15 mm, along with customizable widths, lengths, release liner options, die-cutting, and OEM packaging. Thin versions may be more suitable for fine masking and detailed edges, while thicker grades may offer easier handling or better durability in repeated use. If your production line includes fixed part geometries or repetitive masking points, die-cut formats can improve efficiency and consistency compared with manually applied strips.

Finally, think about removal and surface cleanliness. A tape that performs well during the process but leaves residue behind can create unnecessary rework. This is why the product’s residue-free removal claim is so important for powder coating, anodizing, and electronics applications. For many buyers, the best high temp masking tape is not simply the one with the highest temperature rating, but the one that delivers stable masking, clear visibility, and clean release across the full production cycle.

Why This Tape Fits Product Promotion Well

From a product promotion perspective, red polyester acrylic tape has a clear advantage because it addresses multiple search intents at once. Some users are looking specifically for red PET masking tape for powder coating or anodizing. Others need high temp masking tape that also helps with visual identification or warning marking. Others may simply search for polyester tape and then compare colors, adhesives, and application fit. Because this product covers masking, safety marking, process identification, and electrical insulation, it can attract interest from coating shops, electronics buyers, maintenance teams, and general industrial users.

That broad relevance can improve both organic visibility and conversion potential on a product page. A buyer who arrives looking for one narrow use case may still see value in the tape’s additional functions, such as electrical insulation or process labeling. For overseas consumers and small industrial buyers, that flexibility can make purchasing easier because one tape format may cover several routine needs across the workshop or production floor.

Summary

Red PET masking tape is a practical industrial solution for buyers who need heat resistance, clean removal, and strong visual identification in one material. With a PET film backing, solvent-based acrylic adhesive, temperature resistance up to 150°C continuous and 180°C short-term, and support for masking, warning marking, anodizing, and electrical insulation, this red polyester acrylic tape fits a wide range of applications. If you are comparing high temp masking tape options for overseas sourcing, focus on actual process fit, thickness range, chemical resistance, and removal behavior. The right polyester tape can improve masking accuracy, reduce cleanup, and support smoother day-to-day production.

Request Product Details or a Sample

Looking for a reliable red PET masking tape for powder coating, safety marking, or high temperature processing? Visit the product page to review specifications or contact the supplier for customization and sample support.
