JTT-DS2050 Thin Two Sided Tape – Ultra Thin Double Sided Factory Supply| 0.05mm Tape – JIAOTAOTAO
Total Thickness 0.05 mm
Adhesive Type Silicone
Peel Strength 600–800 g/25 mm
Tensile Strength ≥80 N/25 mm
Holding Power ≥24 h
Temperature Range 180 °C – 220 °C
Dielectric Strength 5 kV/mm
Standard RoHS, REACH

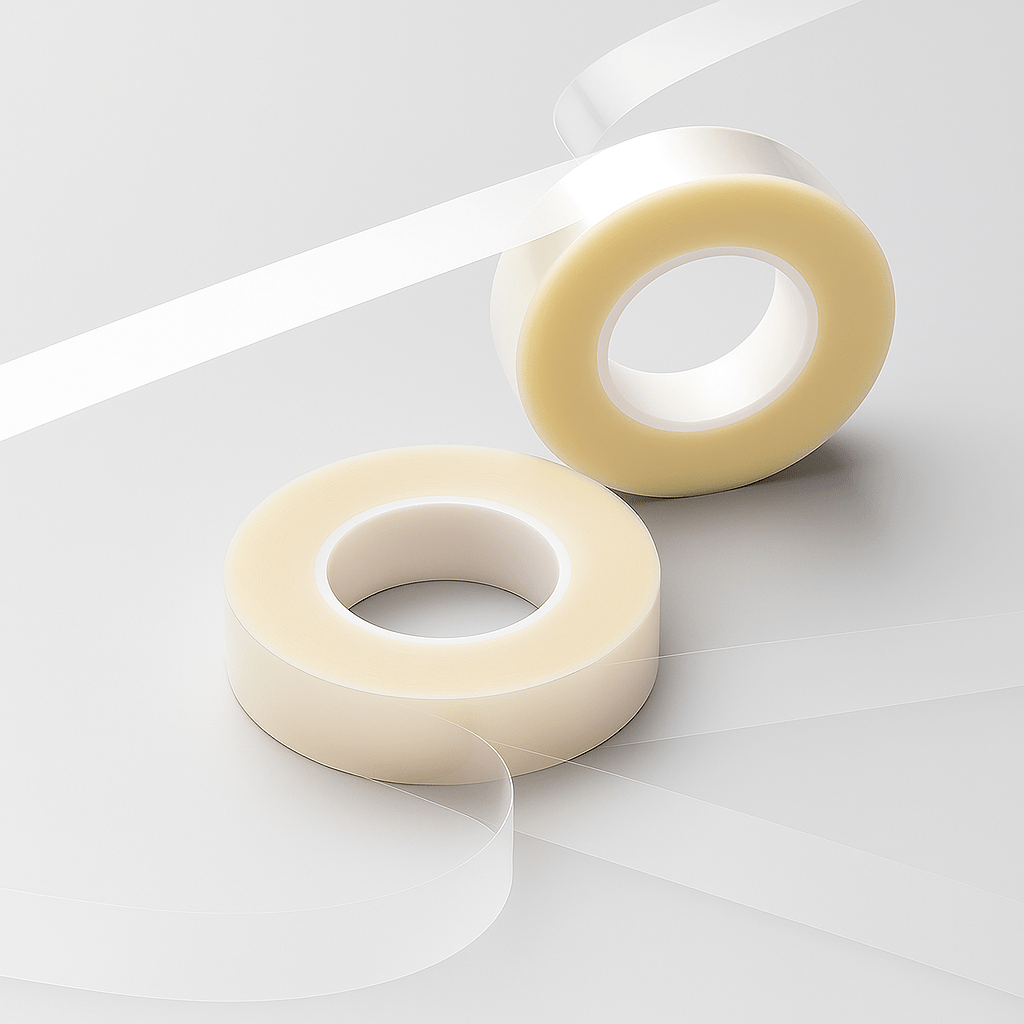

JTT-DS2050 Thin two sided tape
0.05mm Silicone Adhesive | High-Temperature | PET Film | RoHS, REACH Certified
Product Overview
Thin two sided tape is the industrial adhesive product supplied on this page. This thin two sided tape is produced directly by us as a manufacturer and factory specializing in ultra thin silicone adhesive systems.
As a manufacturer and factory, we supply thin two sided tape for precision bonding where minimal thickness and stable high temperature resistance are required.
Thin two sided tape is manufactured under controlled coating and slitting processes in our factory, and all thin two sided tape specifications are supplied directly from manufacturer production lines.
Key Features
- Ultra-thin 0.05 mm structure ideal for precise bonding and layering
- Excellent temperature endurance: 180 °C continuous / 220 °C short-term
- Strong silicone adhesive for stable hold and clean removal
- High dielectric strength (5 kV/mm) ensures electrical insulation
- RoHS & REACH compliant – safe for global electronic production lines
Applications
Thin two sided tape for precision electronic component bonding
Thin 2 sided tape used in insulation layer fixation
Best thin double sided tape for high temperature assembly areas
Silicone thin double sided tape for compact industrial structures
Heat resistant thin double sided tape for PCB and sensor mounting
Thin two sided tape for industrial lamination applications
Technical Specifications
Material
Adhesive type: Silicone pressure-sensitive adhesive
Thickness / Size
Total thickness: 0.05 mm
Width: factory slitting available
Length: industrial roll supply
Temperature Resistance
Operating temperature range: 180°C – 220°C
Adhesive Performance
Peel strength: 600–800 g / 25 mm
Holding power: ≥ 24 hours
Electrical & Mechanical Properties
Tensile strength: ≥ 80 N / 25 mm
Dielectric strength: 5 kV / mm
Standard Compliance
RoHS compliant
REACH compliant
Customization / OEM
Width and length customization by manufacturer
Core size customization by factory
Batch-based industrial supply
| Model No. | JTT-DS2050 |
|---|---|
| Total Thickness | 0.05 mm |
| Adhesive Type | Silicone |
| Peel Strength | 600–800 g/25 mm |
| Tensile Strength | ≥80 N/25 mm |
| Holding Power | ≥24 h |
| Temperature Range | 180 °C – 220 °C |
| Dielectric Strength | 5 kV/mm |
| Standard | RoHS, REACH |
Why Choose JIAOTAOTAO® thin two sided tape
We operate as a manufacturer with dedicated ultra thin silicone coating capability
Factory controls adhesive coating weight to maintain 0.05 mm total thickness
Manufacturer direct supply ensures stable peel strength and holding power
Factory production supports RoHS and REACH compliant thin two sided tape
Manufacturer manages coating, curing, slitting, and inspection in-house
Factory supply supports continuous industrial projects without specification drift
All thin two sided tape is supplied under factory-level process control for industrial B2B procurement.
For factory pricing, datasheets, and production scheduling, please contact us directly.
As a manufacturer and factory, we supply thin two sided tape and best thin double sided tape for precision industrial bonding.
Contact our manufacturer team now to confirm specifications and direct factory supply for thin two sided tape.
Need help choosing the right industrial tape?
Send us your application details, including temperature, surface material, size, quantity and current problem. Our team will help recommend a suitable tape material or custom die-cut solution.
