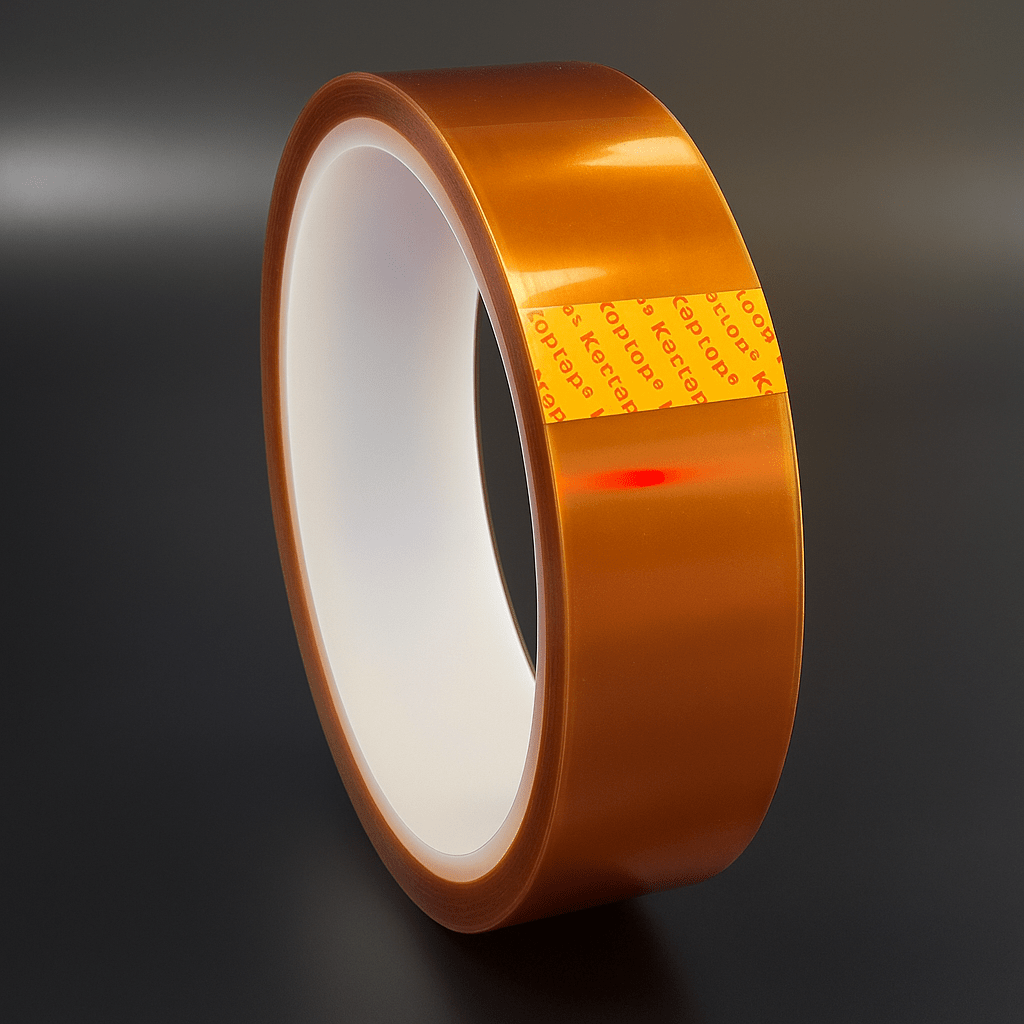

JIAOTAOTAO JTT01-2590D Double-Sided Polyimide Bonding Tape 0.09mm Silicone Adhesive

JTT01-2590D

Item No.: JTT01-2590D

Color: Amber

Adhesive: Silicone (double-sided)

Total Thickness: 0.09 mm

Remark: –73 °C to 260 °C, for high-temp lamination and insulation

Quantity:

Contact Now

Double-Sided Polyimide Bonding Tape

The JTT01-2590D is a precision engineered double-sided polyimide bonding tape with a total thickness of 0.09 mm and silicone adhesive on both sides. This double-sided polyimide bonding tape is designed for high-temp lamination, insulation, and secure bonding in demanding industrial environments.

Request Quote / Samples

Key Features — Double-Sided Polyimide Bonding Tape 0.09mm

Double-sided silicone adhesive: Both faces stick firmly for reliable lamination.
Thin yet durable 0.09mm construction: Enables tight stacking and compact components.
High temperature resistance: Ideal for operations up to 260 °C.
Excellent electrical insulation & dielectric strength: Suitable for critical electronics and motor/transformer assemblies.
Low residue removal: Thanks to premium silicone adhesives.

Technical Specifications

Property	Unit	Typical Value	Test Method
Total Thickness	mm	0.09	ASTM D3652
Adhesive	—	Silicone (double-sided)	—
Backing Material	—	Polyimide Film (Amber)	—
Color	—	Amber	Visual
Adhesion to Steel	N/25 mm	7.5	ASTM D3330
Tensile Strength	N/25 mm	120	ASTM D3759
Elongation at Break	%	60	ASTM D3759
Temperature Resistance	°C	-73 ~ 260	ASTM D3330
Dielectric Strength	kV	≥6.5	ASTM D149

Applications

Thedouble-sided polyimide bonding tape 0.09mm JTT01-2590D is ideal for:

Laminate bonding of FPC/PCB layers
Motor and transformer coil stack bonding
High-temperature insulation in battery modules and power electronics
Surface protection during powder coating and conformal coating processes

FAQ — Double-Sided Polyimide Bonding Tape 0.09mm

Q1: Why use a double-sided polyimide bonding tape 0.09mm instead of a single-sided tape?

A1: With adhesive on both faces, the double-sided polyimide bonding tape 0.09mm ensures strong lamination, better stack stability and fewer interfaces, improving thermal and electrical reliability.

Q2: Does JTT01-2590D support process temperatures for reflow or powder coating?

A2: Yes — this double-sided polyimide bonding tape 0.09mm supports up to ~260 °C, suitable for many reflow, wave solder and powder coating applications.
