Product Overview

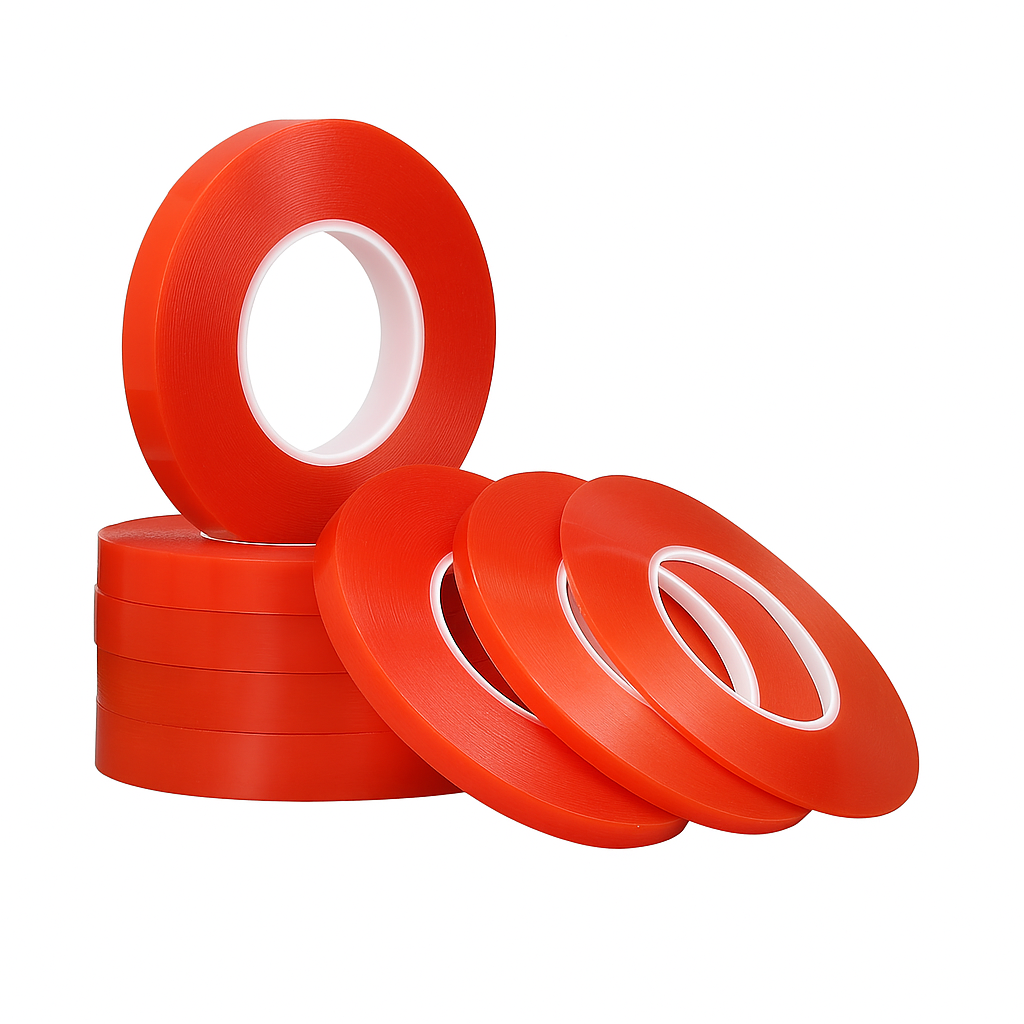

JTT-AD75120 is a premium heavy duty double sided mounting tape featuring a 0.15 mm PET backing coated with a high-performance acrylic adhesive. With peel strength of 1100–1400 N/25 mm and tensile strength ≥150 N/25 mm, it delivers robust, long-lasting bonds on metal, glass, painted and plastic substrates while meeting UL94 VTM-2 standards.

Key Features & Benefits

  • Heavy-duty adhesion: high peel and shear strength for structural mounting.
  • UL94 VTM-2 rated backing: improved vertical burn performance for safer electronic applications.
  • Thermal stability: long-term 120°C, short bursts to 150°C.
  • Die-cut & automation friendly: suitable for precision parts, reels and high-speed application.
  • Clean finish: transparent PET backing minimizes visual impact.

Typical Applications

  • LED module and lighting assembly
  • Motor winding insulation and component fixation
  • Automotive trim and interior mounting
  • Industrial lamination, die-cut adhesive parts and panel bonding

Technical Specifications

Model No.JTT-AD75120
Backing MaterialPET Film
AdhesiveHigh-strength Acrylic
Total Thickness0.12 mm
Peel Strength (N/25mm)1100–1400
Holding Power≥24 h
Tensile Strength (N/25mm)≥150
Long-term Temp120 °C
Short-term Temp150 °C
Dielectric Strength8 kV/mm
StandardRoHS, UL94 VTM-2

FAQ

Q: Is JTT-AD75120 suitable for outdoor mounting?

A: It has good weather resistance, but for long term outdoor UV exposure tests or UV-stabilized protective films are recommended.

Q: Can it be used on painted surfaces without lifting paint?

A: Yes — the acrylic formula is formulated to minimize substrate damage, but testing on finished surfaces is recommended before full production use.
