Product Overview

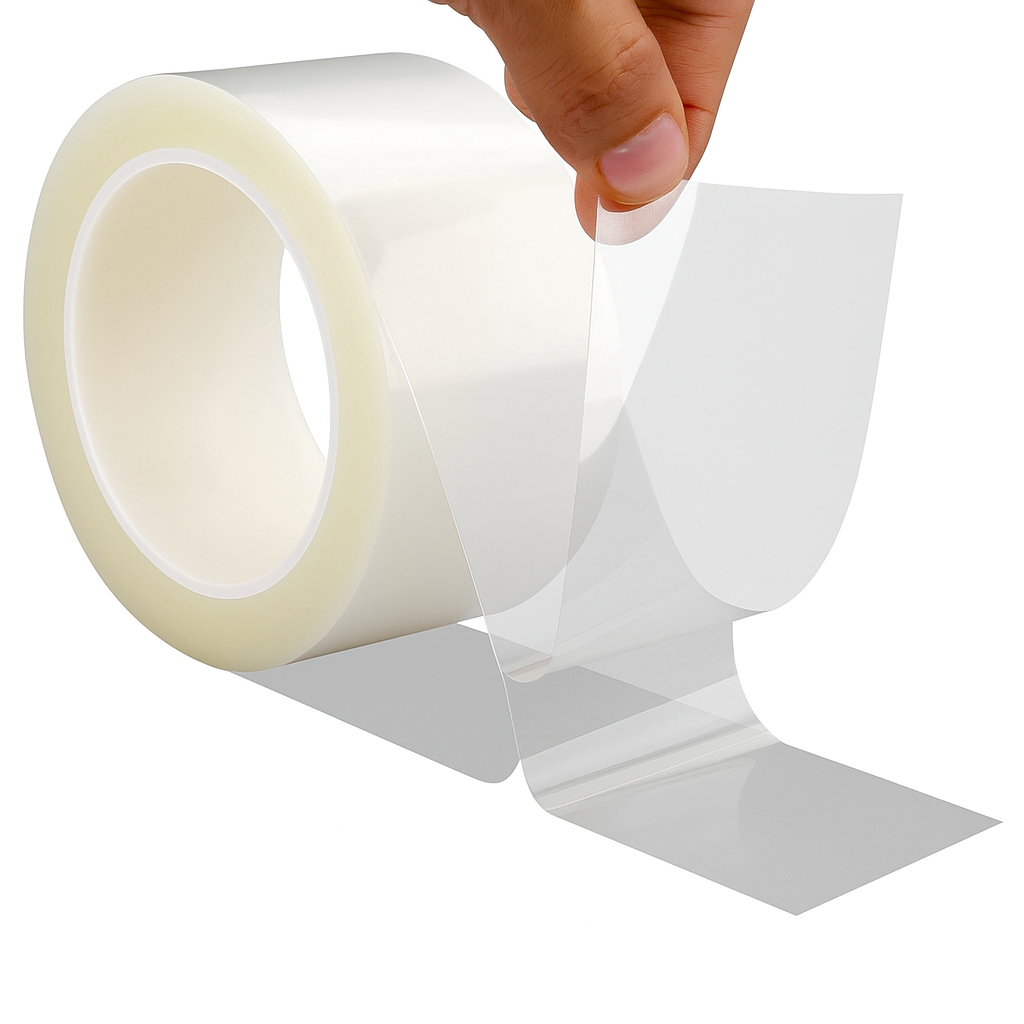

High temp double sided tape is the core industrial product supplied on this page. This high temp double sided tape is produced directly by us as a manufacturer and factory specializing in PET heat resistant double sided tape for electrical and thermal bonding applications.
As a manufacturer and factory, we supply high temp double sided tape with silicone adhesive for stable performance under continuous and short-term high temperature conditions.

High temp double sided tape is coated, laminated, and slit entirely in our factory, and all PET heat resistant double sided tape specifications are supplied through direct manufacturer production control.

Designed for OEM/ODM use where thermal stability, dielectric performance and clean adhesion are required.

Material

• Backing material: PET film

• Adhesive: Silicone

Thickness / Size

• Total thickness: 0.12 mm

• Width: customized slitting by factory

• Length: industrial roll formats available

Temperature Resistance

• Long-term temperature resistance: 180°C

• Short-term temperature resistance: 220°C

Adhesive Type

• Silicone pressure-sensitive adhesive

• Peel strength: 1100–1500 g / 25 mm

• Holding power: ≥ 24 hours

Electrical & Mechanical Properties

• Tensile strength: ≥ 180 N / 25 mm

• Dielectric strength: 9 kV / mm

• Standard compliance: RoHS, UL94 VTM-2

Customization / OEM

• Width, length, and core customization by manufacturer

• OEM packaging for industrial supply

• Batch-based production from factory

Key Features & Advantages

• High temperature resistance: Long-term 180 °C, short-term 220 °C.
• Strong adhesion: Peel 1100–1500 g/25 mm ensures secure bonding.
• Excellent dielectric strength: 9 kV/mm for robust electrical insulation.
• Durable PET backing: 0.12 mm offers balance of rigidity and conformability.
• Silicone adhesive: Reliable adhesion on low-energy, thermally cycled substrates with minimal residue.

Applications

• High temp double sided tape for electrical insulation bonding in motors and transformers

• PET heat resistant double sided tape for PCB fixation under reflow processes

• High temp double sided tape used as ultra high temperature double sided tape alternative to 3M products

• Silicone double sided PET tape for battery module assembly

• Electrical insulation double sided tape for cable anchoring and component mounting

• High temp double sided tape for industrial thermal bonding applications

Comparison & Alternatives

TheJTT-DS75120 pet heat resistant double sided tape offers higher dielectric strength and peel performance compared with standard PET double sided tapes, making it particularly suitable for motor insulation and heavy-duty electronics. For ultra-high temperature (>250 °C) use, consider polyimide tapes; for lower cost general-purpose bonding, acrylic PET tapes are an alternative.

Why Choose JIAOTAOTAO®High temp double sided tape

• We are a manufacturer with dedicated silicone coating lines for high temp double sided tape

• Factory-controlled PET film lamination ensures stable thickness and dielectric strength

• Manufacturer direct supply provides consistent peel strength and holding power

• Factory production supports RoHS and UL94 VTM-2 compliant double sided tape

• Manufacturer manages coating, curing, slitting, and inspection in-house

• Factory supply ensures specification consistency for long-term industrial projects

All high temp double sided tape is produced under factory-level quality control for industrial B2B procurement.
