0.05mm ESD Polyester Tape
– ESD Level: 10⁶–10⁹ Ω/sq
– Thickness (mm): 0.05 | 0.06 | 0.08 | 0.1 | Custom
– Width (mm): 1mm to 1070mm | Custom
– Length (m): 33 | 50 | 66 | 100 | Custom
– Core Diameter (mm): 25 | 32 | 38 | 76 | Custom
– Adhesives: Polyester Acrylic Tape｜Polyester Adhesive Tape
– Packing: Label | OPP Bag | PVC Box | Carton | Custom
– Related Process: With release liner | Die cutting | Custom
– Supply Capability: Jumbo roll supply｜Log roll supply｜Slitted roll converting｜Die-cut converting service
– Sample: Free sample
– Manufacturer: JIAO TAO TAO
Kind Reminder: This product can be customized according to any needs - please contact the purchasing manager

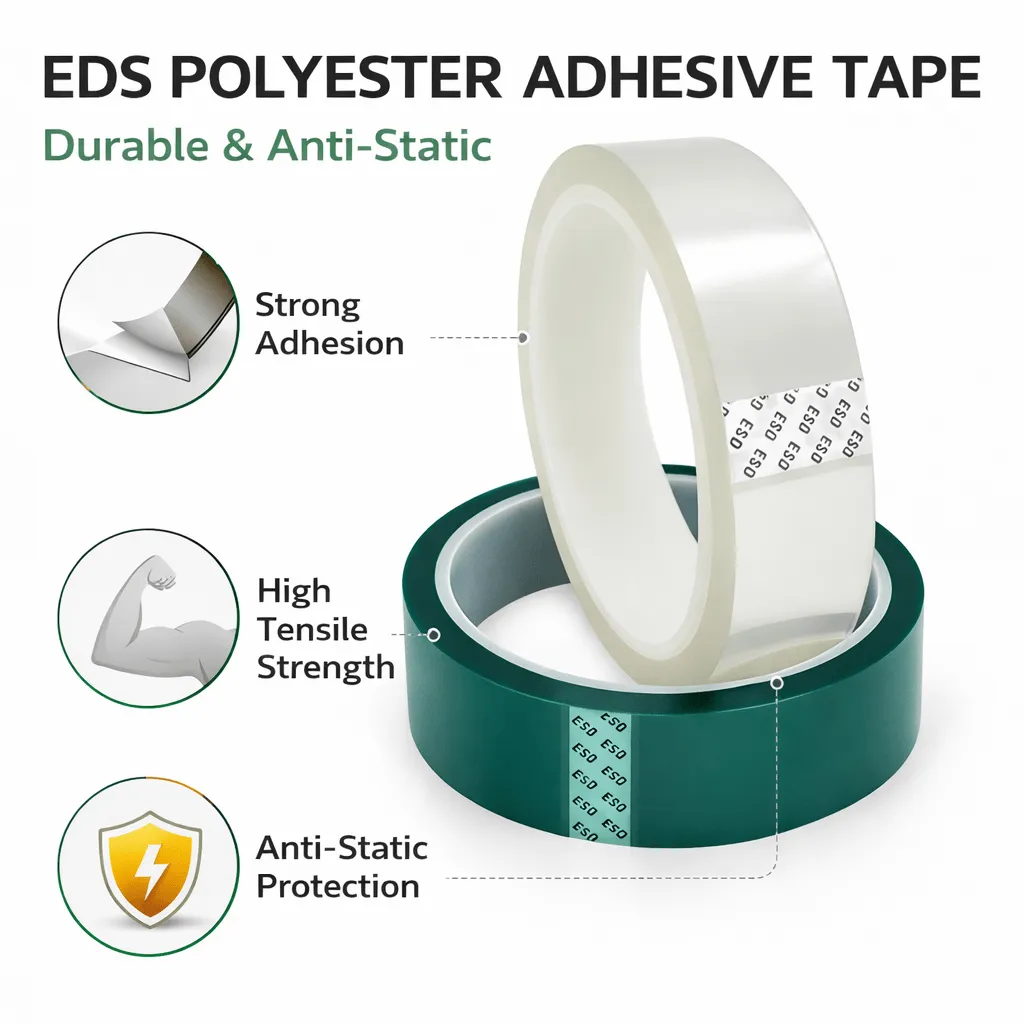

0.05mm ESD Polyester Tape
0.05mm ESD Polyester Tape is an anti-static PET film tape coated with acrylic adhesive. It offers controlled surface resistivity, stable adhesion, and dependable electrical insulation for electronics assembly, battery insulation, PCB protection, and static-sensitive packaging applications.
What is 0.05mm ESD Polyester Tape?
0.05mm ESD Polyester Tape is a polyester film adhesive tape designed for anti-static and insulation applications. It uses PET film as the backing and acrylic adhesive as the bonding layer, helping reduce static risks while providing stable holding force and electrical insulation in electronics manufacturing and packaging environments.
List of All Models of ESD Polyester Tape
Product Introduction
Core Advantages
- Anti-static performance: Surface resistivity 10⁶–10⁹ Ω/sq
- Stable thickness:0.05 mm
- Acrylic adhesive system: good adhesion and process stability
- Electrical insulation: dielectric strength 7.0 kV/mm
- Mechanical strength: tensile strength ≥120 N/25mm
- Process-friendly: suitable for slitting, die-cutting, and custom roll formats
- Compliance:RoHS / REACH based on your catalog data
Protect components against ESD damage during the soldering process.
SMT process:
Mask sensitive areas such as gold fingers and connectors to prevent solder contamination.
FPC/LCD manufacturing:
Secure and protect flexible printed circuits and LCD modules against electrostatic breakdown.
Semiconductor packaging:
Provide ESD protection during wafer dicing and chip packaging processes.
Typical Applications
- Electronic component protection
- Battery insulation and fixing
- PCB and FPC temporary protection
- Static-sensitive device packaging
- Transformer and small electrical insulation
- Die-cut insulation pieces for electronics assembly
Product Advantages
- Combines anti-static, insulation and basic heat resistance.
- More suitable for ESD-sensitive workstations than ordinary PET tape.
- The 0.05mm thickness achieves a good balance between conformability and strength.
- Ideal for industrial applications such as electronics manufacturing, packaging and die-cutting processing.
- Can be used as an auxiliary protective material in electronics, lithium batteries and component assembly.
Customized Service
1. Size Customization
- Width customization
- Length customization
- Roll diameter customization
- Core size customization
2. Material / Structure Options
- Release liner option
- Different thickness selections
- Custom die-cut parts
- Sheet or roll format
3. Packaging Customization
- Label
- OPP bag
- PVC box
- Carton
- Custom packaging
4. Supply Capability
- Jumbo roll supply
- Log roll supply
- Slitted roll converting
- Die-cut converting service
FAQ — 0.05mm ESD Polyester Tape
Q1 | What is the thickness of this ESD polyester tape?
The total thickness is 0.05 mm.
Q2 | Is the tape anti-static or conductive?
It is anti-static, with surface resistivity in the range of 10⁶–10⁹ Ω/sq, rather than a highly conductive foil tape.
Q3 | What adhesive system does it use?
This model uses acrylic adhesive.
Q4 | What temperature can it withstand?
The acrylic-based version is generally listed up to 150°C max in the model table. Please confirm exact long-term and short-term use conditions for your process before ordering.
Q5 | Is it suitable for PCB masking?
It can be used for light-duty electronic protection and anti-static masking, but if the process involves higher soldering temperatures, a higher-heat polyimide ESD tape would usually be more suitable.
Q6 | Can it be supplied in custom sizes?
Yes. PET tapes in this category are generally suitable for slitting, rewinding, and die-cut customization.
Q7 | Are free samples available?
Yes. Free samples are available; express shipping cost is covered by the buyer. Contact us via WhatsApp or email to request.
Q8 | What payment methods do you accept?
T/T, PayPal, and L/C are accepted. Global shipping can be arranged via DHL, UPS, FedEx, or TNT.
Need help choosing the right industrial tape?
Send us your application details, including temperature, surface material, size, quantity and current problem. Our team will help recommend a suitable tape material or custom die-cut solution.
