0.10mm Polyester Double Sided Tape JTT-DS50100 | JIAOTAOTAO
Adhesive Silicone
Total Thickness 0.10 mm
Peel Strength (g/25mm) 1000–1300
Holding Power ≥24 h
Tensile Strength (N/25mm) ≥150
Long-term Temperature 180 °C
Short-term Temperature 220 °C
Dielectric Strength 8 kV/mm
Standard RoHS, UL94 VTM-2

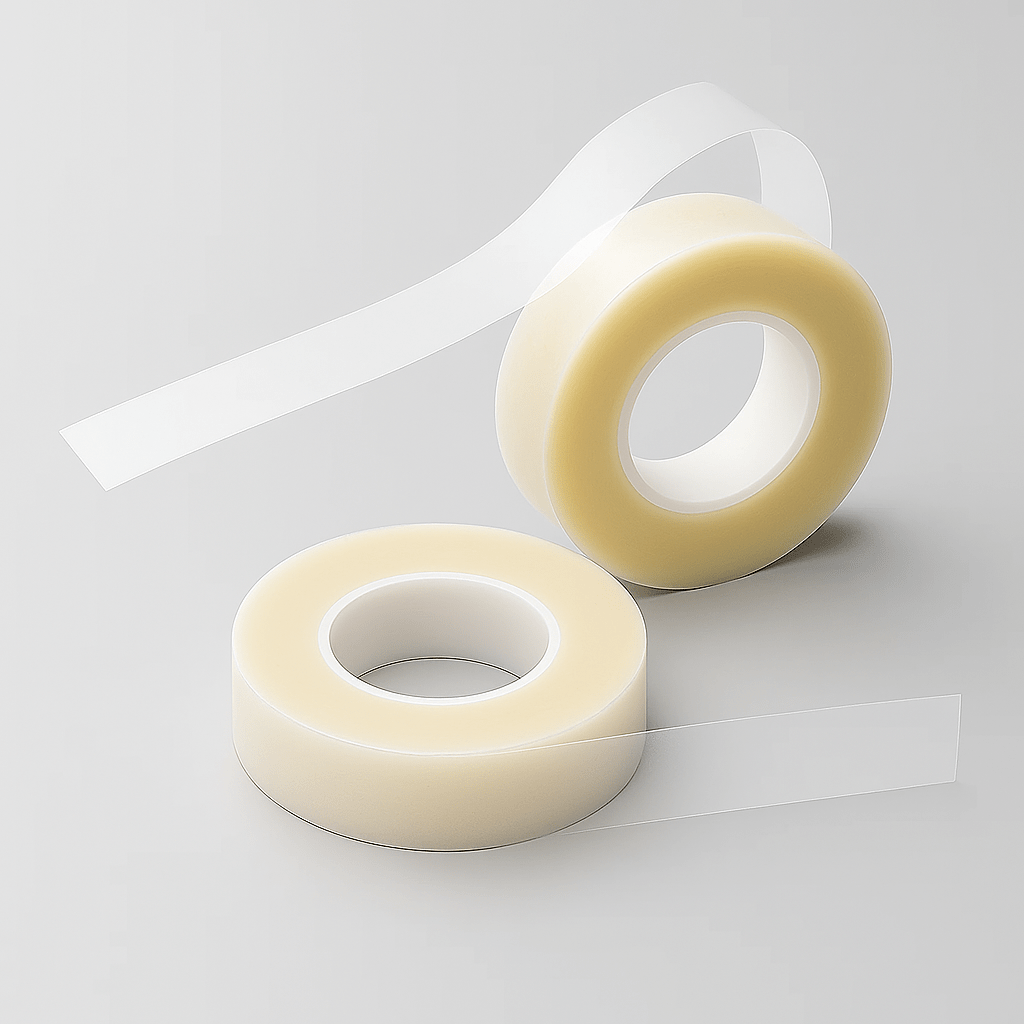

Polyester Double Sided Tape JTT-DS50100
Polyester Double Sided Tape Product Overview
Polyester double sided tape JTT-DS50100 is a high temperature polyester double sided tape designed for industrial bonding, insulation, and electronic assembly applications. Polyester double sided tape features a PET backing and high-temperature silicone adhesive, providing strong adhesion, thermal stability, and reliable long-term performance.
We are a professional polyester double sided tape manufacturer and factory supplying polyester double sided tape directly to electronics, automotive, and industrial sectors. Polyester double sided tape JTT-DS50100 ensures precise placement, high peel strength, and consistent adhesion even under elevated temperatures.
Available for multiple industrial applications, polyester double sided tape provides durable bonding without residue or deformation.
Key Features & Advantages
- Industrial-grade adhesion: Peel strength 1000–1300 g/25 mm for secure bonding.
- High temperature tolerance: Long-term 180 °C, short-term 220 °C.
- Excellent dielectric strength: 8 kV/mm for electrical insulation.
- Durable PET backing: 0.10 mm thickness balances rigidity and conformability.
- Silicone adhesive: Adhesion on low-energy and thermally cycled surfaces with low residue.
Polyester Double Sided Tape Application Areas
Polyester double sided tape JTT-DS50100 is ideal for industrial and electronic bonding applications:
High temperature bonding in electronic assembly using polyester double sided tape
Industrial mounting requiring silicone adhesive double sided tape
Automotive insulation and wire harness securing with PET double sided tape
Heat-resistant adhesive for LED modules and PCB mounting
Precision assembly applications demanding industrial double sided tape performance
Thermal and electrical insulation bonding in manufacturing processes
Polyester double sided tape provides strong adhesion, heat resistance, and reliable long-term holding power.
Polyester Double Sided Tape Technical Specifications
Polyester double sided tape JTT-DS50100 is produced under strict factory standards to guarantee uniform quality.
Backing Material: PET film
Adhesive Type: High-temperature silicone adhesive
Total Thickness: 0.10 mm
Peel Strength: 1000–1300 g / 25 mm
Holding Power: ≥24 h
Tensile Strength: ≥150 N / 25 mm
Long-term Temperature Resistance: 180 °C
Short-term Temperature Resistance: 220 °C
Dielectric Strength: 8 kV/mm
Standards: RoHS, UL94 VTM-2
Customization / OEM: Width, length, thickness, color, packaging supported
Polyester double sided tape ensures reliable adhesion and electrical insulation for high-temperature operations.
Polyester Double Sided Tape Manufacturing Capability
As a polyester double sided tape manufacturer and factory, we ensure high-quality production and direct supply:
Factory-controlled PET film and silicone adhesive sourcing
Direct supply of polyester double sided tape without intermediaries
Manufacturer quality inspection on thickness, adhesion, and dielectric strength
Factory customization for width, length, and die-cut formats
Compliance with RoHS and UL94 VTM-2 standards
OEM and private label double sided tape manufacturing supported
Our factory guarantees consistent polyester double sided tape performance for industrial and electronic applications.
FAQ
Q1: Is this tape suitable for motor winding insulation?
A: Yes — JTT-DS50100's high dielectric strength (8 kV/mm) and thermal tolerance make it ideal for coil insulation and inter-layer separation.
Q2: Can the tape be die-cut and printed?
A: Yes — PET backing supports precision die-cutting and surface printing for labels or logos.
Q3: Do you offer OEM widths and roll lengths?
A: Yes — JIAOTAOTAO supports custom widths, core sizes, liners and private labeling. Contact us for MOQ and lead times.
Need help choosing the right industrial tape?
Send us your application details, including temperature, surface material, size, quantity and current problem. Our team will help recommend a suitable tape material or custom die-cut solution.
