JTT-DS100150 High Temperature Double Sided Tape | 0.15 mm Silicone Adhesive – JIAOTAOTAO

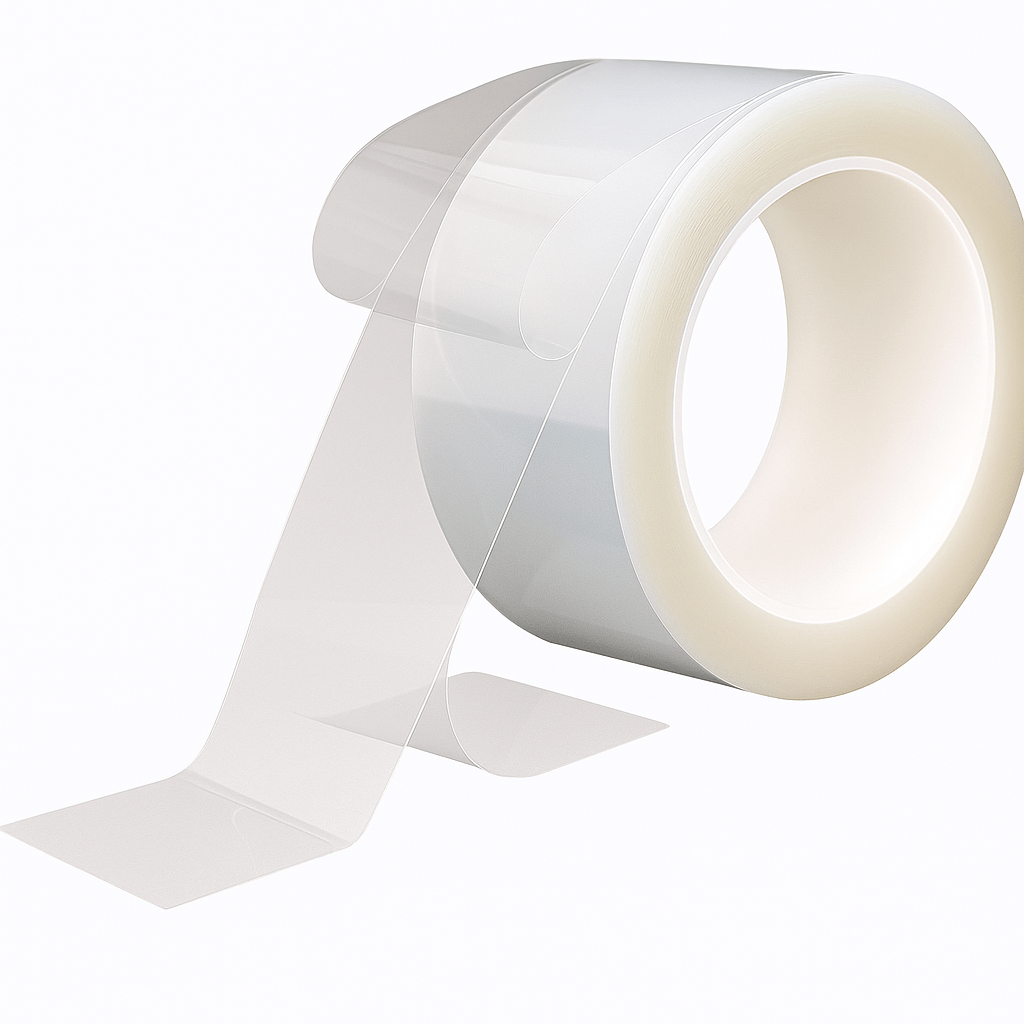

JTT-DS100150 High Temperature Double Sided Tape
Product Overview
JTT-DS100150 is a premium high temperature double sided tape featuring PET film backing and silicone adhesive. It maintains strong adhesion and dimensional stability under heat exposure up to 220°C. With 0.15 mm total thickness, this tape provides reliable insulation, bonding, and motor coil protection for demanding industrial environments.
Key Features & Advantages
- High temperature endurance: withstands 180°C continuously, 220°C short-term.
- Excellent bonding: silicone adhesive ensures stable adhesion to metals, films, and composites.
- Strong insulation: dielectric strength up to 9 kV/mm.
- Durable and residue-free: retains tack and removes cleanly after heating.
- UL94 VTM-2 certified: compliant with industrial flame retardant standards.
Applications
- Motor and transformer insulation wrapping
- PCB and FPC high-temperature bonding
- EV battery and electronic module protection
- Industrial heat-resistant lamination
- Electrical insulation and reinforcement
Technical Specifications
| Model No. | JTT-DS100150 |
|---|---|
| Backing Material | PET Film |
| Adhesive | Silicone |
| Total Thickness | 0.15 mm |
| Peel Strength (g/25mm) | 1200–1600 |
| Tensile Strength (N/25mm) | ≥26 |
| Long-term Temperature | 180°C |
| Short-term Temperature | 220°C |
| Dielectric Strength | 9 kV/mm |
| Standard | RoHS, UL94 VTM-2 |
FAQ
Q1: Can this tape handle continuous exposure to 180°C?
A: Yes, it's designed for continuous use at 180°C and short-term exposure to 220°C.
Q2: What are the typical applications?
A: Ideal for motor coil insulation, PCB lamination, and other high-temperature industrial uses.
Q3: Is OEM customization available?
A: Yes, custom widths, colors, and packaging are available under OEM/ODM service.
Need help choosing the right industrial tape?
Send us your application details, including temperature, surface material, size, quantity and current problem. Our team will help recommend a suitable tape material or custom die-cut solution.
