JTT-AD2550 Heat Proof Double Sided Tape – Acrylic Factory Supply — 0.05 mm Ultra-Thin Transparent Adhesive Tape

JTT-AD2550

Model No. JTT-AD2550
Total Thickness 0.05 mm
Adhesive Type Acrylic
Peel Strength (N/25mm) 600–800
Holding Power ≥24 h
Tensile Strength (N/25mm) ≥70
Long-term Temp (°C) 120
Short-term Temp (°C) 150
Dielectric Strength 4 kV/mm
Standard RoHS, REACH

Quantity:

Contact Now

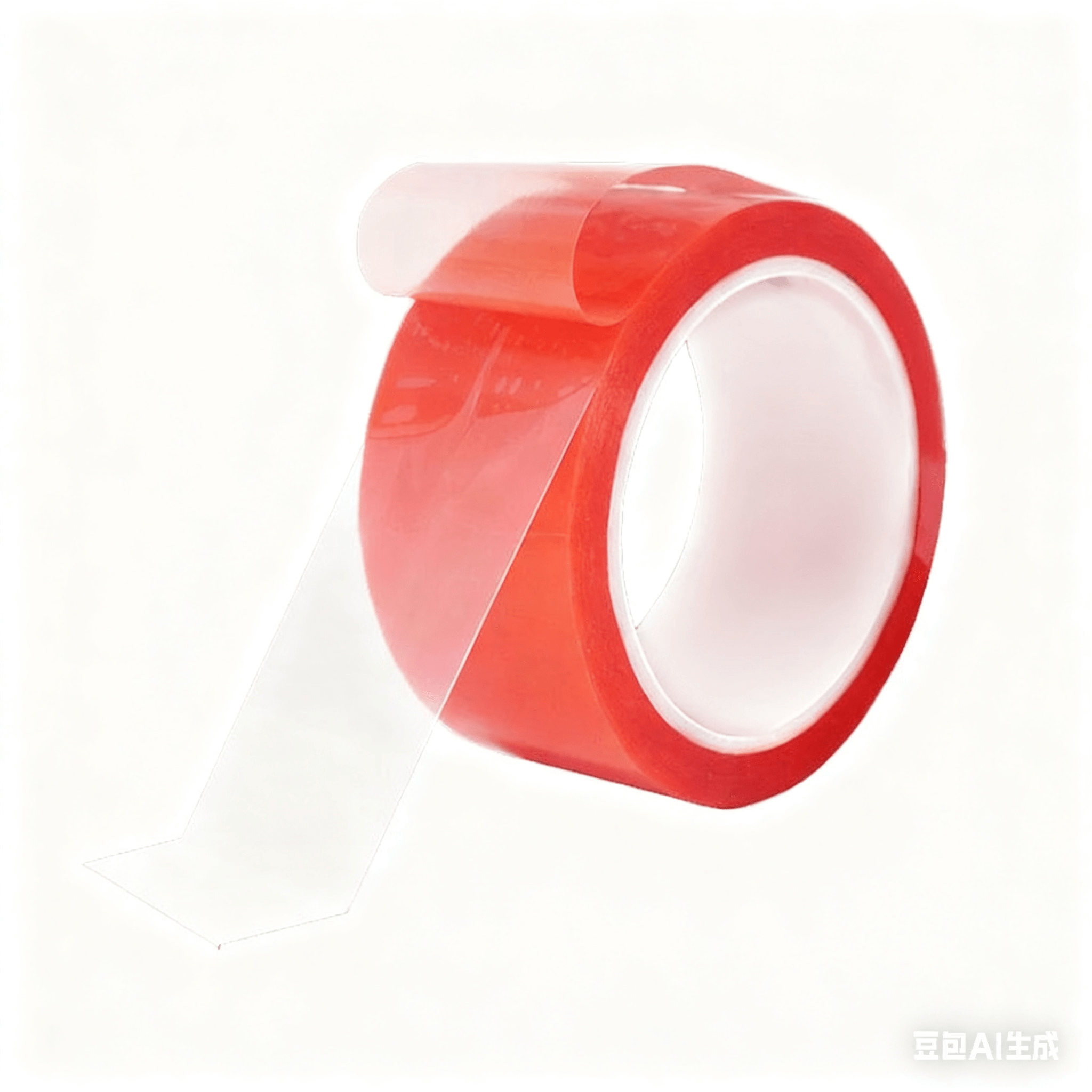

JTT-AD2550 Acrylic heat proof double sided tape

0.05 mm acrylic PET double sided tape — ultra-thin transparent adhesive for precision electronics, displays and automotive trim

Product Overview

Heat proof double sided tape is the industrial adhesive product supplied on this page. This heat proof double sided tape is manufactured directly by us as a manufacturer and factory specializing in thin acrylic pressure-sensitive adhesive systems for heat resistant bonding.
As a manufacturer and factory, we supply heat proof double sided tape for industrial fixation, insulation, and assembly where controlled temperature resistance and consistent adhesion are required.

Heat proof double sided tape is coated, cured, and slit entirely in our factory, and all heat proof double sided tape specifications are supplied directly from manufacturer production lines.

Compliant with RoHS and REACH for global electronics and industrial applications.

Key Features & Advantages

0.05 mm ultra-thin PET backing for minimal thickness buildup
Acrylic adhesive offering balanced tack and long-term durability
Good thermal stability up to 150 °C (short-term)
Suitable for die-cutting and precision assembly

Applications

Heat proof double sided tape for electronic component fixation
High temperature double sided tape for insulation layer bonding
Acrylic heat resistant tape used in panel and film lamination
Thin heat proof double sided tape for compact industrial assemblies
PET acrylic double sided tape for controlled thermal environments
Heat proof double sided tape for industrial mounting applications

Technical Specifications

Material

Carrier: PET film
Adhesive type: Acrylic pressure-sensitive adhesive

Thickness / Size

Total thickness: 0.05 mm
Width: factory slitting customization available
Length: industrial roll supply

Temperature Resistance

Long-term operating temperature: 120°C
Short-term temperature resistance: 150°C

Adhesive Performance

Peel strength: 600–800 N / 25 mm
Holding power: ≥ 24 hours

Electrical & Mechanical Properties

Tensile strength: ≥ 70 N / 25 mm
Dielectric strength: 4 kV / mm

Standard Compliance

RoHS compliant
REACH compliant

Customization / OEM

Width and roll length customized by manufacturer
Core size and packaging OEM supported
Batch-controlled production from factory

FAQ

Q: Is this tape suitable for backlit displays?
A: Yes — ultra-thin profile and clear PET backing make it suitable for display lamination. Test for specific optical requirements.

Need help choosing the right industrial tape?

Send us your application details, including temperature, surface material, size, quantity and current problem. Our team will help recommend a suitable tape material or custom die-cut solution.
