0.035mm ESD Polyester Tape
– ESD Level: 10⁶–10⁹ Ω/sq
– Thickness (mm): 0.05 | 0.06 | 0.08 | 0.1 | Custom
– Width (mm): 1mm to 1070mm | Custom
– Length (m): 33 | 50 | 66 | 100 | Custom
– Core Diameter (mm): 25 | 32 | 38 | 76 | Custom
– Adhesives: Polyester Acrylic Tape｜Polyester Adhesive Tape
– Packing: Label | OPP Bag | PVC Box | Carton | Custom
– Related Process: With release liner | Die cutting | Custom
– Supply Capability: Jumbo roll supply｜Log roll supply｜Slitted roll converting｜Die-cut converting service
– Sample: Free sample
– Manufacturer: JIAO TAO TAO
Kind Reminder: This product can be customized according to any needs - please contact the purchasing manager
0.03mm ESD Polyester Tape
0.03mm ESD Polyester Tape is an ultra-thin anti-static PET film tape coated with acrylic adhesive. It is designed for precision electronics processing where low profile, stable surface resistivity, and clean converting performance are important. It is suitable for small-part protection, anti-static die-cutting, compact assembly, and light insulation applications.
What is 0.03mm ESD Polyester Tape?
0.03mm ESD Polyester Tape is an ultra-thin polyester film tape developed for static-sensitive electronics processing. It combines PET film backing with acrylic adhesive to provide controlled anti-static performance and basic electrical insulation in a very thin construction. Compared with thicker ESD PET grades, this version is better suited for low-profile assemblies, precision lamination, and converting tasks where minimal thickness matters.
List of All Models of ESD Polyester Tape
Product Introduction
Core Advantages
- Ultra-thin structure: total thickness 0.03 mm
- Anti-static surface control:10⁶–10⁹ Ω/sq
- Acrylic adhesive system: stable for precision bonding and converting
- Low-profile insulation support: dielectric strength 4.5 kV/mm
- Light mechanical support: tensile strength ≥80 N/25mm
- Suitable for slitting and die-cutting
- Compliant with RoHS / REACH
Protect components against ESD damage during the soldering process.
SMT process:
Mask sensitive areas such as gold fingers and connectors to prevent solder contamination.
FPC/LCD manufacturing:
Secure and protect flexible printed circuits and LCD modules against electrostatic breakdown.
Semiconductor packaging:
Provide ESD protection during wafer dicing and chip packaging processes.

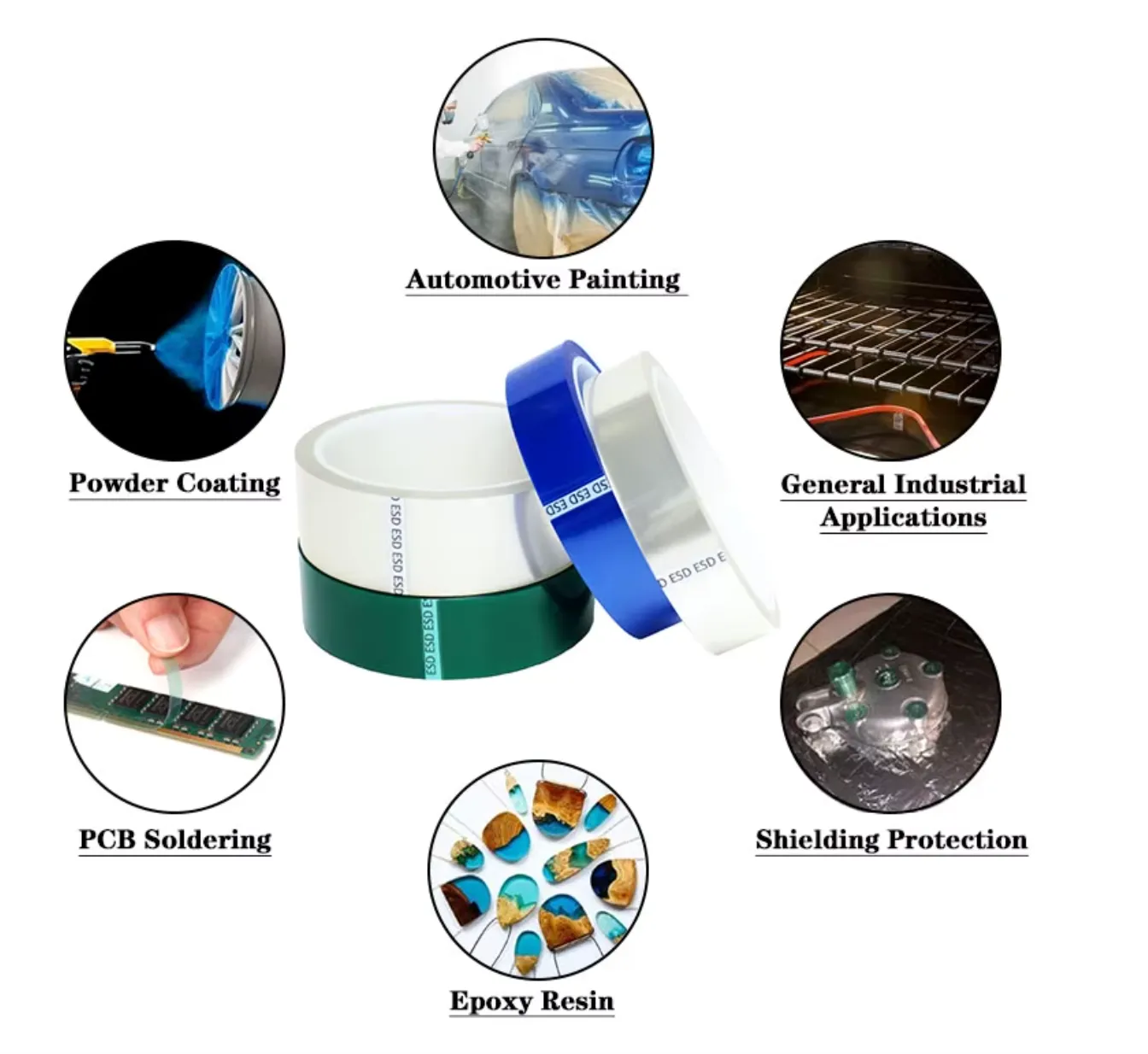

Typical Applications
- Precision electronic component surface protection
- FPC / small PCB temporary masking
- Anti-static die-cut tabs and insulating pieces
- Light-duty insulation in compact devices
- Small sensor, connector, and micro-part protection
- Static-sensitive packaging and tray fixing
Product Advantages
- It is thinner than 0.04 / 0.05 / 0.06 mm tapes, making it more suitable for precision electronic structures.
- Ideal for small-size die-cutting, narrow-width slitting and micro lamination.
- Easier to create differentiated product pages for FPC, connectors and small component protection.
- Provides a better balance between anti-static performance and low-profile design.
- Suitable for thickness-sensitive electronic assembly and packaging processes.
Customized Service
1. Size Customization
- Width customization
- Length customization
- Roll diameter customization
- Core size customization
2. Material / Structure Options
- Release liner option
- Different thickness selections
- Custom die-cut parts
- Sheet or roll format
3. Packaging Customization
- Label
- OPP bag
- PVC box
- Carton
- Custom packaging
4. Supply Capability
- Jumbo roll supply
- Log roll supply
- Slitted roll converting
- Die-cut converting service
FAQ — 0.03mm ESD Polyester Tape
Q1 | Why choose 0.03mm ESD Polyester Tape?
This grade is better for applications that require an ultra-thin tape structure, such as precision die-cutting, compact electronics, and small-part masking. Its lower profile helps when assembly space is limited.
Q2 | Is 0.03mm suitable for heavy insulation use?
It provides basic insulation, but it is not the strongest option within the ESD PET range. Thicker grades such as 0.05mm or 0.06mm offer higher dielectric strength and tensile performance.
Q3 | Is this tape good for die-cut parts?
Yes. This ultra-thin structure is especially suitable for small die-cut insulating parts and anti-static tabs used in compact electronics assembly.
Q4 | What temperature can it withstand?
The acrylic-based version is generally listed up to 150°C max in the model table. Please confirm exact long-term and short-term use conditions for your process before ordering.
Q5 | What adhesive does it use?
This model uses acrylic adhesive.
Q6 | Is it conductive?
No, this product is positioned as an anti-static polyester tape with controlled surface resistivity of 10⁶–10⁹ Ω/sq, not a metal conductive shielding tape.
Q7 | Are free samples available?
Yes. Free samples are available; express shipping cost is covered by the buyer. Contact us via WhatsApp or email to request.
Q8 | What payment methods do you accept?
T/T, PayPal, and L/C are accepted. Global shipping can be arranged via DHL, UPS, FedEx, or TNT.
Need help choosing the right industrial tape?
Send us your application details, including temperature, surface material, size, quantity and current problem. Our team will help recommend a suitable tape material or custom die-cut solution.
