JTT-15AF flame retardant acetate cloth tape

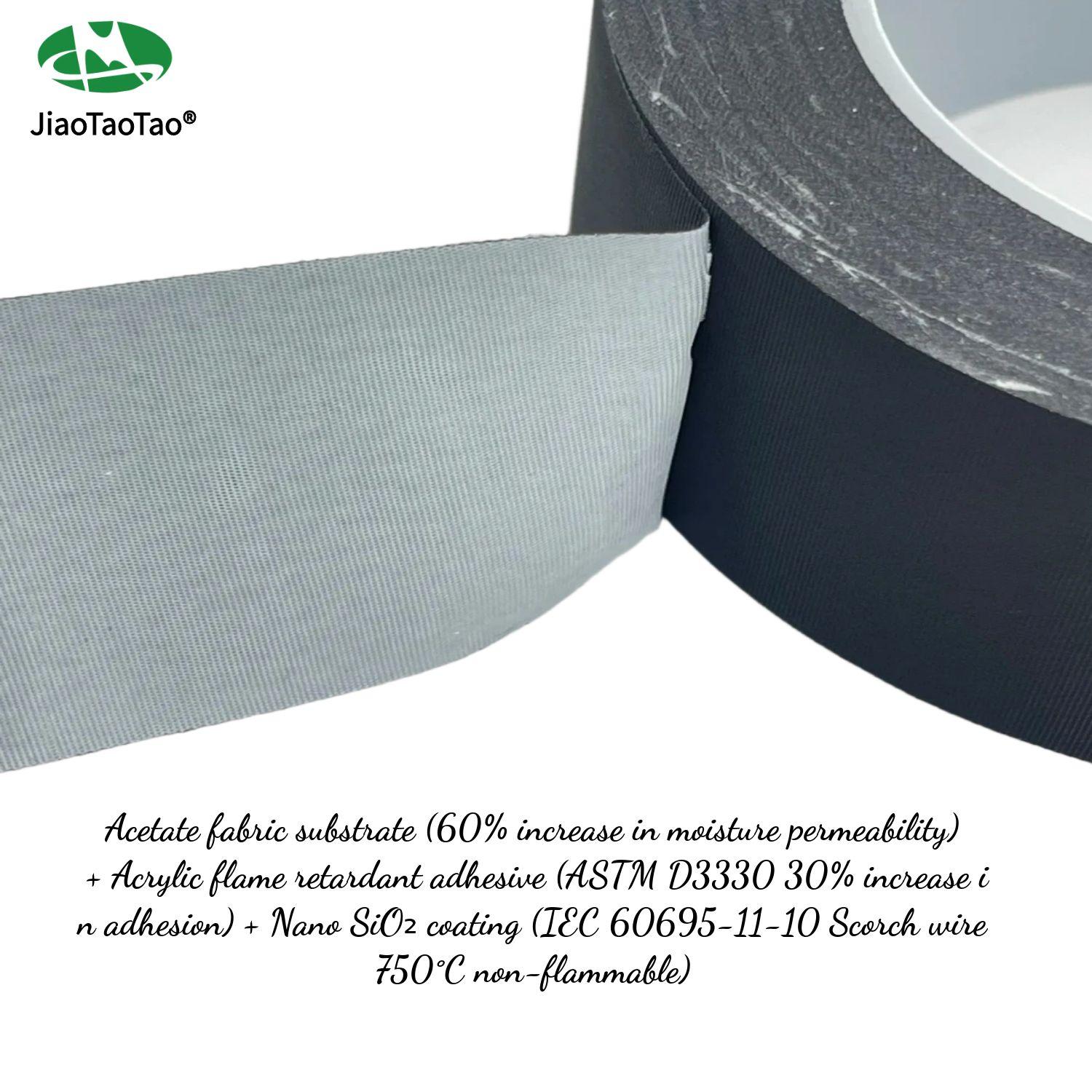

JTT-15AF — Acetate Cloth Insulating Tape  (No Release Paper)

Product Overview

Acetate cloth insulating tape JTT-15AF is a flame retardant electrical insulation tape manufactured for high-reliability motor, transformer, and cable insulation. As a professional acetate cloth insulating tape manufacturer, we produce acetate cloth insulating tape using dimensionally stable acetate fabric combined with flame-retardant acrylic adhesive. Acetate cloth insulating tape JTT-15AF is designed to provide controlled adhesion, stable tensile strength, and consistent insulation performance in electrical assemblies.

This acetate cloth insulating tape is supplied directly from manufacturer factory production lines. Acetate cloth insulating tape JTT-15AF is manufactured without release paper, allowing efficient manual or automated wrapping during electrical production. The acetate cloth insulating tape meets flame retardant insulation requirements where clean acrylic adhesion and long-term reliability are required.

Request Sample

Technical Specifications

Acetate cloth insulating tape JTT-15AF is manufactured under controlled factory conditions to ensure stable electrical and mechanical performance.

Material

  • Backing Material: Acetate cloth

  • Adhesive Type: Acrylic adhesive (Flame Retardant)

Thickness / Size

  • Total Thickness: 0.12 mm

  • Standard Widths: Factory customizable

  • Roll Lengths: OEM lengths available from manufacturer

Temperature Resistance

  • Continuous Temperature Resistance: 150–160 °C

Mechanical Properties

  • Tensile Strength: 140–160 N / 25 mm

  • Elongation at Break: 12–18 %

  • Adhesion to Steel: 5–6 N / 25 mm

Customization / OEM

  • Width and length customization from manufacturer factory

  • Jumbo rolls for slitting and rewinding

  • OEM packaging and labeling supported

This acetate cloth insulating tape is manufactured to maintain insulation stability in compact electrical structures.

Applications

  • Acetate cloth insulating tape for motor insulation winding

  • Acetate cloth insulating tape for transformer coil insulation

  • Electrical cloth insulation tape for cable insulation systems

  • Flame retardant acetate tape for UL flame test applications

  • Acrylic adhesive cloth tape for high-reliability electrical assemblies

  • Acetate cloth insulating tape for internal electrical protection

All applications use acetate cloth insulating tape as a direct electrical insulation material without secondary coatings.

Technical Insights

Acetate cloth combined with an acrylic flame retardant adhesive yields a tape that balances low thickness, flame retardancy and dielectric strength. The JTT-15AF flame retardant acetate cloth tape is optimized to minimize outgassing and maintain electrical insulation under thermal cycling. For automatic winding, the absence of release paper reduces waste and increases line throughput.

Manufacturing Capability

As an established acetate cloth insulating tape manufacturer, our factory operates dedicated coating and laminating lines for electrical cloth insulation tape.

  • Manufacturer factory producing acetate cloth insulating tape in continuous rolls

  • Direct factory supply for industrial and OEM customers

  • Manufacturer-controlled acrylic adhesive coating process

  • Factory testing for adhesion, tensile strength, and elongation

  • Stable batch-to-batch consistency from manufacturer production

  • Long-term OEM supply supported by factory capacity

All acetate cloth insulating tape products are manufactured with internal quality controls focused on electrical insulation performance.

FAQ

Q1: Is JTT-15AF certified for UL flame tests?
A1: JTT-15AF flame retardant acetate cloth tape is designed to meet UL flame retardant requirements in typical transformer and cable insulation applications; please request specific test reports for project-level certification.

Q2: Why is this flame retardant acetate cloth tape supplied without release paper?
A2: For many winding and automated processes, the flame retardant acetate cloth tape is applied directly to coils and components; removing release paper simplifies processing and reduces material handling in production.
