JTT-18RF | 0.16mm Acetate Cloth Adhesive Tape – JIAOTAOTAO
Adhesive Type Rubber (FR)
Total Thickness 0.16 mm
Tensile Strength 150–170 N/25mm
Elongation 18–22%
Adhesion 6–8 N/25mm
Temperature Resistance 115–130°C

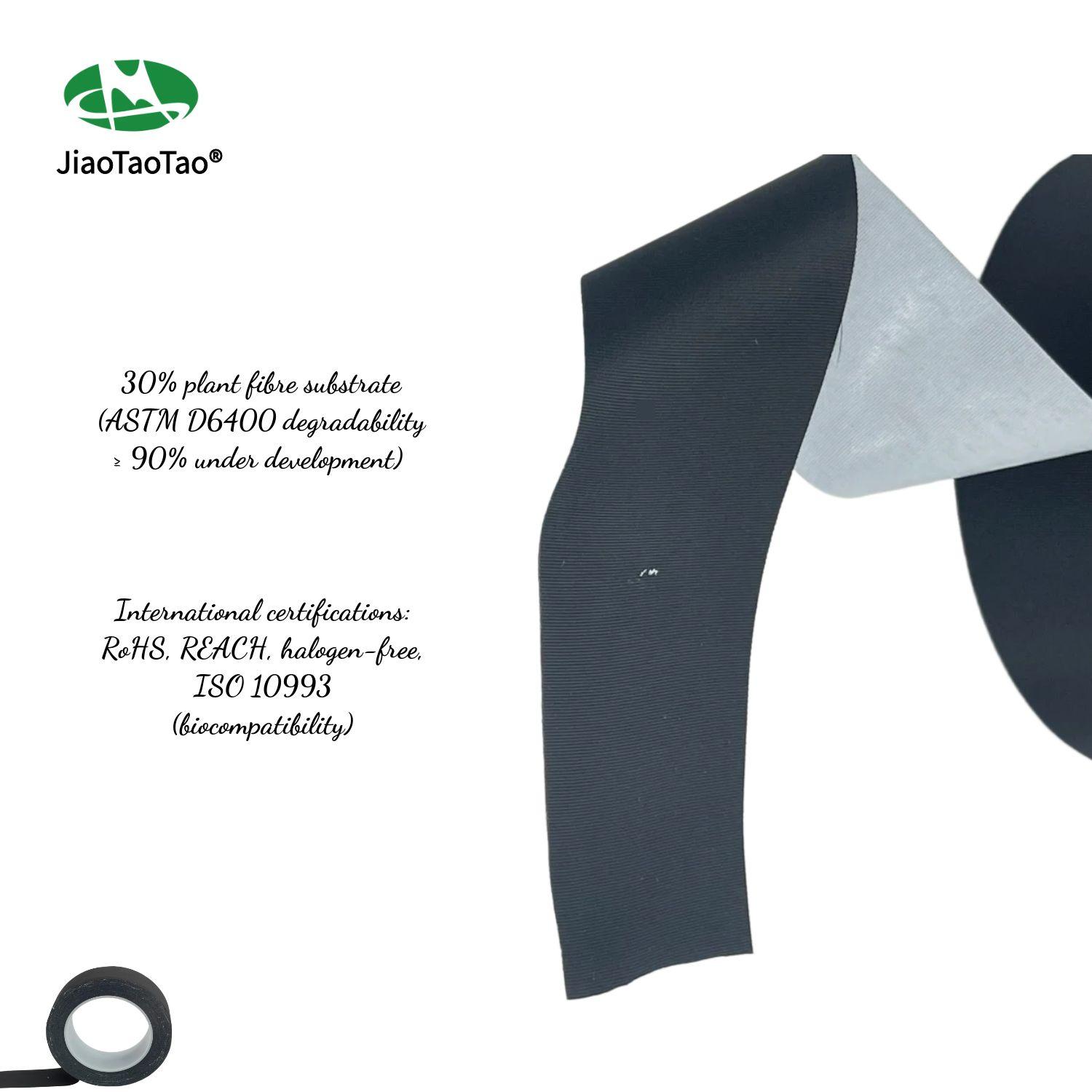

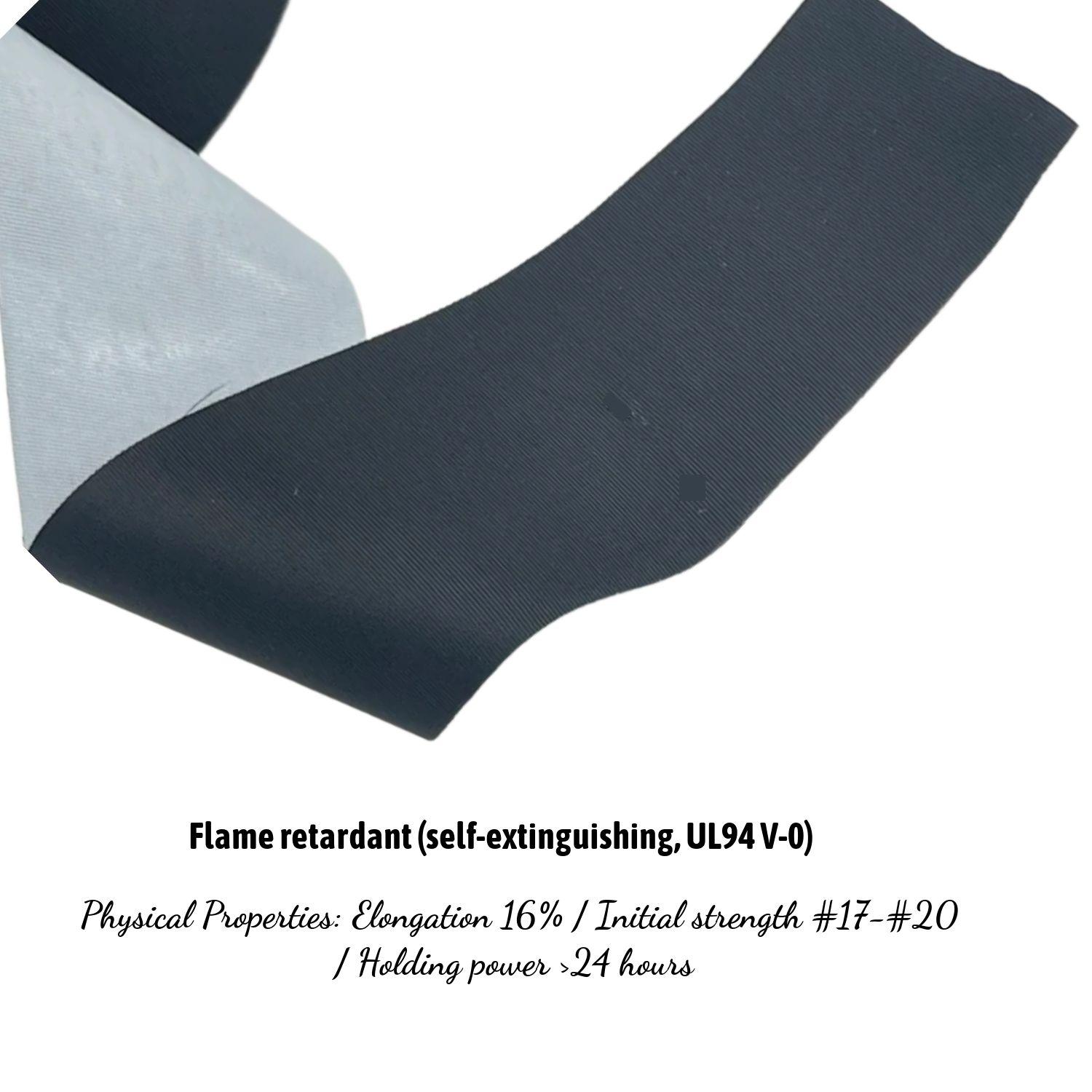

JTT-18RF Acetate Cloth Adhesive Tape
Flame-Retardant Rubber Acetate Cloth Tape for Electrical Insulation
Product Overview
Acetate cloth adhesive tape JTT-18RF is a flame retardant electrical insulation tape manufactured for internal electrical protection and coil wrapping. As a professional acetate cloth adhesive tape manufacturer, we produce this acetate cloth adhesive tape using flexible acetate fabric combined with a flame-retardant rubber adhesive system. The acetate cloth adhesive tape is designed for stable insulation performance, controlled stretch, and consistent adhesion in electrical assemblies.
This acetate cloth adhesive tape is supplied directly from manufacturer factory lines, ensuring uniform thickness, stable adhesion values, and reliable performance across production batches. Acetate cloth adhesive tape JTT-18RF is manufactured specifically for motors, transformers, and electrical components requiring dependable cloth insulation tape without excessive thickness.
Technical Specifications
| Model No. | JTT-18RF |
|---|---|
| Adhesive Type | Rubber (FR) |
| Total Thickness | 0.16 mm |
| Tensile Strength | 150–170 N/25mm |
| Elongation | 18–22% |
| Adhesion | 6–8 N/25mm |
| Temperature Resistance | 115–130°C |
Width customization available from manufacturer
Length customization for OEM electrical assembly
Jumbo rolls and die-cut formats supplied by factory
This acetate cloth adhesive tape is manufactured for electrical insulation environments where flame retardant cloth tape and rubber adhesive insulation tape are required.
Key Features
Flame-retardant rubber adhesive for electrical safety
Flexible acetate cloth backing with good conformability
Stable adhesion without residue under normal operating temperatures
Suitable for coil wrapping and internal insulation applications
Easy hand tear and smooth unwinding during assembly
Applications
Acetate cloth adhesive tape for motor insulation tape wrapping
Acetate cloth adhesive tape for transformer coil insulation
Electrical cloth tape for internal wire harness bundling
Flame retardant cloth tape for appliance electrical protection
Rubber adhesive insulation tape for electrical assembly lines
Acetate fabric tape for electrical component fixation
Each application uses acetate cloth adhesive tape as a direct insulation and protection material without additional lamination steps.
Manufacturing Capability
As an experienced acetate cloth adhesive tape manufacturer, we operate dedicated factory production lines for electrical cloth tape and insulation tape.
Manufacturer factory producing acetate cloth adhesive tape in continuous rolls
Direct supply from factory without third-party trading layers
Manufacturer-controlled adhesive coating and cloth lamination processes
Factory testing for thickness, adhesion, and tensile performance
OEM and private label supply from acetate cloth adhesive tape manufacturer
Stable production capacity for bulk electrical insulation tape orders
All acetate cloth adhesive tape products are manufactured under internal quality control systems to ensure consistent electrical insulation performance.
FAQ
Q1: What is the temperature resistance of JTT-18RF?
A1: This tape withstands continuous temperatures of 115–130°C, making it suitable for heat-intensive electrical applications.
Q2: Is the adhesive flame retardant?
A2: Yes, it uses a rubber-based FR adhesive providing both strong adhesion and flame-retardant protection
