JIAO TAO TAO Polyester Film Tape for Electronic Insulation
JIAO TAO TAO Polyester Film Tape for Electronic Insulation is designed for component insulation, terminal protection, and electrical separation in electronic assemblies. It helps improve insulation consistency, supports cleaner internal structures, and allows manufacturers to choose suitable tape widths and thicknesses for different electronic parts, module layouts, and assembly requirements.
What is Polyester Film Tape for Electronic Insulation?
Polyester film tape for electronic insulation is a PET-based insulation tape used in electronic structures where electrical isolation, local protection, and stable application performance are required. It is commonly applied to PCB support areas, terminals, connectors, electronic components, and internal module insulation points. Compared with general-purpose tapes, this type of polyester insulation tape is more suitable for electronic assembly processes that require cleaner application, flexible size selection, and more consistent electrical insulation support.

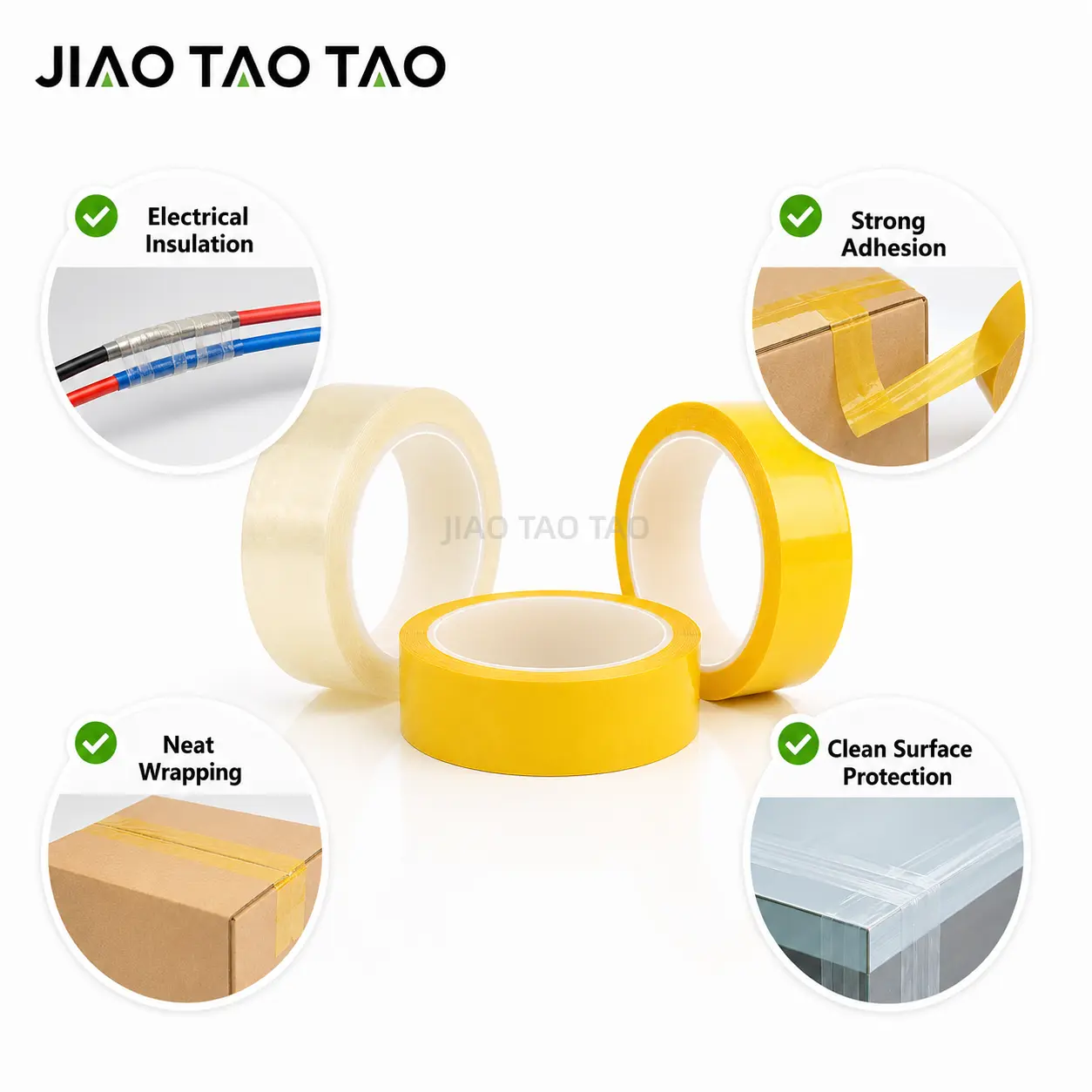

Core Features
- Polyester film backing
Suitable for electronic insulation, component protection, and electrical separation applications. - Electrical insulation support
Helps provide stable insulation performance inside electronic assemblies and module structures. - Flexible size selection
Available in different slit widths, lengths, and thickness options for different component sizes and internal layouts. - Cleaner assembly structure
Helps organize insulation points and protective wrapping more consistently during production. - OEM converting support
Supports slitting, rewinding, and packaging customization for electronics manufacturers.
Technical Specifications
| Item | Description |
|---|---|
| Color | Yellow | Black | Green | Blue | Pink | Transparent | Amber | Red | Purple | White | Orange | Deep Yellow | Custom |
| Thickness (mm) | 0.025 | 0.038 | 0.05 | 0.055 | 0.06 | 0.08 | 0.1 | 0.13 | 0.15 | Custom |
| Width (mm) | 1 mm to 1270 mm | Custom |
| Length (m) | 33 | 50 | 66 | 100 | Custom |
| Core Diameter (mm) | 25 | 32 | 38 | 76 | Custom |
| Packaging Method | Label | OPP Bag | PVC Box | Carton | Custom |
| Related Processing | + Release Liner | Die Cutting | Custom |
Detailed Technical Specifications
| Model | Total Thickness (mm) | Backing Thickness (mm) | Adhesive Thickness (mm) | Peel Strength (N/25mm) | Tensile Strength (N/10mm) | Elongation at Break (%) | Breakdown Voltage (kV) | Temperature Resistance (Long-term) | Flame Retardant Rating |
|---|---|---|---|---|---|---|---|---|---|
| JTT-MR2500 | 0.025 | 0.025 | 0 (Light Coat) | 6–7 | ≥32 | ≥60 | ≥3.8 | 130℃ | UL94 VTM-2 |
| JTT-MR2513 | 0.038 | 0.025 | 0.013 | 6–7 | ≥32 | ≥70 | ≥4.0 | 130℃ | UL94 VTM-2 |
| JTT-MR5000 | 0.050 | 0.050 | 0 (Light Coat) | 7–8 | ≥35 | ≥80 | ≥4.5 | 130℃ | UL94 VTM-2 |
| JTT-MR5005 | 0.055 | 0.050 | 0.005 | 7–8 | ≥35 | ≥80 | ≥4.8 | 130℃ | UL94 VTM-2 |
| JTT-MR5030 | 0.080 | 0.050 | 0.030 | 8–9 | ≥38 | ≥100 | ≥5.5 | 130℃ | UL94 VTM-2 |
| JTT-MR7525 | 0.100 | 0.075 | 0.025 | 8–10 | ≥40 | ≥100 | ≥6.0 | 130℃ | UL94 VTM-2 |
| JTT-MR10030 | 0.130 | 0.100 | 0.030 | 9–11 | ≥45 | ≥120 | ≥7.0 | 130℃ | UL94 VTM-2 |
| JTT-MR12525 | 0.150 | 0.125 | 0.025 | 10–12 | ≥50 | ≥120 | ≥8.0 | 130℃ | UL94 VTM-2 |
Main Applications

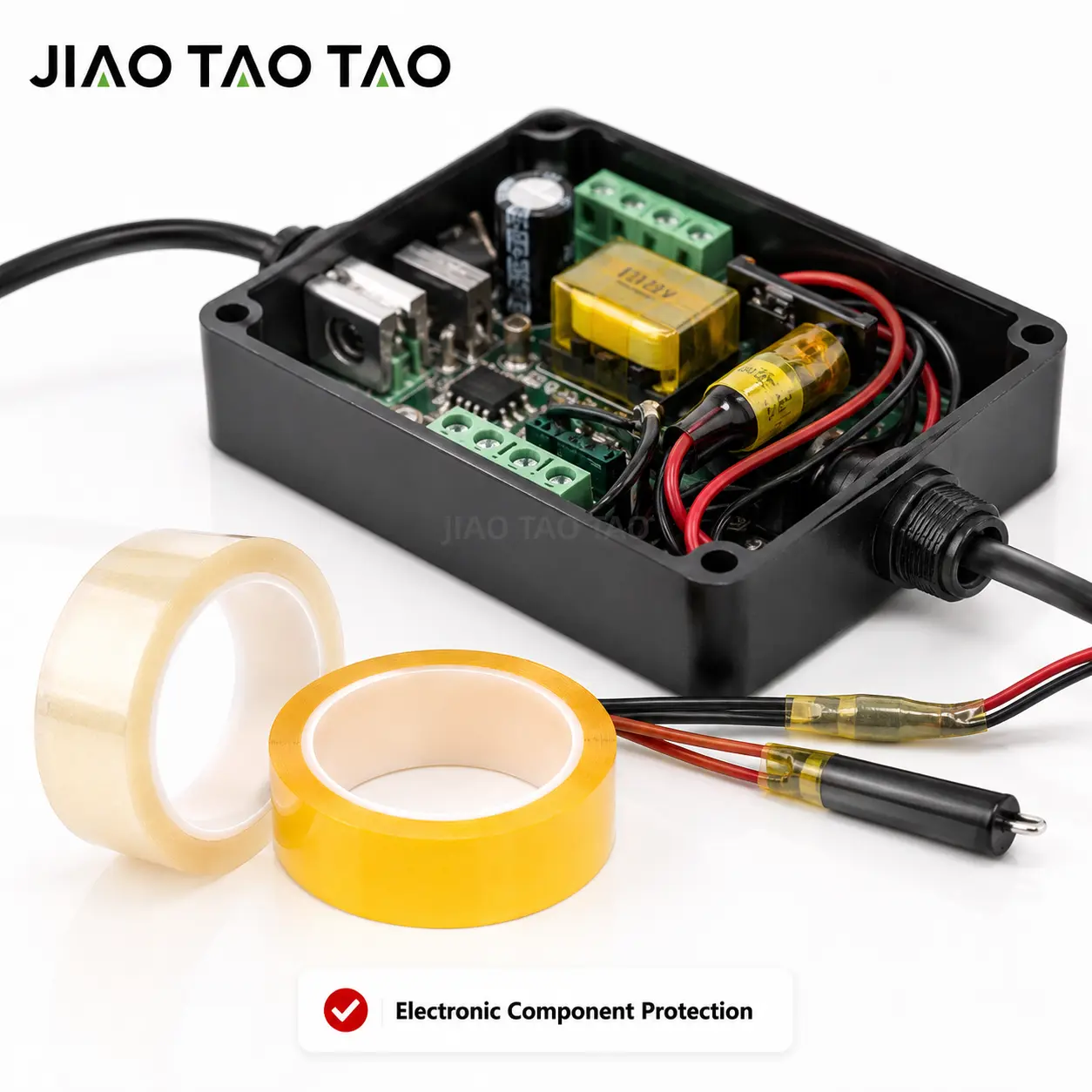

- Electronic component insulation

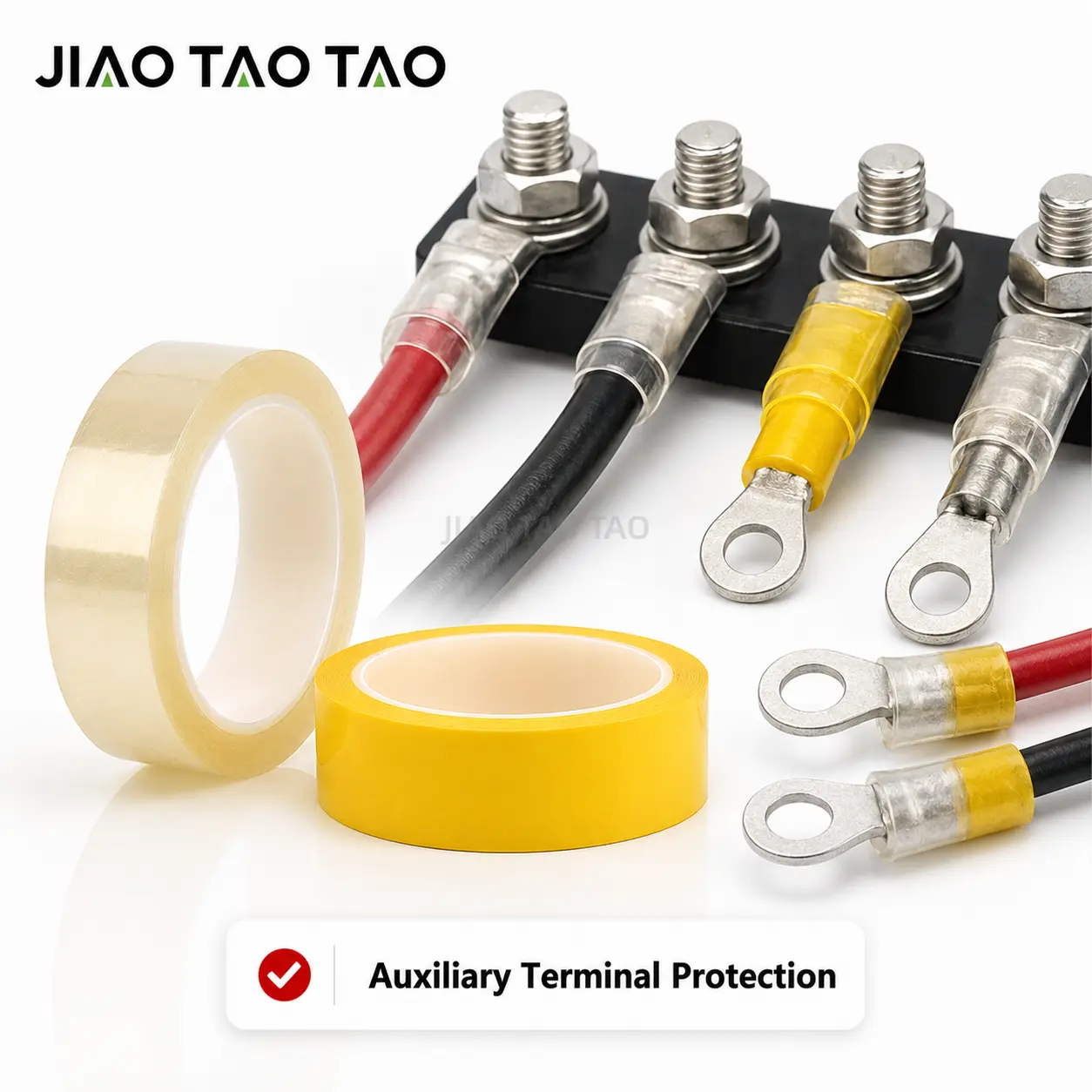

Used to protect components and improve insulation organization during electronic assembly. - Terminal and connector protection
Helps separate local conductive areas and maintain electrical isolation inside electronic structures. - PCB support insulation

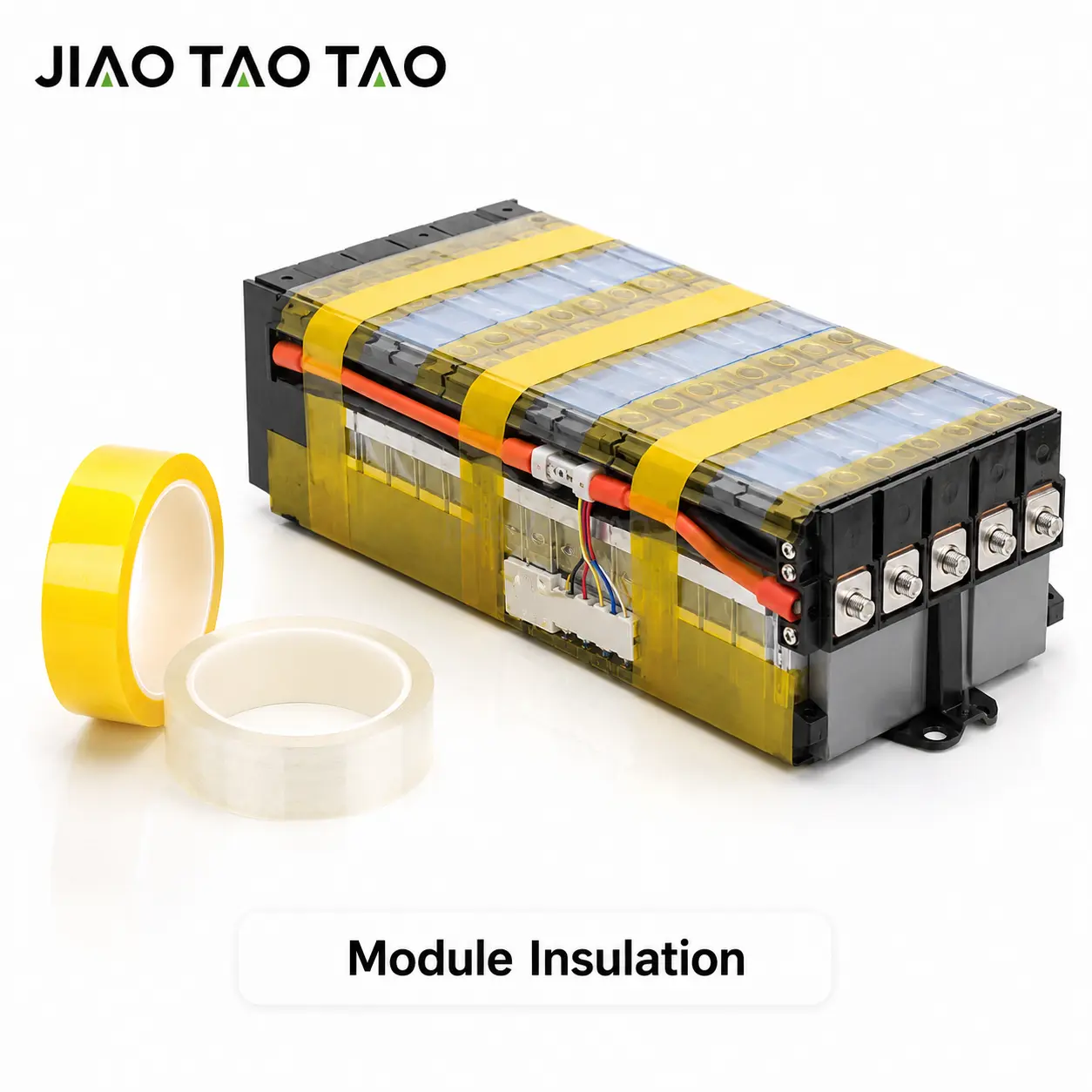

Can be used to protect local PCB-related areas where controlled insulation is required. - General electronic module insulation
Suitable for electrical separation and fixing in electronic production and assembly work.
How to Choose the Right Tape Size
- Narrow widths are suitable for terminals, connectors, and compact component protection points.
- Medium widths are commonly used for standard electronic insulation coverage and internal assembly work.
- Wider rolls are better for larger modules or broader insulation areas.
- Thinner grades are easier to apply where compact fitting and flexibility are important.
- Thicker grades are more suitable when stronger insulation build-up or added surface protection is needed.
Advantages & Suitable Scenarios
Customization Options
1. Size Customization
- Custom width
- Custom length
- Custom thickness
- Custom core size
2. Converting Options
- Slit rolls
- Rewound rolls
- Custom cut lengths
- OEM packaging
3. Color Options
- Yellow
- Black
- White
- Blue
- Green
4. Supply Support
- OEM / ODM support
- Bulk industrial supply
- Export packaging support
- Factory direct delivery
FAQ — JIAO TAO TAO Polyester Film Tape for Electronic Insulation
Q1 | What is polyester film tape used for in electronic insulation?
It is mainly used for electronic component insulation, terminal protection, connector separation, and electrical insulation inside electronic structures.
Q2 | How do I choose the right width?
The width should match the component size, insulation coverage area, and assembly method. Narrow widths are better for smaller protection points, while wider widths are more efficient for larger coverage areas.
Q3 | How do I choose the right thickness?
Thinner tape is more suitable for compact electronic assemblies and precise fitting. Thicker tape is more suitable when additional insulation build-up or stronger surface protection is needed.
Q4 | Can it be customized?
Yes. JIAO TAO TAO supports custom width, length, thickness, color, and OEM packaging according to electronic production requirements.
Q5 | Is it suitable for batch electronics production?
Yes. It is suitable for batch electronic module manufacturing and can be supplied in slit rolls or other converting formats for industrial use.
Q6 | Does it support OEM service?
Yes. OEM slitting, rewinding, and bulk industrial supply are available.
