PET Insulation Tape for Motor Winding
JIAO TAO TAO PET Insulation Tape for Motor Winding
JIAO TAO TAO PET Insulation Tape for Motor Winding is designed for motor coil wrapping, electrical separation, and insulation protection in motor manufacturing. It helps improve insulation consistency, supports cleaner winding structures, and allows manufacturers to choose suitable tape widths and thicknesses for different motor winding sizes and assembly requirements.
What is PET Insulation Tape for Motor Winding?
PET insulation tape for motor winding is a polyester film insulation tape used in motor winding structures where electrical isolation, wrapping stability, and reliable insulation support are required. It is commonly applied to motor coils, interlayer insulation areas, slot insulation support positions, and general winding protection points. Compared with general-purpose tapes, this type of polyester insulation tape is more suitable for electrical motor manufacturing processes that require controlled wrapping, flexible size selection, and more consistent insulation performance.
Core Features

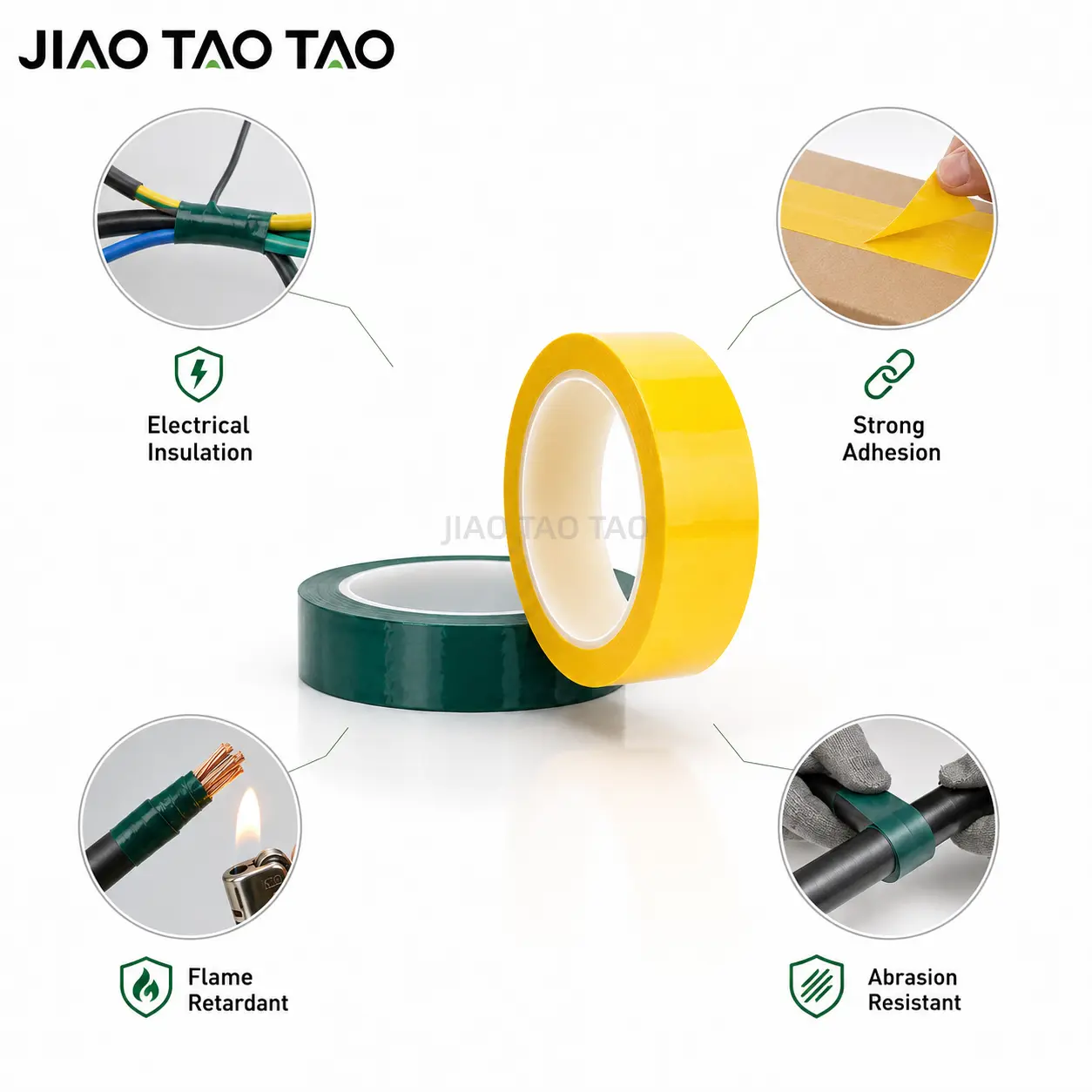

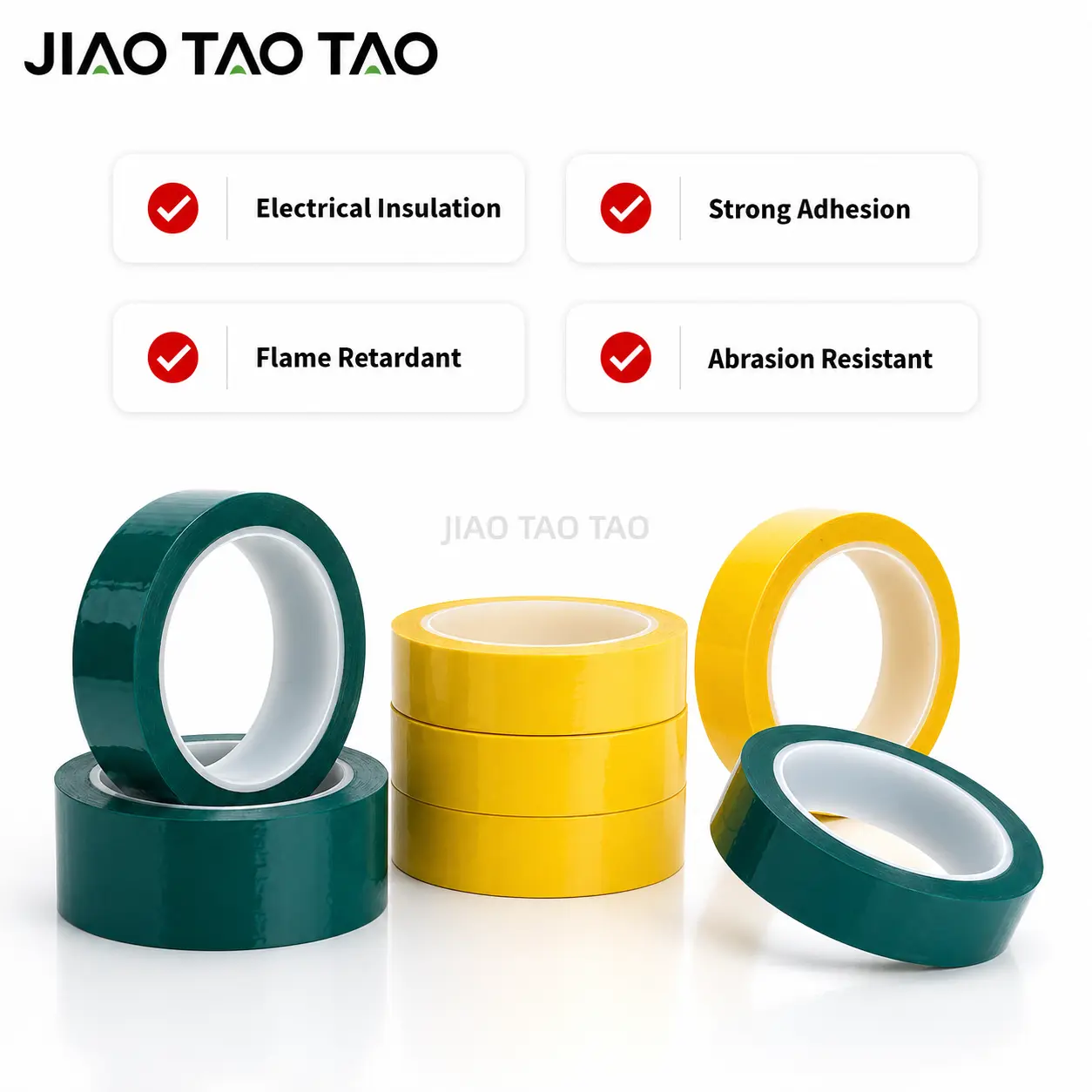

- Polyester film backing
Suitable for motor winding insulation, coil wrapping, and electrical separation applications. - Electrical insulation support
Helps provide stable insulation performance inside motor winding structures. - Flexible size selection
Available in different slit widths, lengths, and thickness options for different motor sizes and winding layouts. - Cleaner winding structure
Helps organize wrapping and insulation layout more consistently during production. - OEM converting support
Supports slitting, rewinding, and packaging customization for motor manufacturers.
Technical Specifications
| Item | Description |
|---|---|
| Color | Yellow | Black | Green | Blue | Pink | Transparent | Amber | Red | Purple | White | Orange | Deep Yellow | Custom |
| Thickness (mm) | 0.025 | 0.038 | 0.05 | 0.055 | 0.06 | 0.08 | 0.1 | 0.13 | 0.15 | Custom |
| Width (mm) | 1 mm to 1270 mm | Custom |
| Length (m) | 33 | 50 | 66 | 100 | Custom |
| Core Diameter (mm) | 25 | 32 | 38 | 76 | Custom |
| Packaging Method | Label | OPP Bag | PVC Box | Carton | Custom |
| Related Processing | + Release Liner | Die Cutting | Custom |
Detailed Technical Specifications
| Model | Total Thickness (mm) | Backing Thickness (mm) | Adhesive Thickness (mm) | Peel Strength (N/25mm) | Tensile Strength (N/10mm) | Elongation at Break (%) | Breakdown Voltage (kV) | Temperature Resistance (Long-term) | Flame Retardant Rating |
|---|---|---|---|---|---|---|---|---|---|
| JTT-MR2500 | 0.025 | 0.025 | 0 (Light Coat) | 6–7 | ≥32 | ≥60 | ≥3.8 | 130℃ | UL94 VTM-2 |
| JTT-MR2513 | 0.038 | 0.025 | 0.013 | 6–7 | ≥32 | ≥70 | ≥4.0 | 130℃ | UL94 VTM-2 |
| JTT-MR5000 | 0.050 | 0.050 | 0 (Light Coat) | 7–8 | ≥35 | ≥80 | ≥4.5 | 130℃ | UL94 VTM-2 |
| JTT-MR5005 | 0.055 | 0.050 | 0.005 | 7–8 | ≥35 | ≥80 | ≥4.8 | 130℃ | UL94 VTM-2 |
| JTT-MR5030 | 0.080 | 0.050 | 0.030 | 8–9 | ≥38 | ≥100 | ≥5.5 | 130℃ | UL94 VTM-2 |
| JTT-MR7525 | 0.100 | 0.075 | 0.025 | 8–10 | ≥40 | ≥100 | ≥6.0 | 130℃ | UL94 VTM-2 |
| JTT-MR10030 | 0.130 | 0.100 | 0.030 | 9–11 | ≥45 | ≥120 | ≥7.0 | 130℃ | UL94 VTM-2 |
| JTT-MR12525 | 0.150 | 0.125 | 0.025 | 10–12 | ≥50 | ≥120 | ≥8.0 | 130℃ | UL94 VTM-2 |
Main Applications

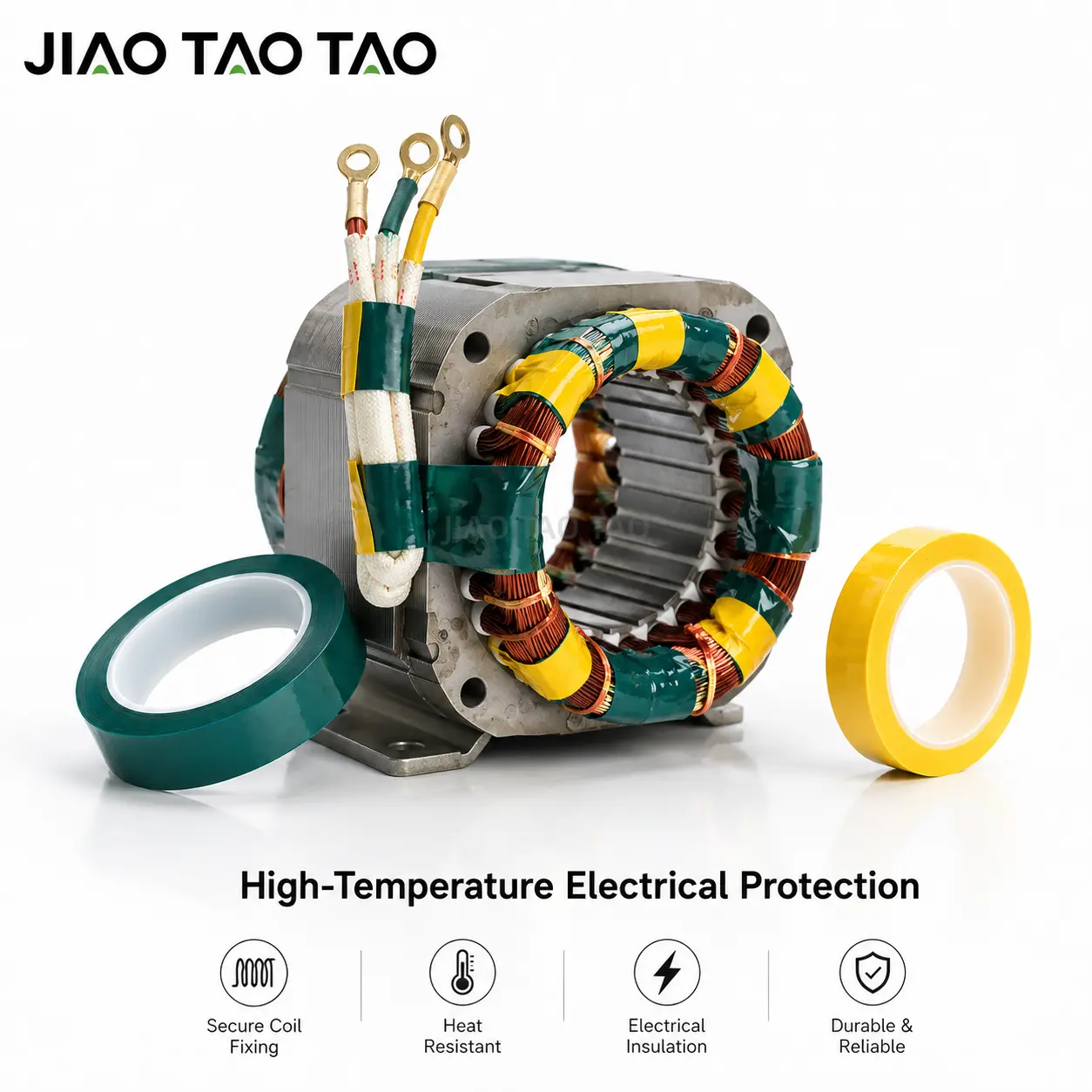

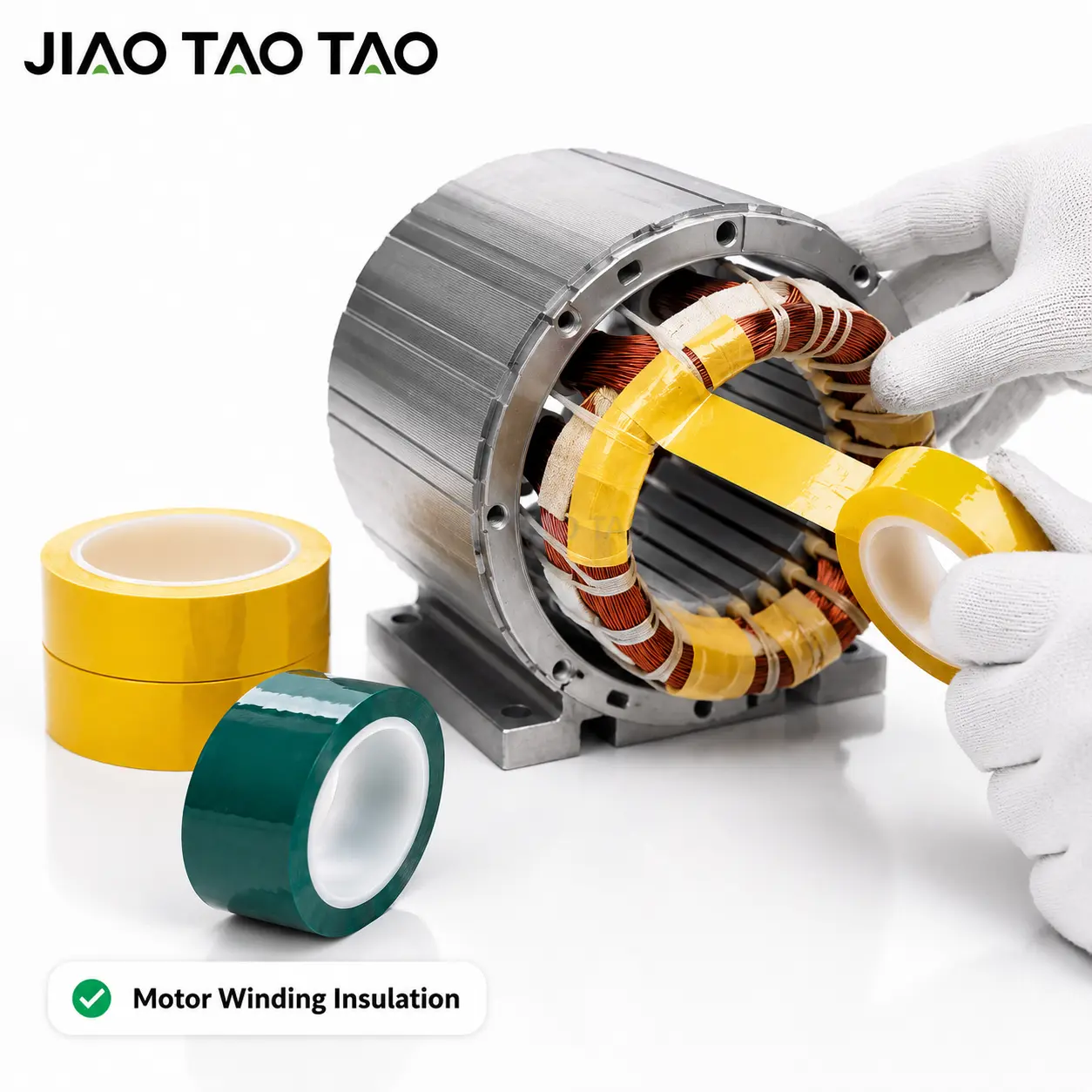

- Motor coil outer wrapping
Used to wrap motor coils and improve insulation organization during assembly. - Layer-to-layer insulation
Helps separate winding layers and maintain electrical isolation inside motor winding structures. - Slot and winding protection
Can be used to protect local winding areas where controlled insulation is required. - General motor assembly insulation
Suitable for electrical separation and fixing in motor production and repair work.
How to Choose the Right Tape Size
- Narrow widths are suitable for small motor coils, compact winding points, and slot insulation positions.
- Medium widths are commonly used for standard motor winding and interlayer coverage.
- Wider rolls are better for larger motor winding structures or broader insulation areas.
- Thinner grades are easier to apply in compact and tightly wound motor designs.
- Thicker grades are more suitable when stronger insulation build-up or added surface protection is needed.
Advantages & Suitable Scenarios
Customization Options
1. Size Customization
- Custom width
- Custom length
- Custom thickness
- Custom core size
2. Converting Options
- Slit rolls
- Rewound rolls
- Custom cut lengths
- OEM packaging
3. Color Options
- Yellow
- Black
- White
- Blue
- Green
4. Supply Support
- OEM / ODM support
- Bulk industrial supply
- Export packaging support
- Factory direct delivery
FAQ — JIAO TAO TAO PET Insulation Tape for Motor Winding
Q1 | What is PET insulation tape used for in motor winding?
It is mainly used for motor coil wrapping, layer separation, winding protection, and electrical insulation inside motor structures.
Q2 | How do I choose the right width?
The width should match the winding height, insulation coverage area, and wrapping method. Narrow widths are better for smaller motor coils, while wider widths are more efficient for larger winding areas.
Q3 | How do I choose the right thickness?
Thinner tape is more flexible for tight motor winding structures. Thicker tape is more suitable when additional insulation build-up or stronger protection is needed.
Q4 | Can it be customized?
Yes. JIAO TAO TAO supports custom width, length, thickness, color, and OEM packaging according to motor production requirements.
Q5 | Is it suitable for batch motor production?
Yes. It is suitable for batch motor manufacturing and can be supplied in slit rolls or other converting formats for industrial use.
Q6 | Does it support OEM service?
Yes. OEM slitting, rewinding, and bulk industrial supply are available.
