PET Insulation Tape for Cable Protection
JIAO TAO TAO PET Insulation Tape for Cable Protection

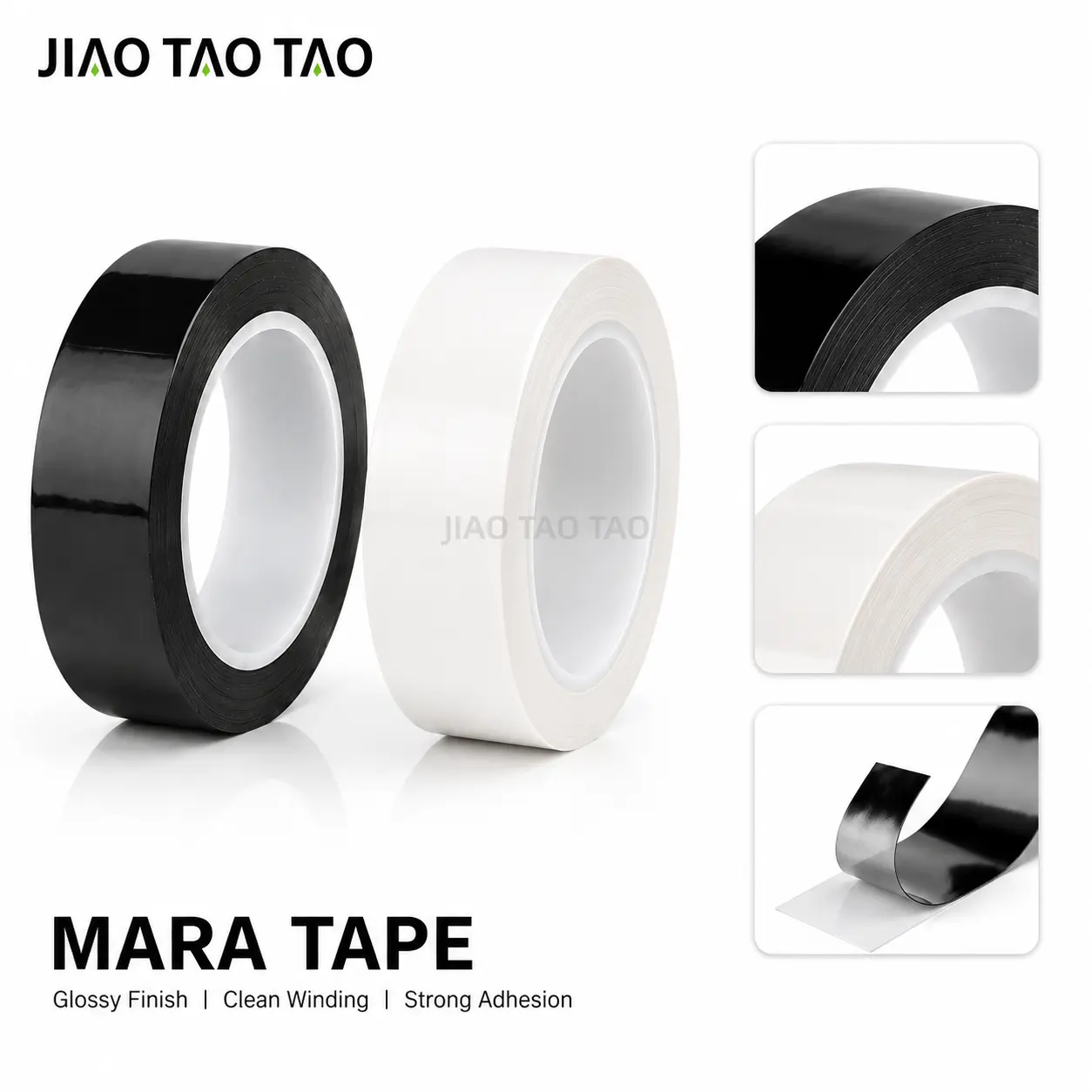

JIAO TAO TAO PET Insulation Tape for Cable Protection is designed for wire insulation, cable wrapping, and electrical protection in industrial and electrical equipment. It helps improve cable organization, supports cleaner routing structures, and allows manufacturers to choose suitable tape widths and thicknesses for different cable diameters, bundle sizes, and installation requirements.
What is PET Insulation Tape for Cable Protection?
PET insulation tape for cable protection is a polyester film insulation tape used in cable and wire structures where electrical isolation, wrapping stability, and surface protection are required. It is commonly applied to single wires, cable bundles, junction areas, and local routing protection points. Compared with general-purpose tapes, this type of polyester insulation tape is more suitable for cable processing and electrical assembly work that requires cleaner wrapping, flexible size selection, and more consistent insulation support.

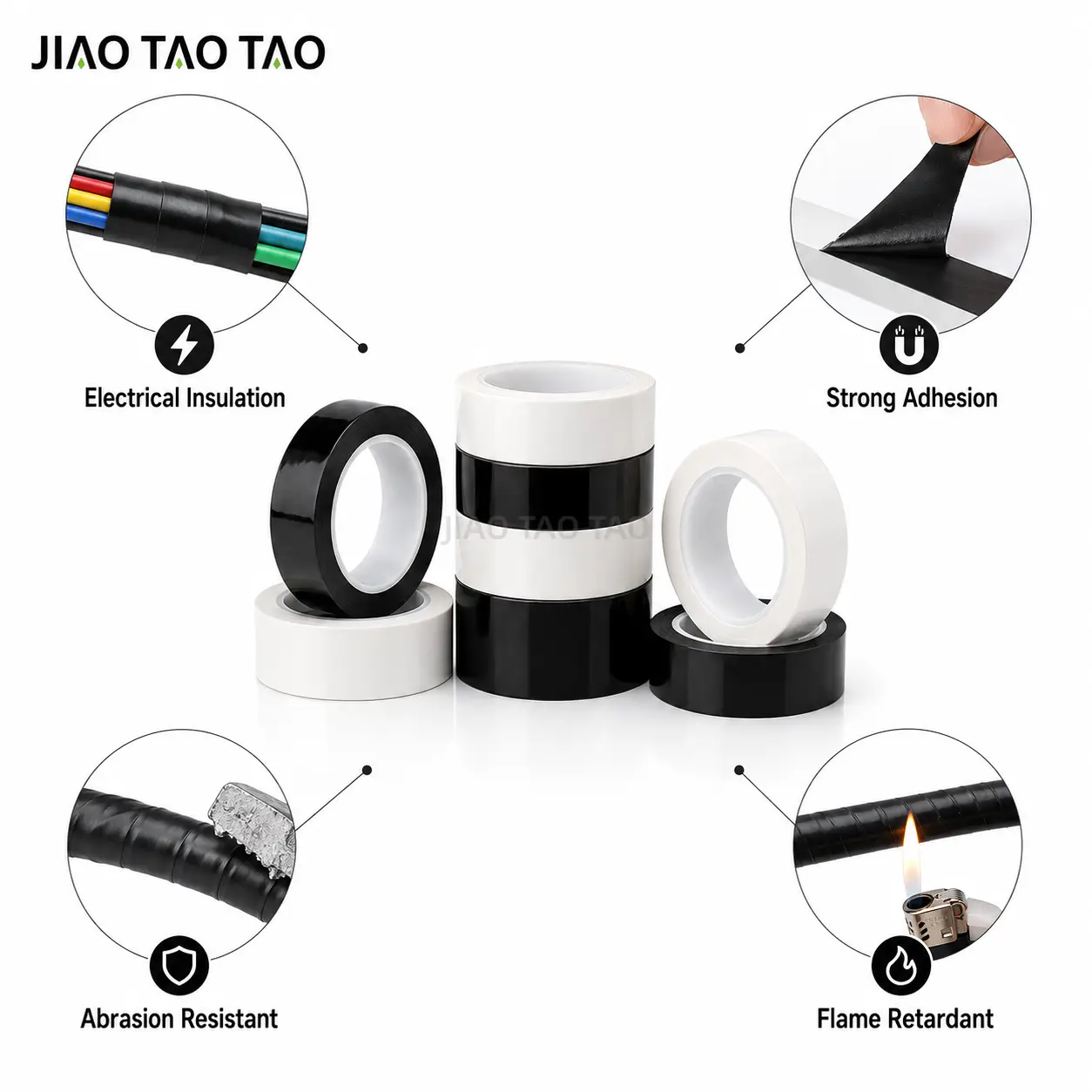

Core Features
- Polyester film backing
Suitable for cable insulation, wire wrapping, and electrical separation applications. - Electrical insulation support
Helps provide stable insulation performance around cables and wire bundles. - Flexible size selection
Available in different slit widths, lengths, and thickness options for different cable diameters and routing layouts. - Cleaner cable organization
Helps make cable wrapping and bundle protection more consistent during assembly. - OEM converting support
Supports slitting, rewinding, and packaging customization for cable and wire manufacturers.
Technical Specifications
| Item | Description |
|---|---|
| Color | Yellow | Black | Green | Blue | Pink | Transparent | Amber | Red | Purple | White | Orange | Deep Yellow | Custom |
| Thickness (mm) | 0.025 | 0.038 | 0.05 | 0.055 | 0.06 | 0.08 | 0.1 | 0.13 | 0.15 | Custom |
| Width (mm) | 1 mm to 1270 mm | Custom |
| Length (m) | 33 | 50 | 66 | 100 | Custom |
| Core Diameter (mm) | 25 | 32 | 38 | 76 | Custom |
| Packaging Method | Label | OPP Bag | PVC Box | Carton | Custom |
| Related Processing | + Release Liner | Die Cutting | Custom |
Detailed Technical Specifications
| Model | Total Thickness (mm) | Backing Thickness (mm) | Adhesive Thickness (mm) | Peel Strength (N/25mm) | Tensile Strength (N/10mm) | Elongation at Break (%) | Breakdown Voltage (kV) | Temperature Resistance (Long-term) | Flame Retardant Rating |
|---|---|---|---|---|---|---|---|---|---|
| JTT-MR2500 | 0.025 | 0.025 | 0 (Light Coat) | 6–7 | ≥32 | ≥60 | ≥3.8 | 130℃ | UL94 VTM-2 |
| JTT-MR2513 | 0.038 | 0.025 | 0.013 | 6–7 | ≥32 | ≥70 | ≥4.0 | 130℃ | UL94 VTM-2 |
| JTT-MR5000 | 0.050 | 0.050 | 0 (Light Coat) | 7–8 | ≥35 | ≥80 | ≥4.5 | 130℃ | UL94 VTM-2 |
| JTT-MR5005 | 0.055 | 0.050 | 0.005 | 7–8 | ≥35 | ≥80 | ≥4.8 | 130℃ | UL94 VTM-2 |
| JTT-MR5030 | 0.080 | 0.050 | 0.030 | 8–9 | ≥38 | ≥100 | ≥5.5 | 130℃ | UL94 VTM-2 |
| JTT-MR7525 | 0.100 | 0.075 | 0.025 | 8–10 | ≥40 | ≥100 | ≥6.0 | 130℃ | UL94 VTM-2 |
| JTT-MR10030 | 0.130 | 0.100 | 0.030 | 9–11 | ≥45 | ≥120 | ≥7.0 | 130℃ | UL94 VTM-2 |
| JTT-MR12525 | 0.150 | 0.125 | 0.025 | 10–12 | ≥50 | ≥120 | ≥8.0 | 130℃ | UL94 VTM-2 |
Main Applications

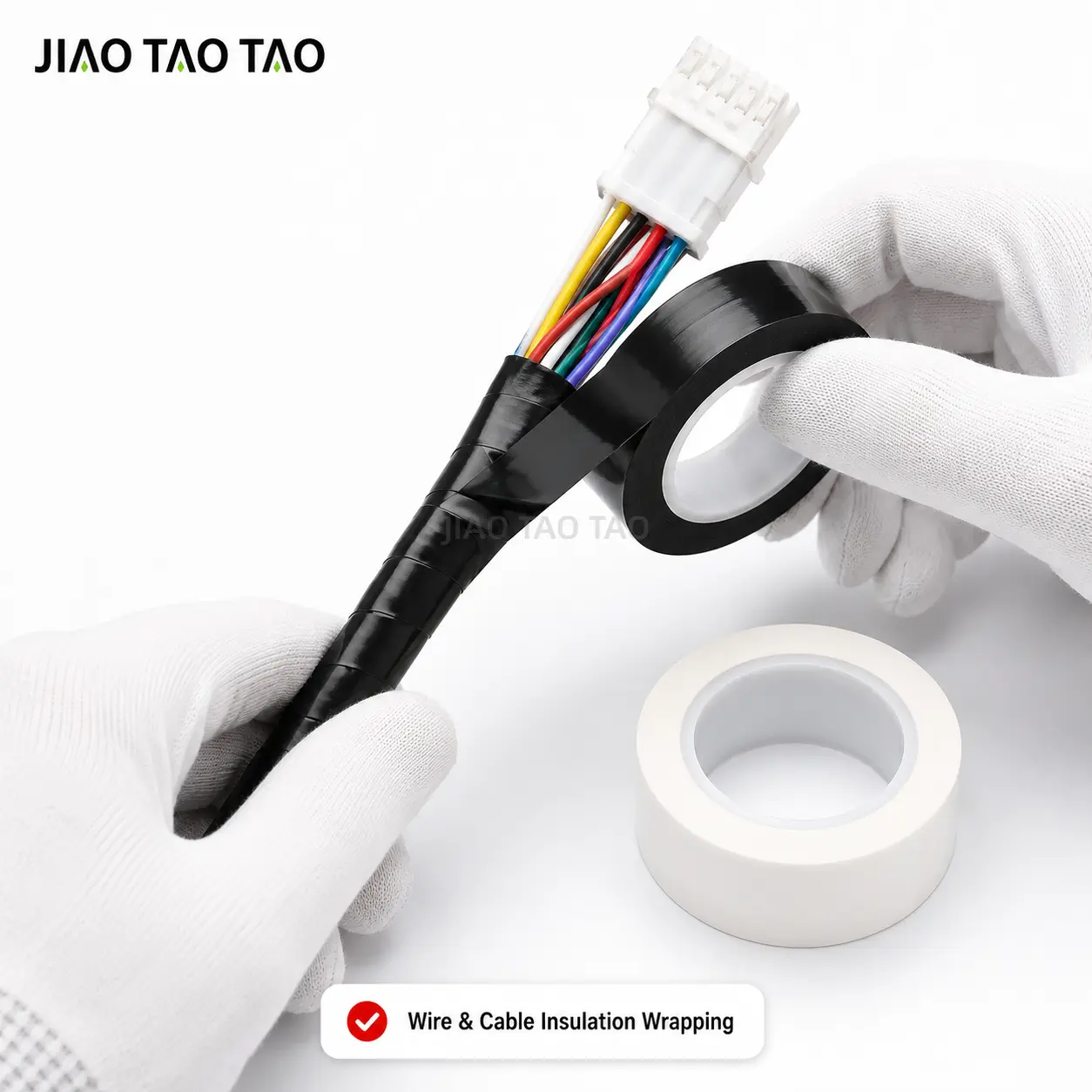

- Cable outer wrapping
Used to wrap cables and improve insulation organization during assembly and routing. - Wire bundle insulation
Helps separate wire bundles and maintain electrical isolation in cable structures. - Routing and junction protection

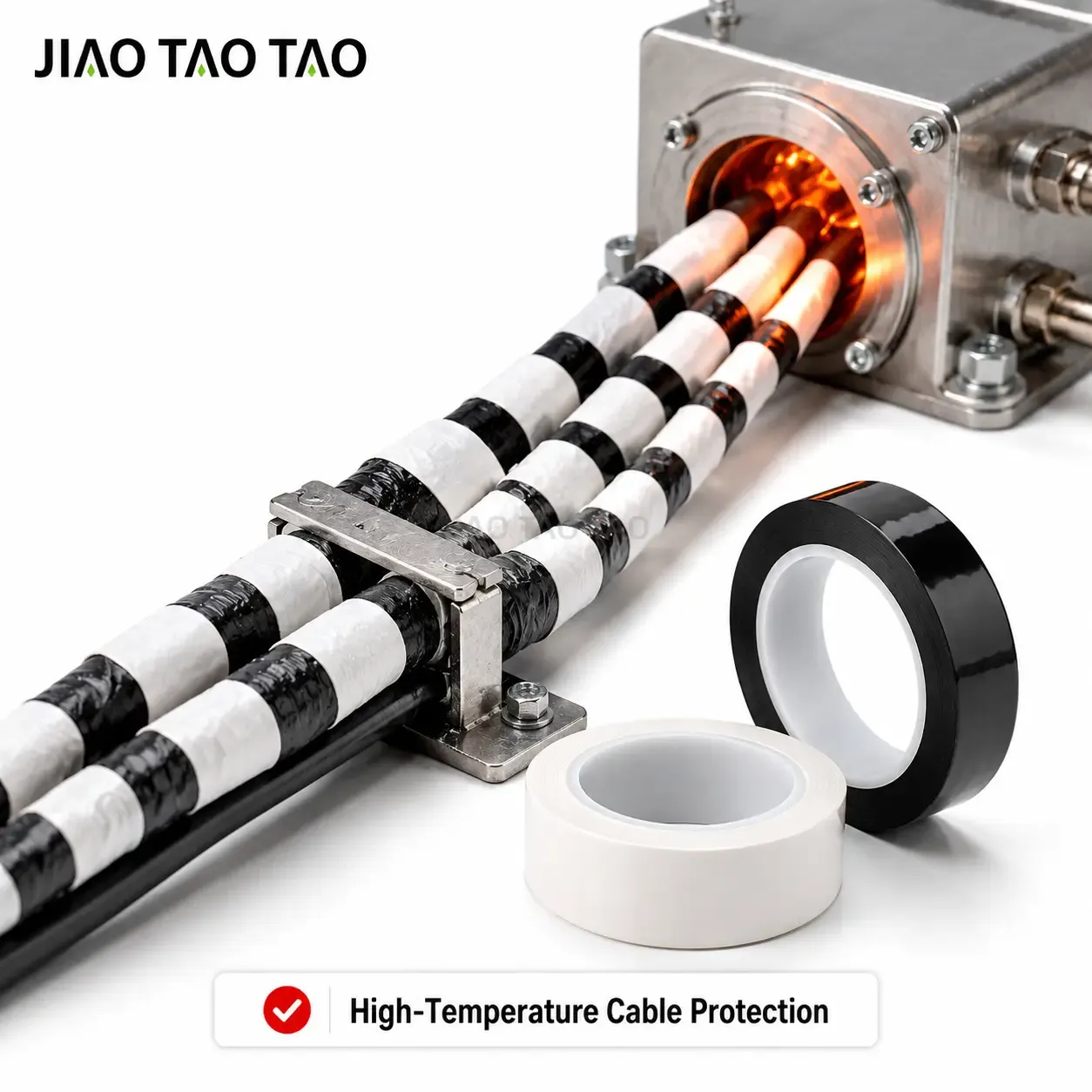

Can be used to protect local cable routing areas and junction points where controlled insulation is required. - General cable assembly insulation
Suitable for electrical separation and fixing in wire harness and cable production work.
How to Choose the Right Tape Size
- Narrow widths are suitable for small cable bundles, wire joints, and compact routing positions.
- Medium widths are commonly used for standard cable wrapping and general insulation coverage.
- Wider rolls are better for larger cable bundles or broader protection areas.
- Thinner grades are easier to apply where flexibility and conformability are important.
- Thicker grades are more suitable when stronger insulation build-up or added surface protection is needed.
Advantages & Suitable Scenarios
Customization Options
1. Size Customization
- Custom width
- Custom length
- Custom thickness
- Custom core size
2. Converting Options
- Slit rolls
- Rewound rolls
- Custom cut lengths
- OEM packaging
3. Color Options
- Yellow
- Black
- White
- Blue
- Green
4. Supply Support
- OEM / ODM support
- Bulk industrial supply
- Export packaging support
- Factory direct delivery
FAQ — JIAO TAO TAO PET Insulation Tape for Cable Protection
Q1 | What is PET insulation tape used for in cable protection?
It is mainly used for cable outer wrapping, wire bundle insulation, routing protection, and electrical insulation in cable structures.
Q2 | How do I choose the right width?
The width should match the cable diameter, insulation coverage area, and wrapping method. Narrow widths are better for smaller cable bundles, while wider widths are more efficient for larger cable protection areas.
Q3 | How do I choose the right thickness?
Thinner tape is more flexible for compact cable routing and tight wrapping areas. Thicker tape is more suitable when additional insulation build-up or stronger protection is needed.
Q4 | Can it be customized?
Yes. JIAO TAO TAO supports custom width, length, thickness, color, and OEM packaging according to cable production requirements.
Q5 | Is it suitable for batch cable production?
Yes. It is suitable for batch cable and wire harness manufacturing and can be supplied in slit rolls or other converting formats for industrial use.
Q6 | Does it support OEM service?
Yes. OEM slitting, rewinding, and bulk industrial supply are available.
Need help choosing the right industrial tape?
Send us your application details, including temperature, surface material, size, quantity and current problem. Our team will help recommend a suitable tape material or custom die-cut solution.
